ROSS pedal, for a nice strong percussive sound, without losing the sustain when you hold a note. To
remember, think of it as turning it up to get more (louder) attack. Turn it down to get less (softer) attack.
If you have humbuckers or other powerful pickups and are losing volume with the comprossor, try
turning up the ATTACK pot so you get less squashing of the strong humbucker pickup's sound. This
will allow the compressor to work great with almost any guitar.
BIAS TRIM POT:
2K. It does not affect the sound except when set incorrectly. Set it to the halfway point, basically
horizontal and it should work fine. To test or set more exactly, turn compROSSor SUSTAIN knob up all
the way. Plug in a guitar and amp. Do not play the guitar but hear the sound of the strings' noise being
compressed fully. Turn the trim pot to the center of the area in which sound is heard.
JUICER INFORMATION:
compression and "squashing" tone as used on many Steely Dan, Doobie Brothers, Dire Straits, and other
classic albums. The attack of each note is compressed and the decay of the note is brought up somewhat,
something like a tube amp's natural sag. There is not as much signal and noise amplifying "sustain"
(swell) as some compressor/sustainer pedals like the Ross, Dynacomp, Boss, etc. It adds a bit of grit to
the sound- a nice soulful sound. The Juicer uses New Old Stock 2N5437 transistors, 1N100 diodes
(rare!) and a JRC4558D chip for the smoothest sound. Also uses expensive high quality Panasonic
capacitors. May be a bit noisy with some AC adaptors, quality adaptors or battery best.
OS VOLUME KNOB:
further into distortion. If you need more volume, you may be able to, by adjusting the BIAS trim pot.
OS BIAS
trim pot is on the inside of the pedal on the circuit board Bottom Left. This is the only
tricky adjustment. It should be set by turning it up most the way, then hitting the open strings on the
guitar. Now turn it counter-clockwise until the sound cuts out. Then SLOWLY turn it back clockwise
until the sound comes back. If you turn it back until the sound barely comes on, you will not get as much
volume as if you turned it further, but will get more SQUASHING on the attack and less flutter in the
sound. If you turn it further, for more volume, you may not have as much squashing, and will also get a
bit more noise and unsteadiness. It is a fine setting, I recommend marking the factory setting (if not
already marked) and trying a bit on either side to see where you like it. Then mark your favorite setting
and you should be able to leave it there. I like to set it at the point at which the volume is the same when
the OS side is OFF and ON, when the OS VOL is set to about 11:00 when hitting the open strings on a
Strat. But best to set it to where the volume is starting to ramp up as you turn it clockwise.
ENJOY!!!!
Analog Man Guitar Effects
1D Garella Rd
Bethel, CT 06801
ATTACK

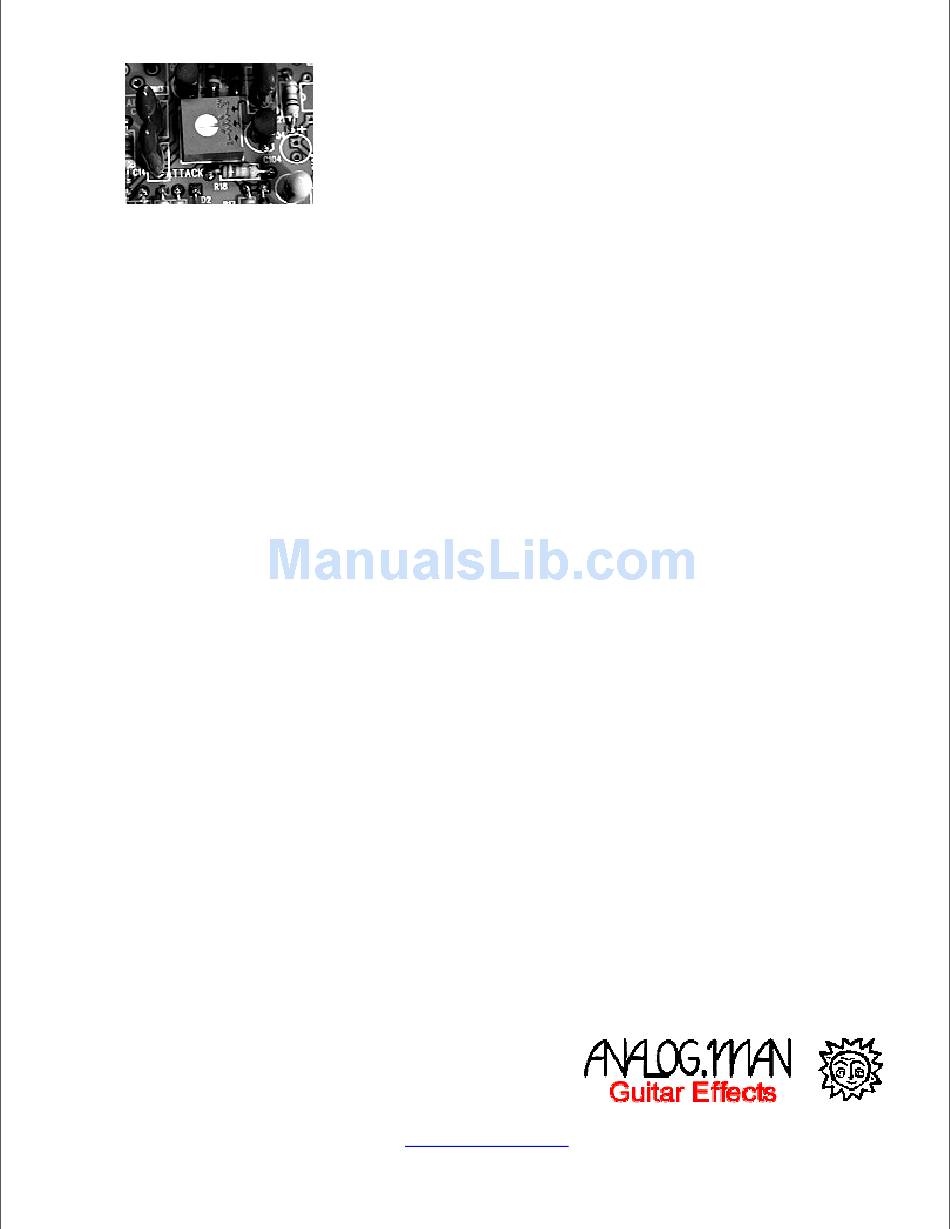

trim pot: towards the top right on the circuit board is a TRIM
POT labelled ATTACK, as seen on the left. The standard setting is half way
up, which is identical to the vintage ROSS pedal. It is with the notch pointing
LEFT (or DOWN on some versions, there will be a mark). Turning it
counter-clockwise, you can squash the attack more (faster attack time) so
there is not as much peak sound at the beginning of the notes you are playing.
Or, by turning the trim pot clockwise, you will get more attack than the stock
This trim pot is on the left central area of the board and labelled ROSS BIAS
The original Orange Squeezer is legendary for its smooth
Set the juicer volume. Can boost the signal somewhat to drive an amp
analogmike@aol.com
http://www.analogman.com
