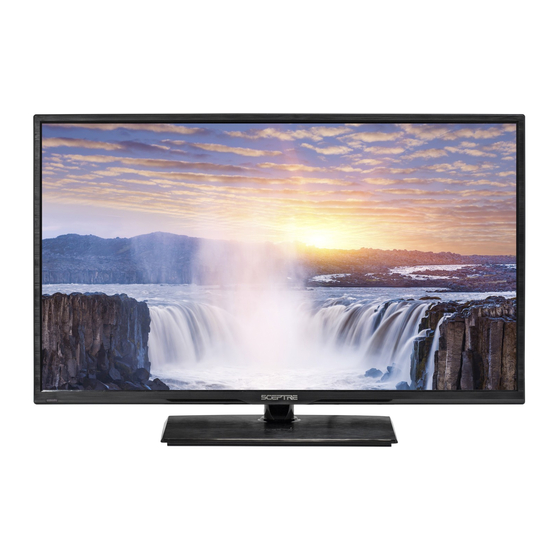

Sceptre X322 Series User Manual

PACKAGE CONTENTS

SCEPTRE Display x 1
Display Base x 1
Base Screws x (ST4x12) x 3
Neck Screws x (ST4x16) x 4
Circular Metal Plate x 1
Black Plastic Ring x 1
Power Cord x 1 (Attached)
Warranty Card x 1
Display Remote Control x 1
User Guide x 1 (Complete manual available online at sceptre.com)

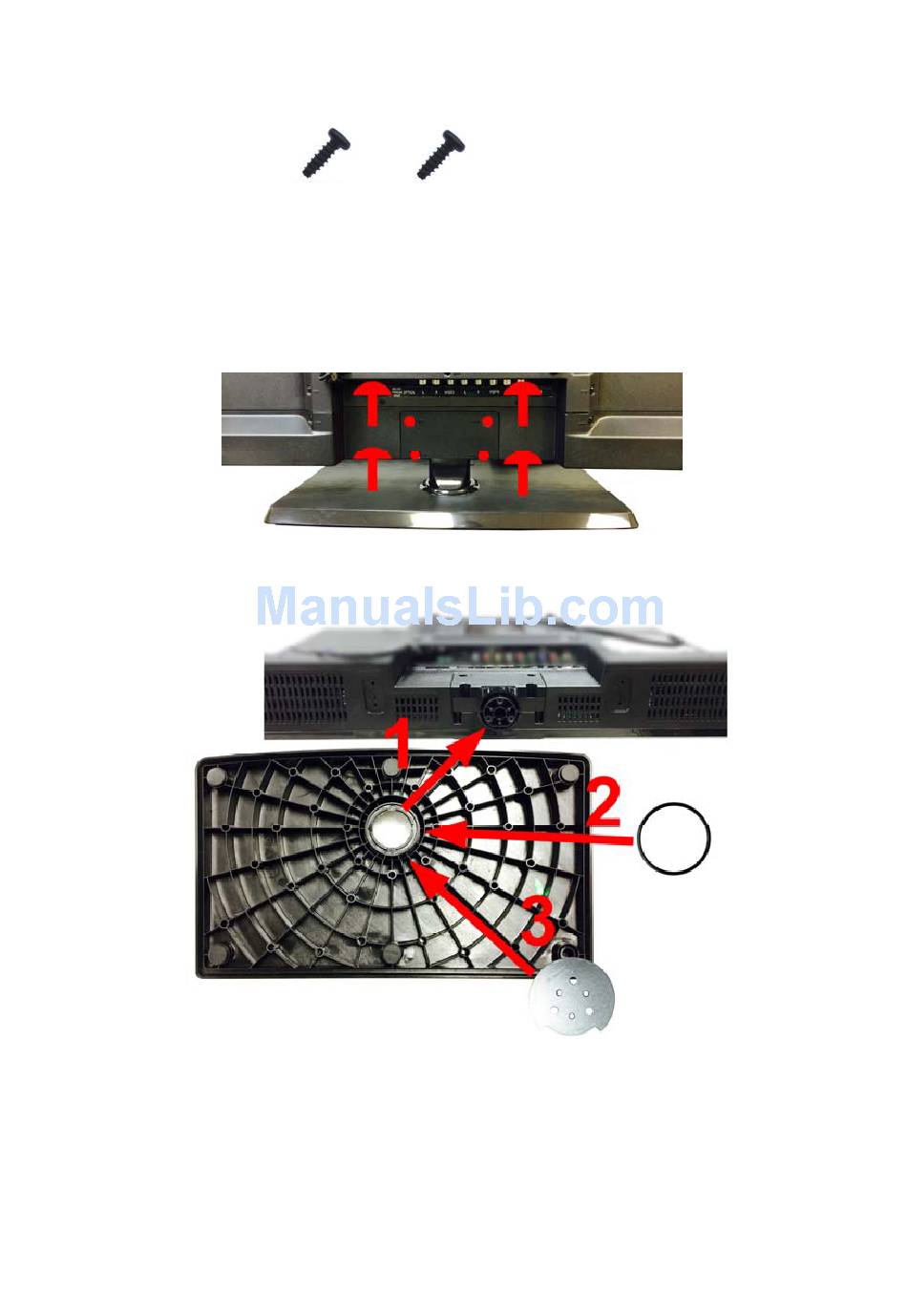

ATTACHING & REMOVING THE BASE
1. To install or remove the neck, screw in or remove the 4 screws indicated in the picture.
2. To install the base, place the display unit flat on a table. Afterwards attach the plastic base onto the neck.
Remember the plastic base should have more area facing the front of the neck. Fit the black plastic ring to
the bottom of the base, then the metal plate onto the bottom of the base by matching the 3 holes. Screw in the 3
thick threaded screws to secure the metal plate to the plastic base.
3. To finalize your installation of the Display, please read the following:
a. If you are placing the Display on a stand, we would recommend you to use a Display safety strap (not
included) in order to minimize the possibility of the Display toppling over.
b. If you are mounting the Display on the wall
c. Make sure the wall is structurally safe for the weight of the Display
d. Make sure the wall mount kit is compatible with the Display
e. Read and follow all instructions provided by the wall mounting kit.
f. Securely install all screws and connections.
X322 Series User Guide
Neck Screws
MQC Series P1
Base Screws
