Samsung S7330 Service Manual

Gsm telephone
Hide thumbs Also See for S7330:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
GSM TELEPHONE
GSM TELEPHONE
SAMSUNG S7330
1.
2.
3.
4.
Array course control
5.
6.
7.
8.
9.
Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
CONTENTS

Advertisement

Table of Contents
loading

Related Manuals for Samsung S7330

Summary of Contents for Samsung S7330

  • Page 1: Table Of Contents

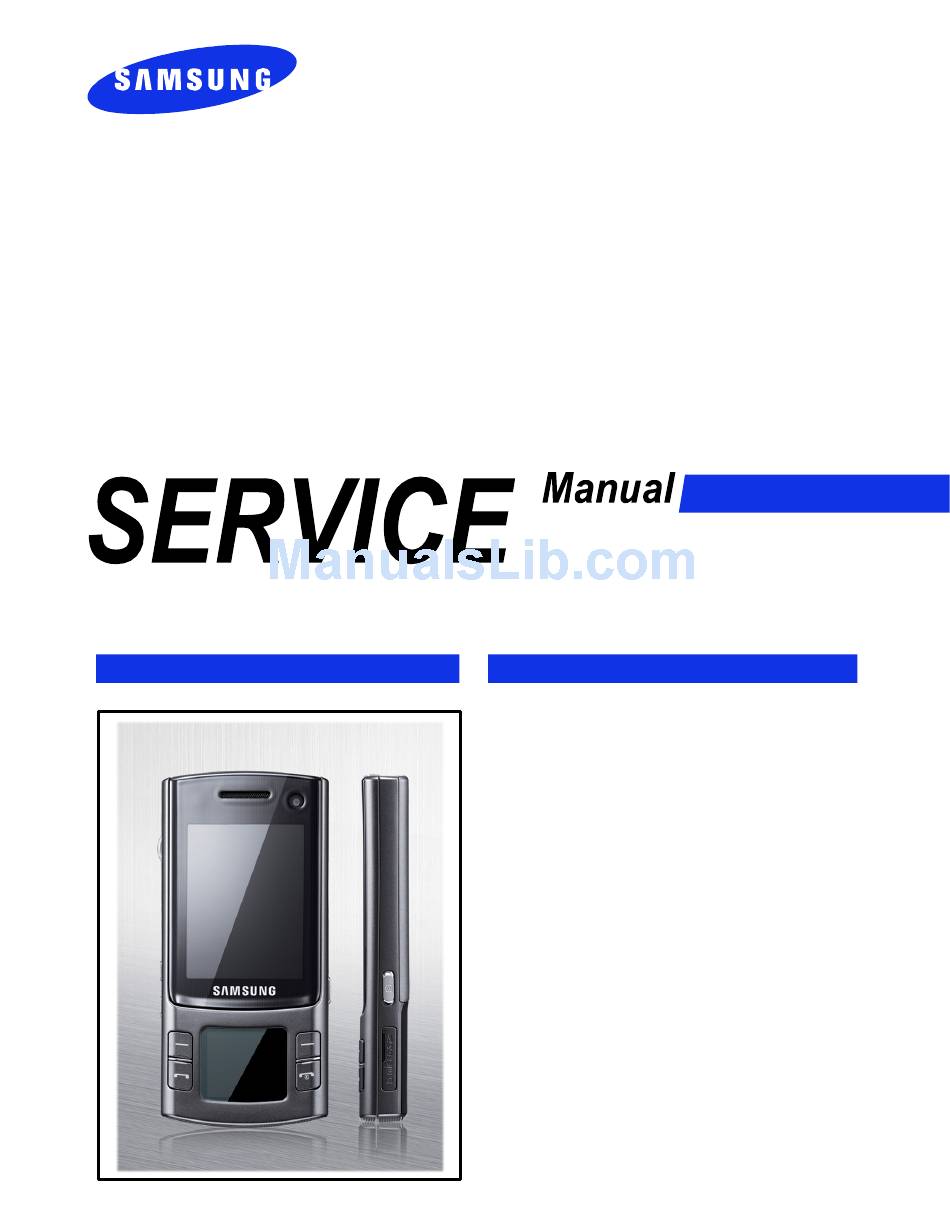

    GSM TELEPHONE SAMSUNG S7330 GSM TELEPHONE CONTENTS Safety Precautions Specification Product Function Array course control Exploded View and Parts List Main Electrical Parts List Block Diagrams PCB Diagrams Flow Chart of Troubleshooting 10. Reference data 11. Disassembly and Assembly Instructions...
  • Page 2 China china.samsungportal.com Asia asia.samsungportal.com Mideast & Africa mea.samsungportal.com This Service Manual is a property of Samsung Electronics Co.,Ltd. Samsung Electronics Co.,Ltd. ⓒ Any unauthorized use of Manual can be punished under applicable International and/or domestic law. 2008. 08. Rev.1.0...

  • Page 3: Specification

    2. Specification 2-1. GSM General Specification EG SM 8 50 EG SM 9 00 DCS1800 PCS1900 WCDMA Ph ase 2 Ph ase 2 Fre q. Band [MH z] 824 ~9 15 880 ~9 15 1 710 ~1 785 1 850 ~1 910 1 920 ~19 80 Upl ink/Do wnl ink 869 ~8 94...

  • Page 4: Gsm Tx Power Class

    Specification 2-2. GSM TX power class TX Power TX Power TX Power GSM850 / control DCS1800 control PCS1900 control EGSM900 level level level 30±3 dBm 33±2 dBm 30±3 dBm 28±3 dBm 31±2 dBm 28±3 dBm 29±2 dBm 26±3 dBm 26±3 dBm 24±3 dBm 27±2 dBm 25±2 dBm...

  • Page 5: Product Function

    ▪ GPRS Multi-slot Class 12 ▪ Downloadable Game via JAVA ▪ Sending Photo & Video by MMS or E-Mail ▪ External Memory Card Socket (T-flash) ▪ 880mAh Battery SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 6 - QPSK: Quadrature Phase Shift Keying - RS : Reed-Solomon - SI : Service Information - TDM : Time Division Multiplexing - TS : Transport Stream 11-1 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 7: Safety Precautions

    ● Don't use as you pleases after change other material than replacement registered on SEC System. Otherwise engineer in charge isn't charged with problem that you don't keep this rules. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 8 ● You must maintain electric contact between ESD and place due to be set up until ESD is connected completely to the proper place or a circuit board. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 9: Exploded View And Parts List

    QCR57 QSH01 QME03 QMP01 QAN02 QSH02 QLC01 QVO01 QSD01 QCK01 QSP01 QCA02 QRE01 QCA01 QPC01 QRF03 QCR67 QFL01 QRE04 QBA01 QFL00 QHI03 QCR67 QBA00 QHI02 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 10: Main Electrical Parts List

    ASSY KEYPAD-SUB R(XEN/LS) GH98-08616A QRE01 ASSY CASE-REAR GH98-08488A QCK01 PMO KEY-CAM GH72-47969A QRF03 PMO COVER-EARJACK GH72-47976A QSD01 PMO COVER-MICRO SD GH72-47975A QVO01 PMO KEY-VOLUME GH72-47970A SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 11: Disassembly And Assembly Instructions

    1) Be careful not to make any scratch on mechanical 1) Be careful not to make any scratch on mechanical parts during removing process. parts during removing process. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 12 1) Detach motor using tweezers 1) Be careful not to make damage of any mechanical 1) Be careful not to make any damage of connector parts SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 13 1) Remove Screw (4 point) of rower 1) Disassemble slide Assay and front 1) Be careful not to make any scratch on mechanical parts during removing process. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 14 2) Remove Slide FPCB using tweezers 1) Be careful not to make any damage of FPCB 1) Be careful not to make any damage of FPCB SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 15 LCD module 1) Disassemble sub LCD and Touch window 1) Remove touch window FPCB using tweezers 1) Be careful not to make any damage of FPCB SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 16 1) Remove CIF FPCB using tweezers 1) Be careful not to make any damage of FPCB 1) Be careful not to make any damage of FPCB SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 17 1) Remove inettena from PBA tweezers 1) Be careful not to make any damage of FPCB 1) Be careful not to make any damage of PBA SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 18 1)Attach CIF FPCB on 3M camera connector 1) Be careful not to make any damage of connector 1) Check touch window attaching , Press again SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 19 2) Attach Slide FPCB 1) Be careful not to make any damage of connector 1) Attach after align Guide rib Attach after align Guide silk line SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 20 1) Be careful not to make any scratch on mechanical parts during assembling screw 1) Be careful not to make any damage of FPCB 2) Screw size : M1.4*L1.5 TORQUE : 1.0~1.2 Kgf·cm 7-10 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 21 1) Assemble PBA on the front 1) Be careful not to make any damage of connector 1) Assemble PBA from the right to left 7-11 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 22 1) Be careful not to make any scratch on mechanical parts during assembling screw 1) Be careful not to make any damage of PBA 2) Screw size : M1.4*L3.5 TORQUE : 1.0~1.2 Kgf·cm 7-12 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 23 Exploded View and Parts List 1) Attach rear cover 1) Be careful not to make any scratch on mechanical parts during attach rear cover. 7-13 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 24 Check the PMIC output voltage Check U400 (C422,C424,C423,C417, C428,C418) Check Pin#3 of TCX200 Check the clock generation circuit is 19.2MHz? (related to TCX200) Check the initial operation 10-1 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 25 Flow Chart of Troubleshooting 10-2 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 26: Power Management Ic

    D400 ON_SW USB_ID KPD_PWR_N C436 USB_OE_N MSM_INT_N PM_INT_N R410 PS_HOLD USB_OVP_G PON_RESET_N PON_RESET_N USB_SE0 PS_HOLD BOOT_SW SLEEP_CLK USB_VBUS SLEEP_CLK R412 R413 BAT400 C438 C439 10-3 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 27: Charging Part

    (if it has some problem, it is to be replaced.) U401 pin 5 = High? Replace U401 Check the Battery & TA Check the U400 10-4 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 28 R425 CRDL 2 USB ICDL 9 CHG_CURRENT _PPR R426 CHG_DETECT_N _CHG USBON CHG_INDICATE 5 _EN IMIN 6 CHG_EN_N R427 R428 C454 C440 R429 C441 10-5 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 29: Sim Part

    Check the voltage at pin#1 Check the U400 of SIM400 >= 3.0V ? Is there any signals Check the U400 pin#2,#3,#4 of SIM400 ? Check the SIM Card 10-6 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 30 Flow Chart of Troubleshooting < U-SIM > VREG_USIM_3.0V R422 SIM400 SIM_RST SIM_CLK SIM_IO 11 11 C449 C450 C451 C452 C453 10-7 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 31: Microphone Part

    O.K? Check the reference voltage on MAIN-MIC path Check the path around MIC_BIAS circuit 1.8V @ R509 ? Is microphone ok? Check UCP300 10-8 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 32 10 10 KYPD_13 KEYSENSE(2) R708 R709 KYPD_15 KEYSENSE(3) R710 14 14 13 13 R711 KYPD_17 KEYSENSE(4) R712 KYPD_9 18 18 17 17 ON_SW C701 C700 10-9 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 33 Flow Chart of Troubleshooting <MAIN-MIC PATH> MIC_BIAS R509 R510 TA503 C517 C518 R511 MIC1P_F MIC1_P C520 C521 C523 R512 MIC1N_F MIC1_N C524 C525 C526 R513 10-10 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 34: Receiver Part

    Check HDC703 #6, #8 Pin and RECEIVER/SPEAKER/MOTOR FPCB. <SPK/RCV/MTR CONNECTOR> VMOT_3.3V HDC703 R722 R724 SPK_N_OUT SPK_P_OUT R721 R723 NC NC C720 TA700 C718 C722 C719 C721 D701 10-11 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 35: Speaker Part

    R504 and R506 Is there any signals at Check the U500 and circuit around L500 and L501 Check HDC703 #5, #7 pin and RECEIVER/SPEAKER /MOTOR FPCB. 10-12 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 36 TA502 C513 C514 C515 C516 <SPK/RCV/MTR CONNECTOR> VMOT_3.3V HDC703 R722 R724 SPK_N_OUT SPK_P_OUT R721 R723 NC NC C720 TA700 C718 C722 C719 C721 D701 10-13 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 37: Earphone Part

    L607 and L608 Check the IFC600 <EAR-MIC PATH> MIC_BIAS C527 TA504 R514 C529 C528 MIC2_P EARMIC_P C530 C532 C533 C531 MIC2_N EARMIC_N C534 C536 R517 C535 10-14 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 38 R504 and R506 Is there any signals at Check the U500 and circuit around R504 and R506 EAR_SW_EN(R519) is high? check the UCP300 Check the IFC600 10-15 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 39 TA502 C513 C514 C515 C516 <EAR SWITCH> VREG_MSMP_2.6V VBATT R520 R518 U501 EAR_L R519 EAR_SW_EN H : On EAR_SW_L L : Off C537 C538 10-16 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 40 18 18 20 20 22 NC 23 NC 25 NC L604 R612 C611 C618 C607 C608 C610 C609 ZD602 TA603 TA601 C612 ZD603 ZD601 10-17 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 41: Fm Radio Part

    Check the Earphone and UFM100 and L604? Is there any signal at R504 Resolder the UFM100 and R506? Check UCP300 Replace the UCP300 Check the EAR/SPEAKER Path. 10-18 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 42 RADIO_ANT I2S_SSDO DOUT C130 3 RFGND UFM100 LOUT 14 C131 ROUT RADIO_RST VREG_MSMP_2.6V RADIO_3.0V I2C_SCL I2C_SDA SLEEP_CLK R123 VREG_MSMP_2.6V C140 C139 C138 R121 R122 10-19 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 43 F100 CHECK? re-solder or change TCX200, C225 TCXO CLOCK CHECK? re-solder or change 19.2MHz @ C225 U200 U200 Check? change or re-solder UCP300 CHECK!! 10-20 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 44 F101 CHECK? re-solder or change TCX200, C225 TCXO CLOCK CHECK? re-solder or change 19.2MHz @ C225 U200 U200 Check? change or re-solder UCP300 CHECK!! 10-21 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 45 F102 CHECK? re-solder or change TCX200, C225 TCXO CLOCK CHECK? re-solder or change 19.2MHz @ C210 U200 U200 Check? change or re-solder UCP300 CHECK!! 10-22 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 46 F103 CHECK? re-solder or change TCX200, C225 TCXO CLOCK CHECK? re-solder or change 19.2MHz @ C225 U200 U200 Check? change or re-solder UCP300 CHECK!! 10-23 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 47 U200 Check? change or re-solder F200 F200 Check? re-solder or change TCX200, C225 TCXO CLOCK CHECK? re-solder or change 19.2MHz @ C225 UCP300 CHECK!! 10-24 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 48 Flow Chart of Troubleshooting 10-25 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 49 Flow Chart of Troubleshooting 10-26 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 50 Flow Chart of Troubleshooting 10-27 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 51 CHECK R104, R107, Circuit ? R108 Check the Power @Pin#8 PAM100 of PAM100? re-solder or change RFS100 Check RFS100? change or re-solder Antenna re-solder or change 10-28 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 52 CHECK R104, R107, Circuit ? R108 Check the Power @Pin#8 PAM100 of PAM100? re-solder or change RFS100 Check RFS100? change or re-solder Antenna re-solder or change 10-29 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 53 CHECK R101, R102, Circuit ? R103 Check the Power @Pin#8 PAM100 of PAM100? re-solder or change RFS100 Check RFS100? change or re-solder Antenna re-solder or change 10-30 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 54 Check DUP200? re-solder or change Check the Power @Pin#8 PAM100 of PAM100? re-solder or change RFS100 Check RFS100? change or re-solder Antenna re-solder or change 10-31 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 55 Flow Chart of Troubleshooting 10-32 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 56 Flow Chart of Troubleshooting 10-33 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 57 Flow Chart of Troubleshooting 10-34 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 58: Bluetooth Part

    Check the Voltage CHECK U400 @C126(2.6V), C128(2.6V) Check the Clock @ CHECK TCX200 C115 BT_ANT Check BT ANT? re-solder or change Exchange BT Module 10-35 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 59 XTALP R116 UART1_TX UART_RXD R117 UART1_RX UART_TXD RFTUNE TP_BT_RST BT_RESET VREG1 RST_N SLEEP_CLK TP_BT_VREG_CTL VREG2 LPOIN nBT_PWDN VREG_CTL TST1 C137 VCTRIFP C127 C141 R120 10-36 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 60 4. Array course control 4-1. Software Adjustments 1. JIG(GH80-03308A): Download, Trace, Calibration, etc 2. 0.4M Test cable(GH39-00886A): JIG to phone 3. 1.5M Test cable(GH39-00890A): JIG to phone SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 61 Array course control 4.Travel Adaptor(GH44-01702A) 5.Data Link Cable(GH39-00922A): USB cable 6.Serial cable(LJ39-00013A) : PC to JIG SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 62 Array course control 7. RF test cable(GH39-00985A): RF test SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 63 – FactoryFs_S7330_Open_Europe_Common.ffs : Default file system to be put into in initial production 4-2-2. Pre-requsite for Downloading •Downloader Program (MultiLoader V5.33.exe) •S7330 Mobile Phone •USB Data Link Cable •Binary files SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 64 Array course control 4-2-3. S/W Downloader Program 1. Boot the S7330 by pressing 'power ON' + 'star(*)' at the same time. If you do properly, you can see the following message on Main LCD "Download" 2. Load the binary download program by executing the "MultiLoader...
  • Page 65 Array course control 3. Select the binary file what you want to download and drag all SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 66 Array course control 4. Select the check box what you want to download. * Up to eight ports are supported. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 67 5. Now press the button 'DownLoad'. 6. When downloading is complete, UE reboot automatically. -If there is difference in FactoryFS.bin, UE will format file system automatically. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 68: Block Diagrams

    8. Block Diagrams DCS PCS GSM850 EGSM UMTS 2100 TX/RX GSM900 DCS 1800 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 69 S7330 BLOCK DIAGRAM A (1 :12 ) S P K _ AM P _ E N S D RAM_D(0:31 A U D IO _ S W SPK AMP S P K + VOI C E_ O UT_N S P K -...
  • Page 70 VC040205X150R V400 1405-001110 AVLC-14S-02-050 V401,VR402 1405-001133 AVLC-18S-02-015 VR400,VR401 1405-001177 AVLC-5S-01-015 R208,R209,R509,R702 2007-000138 RC1005J101CS R203 2007-000140 RC1005J102CS R407 2007-000144 RC1005J512CS R312,R315,R316,R513 2007-000148 RC1005J103CS R515,R703,R704 2007-000148 RC1005J103CS SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 71 MCR006MZPJ680 R202 2007-008045 ERJ1GEJ101C R102,R103 2007-008046 RC0603J121CS R319 2007-008049 MCR006YZPJ202 R113,R114 2007-008052 ERJ1GENJ472X R306,R402,R412,R426 2007-008055 ERJ1GENJ104X R711 2007-008055 ERJ1GENJ104X R600,R601,R603,R604 2007-008419 ERJ1GEJ102C R503 2007-008478 RMC1/20152JPA SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 72 GRP155R71H102K C319,C322,C339,C400 2203-000438 GRP155R71H102K C529,C530 2203-000438 GRP155R71H102K C234,C238,C248 2203-000627 GRM1555C1H220J C601 2203-000725 GRP155R71H392KA01E C100,C113,C240,C435 2203-000812 GRP1555C1H330J C436,C439,C447,C501 2203-000812 GRP1555C1H330J C503,C512,C519,C701 2203-000812 GRP1555C1H330J C703 2203-000812 GRP1555C1H330J SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 73 GRM155R71A104K C237,C242,C302,C305 2203-006048 GRM155R71A104K C307,C308,C310,C312 2203-006048 GRM155R71A104K C314,C316,C321,C324 2203-006048 GRM155R71A104K C329,C333,C334,C335 2203-006048 GRM155R71A104K C345,C403,C437 2203-006048 GRM155R71A104K C136 2203-006137 CL05B223KONC C224,C229,C301,C341 2203-006194 GRP033R70J103KA01E C500,C502 2203-006194 GRP033R70J103KA01E SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 74 CV05X5R105K16AH C607 2203-006841 CV05X5R105K16AH C139 2203-006842 CL05C471JB5NNNC C125,C140,C409,C413 2203-006872 GRM155R60J225ME15D C414,C416,C419,C446 2203-006872 GRM155R60J225ME15D C102,C219,C267 2203-006890 CV105X5R106M06AT C600 2203-006978 GMK107BJ105KA-T C223,C235,C250 2203-006979 CL03B103KP3NNNC TA500,TA501,TA502 2404-001377 F980J226MMA SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 75 LFB212G45SG8A166 DUP200 2910-000024 SAYZY1G95EA0B00 L500,L501 3301-001158 BLM18PG300SN1D L403 3301-001534 BLM15AG121SN1D L107 3301-001659 BLM15AG601SN1 L601,L602 3301-001729 BLM15AG102SN1D L700 3301-001809 MMZ1005D241CT L604 3301-001970 BLM15BA330SN1 RFS100 3705-001503 KMS-560 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 76 GH70-03276A ONBOARD-CLIP-4 CLIP312,CLIP313 GH70-03276A ONBOARD-CLIP-4 BAT600,BAT601 GH70-03626A GTS7330-BATT Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...

  • Page 77: Pcb Diagrams

    9. PCB Diagrams 1. Main top BOTHHOLE700 BOTHHOLE70 R701 F705 F701 F704 SOC700 R423 C434 R715 V400 R415 C307 D700 C309 C306 C334 U711 C337 TH300 C327 C336 R501 C505 C511 UCP300 R409 C517 TP_VPD R404 C510 C516 C415 C424 C518 C406 R401...

  • Page 78: Pcb Diagrams

    PCB Diagrams 2. Main bottom SIM400 C436 MOTOR600 5000-6P-1.9S U601 R616 V401 R420 R522 R509 C335 C503 R606 C706 C537 R526 C130 CLIP309 CLIP312 C135 UFM100 C224 R113 C206 F201 R114 U602 R610 C210 R105 C213 C263 C127 C217 C112 C205 C200 C202...
