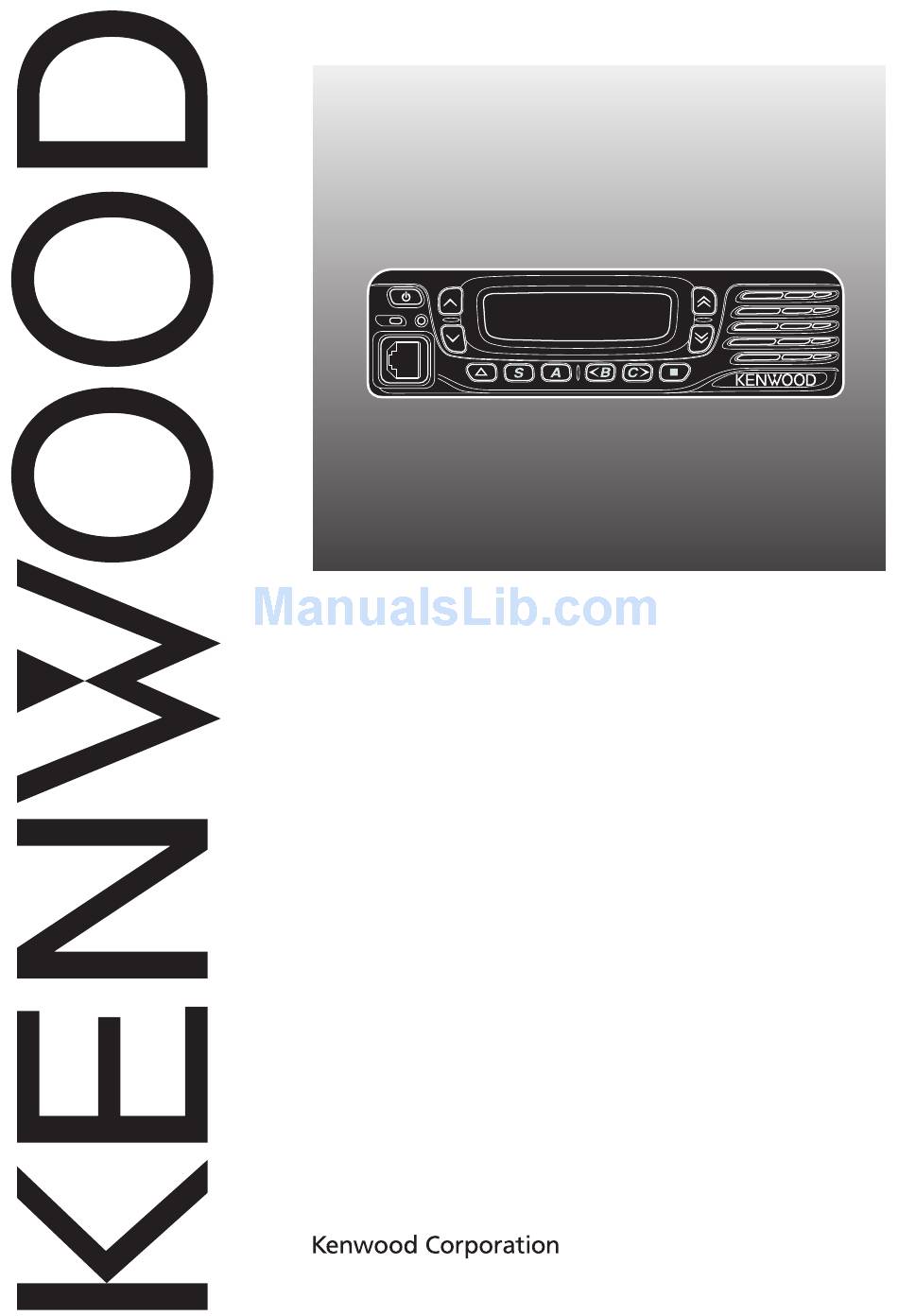

- Page 1 INSTRUCTION MANUAL VHF FM TRANSCEIVER TK-7360 UHF FM TRANSCEIVER TK-8360 © B62-2280-00 (C) 09 08 07 06 05 04 03 02 01 00...
- Page 2 n your vehcle, make sure they are carred n a closed metal box wth a padded nteror. Do not transmt whle the caps are beng placed nto or removed from the contaner. Firmware Copyrights The title to and ownership of copyrights for firmware embedded in Kenwood product memories are reserved for Kenwood Corporation.
-
Page 3: Table Of Contents
◆ The transcever operates n 12 v negatve ground systems only! Check the battery polarty and voltage of the vehcle before nstallng the transcever. ◆ Use only the suppled DC power cable or a Kenwood optonal DC power cable. ◆ Do not cut and/or remove the fuse holder on the DC power cable. -
Page 4: Getting Started
GETTING STARTED Note: The following instructions are for use by your Kenwood dealer, an authorized Kenwood service facility, or the factory. upplied cceSSorieS Carefully unpack the transceiver. We recommend that you identify the items listed below before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. -
Page 5: Installing The Transceiver
n Installing the Transceiver For passenger safety, install the transceiver securely using the supplied mounting bracket and screw set, so the transceiver will not break loose in the event of a collision. Note: Before installing the transceiver, check how far the mounting screws will extend below the surface. -
Page 6: Getting Acquainted

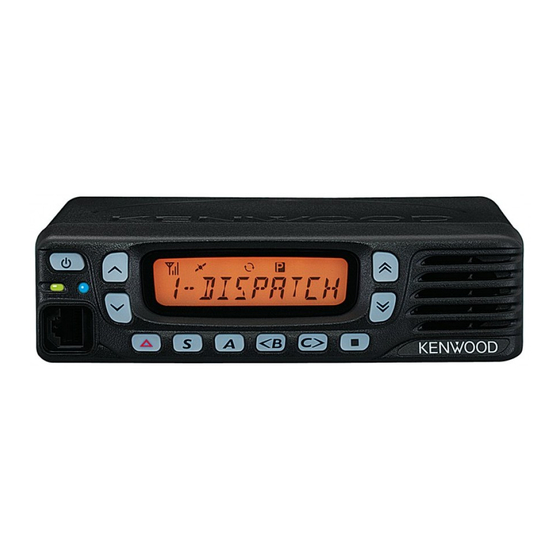

GETTING ACQUAINTED ront And iewS ① (Power) switch Press to switch the transceiver ON or OFF. ② keys Press to activate their programmable functions {page 5}. ③ keys Press to activate their programmable functions {page 5}. ④ TX/RX Indicator Lights red while transmitting and green while receiving a signal. Flashes orange when receiving an optional signaling call. - Page 7 isplay Icon Description Displays the signal strength. Not used. Lights when the GPS position is determined. Signaling is turned off. A DTMF call is being received. The Talk Around function is on. Lights while scanning or while paused on a channel. Blinks when scan is temporarily stopped.
-
Page 8: Programmable Functions
PROGRAMMABLE FUNCTIONS The , , , S, A, <B, C>, and n keys can be programmed with the functions listed below. Ask your dealer for details on these functions. • None • Paging Call • Auto Reply Message • Playback •... - Page 9 n Transceiver Password To enter the password: 1 Press to select a digit. • When using a keypad, simply enter the password digits and proceed to step 4. 2 Press C> to accept the entered digit and move to the next digit. •...
-
Page 10: Scan
SCAN Scan monitors for signals on the transceiver channels. While scanning, the transceiver checks for a signal on each channel and only stops if a matching signal is present. There are three types of scans available. • Single Scan: Monitors the channels of only the currently selected zone. If set up to scan the Priority channel, it will be scanned even if it is not in the zone. -
Page 11: Dtmf Calls
elete You can add and remove zones and/or channels/group IDs to and from your scan list. 1 Select your desired zone and/or channel/group ID. 2 Press the key programmed as Scan Delete/Add to remove a channel or press and hold the key for approximately second to remove a zone. •... - Page 12 n Storing an Autodial Entry 1 Press the key programmed as Autodial Programming. 2 Press (if the key assignment list selection is configured as “Enabled”) or <B/C> to select a memory location number. 3 Press S to enter a name for the list number. 4 Press to select a digit.
-
Page 13: Signaling
SIGNALING (Qt)/ d (dQt) uiet igitAl uiet Your dealer may have programmed QT or DQT signaling on your transceiver channels. A QT tone/ DQT code is a sub-audible tone/code which allows you to ignore (not hear) calls from other parties who are using the same channel. ptionAl ignAling Your dealer may also program several types of optional signaling for your... -
Page 14: Identification Codes
FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTION FleetSync is an Alphanumeric 2-way Paging Function and is a protocol owned by Kenwood Corporation. Note: If set up by your dealer, your transceiver may use the MDC-200 feature in place of FleetSync. MDC-200 and FleetSync cannot be operated simultaneously. - Page 15 n Transmitting If programmed by your dealer, you can press the Call 1 ~ Call 3 keys to quickly send preprogrammed status messages. You can also manually send status messages. 1 Select your desired zone and channel. 2 Press the key programmed as Status or Selcall + Status. •...
-
Page 16: Advanced Operations
ADVANCED OPERATIONS mergency AllS If your transceiver has been programmed with the Emergency function, you can make emergency calls. 1 Press and hold the key programmed as Emergency. • Depending on the delay time programmed into your transceiver, the length of time you must hold the Emergency key will vary. -
Page 17: Squelch Level
Press the key programmed as Scrambler to toggle the Scrambler function ON or OFF. • The icon appears on the display while the Scrambler is activated. When using an optional scrambler board, you can change the scrambler codes: 1 Press and hold the key programmed as Scrambler for second. •... - Page 18 ignAl trength The Signal Stength indicator shows the strength of received signals: Strong Sufficient Weak Very Weak (pA) ublic ddreSS The PA system can only be used with an external speaker. 1 Press the key programmed as Public Address to activate the Public Address function.
-
Page 19: Background Operations
BACKGROUND OPERATIONS (tot) imer The Time-out Timer prevents you from using a channel for an extended duration. If you continuously transmit for a preset time, the transceiver will stop transmitting and an alert tone will sound. Release the PTT switch to stop the tone. uxiliAry Press the key programmed as AUX to activate the auxiliary port. -
Page 20: Auto Recording
VGS-1 OPTIONAL VOICE GUIDE & STORAGE UNIT When using the optional VGS- voice guide & storage unit, you gain access to the voice recorder and voice announcement functions. Ask your dealer for details. oice ecorder The voice recorder provides you with an auto recorder to record your conversations and a voice memo function to create voice memos. - Page 21 n Auto Reply Message You can set the transceiver to automatically respond to Individual Calls. 1 Press the key programmed as Auto Reply Message. • “AUTO REPLY” momentarily appears on the display. 2 When you receive an Individual Call, Auto Reply will begin after waiting for 3 seconds, the transceiver will send an automatic response to the caller, and “GREETING”...
