DSC IMPASSA Quick Start Installation Manual

IMPASSA

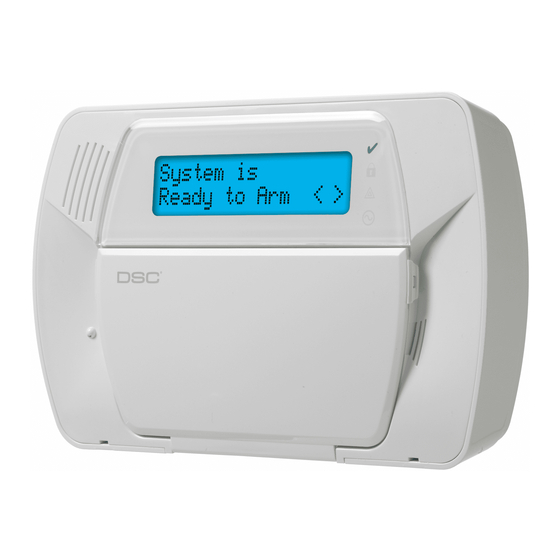

Self-Contained 2-Way Wireless Security System
Quick-Start Installation Guide
Contact your DSC distributor.
www.dsc.com | 1-888-888-7838

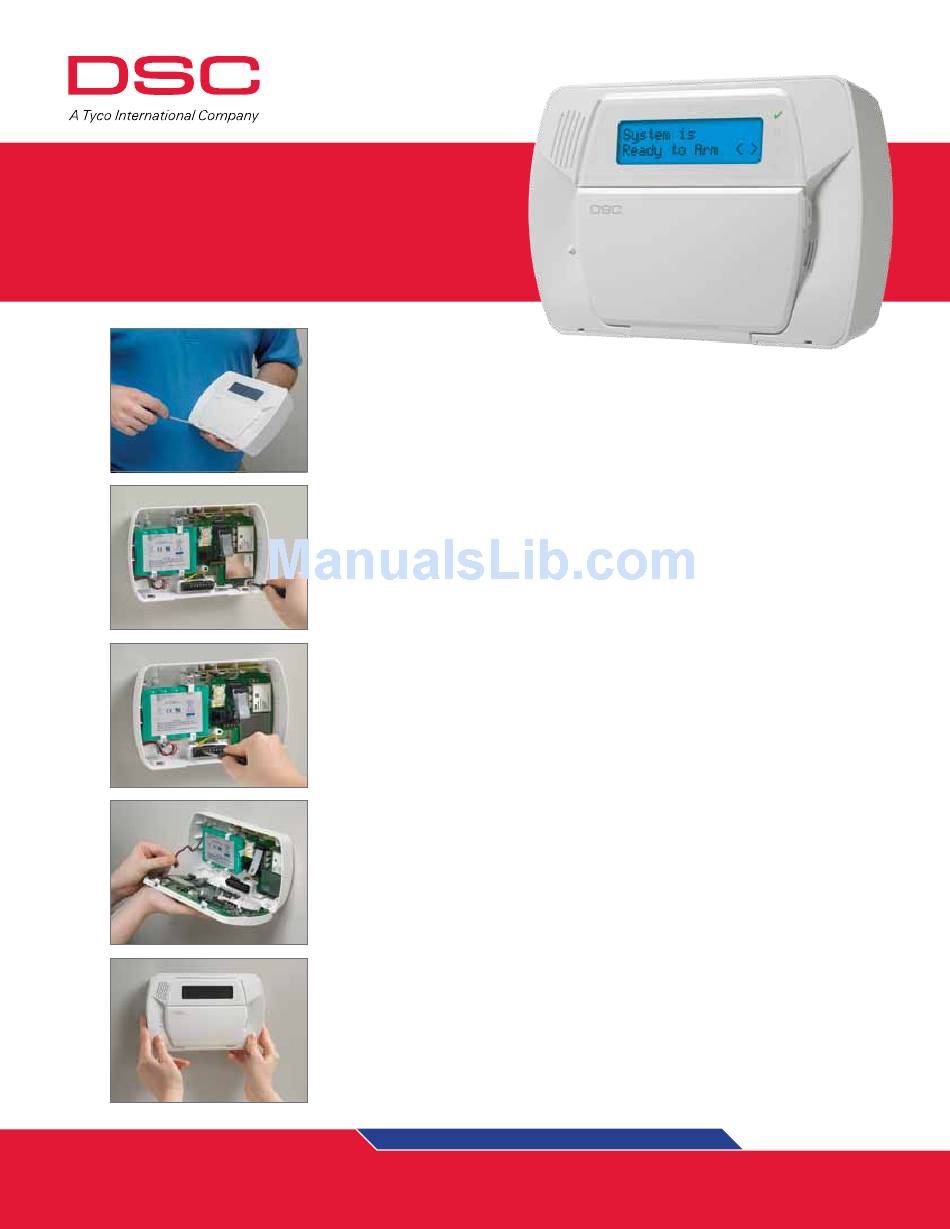

1. Remove the Front Plate
Using a small screwdriver, insert in the bottom left and right-hand slots and
gently pry to separate the front panel.
2. Mount the Back Cover
Begin by routing telephone line wiring, Input/Output wiring and AC power
wiring through the cutout in the back cover. Determine placement location
and mount the back cover to the wall using the screws and drywall plugs.
Note: For versions supporting cellular communications, the cellular signal
strength can be first checked in section [850], to determine the optimal
location to mount the unit.
3. Connect Wiring
Connect wiring to the terminal block on the back cover.
4. Connect the Battery
Connect the battery cable to the connector on the PCB, ensuring proper
orientation of the connector.
5. Attach the Front Cover
Place the top portion into the back cover first and press the bottom portion
into the back cover to snap into place.
