HP MSM320-R Quick Start Manual

Us j9365a/b, ww j9368a/b
Hide thumbs Also See for MSM320-R:

Advertisement

Quick Links

Download this manual See also: Reference Manual, Installation Manual
The MSM320-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g product. The
Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. The MSM320-R is
certified under the SpectraLink Voice Interoperability for Enterprise Wireless (VIEW)
Certification Program when it operates in autonomous mode or in controlled mode in
VIEW
conjunction with an MSM7xx Controller.
Certified
This Quickstart shows you how to get started using the MSM320-R Access Point (US J9365A/B, WW J9368A/B).
After reading this Quickstart, you can visit www.hp.com/go/procurve/manuals and download documents of particular interest such as the MSM3xx / MSM4xx
Access Points Management and Configuration Guide and the MSM7xx Controllers Management and Configuration Guide.

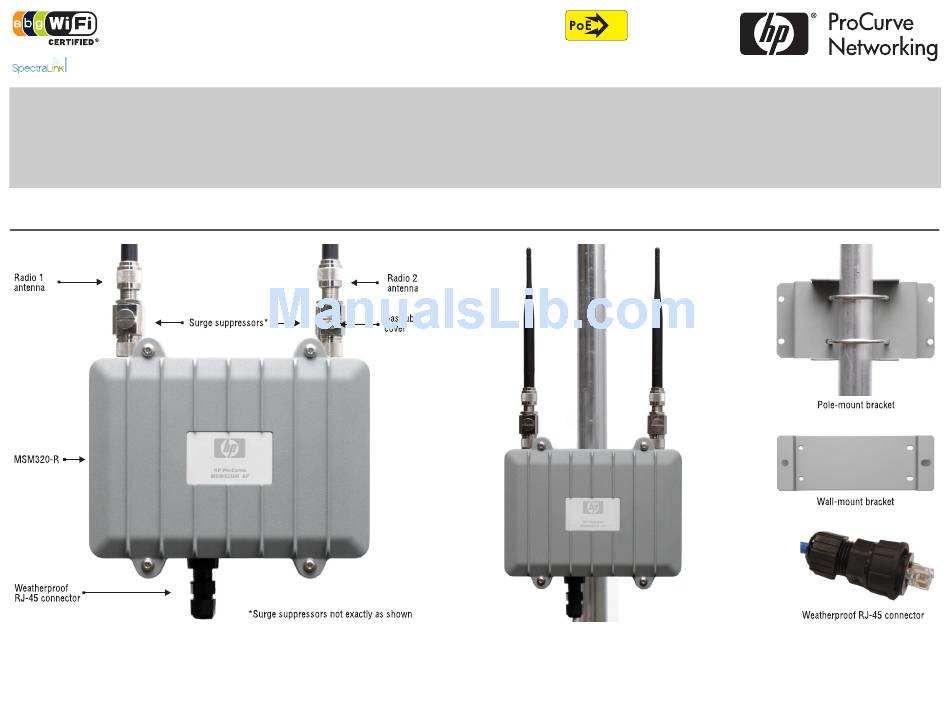

Hardware overview

Package contents
MSM320-R featuring a die-cast aluminum enclosure with three-point silicone gasket, two
2.4 GHz (5.5 dBi) 802.11b/g omnidirectional antennas, weatherproof quick-disconnect
RJ-45 Ethernet connector, wall-mount bracket, pole-mount bracket assembly, grounding lug,
two antenna adapters (only to be used with optional external antennas), documentation.
MSM320-R Access Point Quickstart
In
Radios and antennas
The MSM320-R has two radios with one antenna each. The antenna connectors are
weatherproof straight-polarity N-type female bulkhead antenna connectors. Optional external
antennas are available from HP ProCurve. On the HP ProCurve Website, see the Accessories
section for the MSM320-R.

Advertisement

loading

Related Manuals for HP MSM320-R

Summary of Contents for HP MSM320-R

  • Page 1: Hardware Overview

    This Quickstart shows you how to get started using the MSM320-R Access Point (US J9365A/B, WW J9368A/B). After reading this Quickstart, you can visit www.hp.com/go/procurve/manuals and download documents of particular interest such as the MSM3xx / MSM4xx Access Points Management and Configuration Guide and the MSM7xx Controllers Management and Configuration Guide.

  • Page 2: About Controlled Mode And Autonomous Mode

    External Antennas: When using an external antenna, depending on the Caution: The easiest way to reset an MSM320-R to its factory defaults is with its management tool. country of use, the antenna selected, and your radio settings, it may be...

  • Page 3: Plan The Installation

    Clamp Ring (C). Tighten it only enough to stay attached. Note You will have to provide an effective earth ground for the MSM320-R, at least one of its that the Screw Nut (E) remains loose on the Body (F).

  • Page 4: Initial Configuration (Autonomous Mode)

    (See illustration “Weatherproof connector parts” on previous page.) Mate the RJ-45 Install the MSM320-R Plug (G) with the socket on the MSM320-R, hold it firmly in place, and tighten the Screw Mount the MSM320-R on a wall or pole using the supplied brackets so that the antennas Nut (E) by hand.

  • Page 5: Configure Your Computer

    Wait approximately a minute for the MSM320-R to initialize before proceeding to the next step. By default the MSM320-R operates as a DHCP client. This means that if the network has a DHCP server, the MSM320-R will automatically receive a new IP address in place of its C.

  • Page 6: Test The Wireless Network

    Use a standard Ethernet cable to connect the switch or the data in port of the injector to • On both radios of a rev A MSM320-R, the 5 GHz DFS channels are enabled and can be used. the network.
