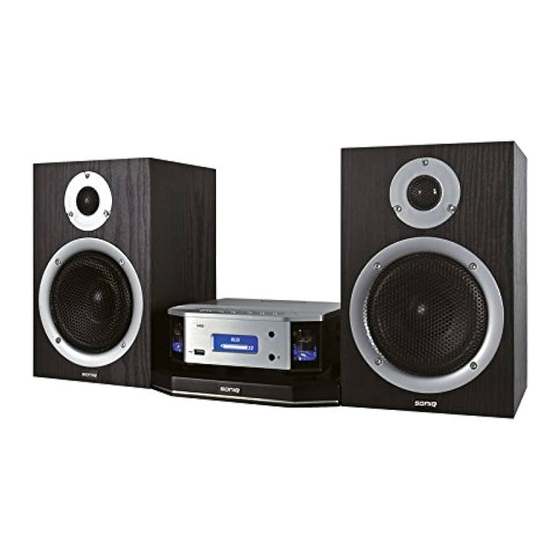

- Page 1 Mini Hi Fi System H10- MD111025-01...
-
Page 2: Package Contents
Safety precautions Package Contents Please carefully check the package first and then open the package. Package contents include: 1. Please make sure local voltage level is matched with the input level of the amplifier, which indicates on the rear panel. 2. -
Page 3: Front Panel
Safety precautions Front Panel The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert users to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of a sufficient magnitude risk shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Rear Panel
Rear Panel Top Panel TI.6AL 250V PC-DAC AUX IN SPEAKER FM ANT Picture : Back View Picture of H10 SELECTOR VOL- VOL+ ①. Type B USB Socket (PC-DAC) nect with computers. ② . FM Antenna Socket Picture III : Over View Picture of H10 onnect with the FM Antenna. -
Page 5: Remote Control
Remote Control Remote Control PC-DAC ⑥. /ATS ⑩. -:Volume down MEMORY B Operation State: Play or Pause Operation State: PC-DAC Operation State: Stop /TU+ Play or Pause FM State: FM State: /CH- /ATS /CH+ Pre-store Press for 3 seconds, and it will start pre- .VOL+ storing radio station automatically /TU-... -
Page 6: System Connection
System Connection System Connection 1. Speaker Connection 2. USB Storage Device Connection Connect USB storage device like U-Disk or MP3 player with the amplifier and press“USB on ” the remote control or“SELECTOR”on the top panel. Then the operation state will turn into“U DISK”... -
Page 7: Computer Connection
System Connection System Connection (3).Compatible for Storage Card ①.Plug the storage card to a card reader. ②.Plug the card reader to the USB socket “ ” in the front panel. TI.6AL 250V PC-DAC AUX IN SPEAKER FM ANT 4. Other Audio Devices Connection ①.Other audio devices (DVD/CD/cell phone) can be connected to the AUX socket by audio “... -
Page 8: Fm Antenna Connection
System Connection System Connection 5. FM Antenna Connection TI.6AL 250V PC-DAC AUX IN SPEAKER FM ANT ① .Connect FM antena to the FM ANT socket on the rear panel and extend it to the best “ ” location. FM Antenna TI.6AL 250V PC-DAC AUX IN... -
Page 9: Headphone Connection
System Connection System Connection 6. Headphone Connection 8. Installation of Remote Control Battery ①.Place the remote control upside down. H10 is a HI-FI power amplifier, as well as a headphone amplifier. You can enjoy the wonderful music with the headphone. ②.Press the sunken position, and then buckle downward. -
Page 10: Basic Operation
Basic Operation Basic Operation 1.Play music in USB Storage Device (5).Select Forward/ Backward by 10 Tracks You can do the following operations as you are instructed. ①.When it is playing, press“ /TU- ”on the remote control, it will turn forward to the track lining The machine supports the audio formats of mp3, wma and m4a, etc. - Page 11 Basic Operation Basic Operation 2. Listen to FM Broadcast (4) .Cancel the Prestored Stations You can do the following operations as you are instructed. Press the“ /MEMORY”for about 3 seconds, it will cancel all the prestored stations. Tune Radio Stations Manually ①...
-
Page 12: Specification
Basic Operation Specification 4. Sound Control 1. H10 Power Amplifier Power Output: 6W+6W (8Ω) (1).MUTE Frequency Response: 20Hz~22kHz (±1dB) 2. USB Storage Device ①.Press“MUTE”, and then the machine enters into mute state. The screen shows“MUTE”. Support Type A USB Socket, Full Speed (12 Mbps) ②.Press“MUTE”again or adjust the volume value, and then it will return to normal value. -
Page 13: Troubleshooting
Troubleshooting Remedy Problem Cause Please check the power cable Power cord is not connection or power outlet well-connected connection Power (LCD) is OFF Replace with the same Main fuse is out type and value fuse Cancel the mute function by Use the mute function pressing“Mute”...
