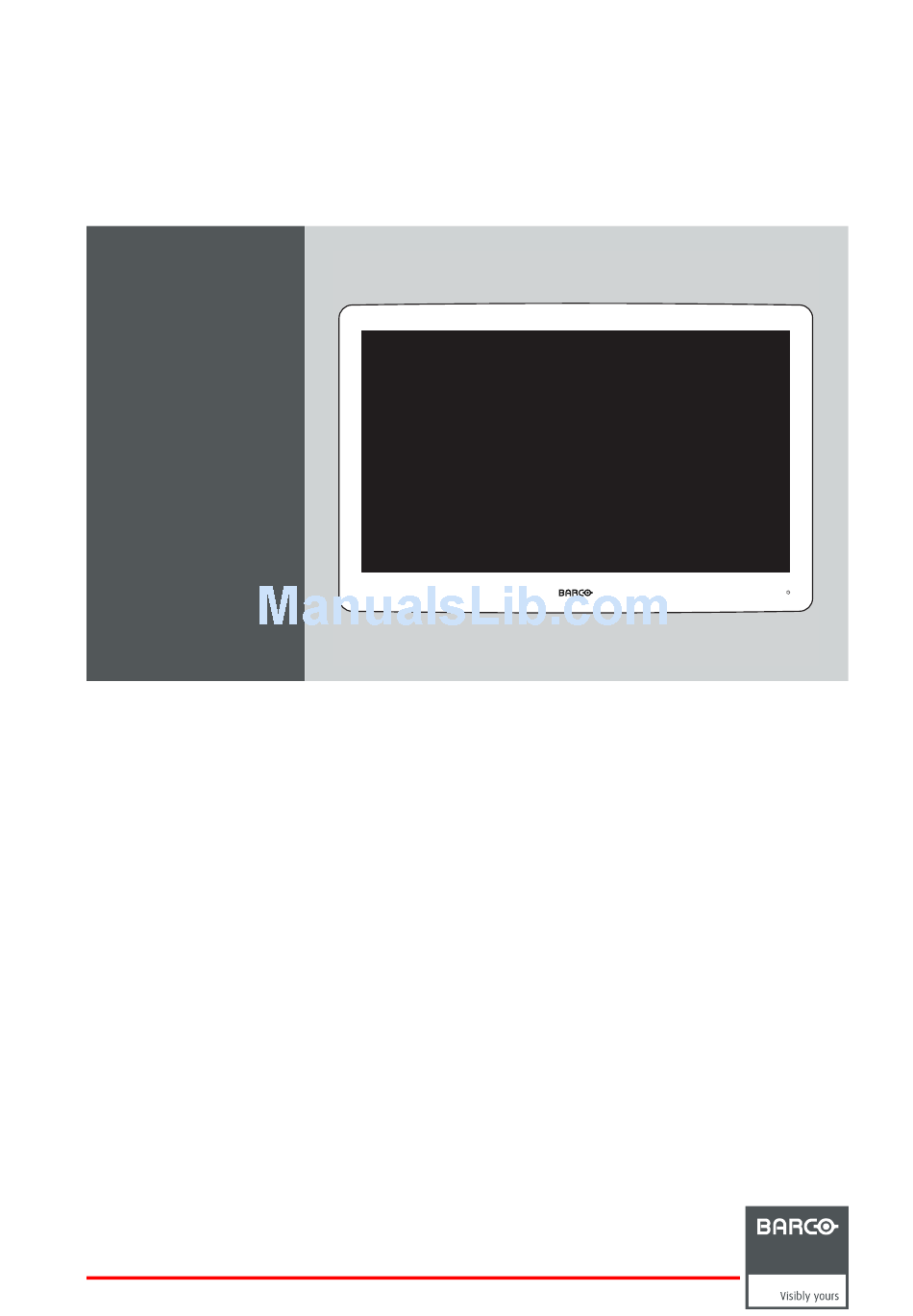

- Page 1 MDSC-2224 User Guide (451920611391)K5903031/00 21/01/2014...
- Page 2 Barco nv President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/esupport Visit us at the web: www.barco.com Printed in Belgium...
-
Page 3: Table Of Contents
2.3.1 MDSC-2224 LED version................ - Page 4 Open source license information ................59 (451920611391)K5903031 MDSC-2224 21/01/2014...
-
Page 5: Welcome
Ease of installation The MDSC-2224 comes with a smart cable management system that hides the cables for a clutter-free set-up. Its lightweight design allows easy mounting on surgical booms and spring arms. Available in different models, this surgical display also features a host of connectivity options and remote control. -
Page 6: About This User Guide
About this user guide Overview This manual provides a support to the user during the installation, set up and utilization of the MDSC-2224 display. Depending on the specific version that has been purchased, some of the features and options described in this document may not apply to the display in user’s hands. -
Page 7: Parts, Controls And Connectors
Brightness increase / Right key Stand-by key A 7-key capacitive keypad is located on the front of the display. By default only the stand-by key is visible. For keyboard activation please refer to "Keyboard activation/deactivation", page 21 (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 8: Rear View
Image 2-2 VESA mount screw holes Cable routing channel Cable routing channel expansion clip Connector compartment cover Connector compartment cover fixation screws Connector view 2.3.1 MDSC-2224 LED version Overview 10 14 13 15 Image 2-3 RS232 Input power connector DVI out DVI-1 (digital &... -
Page 9: Mdsc-2224 Mna Version
2. Parts, controls and connectors CVBS out R/Pr B/Pb S-Video out S-Video Service 2.3.2 MDSC-2224 MNA version Overview 14 18 17 19 Image 2-4 Optical 10Gb Ethernet SFP+ interface* LED2* Orange blinking: Activity = (Tx) or (Rx) Off: No network activity... -
Page 10: Connector Pin Assignments
2. Parts, controls and connectors (*) Nexxis OR functionality: for more detailed information on Barco’s Nexxis integrated OR solution please refer to the dedicated user guides. Please visit my.barco.com to obtain these user guides. Connector pin assignments 2.4.1 Input power connector... -
Page 11: Dvi Out Connector
GND (data 2 shield) Not connected Not connected SCL (for DDC) SDA (for DDC) Not connected D1_Rx- (T.M.D.S.) D1_Rx+ (T.M.D.S.) GND (data 1 shield) Not connected Not connected +5V output (*) GND (cable sense) Hot plug detect D0_Rx- (T.M.D.S.) (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 12: Rs232 Connector
Image 2-8 Function Not connected Rx (driven by host) Tx (driven by display) Not connected Ground Not connected Not connected Not connected Not connected 2.4.5 USB connector Overview Image 2-9 Function +5 VDC Data — Data + (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 13: Mini Usb Connector
ML_Lane 0 (p) ML_Lane 0 (n) ML_Lane 1 (p) ML_Lane 1 (n) ML_Lane 2 (p) ML_Lane 2 (n) ML_Lane 3 (p) ML_Lane 3 (n) CONFIG1 CONFIG2 AUX CH (p) AUX CH (n) Hot Plug Return DP_PWR (+3.3 VDC) (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 14: S-Video And S-Video-Out Connector
2. Parts, controls and connectors 2.4.8 S-Video and S-Video-out connector Overview Image 2-12 Function Ground (Y) Ground (C) Luminance (Y) Chroma (C) Shielded Ground (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 15: Display Installation
VESA arm interface with a thickness of up to 5mm. If, due to the thickness of the external VESA arm interface (=V), the length of the provided screws (=L) is not suitable, consider the following rule: = V + 20mm = V + 30mm (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 16: Cover Removal
PiP and SbS features on your MDSC-2224. This chapter describes how to connect the different video input types for each version of the MDSC-2224. 3.3.1... -
Page 17: Mdsc-2224 Mna Version
The use of an adapter cable of at least 0.15 m long will allow an easy placement inside the cable cover. 3.3.2 MDSC-2224 MNA version To connect the video inputs 1. Connect one or more of the available video source(s) to the corresponding video inputs using the ap- propriate video cable(s). -
Page 18: Video Output Connection
3. Display installation Video output connection About video output connections Beside the video input connections, the MDSC-2224 also has video output capabilities allowing you to loop-through certain video inputs connected with the MDSC-2224 to another display, projector, video recorder, ... -
Page 19: Nexxis Or
To connect your MDSC-2224 to Barco’s Nexxis OR system, connect the 10Gb Ethernet interface to your Nexxis switch. More info about Nexxis OR and how to configure the MDSC-2224 in your network is avail- able in the dedicated user guides. Please visit www.barco.com... -
Page 20: Cable Routing
3. Display installation Image 3-7 Protective earth pin 1. Earth the MDSC-2224 by connecting the protective earth pin to a grounded outlet by means of an AWG18 (max. 6ft / 1,8m long) wire. Image 3-8 Cable routing To route the cables 1. - Page 21 Image 3-10 ARNING When the display is assembled in the medical system, take care of the fixa- tion of all cables, to avoid unwanted detachment. (451920611391)K5903031 MDSC-2224 21/01/2014...
- Page 22 3. Display installation (451920611391)K5903031 MDSC-2224 21/01/2014...
-
Page 23: Daily Operation
As a result, Its backlight switches off to indicate the keyboard is locked. manually lock the keyboard by sweeping your finger over the bottom right hand side of your display. Image 4-2 (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 24: Keyboard Backlight
To switch off your display: 1. While your display is switched on, unlock the keyboard see "Keyboard activation/deactivation", page 2. Press and hold the stand-by key for approximately 3 seconds (or until the keyboard backlight stops blinking and switches off). (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 25: Power Led Status
The OSD menu position can be adjusted in the OSD menu (OSD Hor. Pos. and OSD Vert. Pos.). OSD menu navigation OSD menu structure explained Below is on example of how the OSD menu structure looks like: (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 26: Shortkey Functions
Shortkey functions About shortkey functions The concept of shortkey functions is to present a selection of commonly used functions immediately avail- able without the need to navigate through the OSD Menu. The different available shortkey functions are: (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 27: Main Source Selection
1. Use the PiP selection key ( ) to scroll through all possible configurations of Picture-in-Picture (PiP) and Side-by-Side (SbS). The different PiP/SbS options are: - Small PiP: 30% of Primary height in top-right corner - Large PiP: 50% of Primary height in top-right corner - Side-by-Side: Primary and Secondary input of equal height (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 28: Zoom Factor Selection
OSD text. If two options are available for one key, the first key press will select the upper option, a second press selects the lower option. The different available extended keyboard functions are: (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 29: Main Source Selection
If two options are available for one key, the first key press will select the upper option, a second press selects the lower option. The current selection is marked in red. 3. Press the stand-by key ( ) to confirm your choice and exit the main source quick selection menu. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 30: Second Source Selection
2. Toggle the available multi-image configurations by pressing the key corresponding to the desired option. The current selection is marked in red. 3. Press the stand-by key ( ) to confirm your choice and exit the multi-image configuration quick selection menu. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 31: Common Functions: Transfer Function Selection
Common Functions ITU 709 6500°K X-Ray Native Aspect Zoom Image 4-12 Note: Only a subset of image size settings is available via this quick selection menu. More image size settings can be selected in the OSD menus. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 32: Common Functions: Zoom Factor Selection
After pressing the fourth key, if the sequence is correct, the main OSD menu is activated. To unlock the keyboard permanently the specific OSD function is required. Keyboard lock Sequence: 5 - 6 - 6 - 3 Image 4-14 (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 33: Advanced Operation
To adjust the brightness level 1. Bring up the OSD main menu. 2. Navigate to the Picture menu. 3. Enter the Brightness submenu. The command bar Brightness is highlighted. 4. Set the brightness level as desired and confirm. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 34: Contrast
4. Set the saturation level as desired and confirm. 5.1.5 Color temperature About color temperature presets The available color temperature presets for your display are: • 5600K • 6500K • 7600K • 9300K • ITU 709 • Native • User (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 35: Gamma
2. Navigate to the Picture menu. 3. Enter the Gamma submenu. 4. Select one of the available gamma presets and confirm. 5.1.7 Sharpness To adjust the sharpness level 1. Bring up the OSD main menu. 2. Navigate to the Picture menu. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 36: Picture Advanced Menu
To select a Smart Video preset 1. Bring up the OSD main menu. 2. Navigate to the Picture advanced menu. 3. Enter the Smart Video submenu. 4. Select one of the available Smart Video presets and confirm. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 37: Image Position
To manually adjust the phase 1. Bring up the OSD main menu. 2. Navigate to the Picture advanced menu. 3. Enter the Phase submenu. The command bar Phase is highlighted. 4. Set the phase as desired and confirm. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 38: Clock/Line
About main sources The available main sources for your display are: • Auto Search • Composite • S-Video • Component • PC Analog • DVI 1 • DVI 2 • SDI 1 • SDI 2 • Nexxis • DisplayPort (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 39: Component Mode
• The zoom factor can also be selected through a shortkey function or via the extended keyboard functionality. To select a zoom factor 1. Bring up the OSD main menu. 2. Navigate to the Display Format menu. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 40: Image Size
To select the 2 picture mode 1. Bring up the OSD main menu. 2. Navigate to the Display Format menu. 3. Enter the 2 Picture Mode submenu. 4. Select one of the available 2 picture modes and confirm. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 41: Nd Picture Source
4. Select one of the available 2 picture sources and confirm. 5.3.7 Picture Position About 2 picture positions The available 2 picture positions for your display are: • Top Right • Top Left • Bottom Right • Bottom Left (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 42: Picture Swap
• Option SDI (SDI module identification) • Serial Number: ANxxxxxxxxxxxx To access information 1. Bring up the OSD main menu. 2. Navigate to the Configuration menu. 3. Enter the Information submenu. The different information items are shown. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 43: Language
(delay required to allow a Nexxis layout change).. To enable/disable failover mode 1. Bring up the OSD main menu. 2. Navigate to the Configuration menu. 3. Enter the Failover mode submenu. 4. Enable/Disable failover mode as desired and confirm. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 44: Extended Keyboard
1. Bring up the OSD main menu. 2. Navigate to the Configuration menu. 3. Enter the OSD setting submenu. 4. Select OSD Ver. Pos. The command bar OSD Ver. Pos. is highlighted. 5. Set the OSD vertical position as desired and confirm. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 45: Osd Time-Out
User 1, User 2 or User 3 profile. The Factory and X Ray profiles can be modified, but the factory default can’t be overwritten and can always be recalled through the recall profile menu item. The available profiles to save in your display are: • User 1 • User 2 • User 3 (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 46: System Menu
+5V on Pin 14 • +5V on Pin 16 To select the power on DVI 2 1. Bring up the OSD main menu. 2. Navigate to the System menu. 3. Enter the Power on DVI 2 submenu. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 47: Dvi Output
5 seconds. However, this behavior can be changed so that the keyboard backlight is always on. To adjust the keyboard backlight 1. Bring up the OSD main menu. 2. Navigate to the System menu. 3. Enter the Keyboard Backlight submenu. 4. Select one of the available options and confirm. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 48: Power Saving
2. By activating the OSD menu, see "OSD menu activation", page 23. To enable/disable power saving 1. Bring up the OSD main menu. 2. Navigate to the System menu. 3. Enter the Power Saving submenu. 4. Enable/Disable power saving as desired and confirm. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 49: Important Information
To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective earth. • The equipment should be installed near an easily accessible outlet. • The equipment is intended for continuous operation. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 50: Power Cords
Please refer to the instruction manual of the arm for instructions on how to move the arm with the equipment. Provide full attention to safety during installation, periodic maintenance and examination of this equip- • ment. (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 51: Environmental Information
Sufficient expertise is required for installing this equipment, especially to determine the strength of the wall for withstanding the display’s weight. Be sure to entrust the attachment of this equipment to the wall to licensed contractors of Barco and pay adequate attention to safety during the installation and usage. - Page 52 (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section "Limit Requirements of toxic substances in Electronic Information Products".
-
Page 53: Biological Hazard And Returns
“Electronic Information Products Pollution Control Labeling Standard” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “Standard of Electronic Information Products Environmental Friendly Use Period”... -
Page 54: Regulatory Compliance Information
PACS, anesthesiology and patient information. It is not in- tended for diagnosis. FCC Class B (valid for MDSC-2224 LED version) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference re- ceived, including interference that may cause undesired operation. -
Page 55: Cleaning And Disinfection
Indicates the device is approved according to the CCC regulations Indicates the device is approved according to the VCCI regulations Indicates the device is approved according to the KC regulations Indicates the device is approved according to the BSMI regulations (451920611391)K5903031 MDSC-2224 21/01/2014... -
Page 56: Legal Disclaimer
Barco software products are the property of Barco. They are distributed under copyright by Barco N.V. or Barco, Inc., for use only under the specific terms of a software license agreement between Barco N.V. or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. -
Page 57: Technical Specifications
This document is copyrighted. All rights are reserved. Neither this document, nor any part of it, may be reproduced or copied in any form or by any means - graphical, electronic, or mechanical including photocopying, taping or information storage and retrieval systems - without written permission of Barco. © 2013 Barco N.V. All rights reserved. - Page 58 MDD 93/42/EEC, version 2007 (in effect as of March 2010) CAN/CSA-C22.2 No 60601.1-08, IEC / EN 60601-1-2: 2007, EN 55011 / CISPR11 (MDSC-2224-MNA: Class A; MDSC-2224 LED: Class B), FCC (A or B depending on model), RoHs compliant, IP21...
- Page 59 CVT1660D 1680 x 1050 WSXGA+2 65,29 59,95 1920 x 1200 WUXGA1 74,038 59,95 640 x 350 31,5 (Diag. mode) VESA 640 x 350 37,9 VESA 640 x 400 24,8 56,3 2. OSD Smart Video set to “Diagnostic” (451920611391)K5903031 MDSC-2224 21/01/2014...
- Page 60 33,75 1080p50 1920 x 1080 1080p 56,25 1080p59 1920 x 1080 1080p 67,433 59,94 1080p60 1920 x 1080 1080p 67,5 SDI Standard Compliance: SMPTE 425M (level A), SMPTE 424M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 (451920611391)K5903031 MDSC-2224 21/01/2014...
-
Page 61: Open Source License Information
6. Important information SDI Video Sampling: Y Cb Cr 4:2:2 Dimensions 595,4 mm (23.44”) 84 mm (3.31”) 100 mm (3.94”) Image 6-2 Open source license information Open source license information Open source license usage (451920611391)K5903031 MDSC-2224 21/01/2014... - Page 62 6. Important information This product contains software components released under an Open Source license. A copy of the source code is available on request by contacting your Barco customer support representative. EACH SEPARATE OPEN SOURCE SOFTWARE COMPONENT AND ANY RELATED DOCUMENTA- TION ARE PROVIDED "AS IS"...
