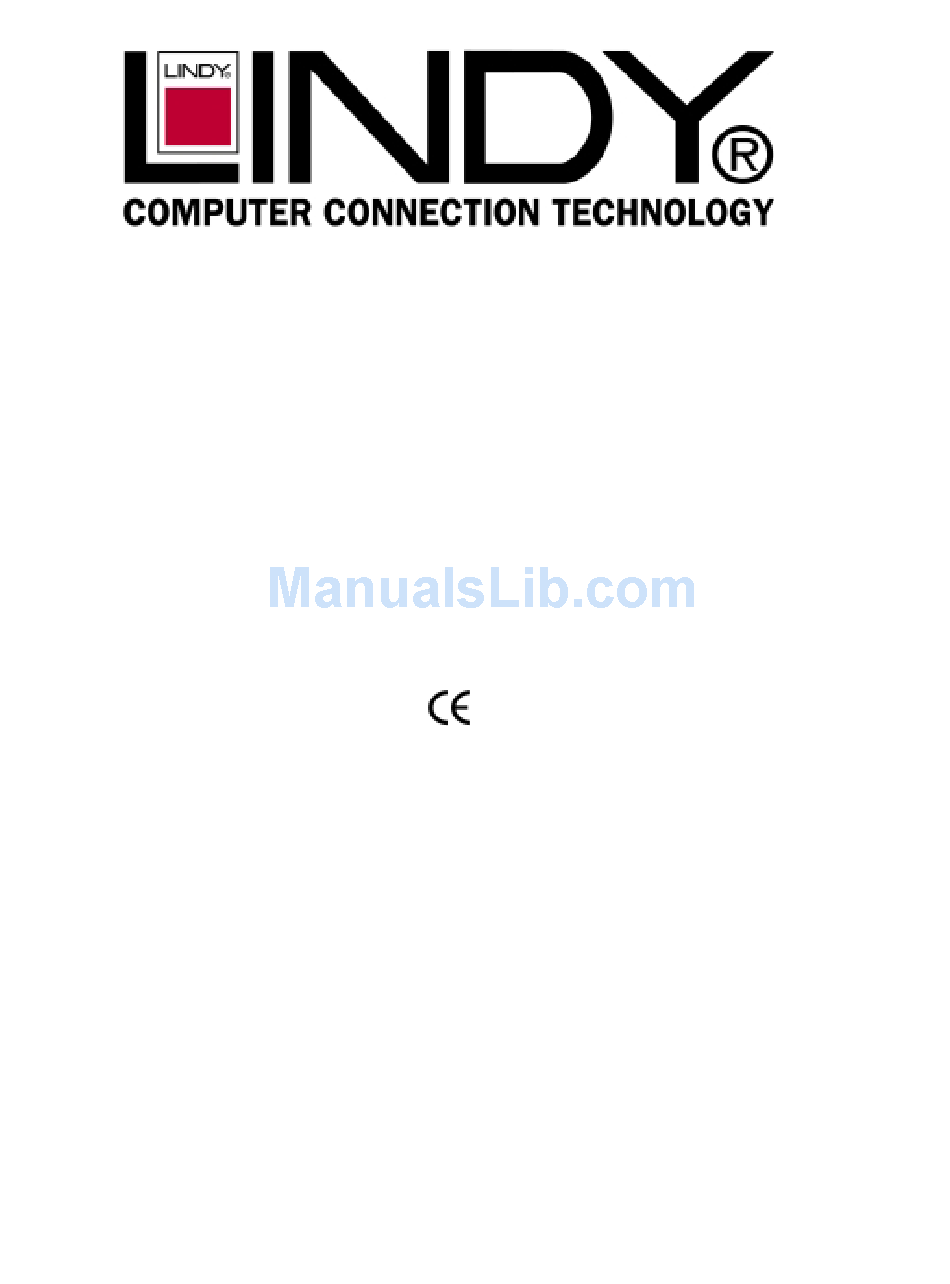

- Page 1 Eight (8)-Port Gigabit Ethernet Switch USER'S GUIDE Eight (8)-Port 1000BASE-T/100BASE-TX/10BASE-T Gigabit Ethernet Switch LINDY Part No. 25008...
-
Page 2: Table Of Contents
UNPACKING INFORMATION ... 3 PRODUCT INTRODUCTION ... 4 Models ... 4 Key Features... 4 The Front Panel ... 4 2.3.1 1000BASE-T... 4 2.3.2 Cabling ... 4 2.3.3 Status LEDs ... 5 The Rear Panel ... 5 2.4.1 Power Socket... 5 2.4.2 Network Ports ... -
Page 3: Unpacking Information
UNPACKING INFORMATION Thank you for purchasing this Switch. Before continuing, please check the contents of the product package. This product package should contain the following items: One (1) Gigabit Ethernet Switch. One (1) Power Cord. One (1) Four (4) Rubber Feet. -
Page 4: Product Introduction
For the 1000BASE-T TP port, it provides an Auto-Negotiation function that senses for the attached device's maximum operating speed and automatically sets the Switch to operate at that speed. Users only need to connect a network cable into any TP port, and the Auto-Negotiation function will do the rest. -
Page 5: Status Leds
2.3.3 Status LEDs The Switch comes with a complete range of LEDs. The table below lists each LEDs name, color and a brief description of its function. Name Color Function Power Green Power on, normal operation Power off Link/Act Green... -
Page 6: Installation
INSTALLATION To locate the switch on a rackmount: (19 inches case only) Attach the Four (4) rubber feet included in the product package to the bottom of the Switch, one in each corner. Place the Switch on a rackmount. Plug in all network connections and the power cord... -
Page 7: Helpful Suggestions
HELPFUL SUGGESTIONS Prior to Installation Before installing the Switch and connecting network devices, it is important to plan the network's layout. Things you should consider include: Dedicated Bandwidth: File servers and other high-traffic hardware improve their performance if they have their own dedicated 10Mbps, 100Mbps, or 1000Mbps bandwidth. -
Page 8: Sample Application
The application for these Switches is as a "big pipe" backbone interconnecting file servers with bandwidth-hungry workgroups, departments, and offices. 24 10/100 p o rts with 2 Gig a b it p orts switc h 24-Port + 2 Giga Port Switch 200Mbps Full-Duplex 100m max. -
Page 9: Smart Function Configuration
SMART FUNCTION CONFIGURATION HyperTerminal The Switch has a smart function that you can use to manage your local area network (LAN) more effectively. You can also use the default setting to operate the Switch as a dumb switch. If you want to use smart function, install the Switch as below: Use the “RS-232”... -
Page 10: System Initiating
System Initiating After you have set up the “HyperTerminal” program, you can power on the switch. You will see the initializing process appears on the screen. Here we can see messages shown in this power-on screen. As described in the screen, this is a Self-Diagnostic process running during power-on stage. -
Page 11: Use Function Menu
USE FUNCTION MENU Main menu The main menu is the top level of all menu-driven screens. All functions are selected from this screen. The main menu function selections are listed below: 1. System Configuration 2. Port Configuration 3. Port Trunking Configuration 4. -
Page 12: Port Configuration
(Integer, in seconds) Port Configuration When you go into the “Port Configuration” sub-menu, the current state will be scanned for all 8 ports of the Switch and shown on the screen as follow: The Port Configuration Screen provides configurable setting and current status for each port. For each Ethernet port, following... -
Page 13: Port Trunking Configuration
Port Trunking Configuration menu controls port trunking or the so called Link Aggregation function. Several ports in the Smart Switch can be bundled together to form a high-speed trunk. The available choices are listed in the screen once you press <Add>... -
Page 14: Port Mirroring Configuration
Monitoring port. It is fixed at 8 The Smart Switch is able to monitor one port at one time. The transmitting and receiving direction can be monitored exclusively. Be sure to activate this function before setting port selection and direction. -
Page 15: Vlan Configuration
VLAN Configuration The VLAN Configuration sets up the VLAN configuration of this switch. The Switch supports 32 VLANs in four pages. Each VLAN can have an ID with range 1-4094, 0 and 4095 are standard reservation. Member set in the same VLAN can be untagged or tagged. -
Page 16: Priority Configuration
The Priority Configuration sets the IEEE 802.1p priority function of the system. The Smart Switch has 4 priority queues per port. Each frame can be sent via high or low priority queue depending on the priority setting and the tag value of it. -
Page 17: Restart
Restart The Reset menu provides 2 functions. Factory Default Clear the configuration data and load factory default setting into switch. The switch will then be restarted. Restart Performs a SW reset of system. 7.10 Exit Move cursor to “Exit” and press <enter> will jump to this screen. Follow instruction on screen can drive display to login page. -
Page 18: Product Specifications
CE MARK WARNING This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. 8-Port Gigabit Ethernet Smart Switch...
