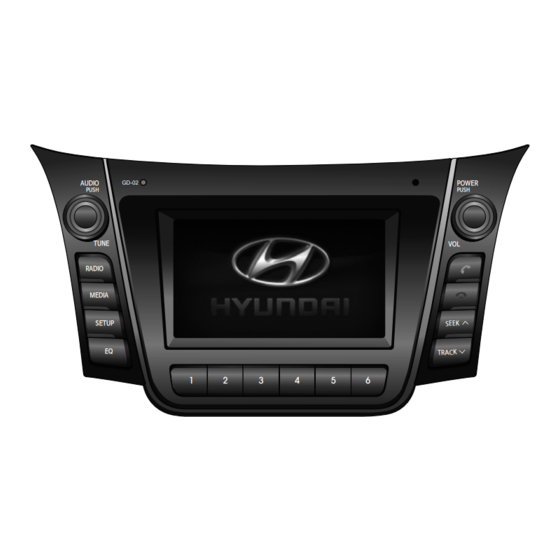

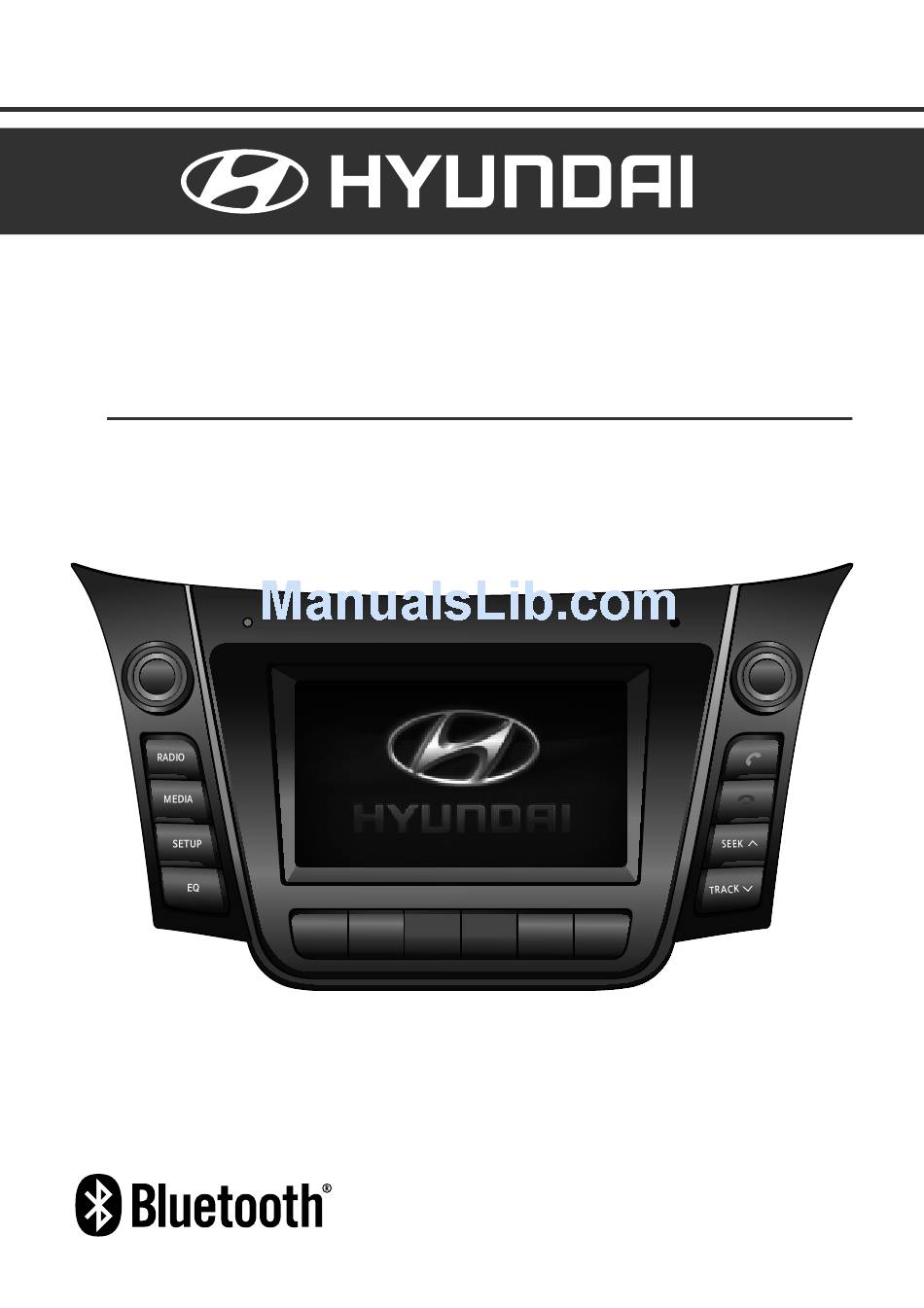

- Page 1 Front Panel Controls User Manual GD-02 MP3/WMA/USB/AUX/Bluetooth/iPod Player with AM/FM Radio AUDIO POWER GD-02 PUSH PUSH TUNE...
-
Page 2: Important Note
Important Note: Before operating the unit, please read this manual thoroughly and retain it for future reference. Please refer to the main vehicle user manual section "Features of Your Vehicle" for general information regarding radio reception and care and use of the vehicle mounted antenna, and care and use of media (USB etc.). -
Page 3: Table Of Contents
Contents Contents Location of Controls ............. 2 Getting Started ..............4 Radio ..................7 USB/AUX player ..............9 My Music ................13 Bluetooth Audio ..............14 Memo ..................15 ................16 Pandora ® Bluetooth ................18 Phone ................... 22 Settings ................26 Appendix ................ -
Page 4: Location Of Controls
Location of Controls Front View of the Unit ➊ ➒ AUDIO POWER GD-02 PUSH PUSH ➋ ➓ ➐ TUNE ➌ ➍ ➎ ➏ ➑ ➊ Warning LED: ➐ Display window When the ignition switch is in the OFF position, blinks every 1 second ➑... -
Page 5: Steering Wheel Controls
Location of Controls Steering Wheel Controls ➊ + VOLUME [ VOL ] - buttons: Adjust the volume. buttons: Skip the previous/next preset ➋ SEEK station/track (press); fast tune up/down frequencies ➊ and seek a station or fast-forward/rewind a track ➋ (press and hold). -
Page 6: Getting Started
Getting Started Turning On/Off the Unit Adjusting the Volume Level Rotate the VOLUME [ VOL ] dial or push Switch the vehicle to ACC or IGN (ON) the + VOLUME [ VOL ] - buttons on the position. steering wheel controls to increase/ decrease the volume level. - Page 7 Getting Started Rear view camera screen If fitted, a rear view camera displays the area behind the vehicle on the screen when the ignition is in the ‘ON’ position and reverse gear is selected. Tap the desired media icon to select that mode.
- Page 8 Getting Started • This unit can store 999 files within internal time for recording remaining are memory. When the 1000th file is stored, 'INDEX displayed on the screen. FULL' appears on the display. The RECORD During the recording, tap the PAUSE to and COPY feature is then not available until pause recording.
-
Page 9: Radio
Radio The tuning automatically stops at the Tuning in a Station stations whose signals can be received, ● Turn On the Radio and the station is selected. Note Press the RADIO button or tap Radio • When tuning in stations while driving, use preset icon on the Media menu screen to enter number button to prevent accidents. - Page 10 Radio ● Listening to a Preset Station Recording to Current Press the RADIO button or tap the Broadcast BAND repeatedly to change the band in Tap the REC to start recording the order of FM1 → FM2 → FM3 → AM → current broadcast.
-
Page 11: Usb/Aux Player
USB/AUX Player About MP3/WMA Precautions for Handling USB/ • This unit can play MP3/WMA files with the iPod extension code<.mp3> or <.wma> (regardless of • When using the external USB device, make sure the letter case-upper/lower). to keep the device disconnected and connect •... - Page 12 USB/AUX Player • The device may not recognize the USB device if Playing a USB Device/iPod separately purchased USB hubs and extension By connecting an USB device or iPod to the USB cables are used. cable at the USB port (located lower on the centre •...
-
Page 13: Selecting The Playback Modes
USB/AUX Player The USB/iPod playback will start automatically. Controlling the Playback Press the SEEK /TRACK buttons repeatedly to go to the next or previous files. Press and hold the SEEK /TRACK • Off (deactivate): Cancels random to fast forward or rewind the file, and playback. - Page 14 USB/AUX Player Be sure to adjust the volume for each connected audio device before playback. Start playback of the external audio equipment at a moderate volume. While the external audio equipment is already connected, press the MEDIA or MODE button repeatedly until the AUX player is displayed.
-
Page 15: My Music
My Music ● Managing Files from My Music Using the My Music files List The My Music mode is where previously recorded or copied tracks or files made on the unit are stored for Tap the LIST to show the My Music list playback. -
Page 16: Bluetooth Audio
Bluetooth Audio • Text Information attached to music tracks on the Playing Music Using the music player (e.g. the elapsed playing time, song or Bluetooth Audio artist name etc.) will not be displayed on this unit. This unit supports the Bluetooth profile ‘Advanced •... -
Page 17: Memo
Memo Bluetooth Audio This feature is used to record voice memos using the Start playing music from the Bluetooth microphone located on the unit. music player using the Bluetooth audio function. Recording Memos Now, connect the mobile phone to this Press the MEDIA button repeatedly until unit using the menu system of the the Memo screen is displayed. -
Page 18: Pandora
Pandora ® Pandora Internet Music Audio programs can be sourced and enjoyed on this car audio system. A mobile device using Apple iOS or Android OS is connected to this audio unit and delivers the Pandora content via a connection to the internet. - Page 19 ® Pandora • This unit supports only the following iPhone Using the Station List models. Tap the STATIONS button to display the - iPhone 4/4S/5/5S/5C/6/6 Plus Station List. - Compatible with iPhone devices that support iOS 6.0 or later • Depending on the software version of the iPhone, it may not be compatible with this unit.
-
Page 20: Bluetooth
Bluetooth 10 meters, your Bluetooth device may automatically Bluetooth Wireless connect to this unit even if the device is not in the car. Technology Please consider this, especially when pairing or This unit supports Bluetooth wireless connecting Bluetooth devices to the car radio when technology. -
Page 21: Bluetooth Connection
Bluetooth similar way to the battery strength Manager screen will display directly, indicator above and it’s operation then skip step 2. limitations may therefore also be similar. Tap the SETTING > Bluetooth > ● Battery Strength Indicator Device Manager. This indicator shows the condition of the battery charge level of your connected mobile phone. - Page 22 Bluetooth audio accessory such as the telephone operation. HYUNDAI Bluetooth radio, you should refer to the • If a Bluetooth music player is to be connected user manual of your Bluetooth device for the together with a mobile phone, refer to page 15 accurate and correct procedure.
- Page 23 Bluetooth • The 0000 passcode may not be required to be Notes When the selecting a paired device: required on Bluetooth devices during the pairing • The name of the Bluetooth device is sent by the process. device and stored in this unit memory. In most •...
-
Page 24: Phone
Phone Entering the Phone Menu Press the CALL [ ] button to enter the Phone menu screen. Displays the network name/device name of connected mobile phone The built-in microphone of this audio system will pick up your voice. To reject an incoming call, press the END [ ] button or tap Decline. - Page 25 Phone • Incoming: Shows incoming call lists • / : Move to the previous/next list page. • Outgoing: Shows outgoing call lists • : Returns to the previous screen. • Missed: Shows missed call lists Tap the Search to display the keypad •...
- Page 26 Phone Using the Voice Recognition Setting the Bluetooth You can make a call by using the Voice Recognition During the Phone menu screen, tap the function of connected mobile phone. Settings to enter the Bluetooth setting During the Phone menu screen, tap the menu screen.
- Page 27 Phone ● Setting the Automatic Call Note: When making adjustments in above this section Answer Feature • The settings and adjustments made above are If this function is activated, this unit will automatically stored in the memory of this unit. The settings are connect an incoming call received by the mobile lost if the vehicle battery is disconnected.
-
Page 28: Settings
Settings General Settings Tap the 2. Sound to enter the Sound settings menu screen. Press the SETUP button to enter the Setting menu screen. Tap the 1. General to enter the General setting menu screen. 1. About: Check the unit model name and firmware/memory/Bluetooth information. -
Page 29: Setting The Beep
Settings ● Setting the Audio During the Setting > 2. Sound setting menu screen, tap the 2. Audio to enter the Bass/Middle/Treble settings menu screen in the Audio settings. Tap the / / / to set the front/rear/ left/right speaker volumes. ●... -
Page 30: Bluetooth Setting
Settings Bluetooth Setting Press the SETUP button to enter the Setting menu screen. Tap the 3. Bluetooth to enter the Bluetooth setting menu screen. For more information, refer to page 24 Setting the Bluetooth. Time Setting During the Setting > 4. Time setting menu screen. -
Page 31: Appendix
WARNING MP3/WMA information This equipment has been tested and found The HYUNDAI Bluetooth radio is able to to comply with the limits for a Class B play MP3 and WMA music files from a digital device, pursuant to Part 15 of the compact disc or USB memory device. - Page 32 In the event your MP3/WMA Audio Player is faulty, please take your HYUNDAI vehicle to your nearest HYUNDAI dealer for their diagnostic inspection of your Audio Player.
-
Page 33: Specifications
Specifications General Section Power supply: DC 14.4 V Negative Ground Speaker impedance: 4 ohm Max. Power: 45 Watts x 4 Ch AM/FM Radio Section Frequency range: AM 522 ~ 1,620 kHz FM 87.5 ~ 108.0 MHz Usable sensitivity: AM ≤ 35 dBu / FM ≤ 18 dBu Signal to noise ratio: AM ≥... - Page 34 GD-02 Rev 1.1...
