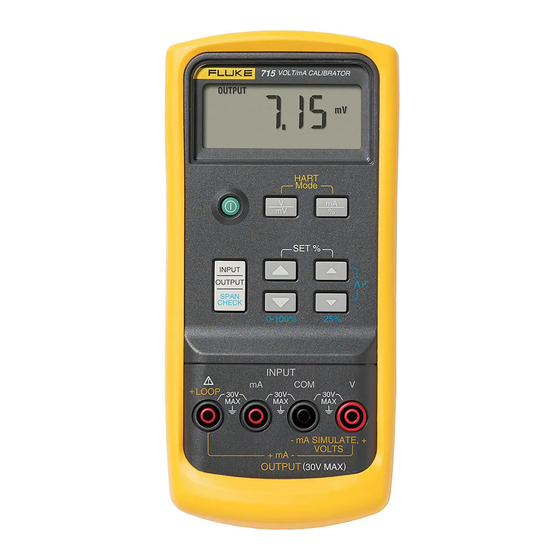

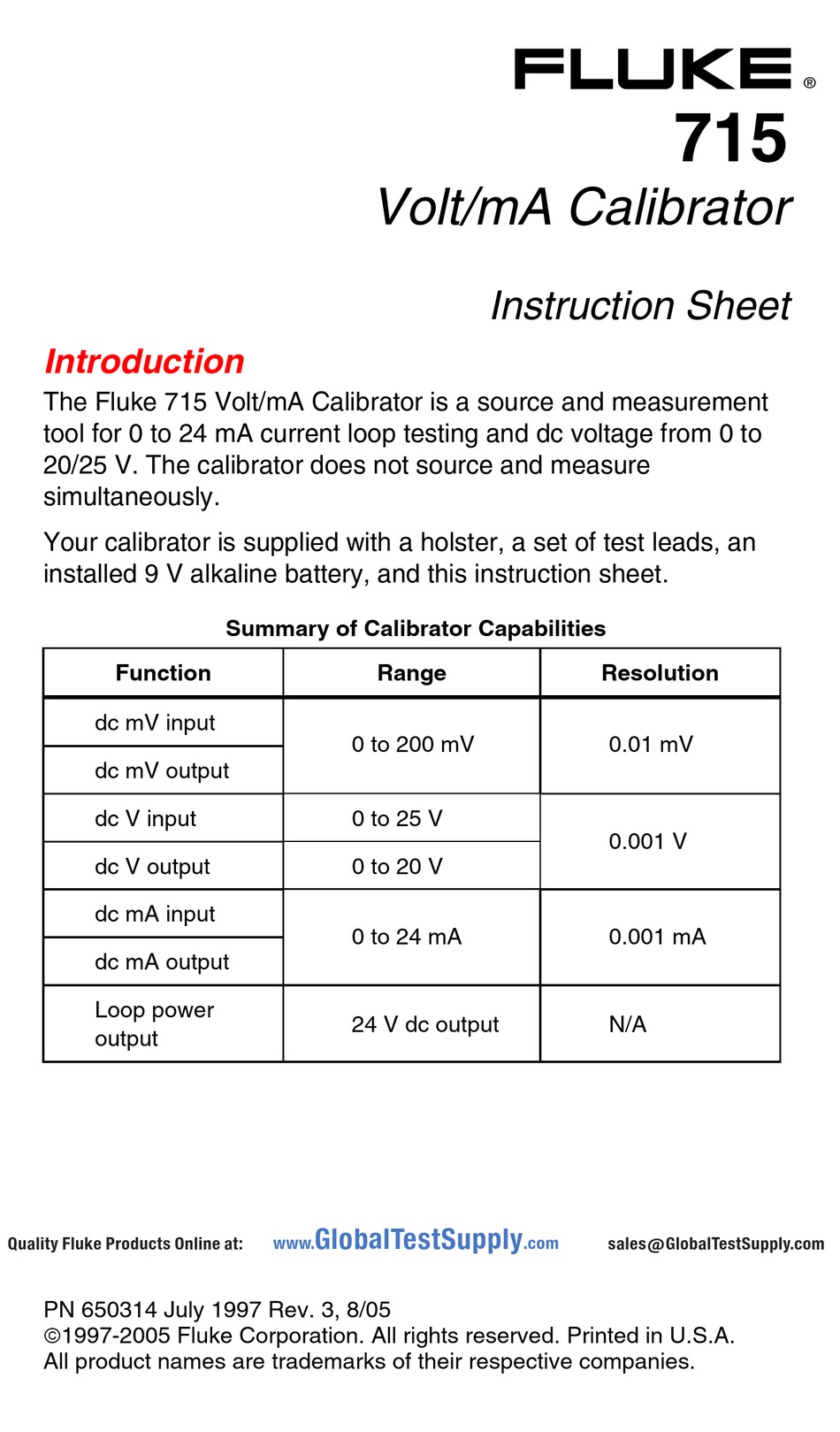

Volt/mA Calibrator Instruction Sheet Introduction The Fluke 715 Volt/mA Calibrator is a source and measurement tool for 0 to 24 mA current loop testing and dc voltage from 0 to 20/25 V. The calibrator does not source and measure simultaneously.
Page 2
Contact your Fluke distributor for information about accessories. To order replacement parts or spares, see “Replacement Parts.” To contact Fluke, call one of the following telephone numbers: USA and Canada: 1-888-99-FLUKE (1-888-993-5853) Europe: +31 402-675-200 Japan: +81-3-3434-0181...
Turn off the calibrator when not in use. GlobalTestSupply Auto Shut-Off (Power Saver) Feature www. .com Quality Fluke Products Online at: sales@GlobalTestSupply.com The Calibrator automatically turns off after 30 minutes of inactivity. To reduce this time or disable this feature:...
Page 4
0% value. Now using the controls set the output to the desired output value for 100% Again, press the scroll keys simultaneously to store the 100% value. GlobalTestSupply www. .com Quality Fluke Products Online at: sales@GlobalTestSupply.com...
V ranges the display it01i.eps Sourcing dc Volts OUTPUT mV or V depending on range Press to toggle mV and V ranges Press so that OUTPUT is on the display GlobalTestSupply www. .com Quality Fluke Products Online at: sales@GlobalTestSupply.com it02i.eps...
Page 6
Measuring dc mA INPUT Press to toggle mA and % of 4-20 mA scale Press so that INPUT is on the display it03i.eps GlobalTestSupply www. .com Quality Fluke Products Online at: sales@GlobalTestSupply.com...
Page 7
Measuring dc mA with Loop Power INPUT Press to toggle mA and % of 4-20 mA scale Press so that INPUT is on the display +24V output Two-wire transmitter HART Communicator it06i.eps GlobalTestSupply www. .com Quality Fluke Products Online at: sales@GlobalTestSupply.com...
Page 8
Press to scroll INPUT LOOP OUTPUT is on up/down 0.001 mA. the display. - mA SIMULATE, + Hold down to scroll VOLTS - mA + OUTPUT (30V MAX) faster. GlobalTestSupply www. .com Quality Fluke Products Online at: sales@GlobalTestSupply.com HART Communicator it04i.eps...
Press to step up/down 4 mA (25%) Press to scroll up/down 0.001 mA. Press so that Hold down to scroll OUTPUT is on faster. the display 30V dc Power max. supply it05i.eps GlobalTestSupply www. .com Quality Fluke Products Online at: sales@GlobalTestSupply.com...
Review this sheet to make sure you are using the correct jacks and pushbuttons. If the calibrator needs repair, contact a Fluke Service Center. If the calibrator is under warranty, see the warranty statement below for terms. If the warranty has lapsed, the calibrator will be repaired and returned for a fixed fee.
Calibrate your calibrator once a year to ensure that it performs according to its specifications. A calibration manual is available (PN 686540). Call 1-800-526-4731 from the USA and Canada. In other countries, contact a Fluke Service Center. Replacing the Battery Warning...
Compliance: 1000 Ω at 20 mA for battery voltage ≥6.8 V (700 Ω at 20 mA for battery voltage 5.8 to 6.8 V) Simulate mode: External loop voltage requirement: 24 V nominal, 30 V maximum, 12 V minimum GlobalTestSupply www. .com Quality Fluke Products Online at: sales@GlobalTestSupply.com Loop Power 24 V ±10%...
With holster: 52 mm H x 98 mm W x 201 mm L (2.06 in H x 3.86 in W x 7.93 in L) Weight: 349 g (12.3 oz); With holster: 601 g (21.2 oz) GlobalTestSupply www. .com Quality Fluke Products Online at: sales@GlobalTestSupply.com...
