Front Panel - LG CF-14 Service Manual

VIDEO
6
AUDIO
7
!
7
!
VIDEO
6
AUDIO
(Side panel)

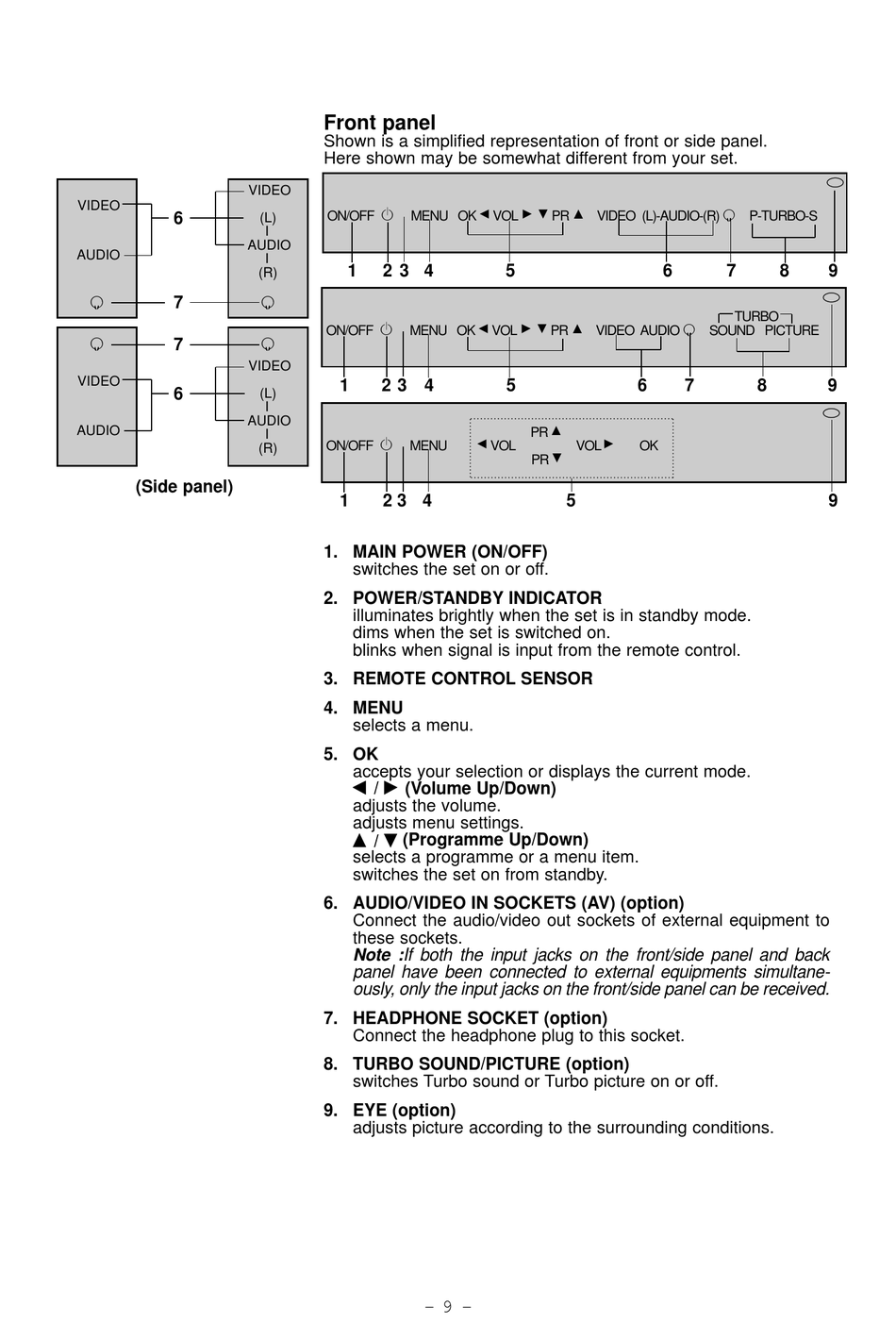

Front panel

Shown is a simplified representation of front or side panel.
Here shown may be somewhat different from your set.
VIDEO
ON/OFF MENU OK
(L) r
I
AUDIO
I
1 2 3 4
(R)
!
ON/OFF MENU OK
r
!
VIDEO
1 2 3 4
(L)
I
AUDIO
I
ON/OFF MENU
r
(R)
1 2 3 4
1. MAIN POWER (ON/OFF)
switches the set on or off.
2. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby mode.
dims when the set is switched on.
blinks when signal is input from the remote control.
3. REMOTE CONTROL SENSOR
4. MENU
selects a menu.
5. OK
accepts your selection or displays the current mode.
F F G G
/ (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
(Programme Up/Down)
D D E E
/
selects a programme or a menu item.
switches the set on from standby.
6. AUDIO/VIDEO IN SOCKETS (AV) (option)
Connect the audio/video out sockets of external equipment to
these sockets.
Note :If both the input jacks on the front/side panel and back
panel have been connected to external equipments simultane-
ously, only the input jacks on the front/side panel can be received.
7. HEADPHONE SOCKET (option)
Connect the headphone plug to this socket.
8. TURBO SOUND/PICTURE (option)
switches Turbo sound or Turbo picture on or off.
9. EYE (option)
adjusts picture according to the surrounding conditions.
F G E D
VOL PR
5
F G E D
VOL PR
5
D
PR
F
VOL VOL
E
PR
5
- 9 -
VIDEO (L)-AUDIO-(R) P-TURBO-S
!
6 7
TURBO
VIDEO AUDIO SOUND PICTURE
!
6 7 8
G
OK
8 9
9
9
