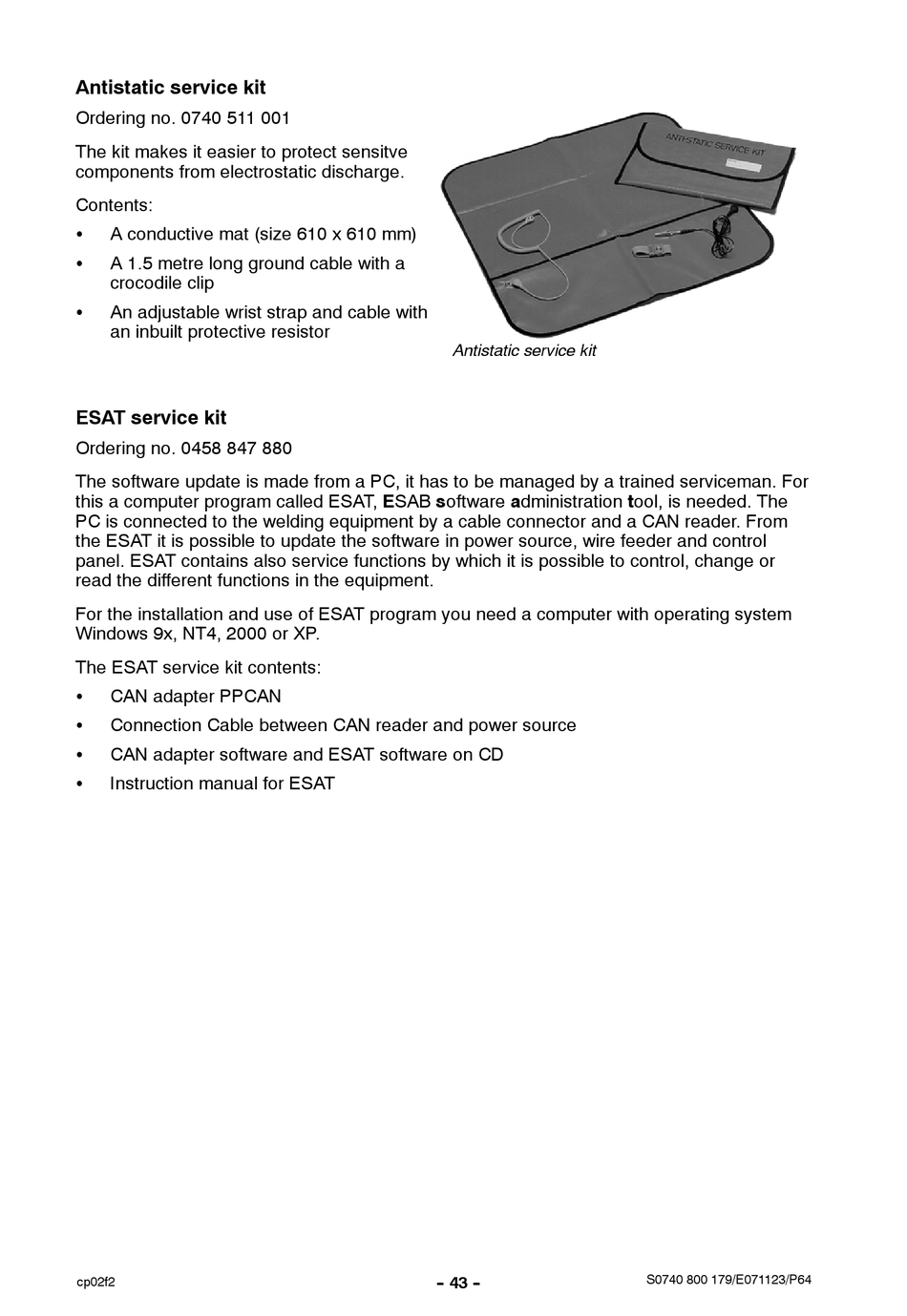

ESAB Caddy Tig 2200i AC/DC Service Manual page 43

Antistatic service kit
Ordering no. 0740 511 001
The kit makes it easier to protect sensitve
components from electrostatic discharge.
Contents:
A conductive mat (size 610 x 610 mm)
S
A 1.5 metre long ground cable with a
S
crocodile clip
An adjustable wrist strap and cable with
S
an inbuilt protective resistor
ESAT service kit
Ordering no. 0458 847 880
The software update is made from a PC, it has to be managed by a trained serviceman. For
this a computer program called ESAT, ESAB software administration tool, is needed. The
PC is connected to the welding equipment by a cable connector and a CAN reader. From
the ESAT it is possible to update the software in power source, wire feeder and control
panel. ESAT contains also service functions by which it is possible to control, change or
read the different functions in the equipment.
For the installation and use of ESAT program you need a computer with operating system
Windows 9x, NT4, 2000 or XP.
The ESAT service kit contents:
CAN adapter PPCAN
S
Connection Cable between CAN reader and power source
S
CAN adapter software and ESAT software on CD
S
Instruction manual for ESAT
S
cp02f2
Antistatic service kit
- - 43 - -
S0740 800 179/E071123/P64
