[Precautions when fixing the Rear Cabinet]

When fixing the Rear Cabinet, be careful not to catch the backlight LED harness, speaker harness and other harnesses in it.
• The hooks on the external wall of the Rear Cabinet are fitted in the Front Cabinet Ass'y. After putting the Rear Cabinet in place, fit the hooks
securely; then tighten the screws.

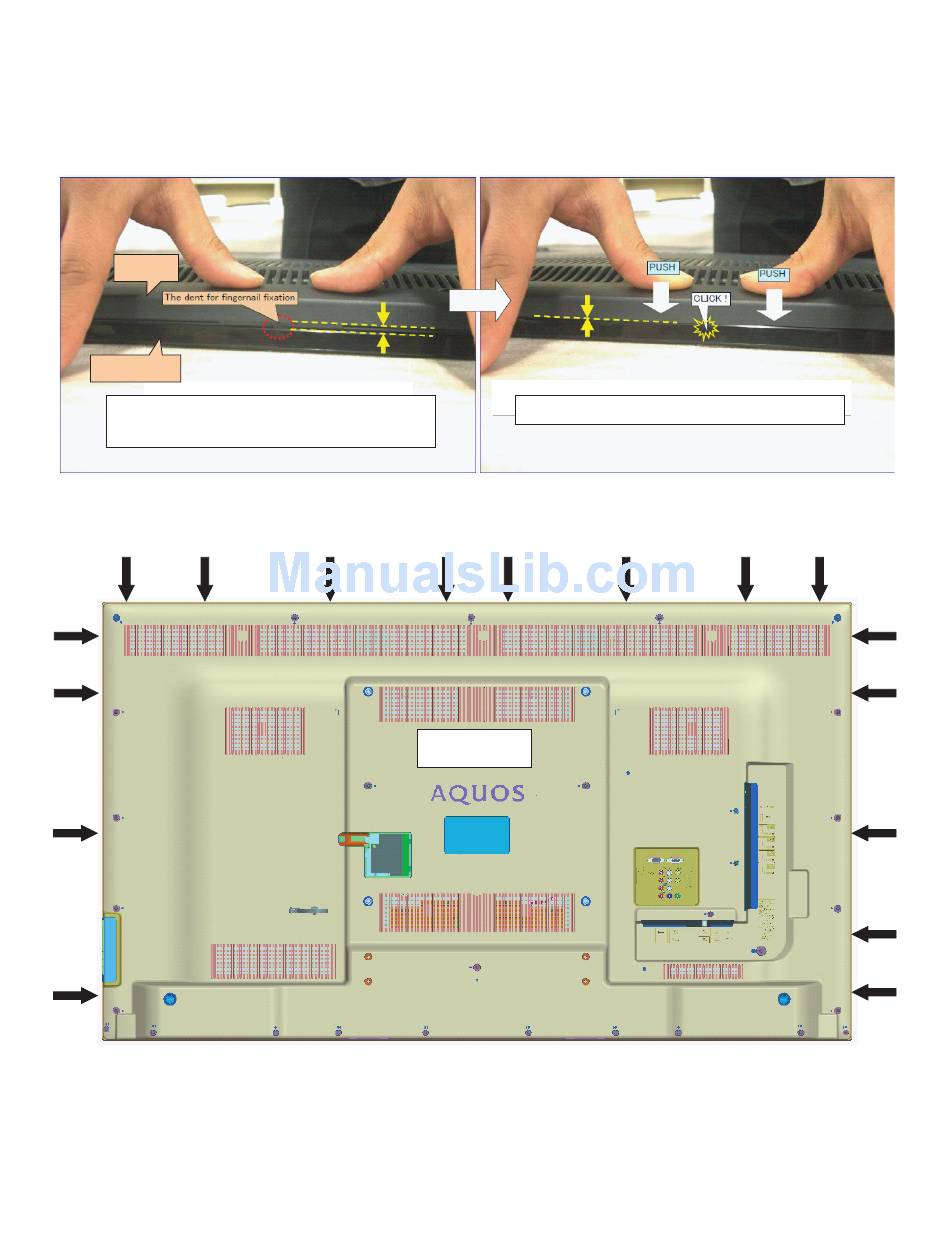

(Work method of Rear Cabinet fixation)
Rear Cabinet
(Mat parts)
Front Cabinet Ass'y
(Luster parts)
There is a gap without the fingernail fitting in completely only when covering
with Rear Cabinet.
It becomes the factor of a gap increase of Front Cabinet Ass'y/Rear Cabinet
and the Rear Cabinet misregistration.
(Front Cabinet Ass'y/Rear Cabinet fingernail fixation place)
LC-52/60/70LE640U,C6400U (1st Edition)
Please tighten the screw after Rear Cabinet is firmly pushed, and the
fingernail is confirmed.
17 places
4 – 2
