Lightolier Lytespread LSAW-1 Specification Sheet

Lighting Systems Lytespread
Page 1 of 2

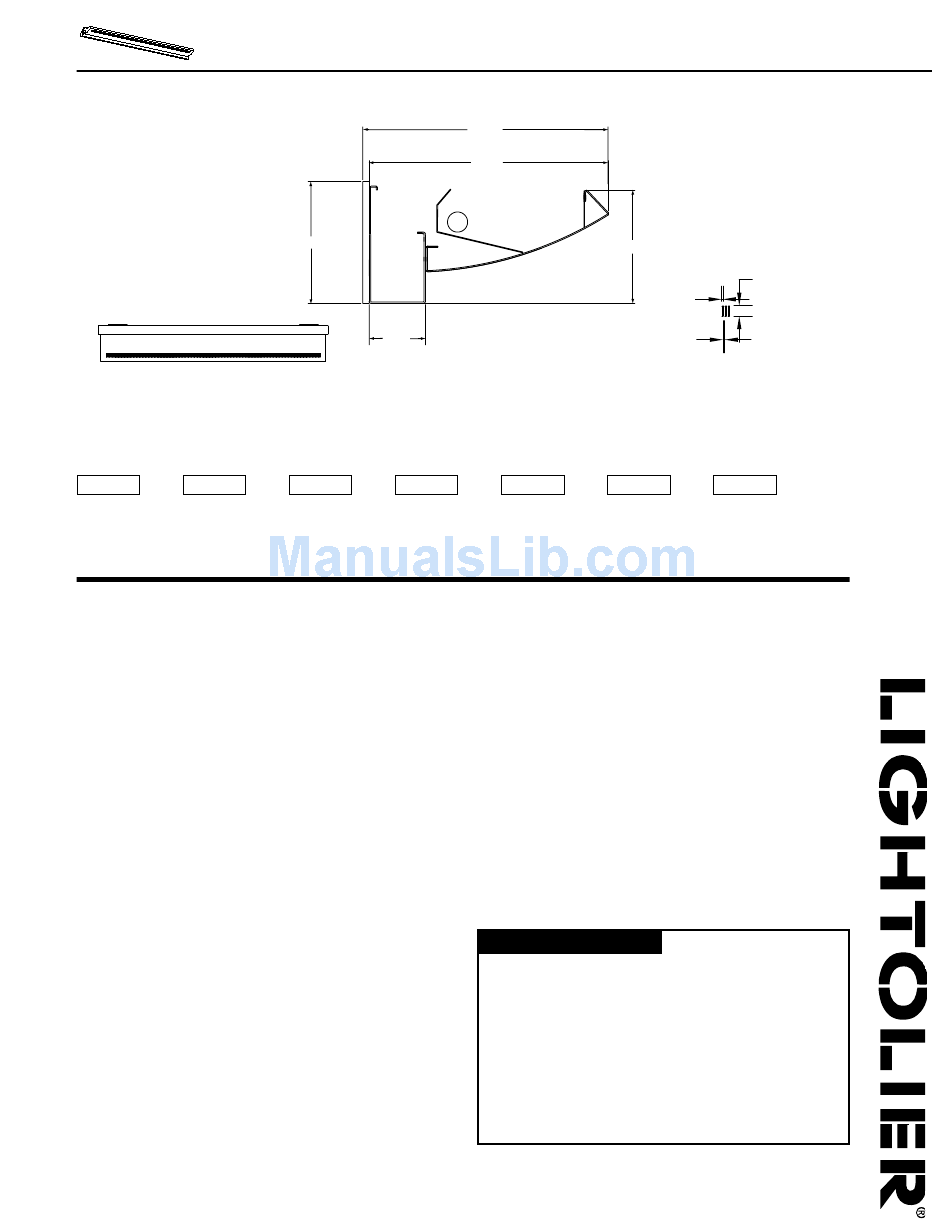

Bottom View
Ordering Information
Type Lamps
LSAW 1
1 = 1 Lamp T5
Complete ordering instructions below.
Features
1. Housing: 18 gauge die-formed pierced steel. 1/4" Aluminum end caps with
access for through wiring. No exposed fasteners or hardware.
2. Lamping: 1-T5, 28 or 54 watt fluorescent lamp per 4' section. By others.
3. Reflector: Precision die-formed, high reflectivity, and low iridescent
aluminum.
4. Diffuser: Opal acrylic.
Electrical
Ballast is electronic, meeting A.N.S.I. starting, end of life protection, T.H.D., A
sound rating, and end-of-life specifications. 3 Conductor 18 gauge wire. Color-
coded quick connectors allow ease of connection for fixture modules. For special
circuitry consult factory.
Dimming: Advance Mark X. Use Advance compatible 2 wire control (no extra
lead required).
Emergency Battery Pack: 54 Watt: 390-700 Lumens @ 90 min.
28 Watt: 370-520 Lumens @ 90 min.
Finish
Powder coated baked white enamel. Custom colors available, consult factory.
Mountings
Luminaires joined at 1-3/4" wide channel only. Housings are not contiguous.
There is a 1" separation between housings on 8' and 12' fixtures (see bottom
view drawing above). When fixtures are joined there will be the same 1"
separation between housings as on the 8' and 12' luminaires.
Options and Accessories
Dual Switching: Order the DS option for separate row switching. DS option
comes complete with the 4 through wire option.
4 and 5 wire: Order X4 for EM Battery Pack. For non-standard dimming options;
order X5 option for Osram or DALI 54 watt dimming and ESI 28 & 54 watt
Digital Dimming: Order X4 option for Lutron HiLume or ECO-10 54 Watt
dimming.
Consult Factory for any additional wiring conditions.
7-11/16"
4"
1-3/4"
Lamp Type Length
28 = 28 Watts 4 = 4 Foot
54 = 54 Watts 8 = 8 Foot
12 = 12 Foot
™ Alpha Wall Mount
7-7/16"
3-1/2"
Ballast Voltage
Blank = Static 1 = 120 VAC
E = Emergency 2 = 277 VAC
D = Dimming 3 = 347 VAC
(54W only) (Static only)
Labels
UL, cUL, and I.B.E.W.
Ordering Instructions
Individual Fixtures:
1. Order number of MODULES required.
2. Order one END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES for the complete run.
3. Order one END SET for each run.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
LSAW-1
1 Light T5 Per 4' (Nominal) Section
1.0000
0.1250
0.1875
Pierce Pattern
Options
Blank = No Options
X4 = 4th Through Wires
X5 = 5th Through Wires
Type:
www.lightolier.com
