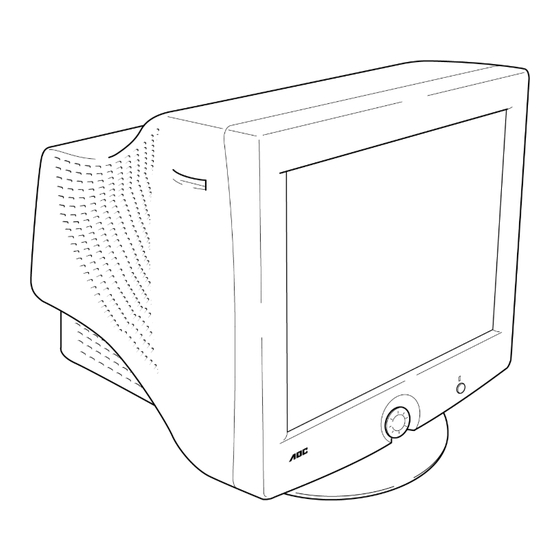

- Page 1 AOC 9KLR AOC 9KLR 19 inch Color Monitor User’s Manual by Envision Peripherals, Inc. www.aocmonitor.com Before operating your monitor, please read this manual thoroughly. 9Klr v3_123102...
-
Page 2: For Your Safety
For Your Safety AOC 9KLR FCC Statement Notice This equipment has been tested and found to 1. The changes or modifications not expressly comply with the limits for a Class B digital device, approved by the party responsible for pursuant to Part 15 of the FCC Rules. These limits... - Page 3 For Your Safety AOC 9KLR Precautions • The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) • Do not use the monitor near water, e.g. near a pin. As a safety feature, this plug will only fit into bathtub, washbowl, kitchen sink, laundry tub, a grounded power outlet.
-
Page 4: General Notes
The box that your monitor was shipped in should lightly dampened with a mild detergent solution. have included the following items: Never use strong solvents such as thinners, 1. 9Klr Color Monitor benzene, or abrasive cleaners, since these will damage the cabinet. Always unplug the 2. Power Cord monitor before cleaning it. -
Page 5: Before You Operate The Monitor
Before You Operate the Monitor AOC 9KLR Installing & Removing the Base AOC 9KLR v3_123102... - Page 6 Before You Operate the Monitor AOC 9KLR Connecting the Wires Using the Power Cord Supplied 1. Connect the built-in video cable into the 15-pin Caution: Make sure the power cord is the correct connector on the back of your computer and type that is required in your area.
-
Page 7: Connecting The Wires Using An Optional Power Cord (Not Supplied)
Before You Operate the Monitor AOC 9KLR Connecting the Wires Using An Optional Power Cord (Not Supplied) The power cord supplied with your monitor can Follow these steps: only be connected to a grounded electrical wall 1. Connect the built-in video cable into the 15-pin socket or power strip. -
Page 8: Front Panel Buttons
Operating Instructions AOC 9KLR Front Panel Buttons Shuttle Knob: Press this knob to open the Power: Press this button to put the monitor OSD window or select a highlighted function. into Off mode. The power indicator will turn Rotate this knob to switch functions or adjust orange. -
Page 9: Adjusting The Osd Settings
Operating Instructions AOC 9KLR Adjusting the OSD Settings 1. Press the Shuttle Knob to open the OSD 5. To save and exit, select the exit function or window. leave the monitor alone for 10 seconds. If you want to adjust any other function, repeat steps 2. -
Page 10: Plug & Play Ddc1/2B Feature
VESA DDC monitor to work with your computer. For optimal STANDARD. It allows the monitor to inform the viewing of your monitor, download the AOC host system of its identity and, depending on the monitor driver. -
Page 11: Technical Support (Faq)
• Confirm that your video card is Plug & Play compatible. • Inspect the video cable and make sure that none of the pins are bent. • Make sure the AOC monitor drivers are installed (AOC monitor drivers are available at: www.aocmonitor.com) Picture is fuzzy •... -
Page 12: Specifications
Appendix AOC 9KLR Specifications Input Video Red, Green, Blue Size 19.0" (48.3 cm) Analog Interface 11.4” (29 mm) neck Separate H/V TTL Sync. 0.21mm(H), 0.25mm(D) dot H/V Sync. Positive/Negative pitch H-Frequency 30 kHz - 95 kHz 90 degree V-Frequency 50 Hz -160 Hz... - Page 13 Appendix AOC 9KLR Specifications (continued) Environmental Operating Temp: Considerations 32° to 104°F (0° to 40°C) ambient Operating Humidity: 10% to 85% relative, non-condensing Signal Cable Attached Mini D-sub 15 Male Optimal Viewing Mode: 1280 x 1024 @ 85 Hz AOC 9KLR...
-
Page 14: Factory Preset Timing Table
Appendix AOC 9KLR Factory Preset Timing Table Resolution Horizontal Vertical Standard (in pixels) Frequency Frequency 720 × 400 31.5 kHz 70 Hz 640 × 480 31.5 kHz 60 Hz VESA / 85 640 × 480 43.3 kHz 85 Hz 800 × 600 53.7 kHz... -
Page 15: Connector Pin Assignment
Appendix AOC 9KLR Connector Pin Assignment Pin Number Description Pin Number Description Green Ground Blue Monitor Ground Ground DDC-Serial Data Ground H-Sync R-Ground V-Sync / *V-Clk G-Ground DDC-Serial Clock B-Ground For DDC AOC 9KLR v3_123102... -
Page 16: Limited 3-Year Warranty
Limited 3-Year Warranty AOC 9KLR This is a warranty statement for AOC color • Excessive or inadequate heating or air monitors including those sold within North America conditioning or electrical power failures, surges, as specified. or other irregularities. This three-year limited warranty does not cover any of the product's Envision Peripherals, Inc. - Page 17 Warranty (continued) AOC 9KLR Although this limited warranty gives you specific EPI is not responsible for damage to inbound legal rights, you may have other rights which may products that were not properly packaged. vary from state to state. EPI will pay the return shipment charges within one...
