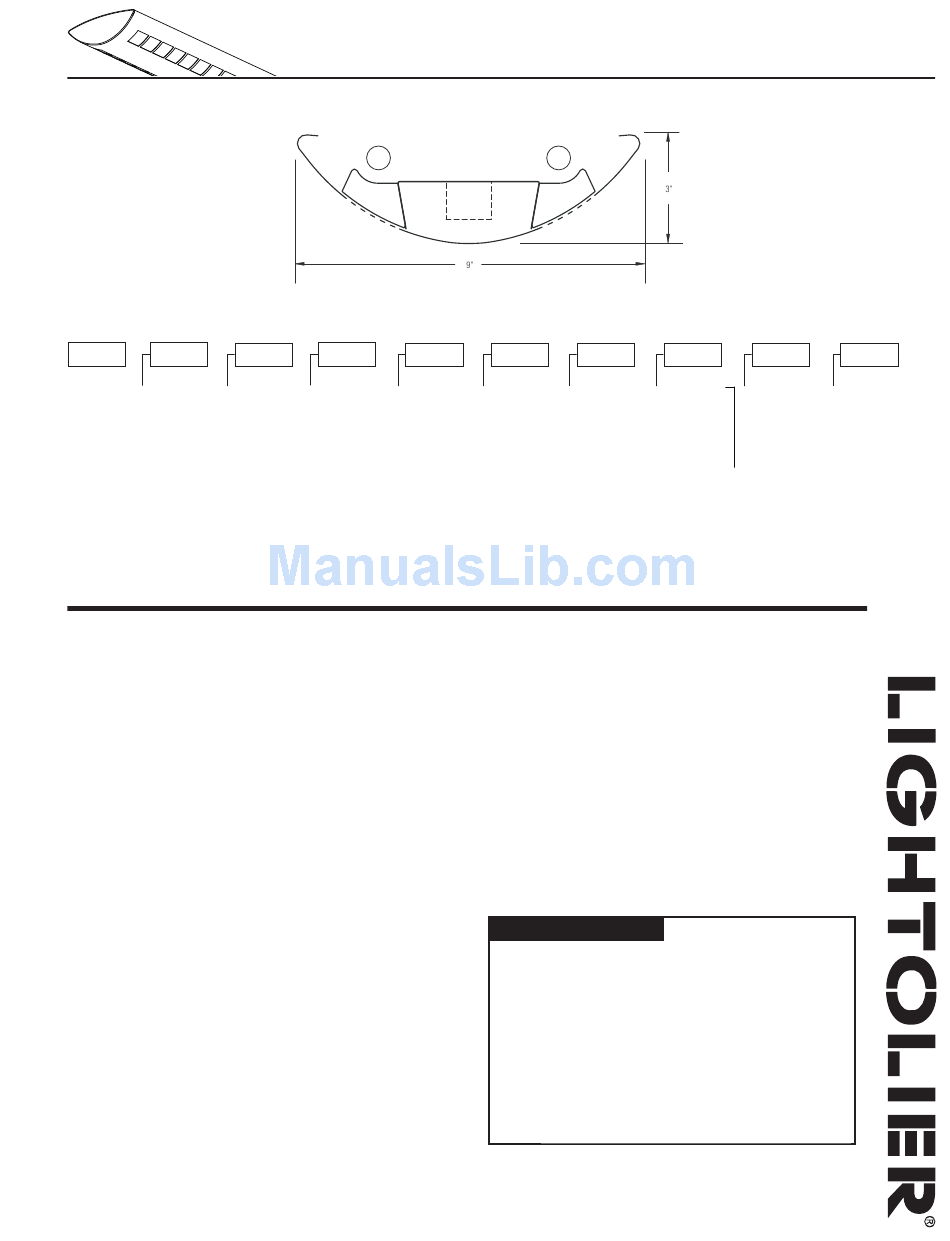

Ordering Information
Distribution
Family Lamp Type
BSL
6
6 = Direct/ H = T5 HO
Indirect

Specifications

Features
. Housing: die-formed 20ga. cold rolled steel
2. End Set: die-cast metal with baked powder coat finish
3. Lamping: two T5 HO lamps
4. Configuration: 4', 8' and 2' module lengths or continuous rows
5. Ballasts: electronic 20V or 277V
Finish
High-quality white powder coat with textured matte finish.
Custom colors available. Consult factory.
Mounting
Aircraft cable gripper is tamper-resistant and provides infinite vertical
adjustment capability. Aircraft cable, crimp and cable gripper independently
tested to meet stringent safety requirements.
Electrical
All luminaires are factory pre-wired to module ends with quick-wire
connectors.
Joints & Intersections
Self-aligning joining system with hands-free pre-joining wire access.
Labels
UL, CSA standards.

Lighting Systems

Weight = 3.0 lb./ft
No. of Lamps
Housing
H 02 CN
02 = 2 Light
CN = Cutout
w/baffles
Baselyte-BSL5
Module Length
Wiring
04 = 4' 1 = cct.
08 = 8' 2 = 2cct.
12 = 2'
3 = cct. w/EC/NL
4 = 2cct. w/EC/NL
5 = cct. w/EM Battery
6 = 2cct. w/EM Battery
7 = cct. w/Dimming
8 = cct. w/cct.
Thru wire
9 = 2cct. w/cct.
Thru wire
Note: Please consult
wiring section of spec
sheets for more
wiring options.
Ordering Instructions
Individual Fixtures
. Determine the number of individual modules required
2. Order one end set per module
3. Order one non-power mount per module
4. Order one power mount per module
Continuous Rows*
. Determine run length
2. Order the appropriate number and length of modules for complete run
3. Order one end set for each run
4. Order one non-power mount for each module
5. Order one power mount per run
6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)
*Note: Some runs may require additional power mounts. Please see the
'Run Configuration' table on the next page for more details.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Company
63 Airport Road, Fall River, MA 02720 • (508) 679-83 • Fax (508) 674-470
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.
2 Light T5 HO Direct/Indirect
Voltage
Ballast
D = Dual 20V C = Custom Color
E = Standard
& 277V W = Standard
<0% THD
1 = 20V F = Standard
2 = 277V
<0% THD
w/fusing
Note: Option'D' is
standard. Voltage
options  and 2 are
only available with
EM Battery and
Dimming wiring
options.
Type:
www.lightolier.com
Finish
White
