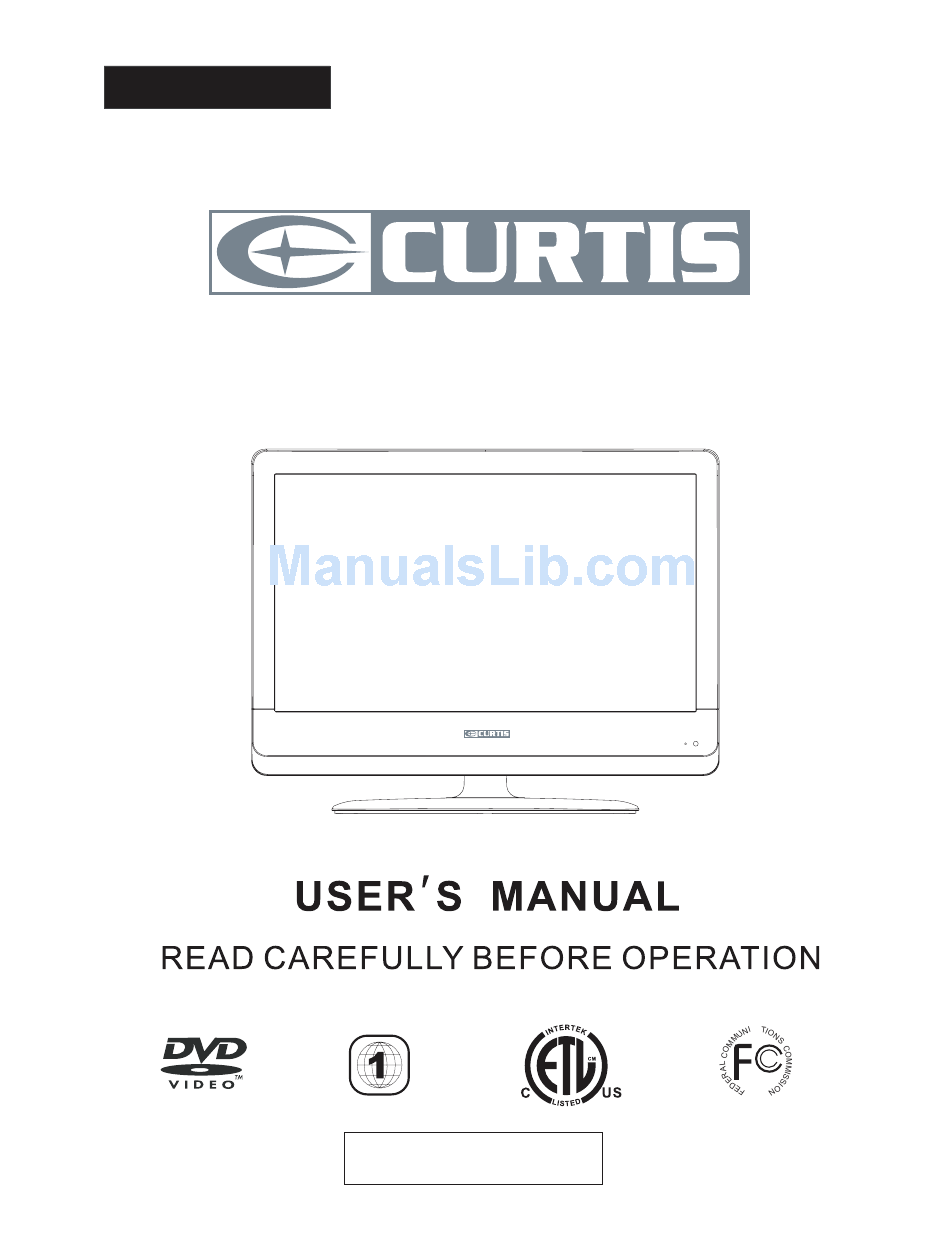

- Page 1 SPV7050P-America OSD ENGLISH LCDVD198 U S A CLASS 1 LASER PRODUCT...
- Page 2 SPV7050P-America OSD plug...
- Page 3 SPV7050P-America OSD LCD TV LCD TV power cord Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
CONTENT SPV7050P-America OSD ..........MOULD .......... TV MODE ......AV AND S-VIDEO MODE ......YPBPR AND HDMI MODE ........PC MODE ......TV TROUBLESHOOTING......DVD OPERATION........SPECIFICATIONS........DISPLAY MODE........ACCESSORIES.... -
Page 5: Mould
SPV7050P-America OSD POWER(Turns on or off the power supply) EJECT button PLAY button MENU(Enter or exit TV menu ) - Page 6 SPV7050P-America OSD Please make sure when inserting the Disc, the unprinted side of the disc should be facing you When inserting the Disc incorrectly, you may damage the DVD mechanism. LEFT PANEL S-Video input Video/Audio L/R input PC-Audio input...
-
Page 7: External Equipment
EXTERNAL EQUIPMENT SPV7050P-America OSD S-VIDEO HDMI Video DVD or VCR player... - Page 8 REMOTE CONTROL SPV7050P-America OSD AUTO AUTO MUTE POWER Auto adjusting in VGA mode. MUTE P MODE S MODE SLEEP SCALER Sound mute switch. SCALER To switch video format SLEEP To setup the sleep timer. Number button -/-- RECALL To select program number. -/-- MENU EXIT...
-
Page 9: Remote Control
REMOTE CONTROL SPV7050P-America OSD POWER To switch between standby mode and power-on mode. AUTO MUTE POWER P-MODE P MODE S MODE SLEEP SCALER To select picture mode: PERSONAL, STANDARD, MOVIE, MILD, GAME (invalid in VGA mode). S-MODE To select sound field modes: PERSONAL, STANDARD MUSIC, VOICE, THEATRE. -
Page 10: Battery Installation
REMOTE CONTROL SPV7050P-America OSD BATTERY INSTALLATION Remove the battery cover. Insert two SUM-4(AAA) batteries matching the -/+ polarities of the battery to the -/+ marks inside the battery compartment, as follows: BATTERY LIFE Normally, battery can be used one year. If the remote control is still invalid when very near to the TV's remote sensor window, please use new battery. -
Page 11: Tv Mode
TV mode SPV7050P-America OSD SELECT INPUT SOURCE SOURCE S-Video YPBPR HDMI Press SOURCE button to display the input source list; Press ▼ / ▲ button to select the input source you want to watch; Press ENTER button to enter the input source; BASIC OPERATION PICTURE PICTURE MODE... -
Page 12: Picture Menu
TV mode SPV7050P-America OSD Show topics when you enter TV mode without scan program. Please Scan Channels! CABLE NTSC Picture Menu Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press ▼... -
Page 13: Sound Menu
TV mode SPV7050P-America OSD SOUND MENU Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press ▼ / ▲ button to select Sound in the main menu, then press ► button to enter. SOUND SOUND MODE PERSONAL... -
Page 14: Function Menu
TV mode SPV7050P-America OSD FUNCTION MENU Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press ▼ / ▲ button to select Function in the main menu, then press ► button to enter. FUNCTION LANGUAGE ENGLISH... - Page 15 TV mode SPV7050P-America OSD FUNCTION MOVE ENTER MENU BACK Press ◄ / ► button to select YES or NO press ENTER button to reset when select YES, press ENTER button to return back to the previous menu when select NO. Child Lock ▼...
- Page 16 TV mode SPV7050P-America OSD CHANGE CODE ▼ ▲ Press button to select Change Code , then press ENTER button to enter. CHANGE CODE ENTER OLD PASSWORD ENTER NEW PASSWORD ENTER PASSWORD AGAIN NUMBER ENTER MENU BACK Input old password at “ENTER OLD PASSWORD”. Input new password at “ENTER NEW PASSWORD”.
- Page 17 TV mode SPV7050P-America OSD FUNCTION CC MODE MENU EXIT MOVE ADJUST CC Mode Press ▼ / ▲ button to select CC Mode , then press ◄ / ► button to select different CC Mode. ( Available CC Mode: OFF, CC1, CC2, CC3, CC4, TT1, TT2, TT3, TT4).
- Page 18 TV mode SPV7050P-America OSD TV Menu Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press ▼ / ▲ button to select in the main menu, then press ► button to enter. TV MODE CABLE AUTO SEARCH...
- Page 19 TV mode SPV7050P-America OSD MANUAL SEARCH CHANNEL NTSC-M TV SYSTEM SKIP FINE TUNE 49.7MHz MENU BACK MOVE ADJUST Channel Press ▼ / ▲ button to select Channel , then press ◄ / ► button to select different channel. TV System Press ▼...
-
Page 20: Av And S-Video Mode
AV and S-video mode SPV7050P-America OSD Picture Menu Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press ▼ / ▲ button to select Picture in the main menu, then press ► button to enter. PICTURE PICTURE MODE PERSONAL... -
Page 21: Ypbpr And Hdmi Mode
YPBPR and HDMI mode SPV7050P-America OSD HDMI/YPBPR MENU Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press ▼ / ▲ button to select HDMI/YPBPR in the main menu, then press ► button to enter. HDMI/YPBPR H POSITION V POSITION... -
Page 22: Pc Mode
PC mode SPV7050P-America OSD Picture Menu Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press ▼ / ▲ button to select Picture in the main menu, then press ► button to enter. PICTURE PICTURE MODE PERSONAL... - Page 23 PC mode SPV7050P-America OSD FUNCTION MENU Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press ▼ / ▲ button to select Function in the main menu, then press ► button to enter. FUNCTION LANGUAGE ENGLISH...
- Page 24 PC mode SPV7050P-America OSD 1. Press ▼ / ▲ button to select the option that you want to adjust in the menu. 2. Press ◄ / ► button to adjust. 3. After finishing your adjustment, Press MENU EXIT button to save and return back to the previous menu. H Position ▼...
-
Page 25: Tv Troubleshooting
SPV7050P-America OSD 1366X768 -21-... -
Page 26: Dvd Operation
DVD OPERATION SPV7050P-America OSD DVD Operation Basic operation 1. Turn ON and OFF the DVD function SOURCE - Turn on the LCD TV and then press repeatedly to select DVD mode. 2. Insert Disc to DVD - Insert the Disc to the Disc slot , the player will load the disc automatically.There will have an on screen indication “... - Page 27 DVD OPERATION SPV7050P-America OSD DVD/ MP3/JPEG discs Super VCD/ VCD/ CD /CD-G/ D-CD discs PROG PROG PLAY CLEAR PLAY CLEAR - If it is in PBC ON status, using program playback will turn to PBC OFF automatically.(PBC function is only valid for VCD disk) - According to the highlight area input the title and chapter number by numeric buttons, press button to start;...
- Page 28 DVD OPERATION SPV7050P-America OSD DVD Functions operating instructions 1. Play (for DVD/ Super VCD/ VCD/ CD/ CD-G/HD-CD and Mp3/ JPEG discs) - For DVD disc, press button from root or title menu; while playing the DVD, you may play your favorite title directly with title selection by pressing the TITLE button.
- Page 29 DVD OPERATION SPV7050P-America OSD For DVD discs, (2 pages) Press DISPLAY button once to display first page as shown below: Disc Type Chapter -/-(Current/Full) Elapsed disc time D V D 0 /3 1 / 2 0 0 :0 5 : 4 5 Tiltle -/- (Current/ Full) Press...
- Page 30 DVD OPERATION SPV7050P-America OSD NOTE: For Multi-languages DVD & Super VCD discs, press AUDIO button to select your favorite language. 11. Subtitle (for DVD Super VCD discs) - Press SUBTITLE button once to display current sub-title. - Press again to toggle between different subtitle modes in sequent. NOTE: For Multi-languages subtitle DVD &...
-
Page 31: Function Settings
DVD OPERATION SPV7050P-America OSD - Using the navigation buttons to check you favorite folder and playback the first file or move to the your favorite file. NOTE: - Press ◄ ► buttons to move the highlight to folders, documents or mode selection. - Press numeric buttons to select the contents directly. - Page 32 DVD OPERATION SPV7050P-America OSD System Setup SYSTEM SETUP TV SYSTEM NTSC TV TYPE NOTE: NTSC format is generally used for TVs in PASS WORD AUTO RATING the North America. Check your TV user guide DEFAULT for supported formats . If PAL is selected with a non-compatible television you EXIT SETUP may experience interference or picture...
- Page 33 DVD OPERATION SPV7050P-America OSD PassWord - The default setting is locked. No Rating selection or change password could be done. To edit the Rating setting, please enter default password “0000” by numeric buttons, then press ENTER button to confirm. - To change password, input any 4 digit number when the lock is unlocked. Once the 4 digit number is entered, that will be your new password.
- Page 34 DVD OPERATION SPV7050P-America OSD Language Setup Press SETUP button to enter the DVD OSD menu. LANGUAGE SETUP - OSD Language Use navigation buttons to select the OSD LANGUAGE setup OSD LANGUAGE ENGLISH GERMAN icon, press ENTER button to confirm. There are 6 languages AUDIO LANG SPANISH for your selection, press ▲...
- Page 35 DVD OPERATION SPV7050P-America OSD MENU Language LANGUAGE SETUP OSD LANGUAGE ENGLISH GERMAN - Use navigation buttons to select the MENU LANG setup icon, AUDIO LANG SPANISH press ENTER button to confirm. There are 6 languages for you SUBTITLE LANG FRENCH selection, press ▲...
- Page 36 DVD OPERATION SPV7050P-America OSD Digital Setup Dynamic Range DIGITAL SETUP DYNAMIC RANGE FULL DUAL MONO 6 / 8 4 / 8 EXIT SETUP 2 / 8 - When switch the compress mode to “Audio output”, adjust the compress ratio for different effect. When selected FULL, the peak signal value is smallest.
-
Page 37: Troubleshooting
TROUBLESHOOTING SPV7050P-America OSD Troubleshooting Before contact the service technician, perform the following simple checks. If any program still persists, unplug the LCD TV and calling for serving. PROBLEM POSSIBLE SOLUTION - Check that the main plug has been connected to a wall let. No sound and picture - Check that you have pressed the POWER button on the front of TV set. - Page 38 MAINTENANCE SPV7050P-America OSD NOTE: There is a problem in VGA mode.(Only VGA mode applied) PROBLEM POSSIBLE SOLUTION - Adjust resolution, horizontal frequency, or vertical frequency. - Check it whether the signal cable is connected or loose. The signal is out of range. - Check the input source.
- Page 39 MAINTENANCE SPV7050P-America OSD Cleaning discs 1. Fingerprints and dust should be carefully wiped from the disc's surface with a soft Cloth. Audio discs and DVD discs have no grooves to collect dust and microscopic debris so gently wiping with a soft cloth should remove most particles. Wipe in a straight line from the inside to the outside of the disc.
-
Page 40: Specifications
SPV7050P-America OSD Model LCDVD198 409.8 230.4 1366X768 NTSC AC input -36-... -
Page 41: Display Mode
SPV7050P-America OSD button on the remote control by users. -37-... - Page 42 SPV7050P-America OSD -38-...
-
