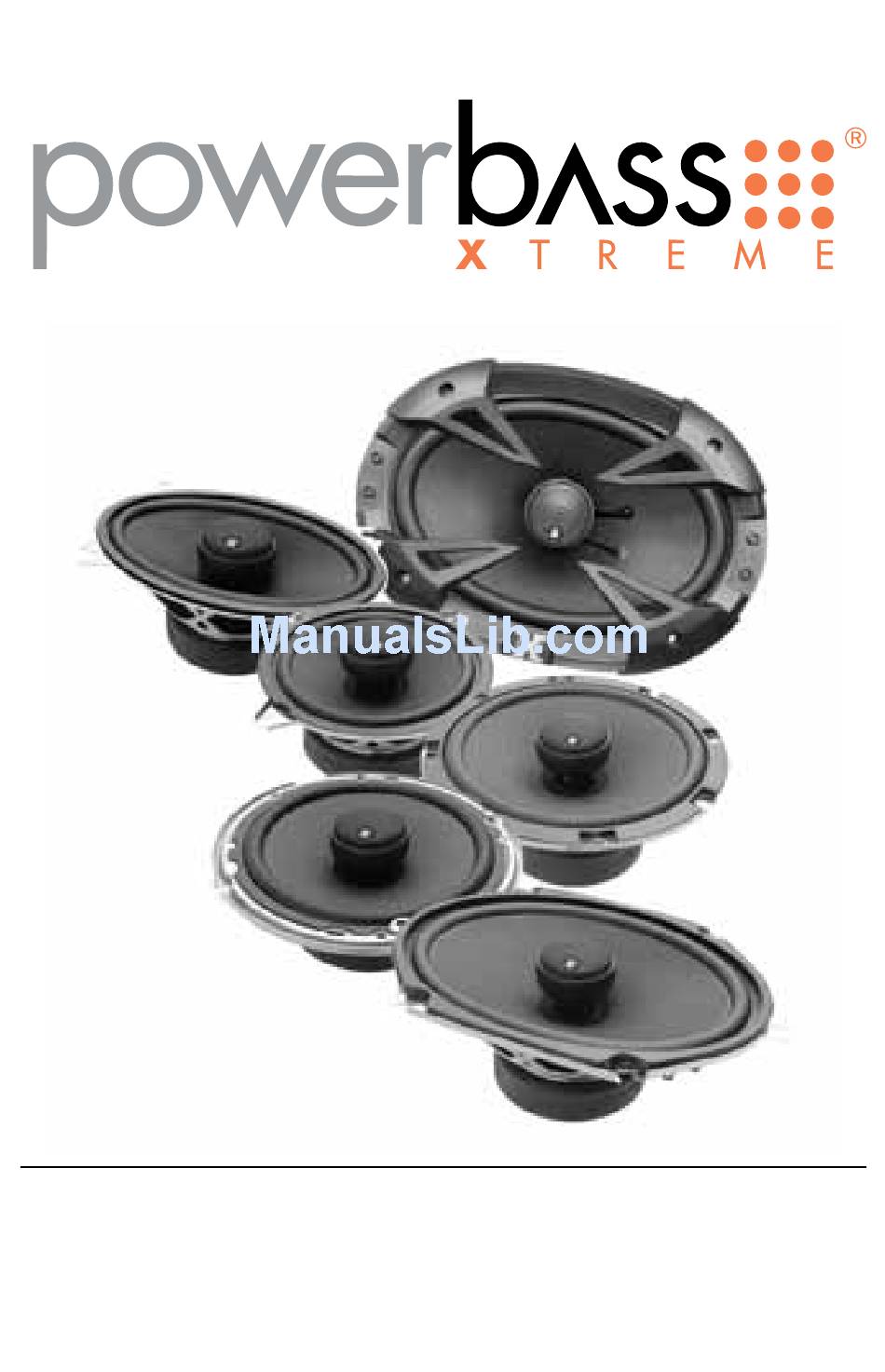

- Page 1 2XL SPEAKER SERIES Application Guide...
- Page 3 ∆ Warning ∆ Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. PowerBass Xtreme Speakers are capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system.
- Page 4 POWERBASS XTREME 2XL SPEAKER FEATURES Stamped Basket (Stainless Steel Finish): These rigid baskets are designed to give the moving parts of the speaker the solid, corrosion free platform that they need to perform for even the most discriminating listener. 4-Layer Wool/Paper Composite Cone: The premium grade cones on these speak- ers are coated fibrous paper cone with woven wool fibers for addition strength and rigidity.
- Page 5 SPECIFICATION FOR POWERBASS 2XL SPEAKERS (due to Constant Improvement, Specification and Parameter are subject to change without notice) Model Size Nominal Impedance Frequency Response Sensitivity Magnet Size Mounting Depth Power 1W/1M RMS/Max 2XL-4002 4” 3 Ohm 68 Hz - 20 kHz 88 dB 10 oz.
- Page 6 INSTALLATION EXPERIENCE Installation of PowerBass Xtreme Speakers requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operation instructions. If you have any reservations about your installation skills or lack of the proper tools, please contact your local PowerBass Xtreme dealer for assistance.
-
Page 7: Preparing For Installation
• These PowerBass Xtreme speakers can be used above or below the mounting hole. Typically, your vehicle factory’s speaker cutouts will accommodate these new speakers without any modifications. When the speaker has been correctly installed, there should be no air leaks between the front and back of the speaker. - Page 8 EXAMPLE OF MOUNTING Mounting Options A. Rear Deck Mounting B. Multiple Mounting Multi-Speaker Installation Wiring Diagram ILLUSTRATION OF REAR DECK MOUNT INSTALLATION A. Speaker mounting depth and hole cutout diameter. B. Cut hole using saber saw/ utility knife. C. Connect wiring to speaker terminals. Make sure of polarity (+)positive (-)ground. Using a philips screwdriver secure speakers and attach grille, if applicable.
- Page 10 PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the fol- lowing terms: PowerBass Xtreme Speakers are to be free of defects in material and workmanship for a period of one (1) year. The warranty is extended to three (3) years for parts and labor, if an Authorized PowerBass Xtreme Dealer completes the installation.
- Page 11 This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2008 PowerBass USA, Inc.
- Page 12 Revised 2008 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 13936 Mountain Avenue – Chino, CA 91710 Tel. (909) 993-5399 – Fax (909) 993-5393 www.powerbassusa.com...
