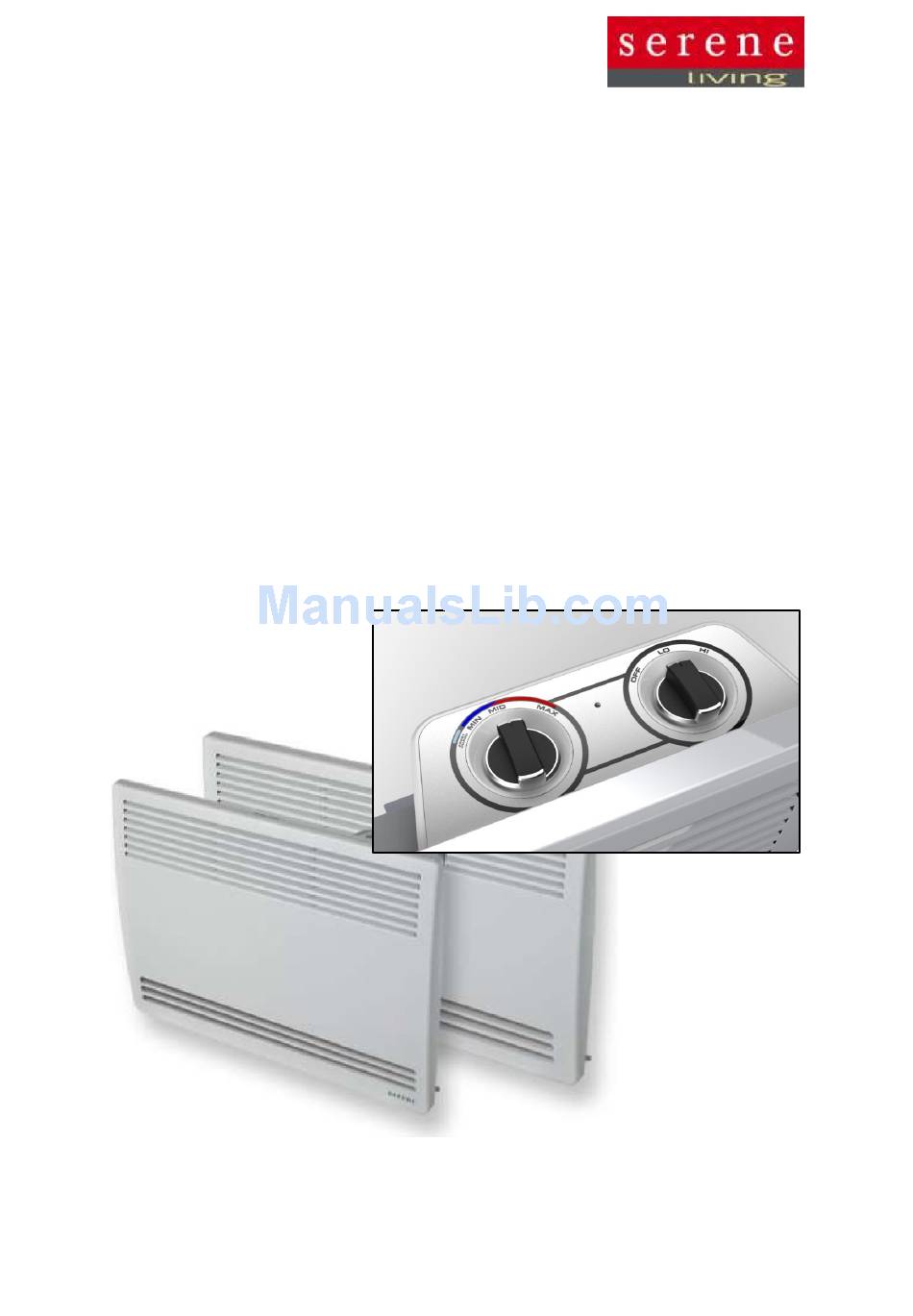

- Page 1 Serene ‘Primo’ Heating Panels Models S2024/5 With easy to use Manual Controls Operating Instruction Manual Please read and save the user manual Heating panel Series 2...
-
Page 2: Safety Information
Introduction Serene Heating Panels Serene Convection panel heaters are available as horizontal models, providing you with the opportunity to choose a model that will optimise the available wall space. Our new designs have passed rigorous testing and quality assurance controls with both style and safety in mind. As a result, they have a slim profile, operate silently, are double insulated, include auto reset overheat protection and are supplied with wall mounting brackets for simple installation. -
Page 3: Safety Cut-Out
Cutout: Serene Convection Heating Panels are fitted with a resettable thermal cutout. This safety device will automatically switch off the elements should the heater reach an abnormal temperature and turn the heater back on once it has cooled down. -
Page 4: Installation
Installation: This appliance must be installed in accordance with the current electrical wiring rules and regulations. The heater must not be located immediately below a socket-outlet. A suitable disconnection device (acting in all active supplies) is required to be incorporated in the fixed supply wiring. When used as a bathroom, the heater must be installed such that the controls cannot be touched by a person in the bath or shower. -
Page 5: Thermostat Control Knob
Operation & Functions Control panel 1: POWER CONTROL KNOB 2: HIGH LOW OFF INDICATOR 3: BLUE POWER ON INDICATOR 4: THERMOSTAT CONTROL KNOB 5: THERMOSTAT SETTING INDICATOR 6: ‘FROST WATCH’SETTING Page 5 Heating panel... -
Page 6: Operation
Turning the heater Power ON/OFF When the unit is connected to power the blue ‘power Indicator’ lights. Operation The operation of the heater is controlled by the HI/LOW/OFF control knob and the adjustable thermostat knobs located on the top of the heater. The blue LED indicator lights when the heater is operating. -
Page 7: Overheat Protection
Over - heat protection All Serene heating panels are equipped with a overheat protection switch that will automatically turn the heater off if for any reason the unit has overheated. The heater will automatically come back on when it has cooled down Cleaning The heater requires regular cleaning to ensure trouble free operation. -
Page 8: Wall Mounting Instructions
Wall Mounting Instructions The heater is fixed on the wall with the mounting bracket attached to back of the heater. To secure mounting bracket to the wall 1. Remove the wall mounting bracket from the back of the heater, by compressing the fittings at the top and/or sides of the bracket, which clip into the heater body (see figure 2 below). - Page 9 To remove heater from the wall 1. By using a cross head screwdriver, remove the 2 locking screws of the wall mounting bracket. 2. Lift the heater up and away from the wall. IMPORTANT: When fitted in a bathroom The heater must NOT be located immediately below a socket outlet. Page 9 Heating panel...
-
Page 10: Specifications
Wattage 500W-2000W Wiring: Permanent connection or by cord set. Double insulated, no earth required. Ingress Protection Rating IPX24 Serene Industries Limited reserves the right to alter specifications without notice. Contact : NEW ZEALAND t: +64 (3) 344 5550 0800 437 264 e: nzenquiry@serene-ind.com...
