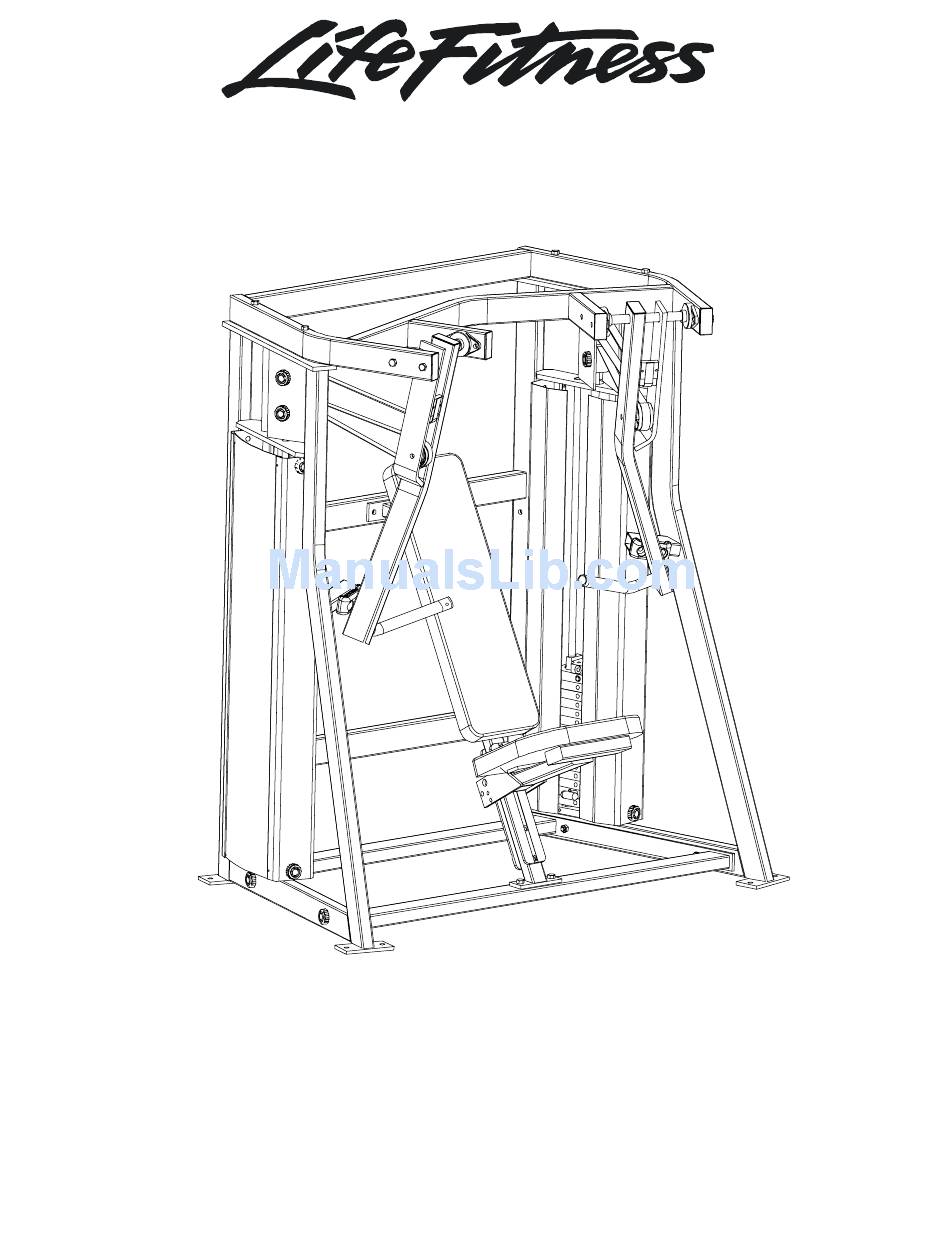

- Page 1 MTS - MOTION TECHNOLOGY SELECTORIZED MTDP DECLINE PRESS Customer Support Services PARTS MANUAL 1Page 1 of 14...
- Page 2 MTDP DECLINE PRESS Notes: 2Page 2 of 14...
-
Page 3: Table Of Contents
MTDP DECLINE PRESS Contents PAGE SEAT FRAME ...4 LEFT MOVEMENT ARM...5 RIGHT MOVEMENT ARM...6 LEFT SIDE FRAME ...7 RIGHT SIDE FRAME ...8 TOP FRAME ASSEMBLY...9 PADS...10 SEAT FRAME ASSEMBLY...11 SEAT ROLLER ASSEMBLY...12 INCREMENT WEIGHT ...13 WEIGHT STACK ...14 3Page 3 of 14... -
Page 4: Seat Frame
MTDP DECLINE PRESS SEAT FRAME Seat Frame Weldment MTDP-S0002 Seatrack Back 0K50-P1017 Seat Support 0K50-S1003 Rod Caps-2 0017-00042-1038 Lock Nut-2 0017-00103-0223 Seat Shaft 0K50-P1007 Bolt-2 (1/2x2-3/4) 0017-00101-1573 4Page 4 of 14 Lock Collar-2 0017-00009-1019 Rod Cap-2 0017-00042-0967 Seatrack Back 0K50-P1018... -
Page 5: Left Movement Arm
MTDP DECLINE PRESS LEFT MOVEMENT ARM Lock Nut 0017-00101-1412 Aluminum End Cap 0K50-P0315-4000 End Cap-2 0017-00042-1038 Bolt-2 (3/8x1-1/4) 0017-00101-1412 Strap Clamp 0K50-P1021 Lock Washer-4 0017-00104-0379 5Page 5 of 14 3” Pulley Assembly 0017-00009-1039 Bolt (1/2x4-1/2) 0017-00101-0379 Left Movement Arm Weldment... -
Page 6: Right Movement Arm
MTDP DECLINE PRESS RIGHT MOVEMENT ARM Bolt-2 (3/8x1-1/4) 0017-00101-1412 Strap Clamp 0K50-P1021 3” Pulley Assembly 0017-00009-1039 Bolt (1/2x4-1/2) 0017-00101-0379 Right Movement Arm Weldment MTDP-S0007 End Cap-2 0017-00042-1038 Aluminum End Cap 0K50-P0315-4000 6Page 6 of 14 Lock Washer-4 0017-00104-0379 Lock Nut... -
Page 7: Left Side Frame
MTDP DECLINE PRESS LEFT SIDE FRAME Lock Nut-4 (1/2”) 0017-00103-0223 Black Plastic Rod Caps-2 0017-00042-0967 Guide Rod Collar 0K50-P1110 Lock Collar 0017-00009-1019 150lbs Weight Stack Guide Rod-2 MTDP-P0027 Interlock Washer-6 (1/2”) 0017-00104-0379 Pulley Assembly-2 0017-00009-1039 End Cap 0017-00042-0945 Lock Nut-2 (1/4”) -
Page 8: Right Side Frame
MTDP DECLINE PRESS RIGHT SIDE FRAME Interlock Washer-6 (1/2”) 0017-00104-0379 Bolt-4 (1/2x3-1/4) 0017-00101-1574 Pulley Assembly-2 0017-00009-1039 Interlock Washer-6 (1/2”) 0017-00104-0379 Hammer Head Small Bumper 0017-00042-1040 Weight Stack Donut-2 0017-00042-0993 Right Side Frame Weldment MTDP-S0003 Bolt-2 (1/4x2-1/2) 0017-00101-1585 Lock Nut-4 (1/2”) -
Page 9: Top Frame Assembly
MTDP DECLINE PRESS TOP FRAME ASSEMBLY Hammer Head Washer-8 0017-00042-1041 Plastic Bellow-4 0017-00042-1042 Aluminum End Cap-2 0K50-P0315-4000 Lock Nut-8 0017-00103-0223 End Cap-6 0017-00042-1038 9Page 9 of 14 Bolt-8 1/2x2-3/4 0017-00101-1573 Top Frame MTDP-S0006 Small Bearing-4 0017-00009-1034... -
Page 10: Pads
MTDP DECLINE PRESS PADS Back Pad 0K50-US063-0000 Seat Pad 0k50-US065-0000 Lock Washer-4 0017-00104-0377 Bolt-2 (3/8x2-12) 0017-00101-1417 Washer-2 0017-00104-0313 Bolt-4 (3/8x1-1/2) 0017-00104-0377 10Page 10 of 14... -
Page 11: Seat Frame Assembly
MTDP DECLINE PRESS SEAT FRAME ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION 1 MTIP-S0012 BACK FRAME WELDMENT, SEAT 1 AK50-A1006 MTS SEAT #1 ASSM. (ROLLER) 1 73763 ROLLER ASSM. 4 0017-00104-0377 3/8" Internal Lock Washer 2 0017-00101-1662 M10 X 64 HXS SOC CS ST ZN... -
Page 12: Seat Roller Assembly
MTDP DECLINE PRESS SEAT ROLLER ASSEMBLY ITEM NO. QTY. PART NO. DESCRIPTION 0K50-S1007 MTS SEAT #2 (ROLLER) AK50-S0041-0000 WELDMENT, PS- ROLLER SEAT HANDLE 0017-00009-1110 TORSION SPRING, S.S. 0017-00101-1662 M10 X 64 HXS SOC CS ST ZN 0017-00104-0377 3/8" Internal Lock Washer... -
Page 13: Increment Weight
MTDP DECLINE PRESS INCREMENT WEIGHT Body 5 lbs 0K50-P1107 Lever 0K50-P1108 C-Clip 0017-00100-0189 Knob 0K50-P1125 Retaining Pin 0K50-P1148 Slotted Pin 0017-00007-0249 13Page 13 of 14 Compression Spring 0017-00009-1090 Bearing Sleeve Guide-3 0017-00006-0240 Bumper-2 0K50-P1127... -
Page 14: Weight Stack
MTDP DECLINE PRESS WEIGHT STACK Head Plate 0K50-P1012-0000 Bearing 0017-00006-0220 E-Ring 0017-00100-0180 10lbs Weight Plate 0K50-P0483-0000 Lock Washer-2 0017-00104-0377 Bayonet-14 Holes 0K50-P1011-1001 14Page 14 of 14 Weight Stack Guide-2 MTFP-P0028 150lbs Belt Attachment AK50-S0023 Bolt-2 (3/8x1) 0017-00101-1464 Weight Stack Pin...
