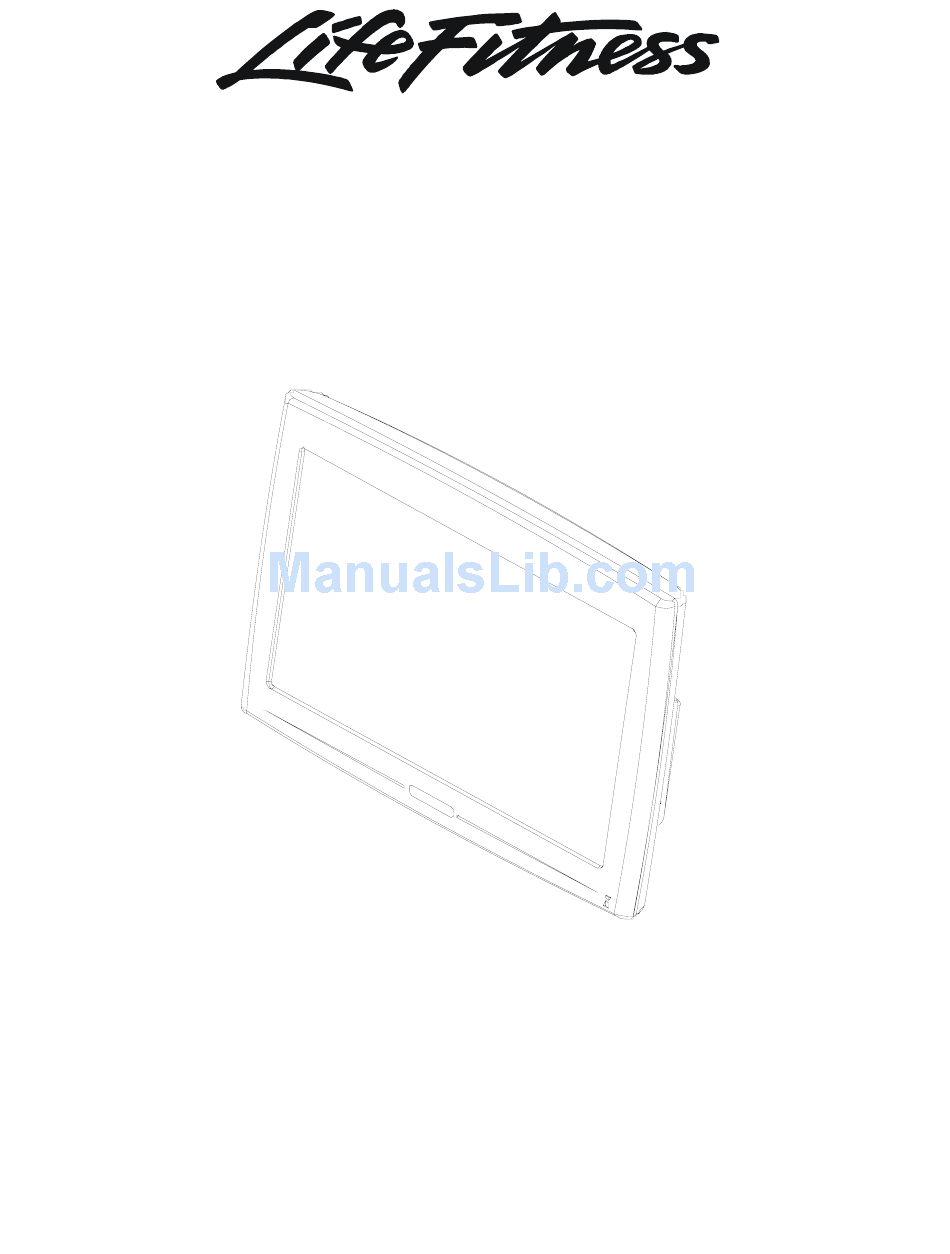

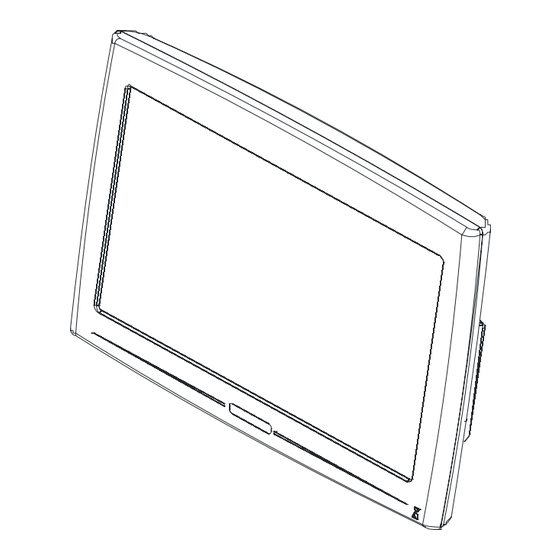

- Page 1 LCD TV ENTERTAINMENT SYSTEM LCD-0201-04 GRAY 17-inch ATTACHABLE LCD TV - NTSC/ATSC; sold in the USA LCD-0202-04 GRAY 17-inch ATTACHABLE LCD TV - PAL/DVB Customer Support Services PARTS MANUAL rev 21 Oct 2008...
-
Page 2: Table Of Contents
LCD-0201-04: LCP100000 and up Contents LCD-0202-04: LCQ100000 and up TV ASSEMBLY ... 3 LIFE FITNESS TV REMOTE CONTROL ... 4 MOUNTING HARDWARE ... 5 APOLLO AND GEMINI MOUNTING HARDWARE ...6 MOUNTING BRACKETS AND HARDWARE ... 7 CROSS-TRAINER AND SUMMIT (SILVER) MOUNTING HARDWARE ... 8 TREADMILL (SILVER) MOUNTING HARDWARE ... -
Page 3: Tv Assembly
0K71-01032-0000; AC POWER SUPPLY TRANSFORMER W/36” CABLE 0K71-01059-0000; LINE CORD: UK 240V AK71-00047-0000 CBL-ASSY: 36” COAX; PAL/DVB-T 0K71-01027-0000 COAX: COUPLER 0K71-01029-0000 POWER SOCKET: FOR EUROPE 0K71-01038-0000 POWER SOCKET: FOR AUSTRALIA LCD-0201-04: LCP100000 and up LCD-0202-04: LCQ100000 and up Description Description Description... -
Page 4: Life Fitness Tv Remote Control
AK71-00016-0000 LCD-0201-04: LCP100000 and up LCD-0202-04: LCQ100000 and up Description Remote Assembly Stealth Gray Complete Assembly (includes all parts) LIFE FITNESS EXTERNAL TV REMOTE CONTROL LF EXTERNAL TV REMOTE CNTRL FOR TV STAND M5x15MM Screw 0017-00101-1977 Base 0K71-01023-0000 M3.5x10MM Screw (4) -
Page 5: Mounting Hardware
This kit is used to attach a 17” TV to a bracket that had a 12.1” TV attached. M4 X0.7-6G6GX 10 PHL PAN Screw 0017-00101-1968 not included LCD-0201-04: LCP100000 and up LCD-0202-04: LCQ100000 and up M6 X1.00-6G6GX 14 HEX BUT Screw 0017-00101-1953 WSH: M6.50X 11.5 X 1.75... -
Page 6: Apollo And Gemini Mounting Hardware
0017-00101-2003 Washers (8) 0017-00104-0488 Grommet: LCD Access 0K71-01005-0000 M6X14MM Screw (8) 0017-00101-2003 Washers (8) 0017-00104-0488 Washers (4) 0017-00101-2022 LCD-0201-04: LCP100000 and up LCD-0202-04: LCQ100000 and up Cap End 0K71-01004-0000 Assy: Extrusion w/Inserts AK71-00043-0000 Cover: LCD Access 0K71-01024-0000 Cap End 0K71-01004-0000... -
Page 7: Mounting Brackets And Hardware
Upright bike AK32-00033-0009 Recumbent Bike AK32-00033-0010 93S & 95S Stair Climber AK32-00033-0010 90S Stair Climber AK32-00033-0013 91X Crosstrianer AK32-00033-0013 LCD-0201-04: LCP100000 and up LCD-0202-04: LCQ100000 and up 10-32x8 Screw 120-inch Coax 0017-00101-1823 AK32-00020-0002 120-inch Power Extension Cable AK32-00078-0001 Polar Cap... -
Page 8: Cross-Trainer And Summit (Silver) Mounting Hardware
Used only on the Cross-trainers Extra part when kit is used with Summit Trainer Adaptor Bracket Kit GK71-00002-0001 120-inch Coax AK32-00020-0002 120-inch Power Extension Cable AK32-00078-0001 LCD-0201-04: LCP100000 and up LCD-0202-04: LCQ100000 and up CAP: TUBE 0K32-01059-0000 Screws 0017-00101-1820 Washer 0017-00104-0476 CAP: CONSOLE SUPPORT;... -
Page 9: Treadmill (Silver) Mounting Hardware
Mounting Screws 0017-00101-1820 Washer 0017-00104-0476 Mounting Support AK32-00143-0000 Mounting Screws 0017-00101-1817 Adaptor Bracket Kit GK71-00002-0001 120-inch Coax AK32-00020-0002 120-inch Power Extension Cable AK32-00078-0001 LCD-0201-04: LCP100000 and up LCD-0202-04: LCQ100000 and up Retainers 0K32-01034-0000 Washers 0017-00104-0471 End Caps AK58-00528-0001 Nuts 0017-00103-0019... -
Page 10: Treadmill (90T, 91T) Mounting Hardware
Treadmill (90T, 91T) Mounting Hardware Adaptor Bracket Kit GK71-00002-0001 Mounting Screws (2) 0017-00101-1820 Silver Washer 0017-00104-0476 Mounting Screws (4) 0017-00101-1816 120-inch Coax AK32-00020-0002 120-inch Power Extension Cable AK32-00078-0001 LCD-0201-04: LCP100000 and up LCD-0202-04: LCQ100000 and up Mounting Support, Silver AK32-00144-0002 90T-91T...
