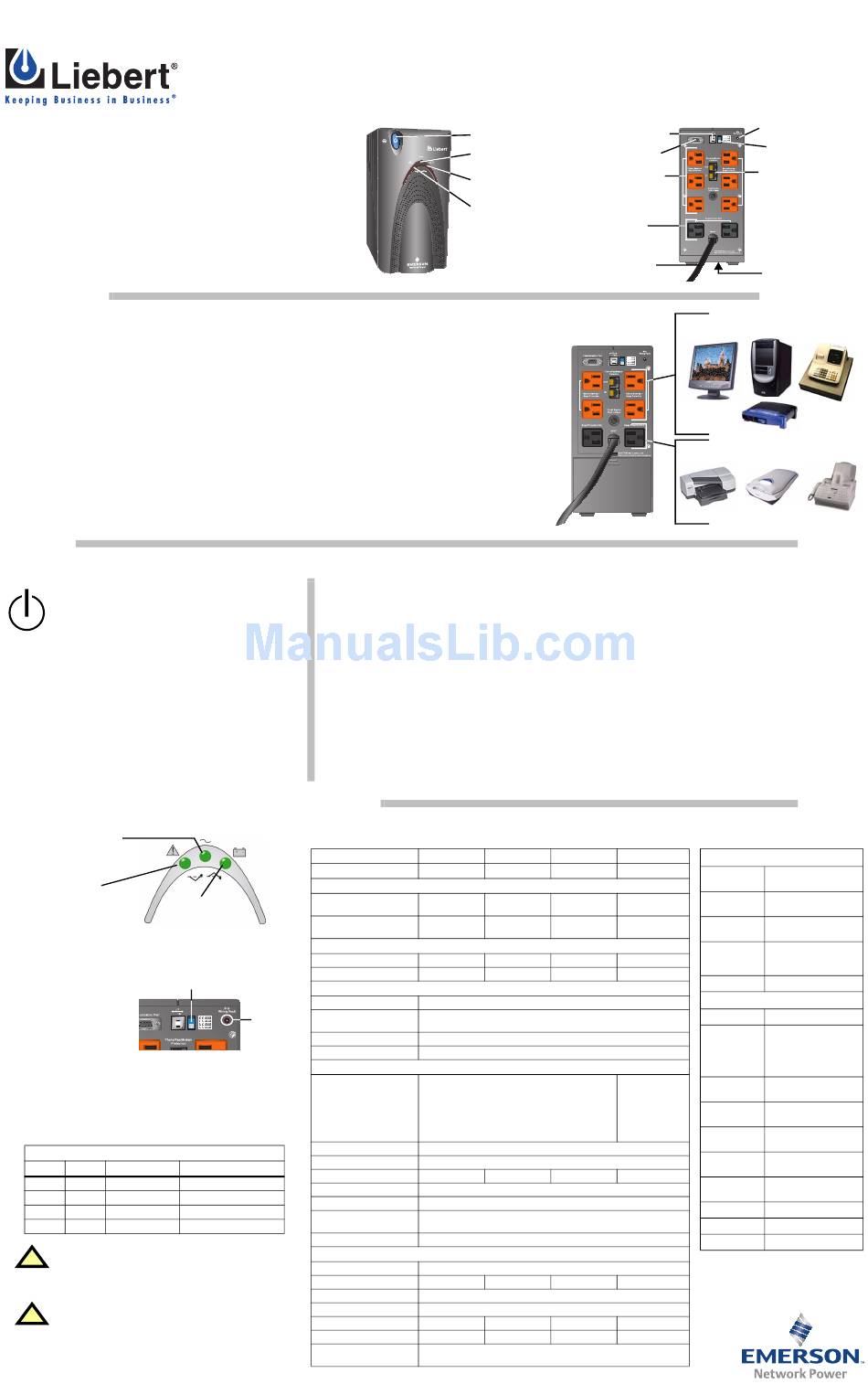

Liebert PowerSure PSA 350-1000VA Quick Start Manual

W ' I T B
HAT S N HE OX
• Quick-Start guide
• PowerSure family user manual on CD (also at www.liebert.com)
• Warranty card
™
• MultiLink software CD
• MultiLink serial cable (M3LS9P9S), 10 ft. (3m)
• RJ-11 cord, 7 ft. (2.1 m)
• USB cable, 6 ft. (1.8m)
For more details, refer to the PowerSure user manual on CD.
Para una información más detallada, consulte el manual del usuario
de la familia PowerSure en el CD.
I
NSTALLATION
Read all safety, installation and operating instructions in the PowerSure family user manual on the included CD or
at www.liebert.com before operating the UPS. Adhere to all warnings on the unit and in the manual.
1. Install the UPS indoors in a controlled environment, where it cannot be accidentally turned off. Place it in an area
of unrestricted airflow around the unit, away from water, flammable liquids, gases, corrosives and conductive
contaminants. Maintain a minimum clearance of 4 inches (100mm) on each side of the UPS. Maintain an ambi-
ent temperature range of 32°F to 104°F (0°C to 40°C).
2. Plug the PSA's power cord into an AC outlet. Check the Site Wiring Fault Indicator on the rear; if it is illuminated,
refer to the Troubleshooting section.
3. Plug any computers and monitors into the orange receptacles for battery backup and surge protection; other
office machines that do not exceed the capacity of the UPS may be plugged into either of the two (2) black
receptacles, which provide surge protection only.
4. Connect Phone/Fax/DSL/Internet/Modem devices to data line connectors.
5. Press and release the ON/OFF/Alarm Silence button to turn on the UPS. The UPS will beep and the Utility Indi-
cator will illuminate (green).
6. Turn on connected equipment.
C I
ONTROLS AND NDICATORS
This button controls output power to the connected
load and has three functions:
• Turns the PowerSure PSA ON
• Turns the PowerSure PSA OFF
• Silences PowerSure PSA alarms
TURN THE UPS ON: Press and release the main ON/OFF
button to start the UPS. An audible alarm will sound briefly.
TURN THE UPS OFF: When the PSA is ON, hold the main
ON/OFF button down for more than 2 seconds to shut it down.
An audible alarm will sound briefly.
SILENCE AN ALARM: When a UPS alarm is active, press and
release the main ON/OFF button to silence the audible alarm
(Exceptions: low battery, overload and overtemperature). DO
NOT hold the button down for more than 2 seconds or the PSA
will shut down.
CHECK THE PSA'S CONDITION: Three status indicators on
the front of the UPS illuminate to specify the status of the UPS
(see Troubleshooting section for details).
Utility Indicator
Green: Normal operation
Amber: Buck/Boost
mode
Fault Indicator
Green: Overload/
Overtemperature
Battery Indicator
Green: On battery
Red: UPS fault
Amber: Battery
SITE WIRING FAULT INDICATOR (RED)
The Site Wiring Fault Indi-
Rear of UPS
cator on the rear panel, as
DIP Switches
shown, illuminates red
when the UPS detects a
line-neutral reversal or a
poor neutral-ground. (See
Troubleshooting Chart if
indicator is illuminated.)
TRANSFER VOLTAGE SELECTORS (DIP SWITCHES)
The two-position DIP switch control on the rear panel, shown
above, allows the operator to select the utility transfer voltage
at which the UPS will switch to battery power. The factory
default settings are 100VAC - 135VAC. DIP switch positions for
each voltage setting are:
DIP switch settings
Left Right Nominal Utility
↑ Up ↑ Up
120VAC
↑ Up ↓ Down
110VAC
↓ Down ↑ Up 127VAC
↓ Down ↓ Down
120VAC
CAUTION
!
Never change the voltage settings while the UPS
is ON and powering connected loads. Change
DIP switches only when the UPS is OFF.
CAUTION
!
To ensure protection of the connected
equipment, the DIP switch settings should match
the nominal utility input voltage. DIP switch
settings not matching the nominal utility could
potentially damage connected equipment.
PowerSure
Quick-Start Guide for 350-1000VA; 120V
C
OMMUNICATIONS
The PowerSure PSA will communicate with your computer in either of two ways: over its DB-9 port through Lie-
bert's MultiLink
MultiLink supplies useful monitoring data, such as input voltage and battery level, and will perform an orderly shut-
down of the computer system. Microsoft Windows XP and 2000 operating system utilities supply UPS status infor-
mation and will perform an orderly computer shutdown. Check your computer's OS features to determine whether
it has power management capability.
For MultiLink Serial Communications
• Connect the provided MultiLink serial cable to the DB-9 ports on the rear of the UPS and on the rear of your
computer.
• Install the MultiLink software—the software, installation instructions and the user manual are on the CD included
in the PowerSure PSA package.
For USB Communications (with operating system power management)
• Connect the USB cable provided with the UPS to the USB ports on the PSA and your computer. The PSA will
work automatically with the built-in power management software on Windows XP and 2000 or later.
• All USB models are compatible with Microsoft Windows 2000, Windows XP and Macintosh
S
PECIFICATIONS
Model Number
Power Rating VA/W
DIMENSIONS: in. (mm)
Unit
WxDxH
Shipping
WxDxH
warning
WEIGHT: lbs (kg)
Unit
Shipping
INPUT AC PARAMETERS
Surge Protection
Voltage Range Without
Site Wiring
Battery Operation
Fault
Indicator
Frequency Range
(Red)
Input Power Cord
OUTPUT AC PARAMETERS
Output Receptacles
Voltage (Normal mode)
Voltage (Battery mode)
Setting
Output Current
85 - 145VAC (default)
Waveform (Battery mode)
78 - 138VAC
Frequency
90 - 150VAC
Overload Warning
85 - 145VAC (Normal & Battery modes)
Overload Shutdown
BATTERY PARAMETERS
Type
QuantityxVoltagexRating
Transfer Time
Backup Time:
Full Load
Half Load
Recharge Time
* Power ON/OFF/
Alarm Silence
* Utility Indicator
PowerSure PSA PowerSure PSA
(Green)
Battery Indicator *
(Green/Amber)
* Fault Indicator
(Red/Green)
For details, see :
* Controls and Indicators
** Installation
*** Communications
™
software or by USB through Microsoft
PSA350MT-120 PSA500MT-120 PSA650MT-120 PSA1000MT-120
350VA/210W 500VA/300W 650VA/390W
4.6x7.7x8.7 4.6x7.7x8.7 4.6x14.1x8.7
(116x196x222) (116x196x222) (116x358x222)
7.7x12.2x11.5 7.7x12.2x11.5 9.5x19.7x12.4
(196x310x293) (196x310x293) (242x500x316)
16.8 (7.6) 17.2 (7.8)
18.1 (8.2) 18.5 (8.4)
570J
78VAC - 150VAC, DIP switch selectable
(see "DIP switch settings" on page 1)
46.5 - 63.5 Hz (±0.1 Hz)
6 ft. (1.8m) attached, w/ NEMA 5-15 P
(4) NEMA 5-15R (orange)
Battery backup + surge protection;
(2) NEMA 5-15R (black)
Surge protection
Nominal (110, 120, 127VAC) ±10%
120VAC ±8%
2.9 A 4.2 A
Stepped Sinewave
50 Hz or 60 Hz; auto sensing
>100%
>110%
Valve-regulated, nonspillable, lead acid
(1)x12Vx7Ah (1)x12Vx9Ah (1)x12Vx9Ah
4 - 6 ms typical
At 77°F (25°C), resistive loading, with fully charged batteries:
8 minutes 8 minutes
26 minutes 24 minutes
6 hours to 90% of rated capacity,
after full discharge into resistive load
™
PSA
*** USB port
*** DB-9 port
** Orange output recep-
tacles (battery backup
and surge protection)
(4 receptacles on 350,
500 and 650VA models)
** Black output
receptacles (surge
protection only)
6-ft. (1.8m)
power cord
Plug computers, monitors & network hubs
into orange receptacles
Plug this type of equipment into
black receptacles ONLY
Inkjet printers
® ®
Windows operating system features.
ENVIRONMENTAL (ALL MODELS)
1000VA/600W
Operating
Temperature
4.6x14.1x8.7 Storage
Temperature
(116x358x222)
9.5x19.7x12.4
Relative
(242x500x316)
Humidity
Operating
20.7 (9.4) 29.7 (13.5)
Elevation
22.9 (10.4) 31.9 (14.5)
Audible Noise
AGENCY
Safety
Surge
(6) NEMA 5-15R
ESD
(orange) Battery
backup + surge
protection;
Susceptibility
(2) NEMA 5-15R
(black) Surge
protection Electrical Fast
Transient/Burst
Emissions
5.4 A 8.3 A
Conducted
Immunity
Harmonics
Flicker
Transportation
(2)x12Vx7.5Ah
5 minutes 5 minutes
16 minutes 18 minutes
Site Wiring Fault *
Indicator (Red)
DIP switches **
Data Line ***
Protection
Connectors
Battery cover plate
(on bottom for
650&1000VA models)
(on rear of 350&500VA
models)
Scanners
Fax machines
®
OS 10.2 or later.
+32°F to +104°F
(0°C to +40°C)
+5°F to +104°F
(-15°C to +40°C)
0% to 95%, non-
condensing
Up to 10,000 ft.
(3000m) at 86°F (30°C)
without derating
< 40 dBA, at 1 meter
UL 1778, c-UL Listed
ANSI C62.41, Category
A, Level 3
(IEEE 587, Category A);
EN61000-4-5, Level 3,
Criteria A
EN61000-4-2, Level 3,
Criteria A
EN61000-4-3, Level 3,
Criteria A
EN61000-4-4, Level 4,
Criteria A
FCC Part 15, Subpart B,
Class B
EN61000-4-6, Level 3,
Criteria A
EN61000-3-2
EN61000-3-3
ISTA Procedure 1A
