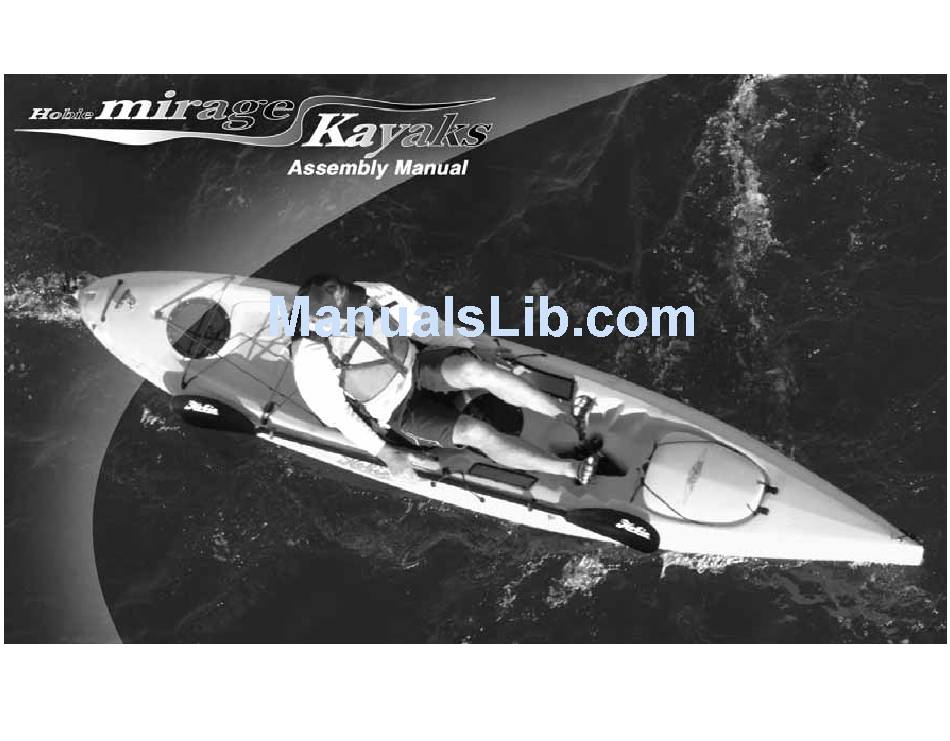

- Page 1 Hobie Mirage Revolution...
- Page 2 Welcome to the Hobie Way of Life Thank you for choosing a Hobie Mirage Kayak. As a member of the Hobie way of life, you are now on the road to pure adventure in pedaling and paddling. This owner’s manual is designed to help you get maximum enjoyment from your new Hobie kayak.
- Page 3 Hobie Mirage Adventure Sit-on-top Cockpit Scupper Hole(s) The Hobie Mirage kayaks are open-top cockpit designs. Drain holes (scuppers) in the cockpit or cargo well allow any water that enters the cockpit to immediately flow back out. This allows the kayaker to enter and exit the kayak easily from the shore, dock or water.
- Page 4 Drive Installation Pedal Adjustment 1. Insert the Hobie Mirage Drive into the The pedals of the Hobie Mirage Drive are adjustable to opening of the hull near the footwells so it accommodate different leg lengths of kayakers. To adjust is facing forward. The front of the Mirage...
- Page 5 Occasionally the cables may need to be CAUTION re-tightened. The cables should be kept Care should be taken to avoid hitting objects with the Hobie taut; however, the front chain should be a Mirage Drive. If you bend a mast, it usually can be straightened.
- Page 6 The Twist-and-Stow Rudder System Patent Pending Twist-and-Stow Rudder Features The Twist-and-Stow rudder system comes pre-installed and The left steering control line adjusted from our factory. With extensive use, the rudder passes up through the hole in system may need to be adjusted. The following information the hex head bolt.
- Page 7 Up/Down Control Assembly Pull more of this line to The following is a detail of how the up/down rud- get more DOWN tension. der control is set up inside the kayak. Up/Down Handle A Bungee cord fits is attached to the down control line and fits The down control around the control arm post.
- Page 8 Basic Kayak Information All Hobie kayaks are made of linear polyethylene, making them repairable and recyclable. Recommended Equipment for Specific Types of Pedaling and Paddling Basic Boating: Life Jacket, Paddle, Paddle Leash, Backrest, Safety Whistle, Filled Water Bottle, Appropriate Safety Equipment.
- Page 9 · If additional outfitting is added to this craft, use manufacturer- · To avoid damage to the Hobie Mirage Drive, push either pedal approved materials only; do not impair entry or exit access. completely forward before beaching or in shallow water. Use ·...
- Page 10 First adjust the pedals to accommodate your size as shown scupper hole or Hobie Mirage Drive and pull the boat upright. a few pages back. Adjustments can be made for a variety of leg lengths.
- Page 11 Paddling surface area for the wind to catch as that blade moves for- ward through the air. Some paddles have a flattened spot You can choose to paddle, along the paddle shaft that will help keep your “control” hand pedal or combine the two. in a fixed position.
- Page 12 Plug. The plug is provided as standard equipment in the the boat bottom-side down may also cause distortion. Kayak Mirage Kayak package and is used to fill the space where the storage systems are available from your dealer. Pad eyes Mirage fits into the hull.
- Page 13 If your bumpers do not have a gap to pass a rope around, look underneath. There should be a loop The easiest way to transport your Hobie kayak is to purchase of metal, which is used by car transports such as tow trucks.
-
Page 14: Frequently Asked Questions
Hobie will recycle your boat when you are done with it. To You may find it necessary to replace some of the pad eyes or recycle a Hobie Kayak, it must be cut up so it fits in a box with hooks if they are damaged. To replace them, follow the the following dimensions (for UPS): may not exceed 130”... -
Page 15: Warranty Information
Hobie provides a limited two year hull warranty. Your warranty registration card is packaged with this owner’s manual and should be completed and returned to Hobie Cat within 30 days of the date of pur- chase. If you have problems with your boat, contact your dealer first. If you need further assistance, contact Hobie Cat. To help process any warranty prob- lems, please complete your warranty card and give it to your dealer or mail it directly to Hobie Cat. - Page 16 Mirage Kayaks All pedal kayaks come with Hobie Mirage Drives, rudder systems, high-back seats w/ fanny pack, water bottle, cup holders, and two- piece paddles. Mirage Sport Hobie • Two storage hatches; 8” & 6" Length: 9' 7"/ 2.92 m •...

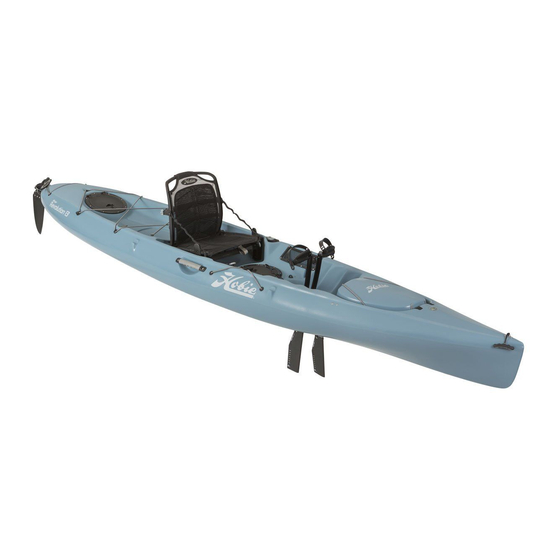

- Page 17 Mirage Revolution Hobie • Three storage hatches; Two 8” & one large Length: 13' 5”/ 4.09 m forward hatch. Width: 28.5"/ 0.72 m • Two molded-in fishing rod holders. Hull Weight: 58 lbs./ 22 kg • Two mesh covered stowage pockets.
- Page 18 Paddle Kayaks All deluxe paddle kayaks come with two-piece paddles and an adjustable seat. Lanai Hobie • 6" hatch w/fitted storage bag. Length: 9'/ 2.74 m • Molded-in drink holder. Width: 30"/ 0.76 m • Easy-carry molded-in grip. Hull Weight: 40 lbs./ 18 kg •...
- Page 19 Quest Hobie • Two hatches: Large covered bow & 8". Length: 13’/ 3.96 m • Center accessory tray & cup holder. Width: 28.5"/ 0.72 m • Two mesh-covered stowage pockets. Hull Weight: 57 lbs./ 26 kg • Two rear molded-in rod holders.
- Page 20 REV 8/06 PN 89500 HOBIE CAT 4925 Oceanside Blvd. Oceanside, CA 92056 Phone (760) 758-9100 Fax (760) 758-1841 www.hobiekayaks.com...
