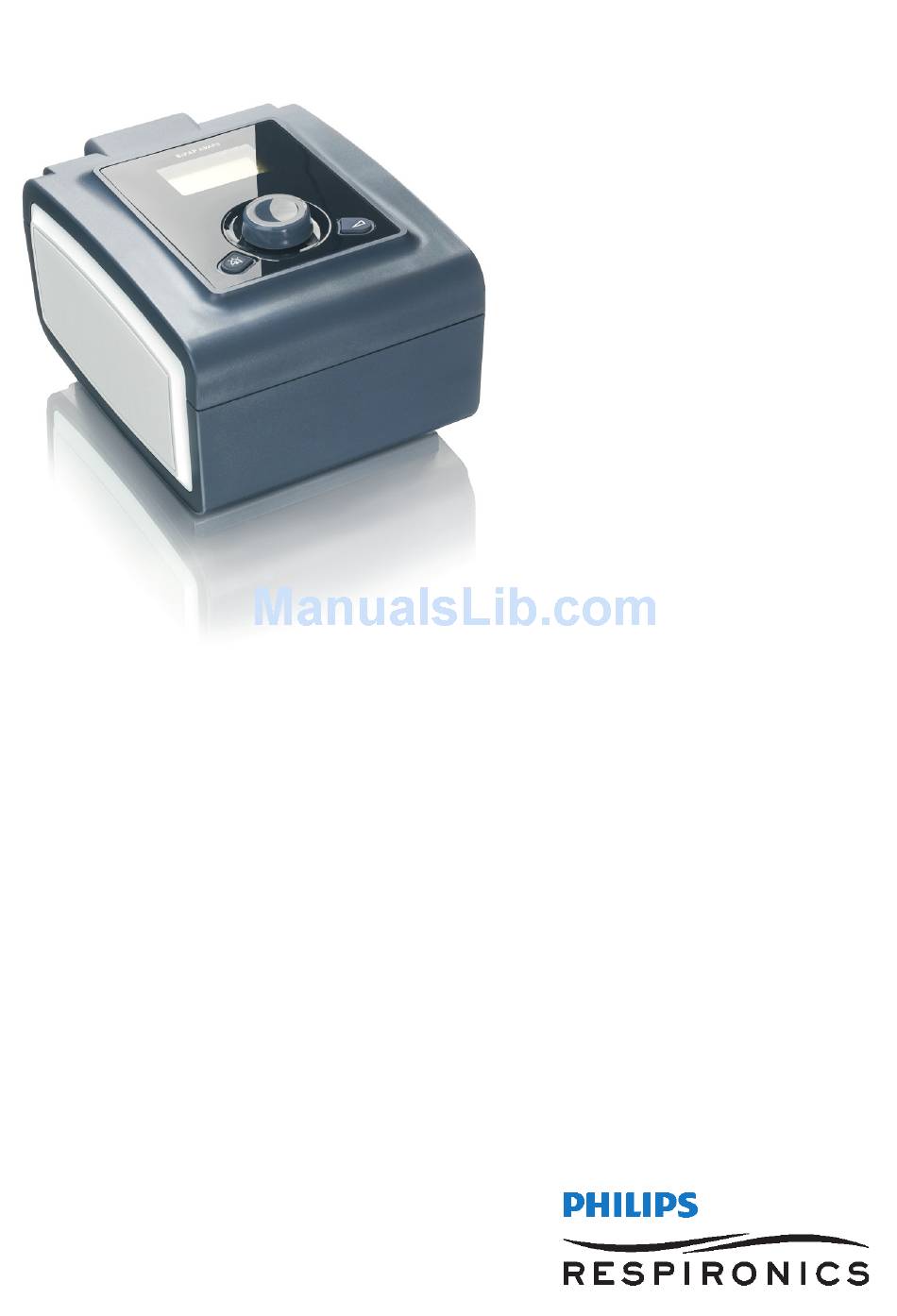

- Page 1 BiPAP AVAPS Quick start guide • Set up device • Front panel overview • Start therapy • Stop therapy • View information • Comfort settings • Undocking the humidifier • Humidification...
-
Page 2: Set Up Device
Set up device To access provider mode: 1. From the main menu, highlight Setup. 2. Press and hold ramp button and control wheel simultaneously for 4-5 seconds until beep. 3. Provider Setup screen then appears. You will remain in provider mode until you exit the Setup screen using the Back selection, or until a screen time-out occurs after one minute. -
Page 3: Front Panel Overview
Front panel overview LCD display screen Humidifier number settings Humidifier icon Alarm silence Ramp button button Control wheel/Push button 1. If the humidifier is attached to the device, when blower is activated, the humidification icon and numerical setting will light up on the device. 2. -
Page 4: Start Therapy
Start therapy 1. From the main menu, turn the control wheel to Therapy and press. 2. The monitoring screen will be displayed and the device will start. Note: You can select the measured parameter to display on the Monitor screen. Choose from Leak, RR, MinVent or Vte. In provider mode, simultaneously pressing the alarm silence button ( ) and the ramp button (... - Page 5 Comfort settings 1. From the patient screen, highlight Comfort. The Flex, Ramp, and Rise Time comfort features will be shown in this menu selection if enabled. 2. Turn wheel to specific setting and press. 3. Turn control wheel to desired option and press to select. 4.
- Page 6 Humidification With device turned off, remove and fill chamber with water. 1. (a) Lift humidifier door until it locks in place. Do not force door higher than the locked position. (b) Grasp front of chamber and slide toward you. 2. (a) Gently push tab located inside round opening on top of chamber.
- Page 7 Provider setup menu (cont.) Alarm settings Apnea Off, 10, 20, 30 sec Patient disconnect Off, 15, 60 sec Low min vent Off (0) to 99 lpm in 1.0 increments Low Vte On, Off System settings Backlight On, Off Language** English, Italian, Spanish, German, French, Danish, Dutch, Norwegian, Swedish, Finnish, icons hPa/cmH hPa, cmH...
- Page 8 Please visit www.phililps.com/respironics © 2013 Koninklijke Philips N.V. All rights are reserved. Philips Healthcare reserves the right to make changes in specifications and/or to discontinue any product at any time without notice or obligation and will not be liable for any consequences resulting from the use of this publication.
