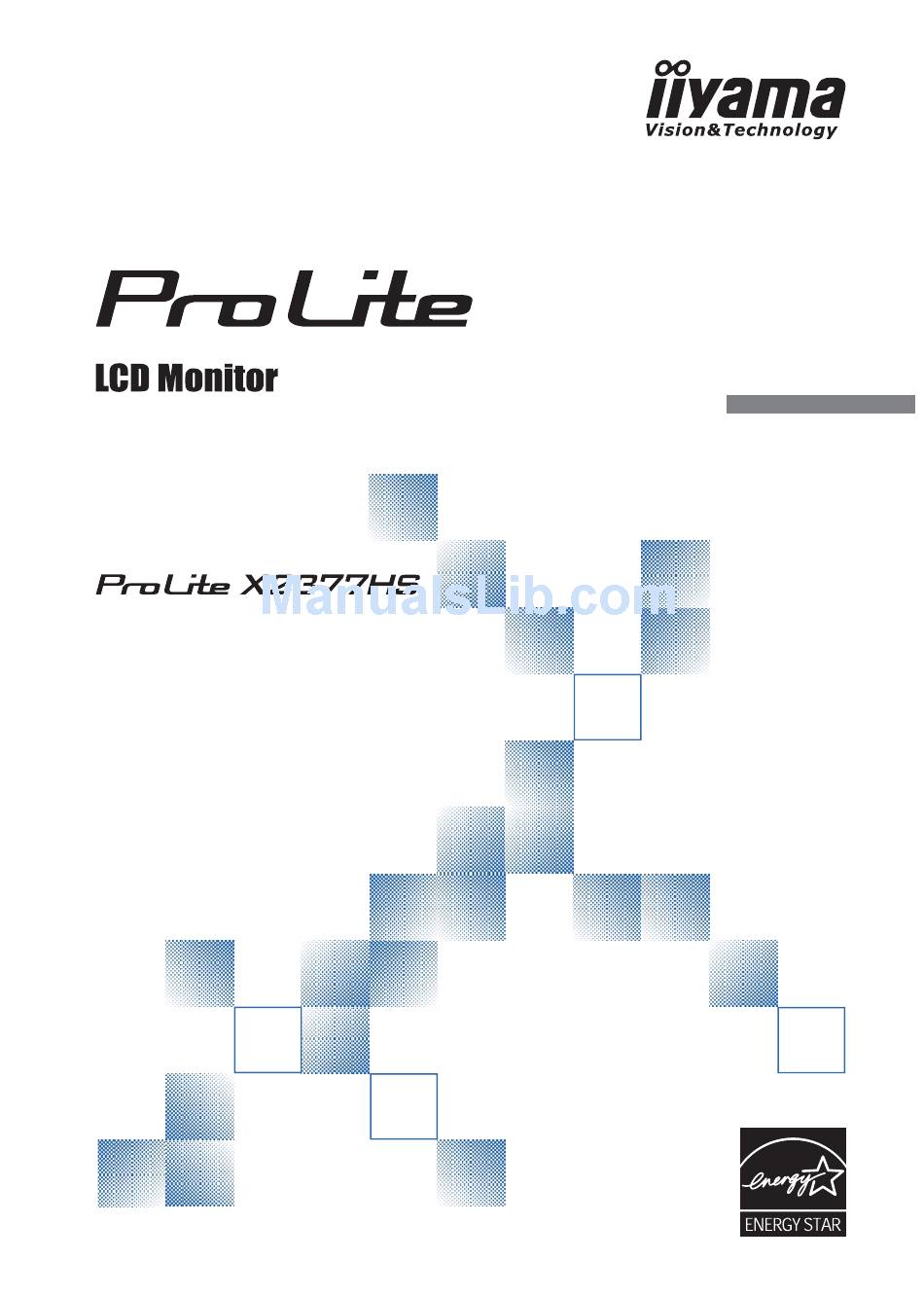

USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a...
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............4 CLEANING ..................4 BEFORE YOU OPERATE THE MONITOR ..........5 FEATURES..................5 CHECKING THE CONTENTS OF THE PACKAGE ......5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ...........8 COMPUTER SETTING ..............9...
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
Page 6
CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
- Use a black or white image, and run it for extended periods of time. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it.
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ...
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 25: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle.
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 25. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 19 for SCREEN ADJUSTMENTS.
ADJUSTMENT MENU CONTENTS Picture Picture Brightness Contrast Display H.Position Audio Settings V.Position Miscellaneous Phase Information Clock Color Temp 6500 Auto Adjust 1920x1080 Adjustment Item Problem / Option Button to Press Too dark 1,5,6 Brightness* Too bright Too dull Contrast * Too intense Too left H.
Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright. See page 19 for SCREEN ADJUSTMENTS. Only Analog Input. For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 19 for SCREEN ADJUSTMENTS.
Picture H.Position V.Position Display OSD Timeout Audio Settings Miscellaneous Information 1920x1080 Adjustment Item Problem / Option Button to Press OSD is too left H.Position OSD is too right OSD is too low V.Position OSD is too high You can set the OSD display duration time OSD Timeout between 5 and 30 seconds.
Page 18
Display Picture Display Mode Full Standard i-Style Color Display Adv. Contrast Audio Settings ECO Mode Miscellaneous Sharpness Information Over Drive X-Res Technology 1920x1080 Adjustment Item Problem / Option Button to Press Aspect Expansion display of Aspect Display Mode Expansion display Full For general windows environment and monitor Standard...
Page 19
Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. ECO Mode: Press the Button when the Menu is not displayed. Off, Mode1, Mode2 and Mode3 are switched as follows by pressing the Button successively.
Audio Settings Picture Volume Mute Display Audio Input Line in Audio Settings Miscellaneous Information 1920x1080 Adjustment Item Problem / Option Button to Press Too soft Volume Direct Too loud Turn off the sound temporarily. Mute Return the sound volume to the previous level. Line in Select the LINE IN input.
Page 21
In Power Management Mode input switching is disabled. Input source is fi xed, not selected automatically when VGA, DVI and HDMI which are selected. iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on.
Page 22
Information Picture Display 1920x1080 Audio Settings H:67kHz V:60Hz Miscellaneous Auto Information SN: xxxxxxxxxxxxx 1920x1080 Adjustment Item Problem / Option Button to Press Displays information regarding the current input signal coming from the graphic card in your computer. Information NOTE See your graphic card user guide for more information about changing the resolution and refresh.
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com).
Page 24
Press the AUTO Button. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display area.
Page 25
Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.
Page 27
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 23" LCD Panel Panel technology IPS Size Diagonal: 23"...
