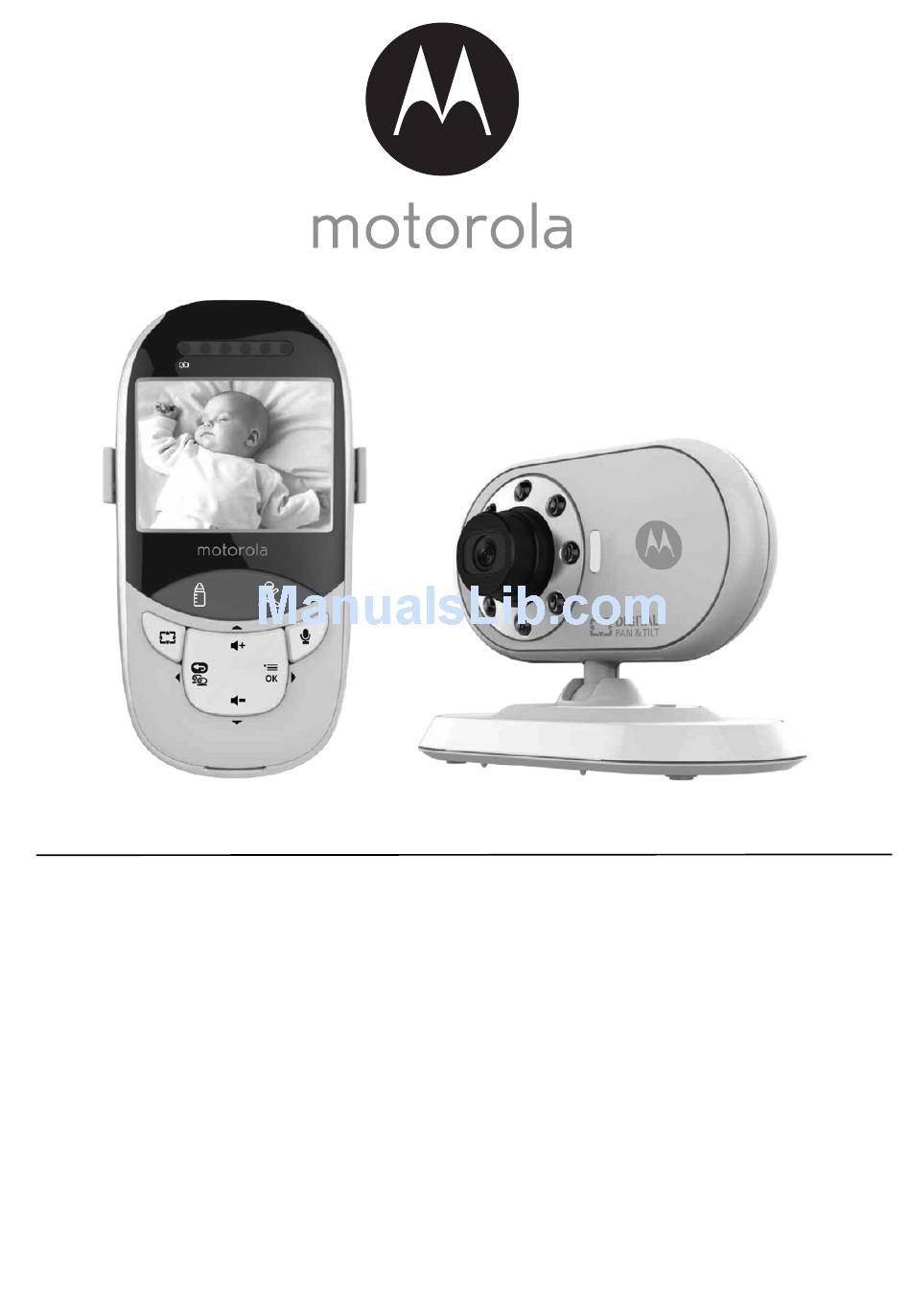

- Page 1 User’s Guide Video Baby Monitor with Touchless Thermometer Models: MBP27T, MBP27T/2, MBP27T/3, MBP27T/4 The features described in this User’s Guide are subject to modifications without prior notice.
- Page 2 Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
-
Page 3: Overview Of Parent Unit
Overview of the Parent Unit Display (LCD screen) Talk Key Object temperature mode Press and hold to talk back through the Press and hold to measure the liquid camera. temperature 10. The power is ON when indicated by a Forehead temperature mode Blue LED light Press and hold to measure the body 11. -
Page 4: Overview Of Baby Unit
Overview of Your Baby Unit 1. Photo Sensor (Night Vision Mode) 6. Power Adapter Socket 2. Camera Lens 7. Pair Key 3. Infrared LEDs 8. Microphone 4. Power LED 9. Speaker 5. ON/OFF Switch Important guidelines for installing your Baby Monitor •... -
Page 5: Table Of Contents
Table of contents 1. Safety Instructions ..................6 2. Getting Started..................8 Baby Unit Power Supply ................8 Parent Unit Battery Installation ..............8 Parent Unit Power Supply ................9 Registration (Pairing)................. 11 3. Using the Baby Monitor................12 Setting up....................12 Night Vision Mode..................12 Video ON/OFF..................12 Talk Mode .................... -
Page 6: Safety Instructions
1. Safety Instructions WARNING: STRANGULATION HAZARD - Keep the Unit and adapter cords more than 3 feet from the crib and out of baby’s reach. NEVER place camera or cords within the crib. SECURE the cords more than 1 meter away from baby’s reach. - Page 7 • Test this monitor and all its functions so that you are familiar with it prior to actual use. • Do not use the Baby Monitor in damp areas or close to water. • Do not install the Baby Monitor in extreme cold or heat, direct sunlight, or close to a heat source.
-
Page 8: Getting Started
2. Getting Started Baby Unit Power Supply 1. Connect the small plug of the power adapter to the Baby Unit (camera) and the other end into the electrical outlet. NOTE Only use the enclosed power adapter (6V DC / 500mA) with the slightly larger DC plug. -
Page 9: Parent Unit Power Supply
Small cross head or Flat end screwdriver. 2. Place the battery cover over the compartment and gently tighten the screw in a clockwise direction using a Small cross head or Flat end screwdriver. Parent Unit Power Supply IMPORTANT Installing the rechargeable battery pack and charge it fully before first time use is recommended. - Page 10 4. If there is not a connection or you are out of range, the video display will go off, the symbol will flash on the LCD display, and the unit will beep every 9 seconds. (If the unit is on scan symbol displays.) Move the Parent Unit closer to the Baby Unit the link is re-established.
-
Page 11: Registration (Pairing)
Registration (Pairing) The Baby Monitor Camera is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit. To re-register your Baby Unit, or register a new Baby Unit, follow the procedure below: button of the Parent Unit and then press the DOWN button... -
Page 12: Using The Baby Monitor
3. Using the Baby Monitor Setting up • Place the Baby Unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. • Adjust the Baby Unit’s head angle by rotating the camera up, down, left and right until you are satisfied with the image on the Parent Unit. -
Page 13: Forehead Temperature Mode
3.5.1 Forehead Temperature Mode • Always make sure the probe lens is clean and free of any damage. The forehead should be dry and dirt free. • Place the probe tip about 1 cm away from the middle forehead Figure 1 of the baby (Fig. -
Page 14: Parent Unit Menu Options
4. Parent Unit Menu Options Volume 1. While in monitor mode, press the UP button or DOWN button to select the desired volume level from level 1 ~ 8. (The default volume level setting is level Brightness 1. Press the button. -
Page 15: Camera Control
Camera Control 4.5.1 Add (pair) a camera 1. Press the button. 2. Press the DOWN button to select the Camera setting icon , and press the button to enter. Press the DOWN button to select ADD CAMERA icon and press the button to confirm. -
Page 16: Delete A Camera
4.5.3 Delete a camera 1. Press the button. 2. Press the DOWN button to select the Camera setting icon , and press the button to enter. Press the DOWN button to select DELETE CAMERA icon and press the button to confirm. will pop up, press the UP button or DOWN button to... -
Page 17: Body Temperature Measurement Review
Body Temperature Measurement Review 1. Press the button. 2. Press the DOWN button to show the record icon and press button to confirm. 3. Press button to review previous measurement record (body temperature only). Change of Measurement Scale 1. Press the button. -
Page 18: Disposal Of The Device (Environment)
5. Disposal of The Device (environment) At the end of the product lifecycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this. -
Page 19: Cleaning
6. Cleaning Clean the MBP27T, MBP27T/2, MBP27T/3, MBP27T/4 with a slightly damp or anti-static cloth. Never use cleaning agents or abrasive solvents. Cleaning and care • Please make sure the probe is clean to ensure an accurate reading. • The probe tip is the most delicate part of the thermometer. Use with care when cleaning the probe tip to avoid damage. -
Page 20: Help
7. Help Display No display • Try recharging or replacing the battery pack. • Reset the units. Disconnect the battery pack of the Parent Unit and unplug both the units’ electrical power, then plug them back in. • Is the unit turned on? Press and hold the ON/OFF button on the Parent Unit to turn it ON. - Page 21 Interference Noise interference on your Parent Unit • Your Baby and Parent Unit may be too close. Move them farther apart. • Make sure there is at least 3 to 4.5 feet (1 to 1.5 meters) between the 2 units to avoid audio feedback. •...
-
Page 22: General Information
To order a replacement battery pack, contact customer service. Consumer Products and Accessories Limited Warranty ("Warranty") Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE"). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory ("Accessory") sold... - Page 23 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
- Page 24 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage.
- Page 25 (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola branded housings, or parts, are excluded from coverage. Communication Services. Defects, damages, or the failure of Products or Accessories due to any communication service or signal you may subscribe to or use with the Products or Accessories is excluded from coverage.
-
Page 26: Fcc And Ic Regulations
FCC and IC regulations FCC Part l5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 27 WARNING Changes or modifications, to this equipment not expressively approved by the party responsible for compliance could void the user’s authority to operate the equipment. The socket-outlet shall be installed near the equipment and shall be easily accessible. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including...
-
Page 28: Technical Specifications
Technical Specifications Baby Unit Frequency 2.4 GHz to 2.48 GHz Image sensor color CMOS 0.3M Pixels Lens f 2.5mm, F 2.4 IR LED 8 pcs Power Adapter: 5E-AD 060050-U; Input: 100-240V, 50/60Hz 150mA; Output: 6V, 500mA Adapter: BLJ5W060050P; Input: 100-240V, 50/60Hz 150mA;... - Page 29 Parent Unit Frequency 2.4 GHz to 2.48 GHz Display 2.4" diagonal Display colors 16M color LCD Brightness control 8 steps Volume control 8 steps Power Adapter: 5E-AD 060050-U; Input: 100-240V, 50/60Hz 150mA; Output: 6V, 500mA Adapter: BLJ5W060050P; Input: 100-240V, 50/60Hz 150mA; Output: 6V, 500mA WARNING Use only with provided power supply.
- Page 30 Accuracy Forehead mode: ±0.5°F (0.3°C). This thermometer converts the forehead temperature to display its "oral equivalent." Surface mode: ±0.5°F (0.3°C) within 71.6~108°F (22~42.2°C), others ±4% or ±4°F (2°C) whichever is greater Enclosure rating IP22 Compliance Comply with ASTM E1965-98, IEC/EN60601-1- 2(EMC), IEC/EN60601-1(Safety) standards.
- Page 31 MOTOROLA and the Stylized M Logo, are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2013 Motorola Mobility LLC. All rights reserved. Version 8.0 Printed in China...
