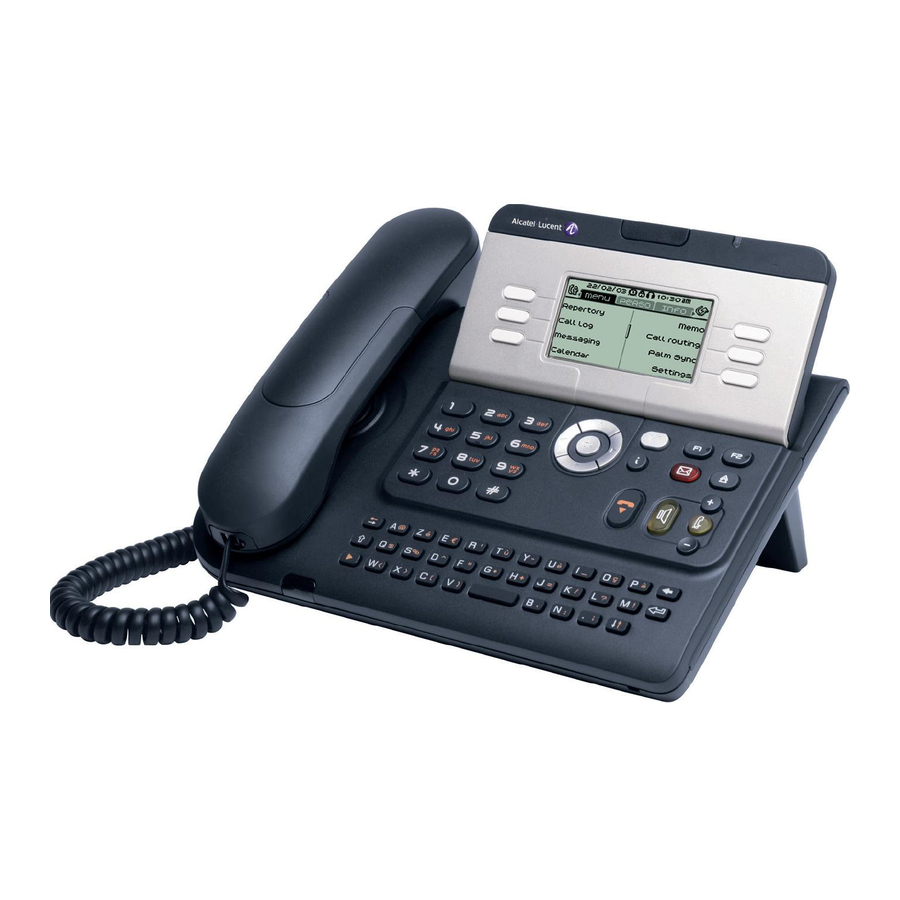

Alcatel-Lucent 4028 Quick Start Manual

LED
Handset
• flashing green: incoming call
• flashing orange: alarm
Socket for connecting headphones or a
Hands-free / Loudspeaker unit
Audio keys
Hang-up key: to terminate a call.
Hands-free/Loudspeaker Key: to make or answer a call without lifting the
receiver.
• lit in hands-free mode or headset mode (short press).
• flashing in loudspeaker mode (long press).
Intercom/Mute key:
• During a conversation: press this key so that your
correspondent can no longer hear you.
• Terminal idle: press this key to answer calls automatically
without picking up the receiver.
To adjust the loudspeaker or handset volume up or down
Extension unit
An extension unit can be fitted to your tele-
phone. This provides additional keys which
can be configured as function keys, line keys,
call keys etc.
To affix labels: push the holding strip of the
unit backwards to you and lift it. Install the la-
bel under the keypad, in the housing designed
for, and place the keypad back into position.
Display and display keys
Contains several lines and pages providing information on calls and the functions accessible via the 6
keys associated with the words on the screen.
Transfer icon: pressing the key next to this icon allows you to program or change the
transfer function.
Headset connected.
Silent mode activated.
Display keys: pressing a display key activates the function shown associated with it on
the screen.
Navigation
OK key: used to validate your choices and options while programming or configu-
ring.
Left-right navigator: used to move from one page to another.
Up-down navigator: used to scroll through the content of a page.
Back/Exit key: to return to previous menu (short press) or return to first screen
(long press) ; during a conversation, provides access to welcome screens (Menu, In-
fo,...) and to return to the conversation icon screens.
Welcome screens
Info page: : contains information on the telephone and the status of its functions: name, telephone
Alphabetic keypad
number, number of messages, activation of transfer function, appointment reminder, etc.
Function keys and programmable keys
Guide key: used to obtain information on functions of the 'menu' page and to program
key of the 'perso' page.
Messaging key to access various mail services
If the key flashes, a new voice message or a new text message has been received.
'Redial' key : To access the 'Redial' function.
Programmable key (F1 and F2 keys)
Lit when the function associated with the key is activated.
Appointment programmed.
Telephone locked.
Menu page: : contains all functions and applications ac-
cessible via the keys associated with the words on the
screen.
Perso page: : contains call line keys (allowing supervi-
sion of calls) and programmable call keys.
Other
Customize your terminal
The customization functions of the telephone are accessed from the Menu page.
Modifying your personal code
10:30
Settings Options
menu
reach the 'menu'
page
Phone Password
OR
Lock / unlock your telephone
10:30 Lock
menu
reach the 'menu' depending the displayed
page informations, enter your
password or confirm
your telephone is
locked/unlocked
Adjusting the audio functions
10:30
Settings Phone
menu
reach the 'menu'
page
adjust ringing (melody, volume, mode,...) by
Ringing
following instructions displayed on the
screen
Adjusting screen brightness
10:30 Settings Phone
menu
reach the 'menu'
page
Screen
OR
increase or decrease the contrast
follow informations
displayed on the screen
Contrast
