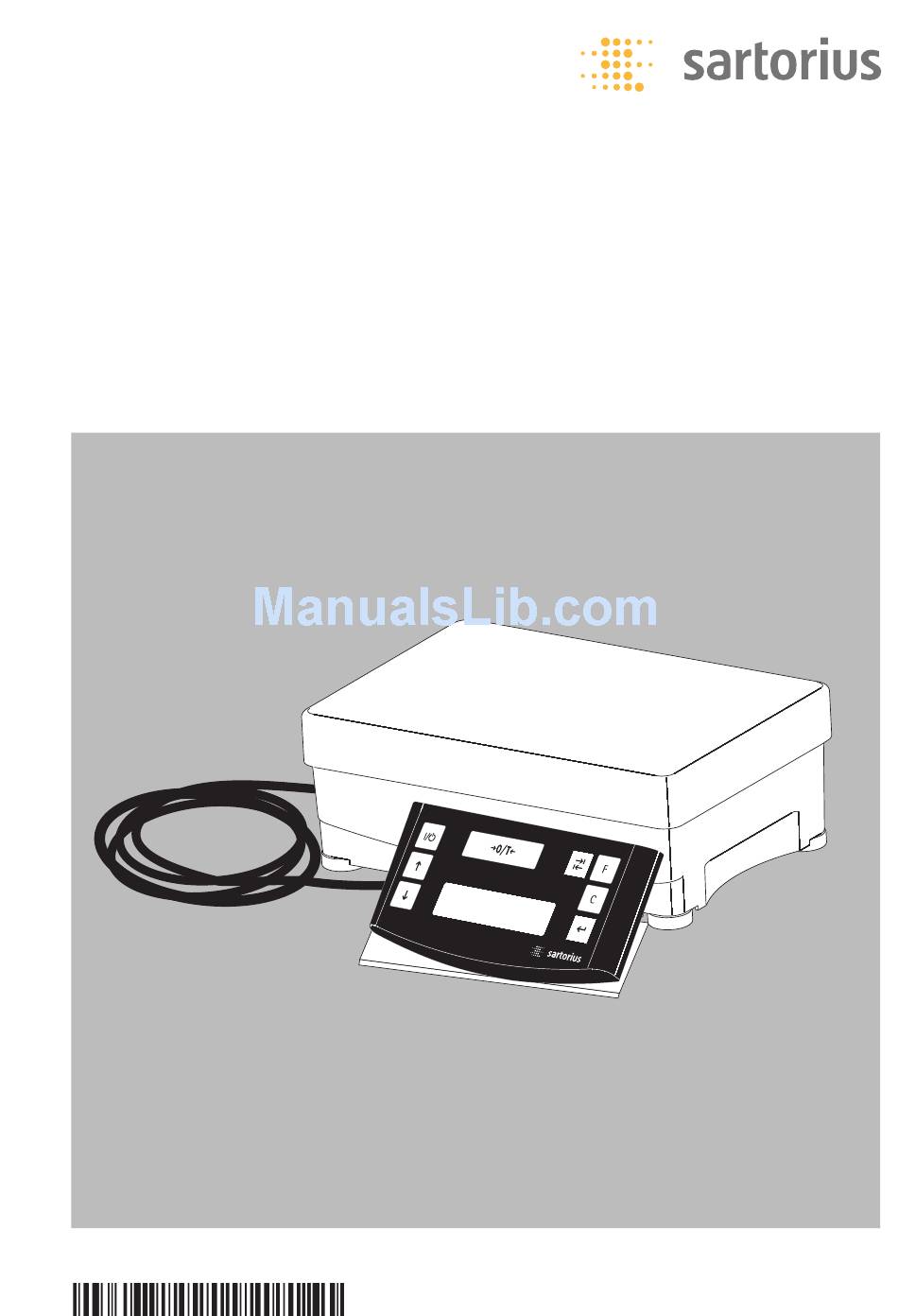

- Page 1 Installation Instructions Sartorius PMA.Power Model PMA35001 Electronic Paint-mixing Scales 98648-016-91...
-
Page 2: General View Of The Equipment

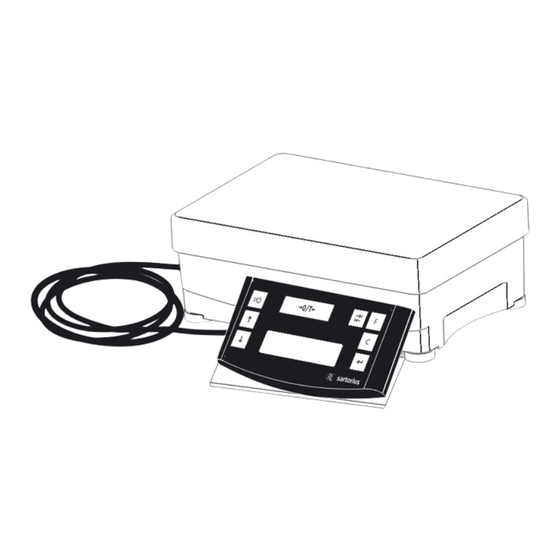

General View of the PMA35001 1 Display and control unit 9 Mounting bracket for display 2 Display and control unit 3 U Zero/tare key 10 Interface (25-contact D-Sub socket) 4 I Toggle key 11 Grounding terminal You can configure the PMA35001 menu 12 Power cord with plug to enable toggling between grams (g) 13 Level indicator... -
Page 3: Table Of Contents
Care and Maintenance ... . 18 tion software, Sartorius can supply the Recycling ..... . 19 required drivers for DOS or Windows Interface Description . -
Page 4: Warnings And Safety Precautions
If you need assistance, electrical equipment, electromagnetic contact your Sartorius dealer or the Sartorius compatibility, and the stipulated safety Service Center. Any installation work that requirements. Improper use or handling,... -
Page 5: Getting Started
Getting Started § Unpack the scale carefully. § After unpacking the equipment, please check it immediately for any visible damage. Equipment Supplied – Scale – Load plate – Adapter cable Setting up the Scale Choose a suitable location where your scale will not be exposed to drafts, heat radiation, moisture or vibra- °C tions. - Page 6 Sartorius office or dealer. Use only original Sartorius power cables. Use of cables from other manufacturers, even if...
-
Page 7: Operation
Operation Press the Q key (19) to A self-test runs automatically, If a different value is displayed, press U key at the end of which the switch on the scale. readout shows 0.0 g. to tare the scale. Scale Functions Center an empty paint can on the load plate. -
Page 8: Applications
Applications Formulation (Calculation by a Factor) The formulation program makes it easy to adjust your formulas for different final quantities of a paint-mixing recipe (for example, to make 250 ml of a 1-liter recipe). Press the K key (6) to select the desired factor. You can choose from the following: 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 10.0 15.0 20.0 25.0. - Page 9 3. 3.0 next to the weight readout. 4. Slowly pour in the first component until the display shows 250 g 5. Pour in the second component until 500 g is displayed. 6. Pour in the last component until 1000 g is displayed This concludes the recalculation example.
- Page 10 Example (Cumulative Weighing) 1. Center an empty paint can Press the U key 3. Add first component on the load plate. + 50.0 g (zero/tare; 3). + 118.0 g 0.0 g 4. Press the L key [MEM] (8) 6. Press the L key [MEM] (8) 5.
-
Page 11: Calibration/Adjustment
Calibration/Adjustment You can calibrate/adjust the scale by pressing the U key (3). Calibration weight: 10,000 g; resolution: + 0.016 g. Always allow approximately 30 minutes for the scale to warm up after connecting it to AC power and before performing calibration/adjustment. Press the U key (zero/tare) for 2 seconds;... -
Page 12: Operating Menu Configuration
This concludes the example. § Press the L key [ENTER]; o is displayed, indicating that this item is set. § Press c (Clear) repeatedly to exit the menu. Note: Contact your local Sartorius office for a detailed list of the menu codes. - Page 13 Configuring the Main Menu Settings § Hold down the L key [ENTER] for approximately 2 seconds; “SETUP” is displayed. Level 1 SETUP Language Setting Level 1 Level 2 § Press the R key to select LANGUAGE LANGUAGE § Press the L key [ENTER] §...
- Page 14 I Configuring the Toggle-key Function Pressing the toggle key I (4) toggles the scale between the default unit (defined under SETUP > SCALE > UNIT; see page 13) and the unit defined as follows under SETUP > APPLICATION > UNIT. Level 1 Level 2 Level 3...
- Page 15 Configuring Password Protection In addition to the LOCK function, you can configure password protection for additional security. With this feature, the LOCK function can be deactivated only by entering the password you configure. The password is numeric and can have up to 6 digits. Use the RS keys to select the digits (0 through 9) for your password.
- Page 16 GERMAN § Press the L key [ENTER]; o indicates etc. o CODES the active setting § Press the c key (Clear) repeatedly to exit the menu Note: Contact your local Sartorius office for a detailed list of the menu codes.
-
Page 17: Troubleshooting Guide
Troubleshooting Guide Problem Cause Solution No segments appear – No AC power is available – Check the AC power supply on the display The weight readout – No load plate on the scale – Position the load plate shows “Low” The weight readout –... -
Page 18: Care And Maintenance
$ The packaging used for shipping your Never use concentrated acids, alkali solu- tions or pure alcohol to clean the equip- Sartorius equipment is optimally designed ment. to prevent damage during transport. It is a good idea to save the box and all... -
Page 19: Recycling
In Germany and many other countries Prior to disposal and/or scrapping (see www.sartorius.com, Service Down- of the equipment, any batteries should load area for details), Sartorius or the be removed and disposed of in local organization contracted by us takes care collection boxes. -
Page 20: Interface Description
Installing the Adapter Cable The adapter cable is required for operation of the scale with a PC. If you wish to create your own application software, Sartorius can supply the required drivers for DOS or Windows operating systems. Make sure to observe the safety instructions. -
Page 21: Specifications
Specifications Model PMA35001 eighing capacity 35000 Readability Tare range (subtractive) –35000 Linearity <±0.2 Stability range (configured in operating menu) digits 0.25 to 4 Humidity class Anti-condensation Ambient operating temperature range °C 0 to +40 (+32 °F to +104 °F) Load plate dimensions Scale housing (W 132.5 Net weight, approximate... - Page 24 Sartorius Weighing Technology GmbH Weender Landstrasse 94–108 37075 Goettingen, Germany Phone +49.551.308.0 Fax +49.551.308.3289 www.sartorius.com Copyright by Sartorius, Goettingen, Germany. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior written permission of Sartorius.
