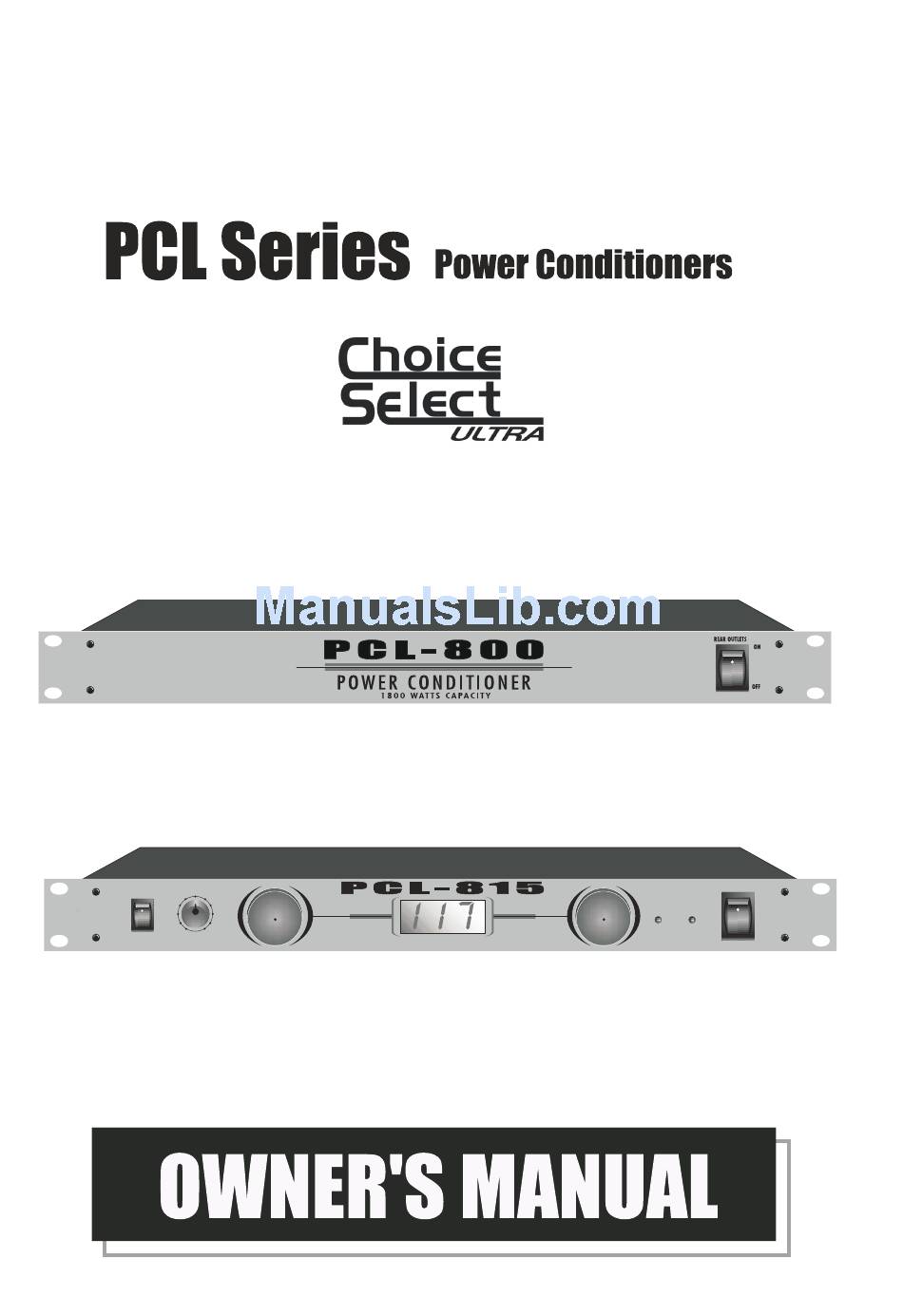

- Page 1 CHO3080 CHO3081 PULL REAR OUTLETS RACK LIGHTS DIMMER OVER STANDARD VOLTAGE VOLTAGE POWER CONDITIONER & LIGHT MODULE 1800 WA T TS CA PACITY PULL...
-
Page 2: Table Of Contents
State Read this manual carefully to get the most out of your new unit. . Model # Serial PCL-800 Power conditioner PCL-815 Power conditioner with lights AC meter display Features CONTENTS For advanced RF/EMI noise filtering and the quietest Features ........... -
Page 4: Controls, Functions , Connections
Controls, functions, and connections FRONT PANEL PULL REAR OUTLETS RACK LIGHTS DIMMER OVER STANDARD VOLTAGE VOLTAGE POWER CONDITIONER & LIGHT MODULE 1800 WA T TS CA PACITY 1. POWER SWITCH Outlet switch (with built-in LED ON indicator) activates protection and filtration to all back panel outlets. - Page 5 REAR PANEL 7. POWER CORD Heavy duty 14-gauge power cord for connection to the AC power mains (120V-60Hz) 8. CIRCUIT BREAKER Resettable 15 amp ther mal circuit breaker 9. 8 REAR PANEL OUTLETS EMI/RFI filtered, spike/surge protected and switched...
-
Page 6: Installation And Operation
Installation and operation 1. The PCL Series conditioners are the perfect accessories for any rack mount system. Install in the top slot of a standard 19-inch rack, and the 8 switched AC outlets on the rear panel will provide full safety protection to all your rack equipment. -
Page 7: Specifications
5W (two) DIMENSIONS 19” X 1.75” X 7.3” (483 X 44 X 185mm), 1U rack height WEIGHT PCL-800 4.45 lbs (2.0 Kg) PCL-815 4.55 lbs (2.07 Kg) For improvement purposes, specifications, design and appearance subject to change without prior notice...
