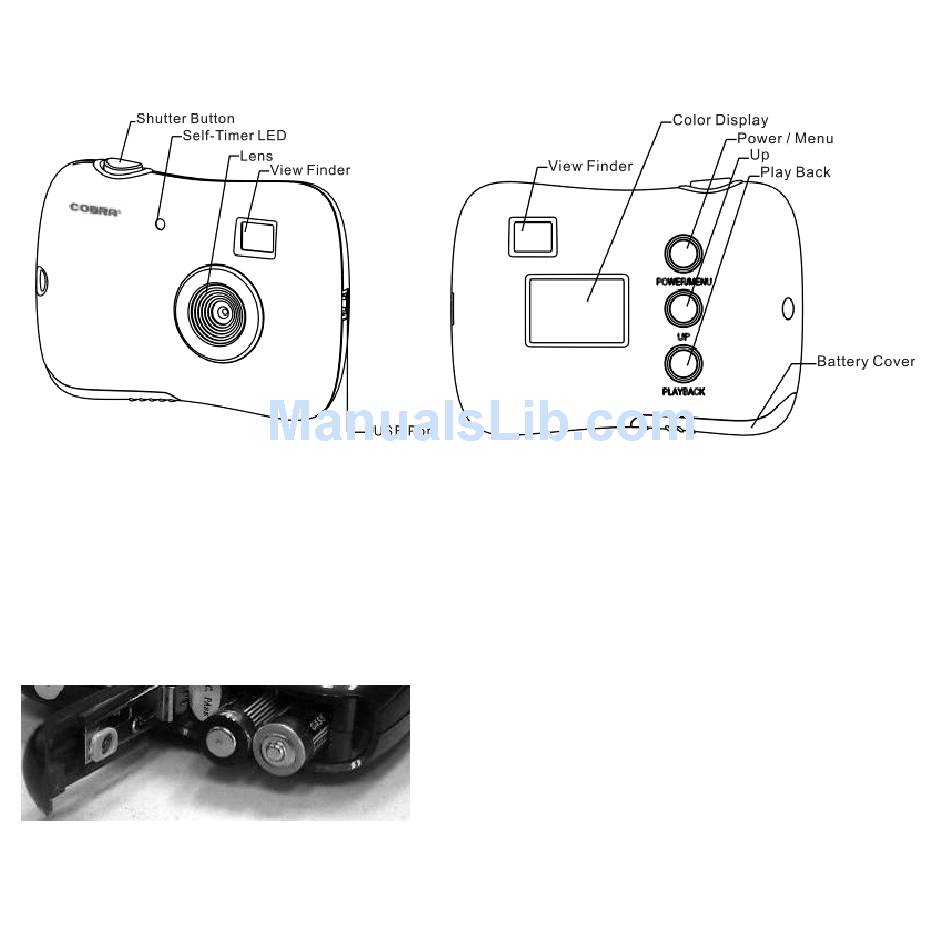

1. Camera and Buttons
2. Using your digital camera
2.1 Inserting batteries
Open the camera's battery compartment cover and insert 2 new AAA alkaline
batteries according to its polarity shown, then close it and press the Power/Menu
button to power on the camera.
After powered on, if you want to make changes to the camera's default settings,
please read the instructions of this manual.
1
Advertisement
Related Manuals for Cobra DC1120
Summary of Contents for Cobra DC1120
- Page 1 1. Camera and Buttons 2. Using your digital camera 2.1 Inserting batteries Open the camera’s battery compartment cover and insert 2 new AAA alkaline batteries according to its polarity shown, then close it and press the Power/Menu button to power on the camera. After powered on, if you want to make changes to the camera’s default settings, please read the instructions of this manual.
- Page 2 Note: Unload the batteries will make the photos saved to the camera memory LOST, so do download the photos saved accordingly 2.2 Taking photos After powered on, the camera is ready to take photos, just press the Shutter button, a beep can be heard and a photo is taken. Automatically the number displayed on the screen will decrease by one.
-
Page 3: Icon Mode
2.4 Changing function modes Press the Power/Menu button, the camera goes into menu interface, you can press the Up button to select and then by pressing the Shutter button to enter next menu, the screen will display the following symbols, and the interpretations are as follows: Icon Mode Take Photo... - Page 4 Icon Mode VGA,640×480 Modifying resolution QVGA,320×240 Icon Mode Non-Compression Compression Mode rate Compression Mode...
- Page 5 Icon Mode 50Hz Anti Flicker 60Hz Deleting all...
- Page 6 Battery Capability Icon Mean >70% >35% >5% <=5%...
- Page 7 2.5 Timer / AVI / Continuous Capture mode Press the Power/Menu button once, the first icon <Camera> is selected, Press the Shutter button and the camera mode changes in turn < Take photos --> Timer --> AVI --> Continuous Capture >, Press the Power/Menu button again to enter to the mode your favorite.
- Page 8 2.7 Modify the compression rate Press the Power/Menu button and Up button, until the icon < Compression rate > is selected, and then press the Shutter button to change, Then press the Power/Menu again to enter the mode your favorite. PS: The camera changes to non-compression mode and can take clear photos.
- Page 9 Install Camera driver Install ArcSoft PhotoImpression Browse the CD content Exit Installation of driver Click on <Install Driver> and follow the step-by-step instructions to complete the installation. After successful installation of driver, restart your computer. Tip: Do not connect your camera to a computer while installation of driver. Installation of ArcSoft PhotoImpression Click <Install PhotoImpression>, and then follow the step-by-step instructions to complete the installation.
- Page 10 3.2 Downloading picture Connect your camera to the computer with the USB cable and run the shortcut mode My DSC in the folder <Dual mode camera> on your desktop. The interface will appear on screen. Click on “Download photo” . The slides of the photos that you have taken appear on the interface.
- Page 11 Click the button “select all the pictures on this page” ; all the photos will be selected. Then click the button “Save photos” to save the photos. After having saved the photos you can empty the memory of you camera (Delete all photos which saved in the memory) and start taking pictures again.
- Page 12 3.6 Using Arcsoft PhotoImpression With the camera connected to your PC, run the ArcSoft Photoimpression software by double-click the icon on the desktop, or clicking Start→All Programs →ArcSoft Photoimpression 5, then Photoimpression 5 The following window will pop up when opening PhotoImpression 5. Please left-click the center of the window to close it.
- Page 13 Dual Mode Camera Then Select the source (For windows vista, it may be Dual Mode Camera or Software\JL2005C). This will run the driver (program) that accesses the photos on your camera. This driver software is called “My DSC”. Then click the button "download photos" to transfer the photos to the ArcSoft PhotoImpression software.
- Page 14 For Windows XP For Windows VISTA...
- Page 15 The photos that you have taken will appear on the interface. Select the photo by double-click on the photo and then you can edit the photo. Photo management: with the new PhotoImpression interface it is very easy to process your photos. Editing: PhotoImpression has a wide range of editing options such as correcting brightness and contrast that are all easily accessible.
- Page 16 Detailed operation method of PhotoImpression can be referred to "Help" of the program (as shown in the following figure).
- Page 17 4 Problem-solving Here are the most commonly encountered problems: When press the mode button the camera does not turn on: --Battery level is low. You should replace new batteries. The camera cannot download photo or display “no photos”: --Restart the computer and reconnect the camera. -- To ensure driver and the software were successfully installed to your computer.
- Page 18 - Capacity:26 VGA pictures(79 compress) 106 QVGA pictures (319 compress) - File format: Photo – JPEG Video – AVI - With USB cable - ArcSoft PhotoImpression 5.0 - Handstrap, instruction manual - Operating system: Win98SE/ME/2000/XP/VISTA - Unit size: 85 × 60 × 18mm - 4 cameras cameras ass’t in inner box (2 black, 1 red, 1 blue) System compatibility：...
