- Page 1 ModeM InstallatIon GuIde...

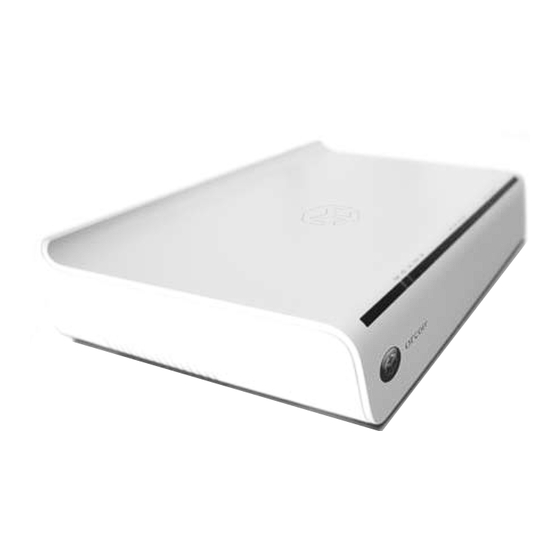

- Page 3 IntroducInG the orcon hoMehub froM sIeMens Designed and made in Germany, the Orcon Homehub is a total communication solution. Powerful, yet simple, it lets you connect your PC to the Orcon network simply and quickly, and allows several users to access the Internet simultaneously.
- Page 4 Note: The product pictures on this and the following pages give an example. Depending on your device, there may be differences in the appearance. Black cable with grey ADSL socket (black) plug (ADSL) Yellow cable (LAN) LAN socket (yellow)
- Page 5 Back panel PWR to power supply Not used in NZ currently LAN1 - LAN4 / WAN to PC ADSL to filter Bottom Reset button...
- Page 6 connectInG and actIvatInG STEP 1: Connecting to the telephone jack • Locate the black cable with grey plug (ADSL). • Plug the clear end of the cable into the ADSL side of the filter. • Plug the grey end of the cable into the ADSL port.
- Page 7 STEP 2: Connecting to your computer • Locate the yellow cable (LAN, RJ-45). • Plug one end of the yellow cable into the network card on the back of your computer. • Plug the other end of the yellow cable into the LAN1 port.
- Page 8 STEP 3: Connecting to the mains power supply Mains adapter • Locate the mains adapter cable. • Plug the small end of mains adapter cable into the PWR socket on the back of the modem. • Plug the adapter end of the cable into the wall socket. •...
- Page 9 STEP 4: Launching the User Interface • Start your web browser (Internet Explorer, Firefox etc) and enter the IP address into the address bar as it appears below. • Login screen appears. • Type in the password and click oK (the default password is ‘admin’).
- Page 10 The Basic Setup Wizard will guide you step-by-step through the general configuration of the Orcon Homehub router. Connection to the Internet is established via the Orcon Homehub for all PCs connected to the network. • Click next >.
- Page 11 STEP 6: Regional options You can select your present location for the regional settings on this screen. • Select new Zealand from the list of countries provided. You can set the time so that it automatically switches to summer time and/or another time zone of your choice.
- Page 12 STEP 7: Configuring internet connections Please follow the instructions to perform the initial configuration of your internet connection on this screen. • If you can’t find orcon in the service Provider field, select other. • Enter your Orcon username (e.g. jbloggs@orcon.net.nz) and password. •...
- Page 13 STEP 8: Telephony • End users are unable to edit VOIP settings directly. We update these remotely from Orcon HQ. So simply click next > to proceed.
- Page 14 STEP 9: WPS registration Because the wireless broadcast is currently turned off you are unable to use the WPS registration functionality. If you wish to set up the wireless connection on your Homehub see the ‘Wireless Setup Guide’ which was included with your Homehub.
- Page 15 Internet. Once you click finish, the security setup Wizard will open automatically. We strongly recommend using the Security Setup Wizard to protect your Orcon Homehub against attacks. If you want to carry this out at a later stage, un-tick I would like to run the security setup Wizard now.
-
Page 16: Safety Precautions
safety PrecautIons • Connect the cable to the designated port only and only use authorised cables and accessories. • Use a soft, dry cloth to clean the device. Harsh cleaning agents or solvents are not suitable. • Protect the device from moisture, dust, aggressive liquids and vapors and do not use it in damp places (e. - Page 17 notes...
