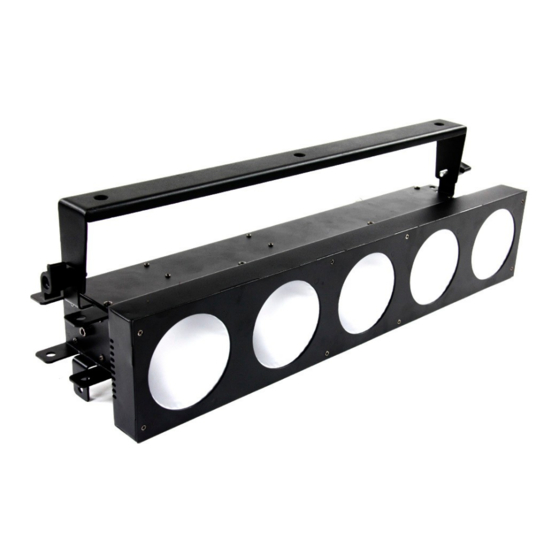

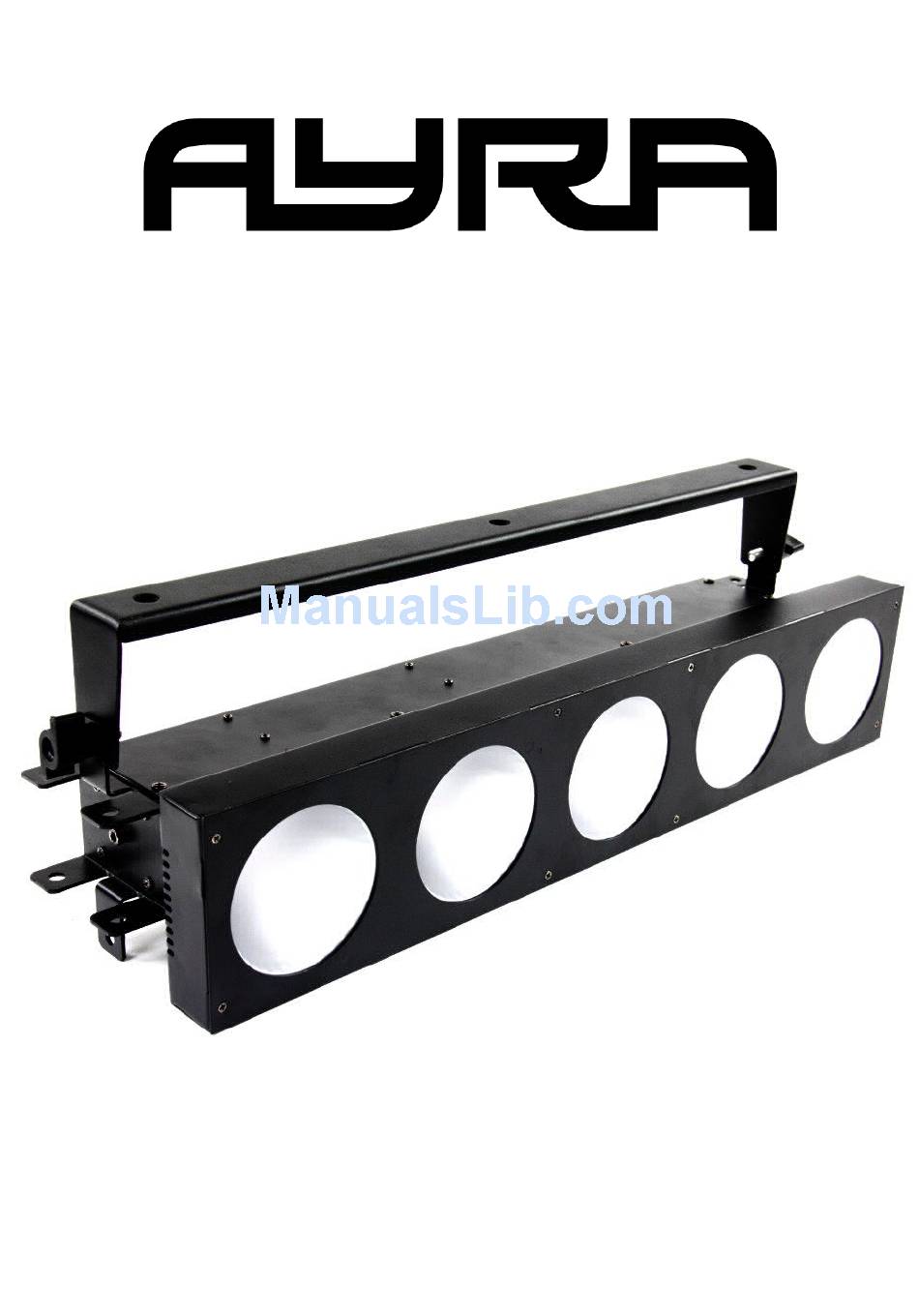

- Page 1 IntenZ CB-150 RGB COB LED Matrix bar User manual...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
-
Page 4: Box Contents
Box contents Box contents 1x IntenZ CB-150 fixture 1x power cable 1x XLR-XLR signal cable 1x installing bracket 1x metal coupler (vertical single use) 2x small coupling pin with safety clip 2x large coupling pin with safety clip Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. -
Page 5: Device Overview
Device overview 1. Beam output 2. Adjustable bracket 3. Bracket tightening knob 4. Rigging hardware 5. Menu display with buttons 6. On-board microphone 7. Safety eye 8. DMX input 9. DMX output 10. Ventilation slot 11. Fuse 12. Twist-lock Power input 13. -
Page 6: Special Features
Special features The IntenZ CB-150 is equipped with special features, which enhance the performance of the fixture and also provide more user convenience. I.T.M. (Intelligent Temperature Monitoring): Temperature controlled fan cooling The internal fan of the unit is temperature controlled, which means that the fan will only turn on if needed. For theatrical and other applications where fixtures need to be as silent as possible, this provides lots of convenience. - Page 7 Horizontal array, vertical fixtures To make a horizontal array of several IntenZ CB-150 fixtures in vertical mode, use the included hardware. The small couplers are needed for a vertical array. An unlimited amount of fixtures can be attached, only if there is a new coupler/attachement point available every 4 fixtures.
-
Page 8: Setting Up The Unit
Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The fixture will start up and show the last chosen setting on the display. Usually, with a new product, this is the DMX mode with the value set on 001. - Page 9 XLR – XLR cables (not included). DMX: The IntenZ CB-150 can be connected to a DMX-controller with standard XLR – XLR cable. While doing so, a DMX-terminator must be connected to the last fixture, at the end of the DMX-chain. This prevents reflections in the DMX-signal, which could cause flickering and unwanted behavior from your intelligent fixtures.
- Page 10 218-232 Show 15 233-247 Show 16 248-255 Sound active running show 1 to 16 3CH mode: 000-255 000-255 Green 000-255 Blue 5CH Mode: 000-255 The 1 head Color 000-255 The 2 head Color 000-255 The 3 head Color 000-255 The 4 head Color 000-255 The 5...
-
Page 11: Technical Specifications
Technical specifications Powerful COB RGB LED technology Classic reflector look – Modern LED technology Equipped with 5x 30 Watt COB RGB LED chips Perfect colour mixing thanks to close diode placement and optimized reflector technology Intense and colourful beams Fluent dimming 0-100% for each colour Individual pixel control I.M.S.
