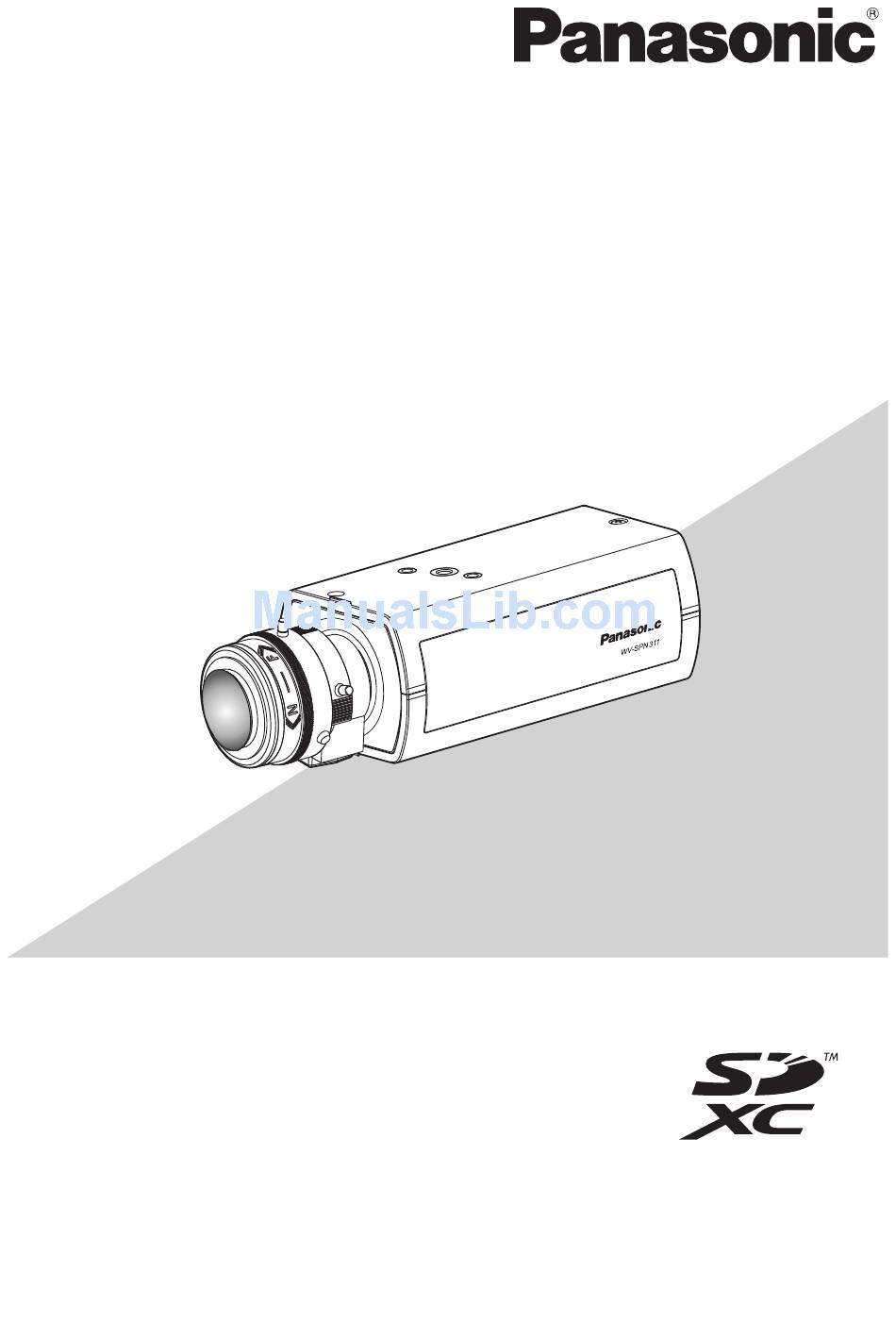

Important Information
Network Camera
WV-SPN311/WV-SPN310
Model No.
WV-SPN311
Please purchase the recommended lens separately.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
PGQX1621XA
sL0914-2094
Printed in China
Advertisement
Table of Contents
Related Manuals for Panasonic WV-SPN311
Summary of Contents for Panasonic WV-SPN311
- Page 1 Important Information Network Camera WV-SPN311/WV-SPN310 Model No. WV-SPN311 Please purchase the recommended lens separately. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.
- Page 2 For U.S.A. WARNING: The model number and serial number of this product may be found on the surface of the • To prevent injury, this apparatus must be unit. securely attached to the wall/ceiling in accor- You should note the model number and serial dance with the installation instructions.
-
Page 3: Table Of Contents
Contents Important safety instructions ......................4 Limitation of liability ........................5 Disclaimer of warranty ........................5 Preface ............................6 About notations ..........................6 Main functions ..........................7 About the user manuals ........................ 8 System requirements for a PC ...................... 8 Trademarks and registered trademarks.................. -
Page 4: Important Safety Instructions
Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. S3125A 1 0) Unplug this apparatus during lightning storms or when unused for long periods of time. 1 1) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. -
Page 5: Limitation Of Liability
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL ERRORS. CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: (1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;... -
Page 6: Preface
Preface The network cameras WV-SPN311/WV-SPN310 are designed to operate using a PC on a network (10BASE-T/100BASE-TX). By connecting to a network (LAN) or the Internet, images and audio from the camera can be moni- tored on a PC via a network. Note: • It is necessary to configure the network settings of the PC and its network environment to moni- tor images from the camera on the PC. It is also necessary to install a web browser on the PC. About notations The following notations are used when describing the functions limited for specified models. The functions without the notations are supported by all models. T he functions with this notation are available when using the model WV-SPN311. SPN311 T he functions with this notation are available when using the model WV-SPN310. SPN310... -
Page 7: Main Functions
Equipped with a high-sensitivity MOS sensor and noise reduction function (MNR) The high-sensitivity sensor and new method of noise reduction (MNR: Multi-process Noise Reduction) make it possible to take easy-to-view images even under low illumination conditions. *1 W ith the multi-process noise reduction that prioritizes noise reduction for central areas and reso- lution for edge areas where noise is prominent, MNR is able to produce clear images while limit- ing noise across the entire image. Auto back focus (ABF) function SPN311 Auto back focus (ABF) ensures easy installation and stable focus in both color and black & white modes. Equipped with 1 SD memory card* slot and enhanced image recording • By using SD memory card, images can be recorded over long periods of time. *2 SDXC/SDHC/SD memory card is described as SD memory card. Extension Software support Installing Extension Software makes it possible to add functions that use image data. *3 For further information about Extension Software refer to our website (http://security.panasonic.com/pss/security/support/info.html). -
Page 8: About The User Manuals
About the user manuals There are 3 sets of operating instructions for the WV-SPN311/WV-SPN310 as follows. • Important Information (this document): Provides information about the cautions required for safely using and installing this camera. • Installation Guide*: Explains how to connect devices. • Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera. ® ® Adobe Reader is required to read these operating instructions on the provided CD-ROM. When the Adobe Reader is not installed on the PC, download the latest Adobe Reader from the Adobe web site and install it. -
Page 9: Trademarks And Registered Trademarks
• For further information about PC system requirements and precautions for when using Microsoft Windows 8.1, Microsoft Windows 8, Microsoft Windows 7, Microsoft Windows Vista or Windows Internet Explorer, click “Manual” - “Open” from the supplied CD-ROM and refer ® ® to “Notes on Windows / Internet Explorer versions”. • F or information on the operation verification of the supported operating systems and web browsers, refer to our website at http://security.panasonic.com/pss/security/support/index.html. Trademarks and registered trademarks • Microsoft, Windows, Windows Vista, Internet Explorer, and DirectX are either registered trade- marks or trademarks of Microsoft Corporation in the United States and/or other countries. • Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation. • Intel and Intel Core are trademarks of Intel Corporation in the U.S. and other countries. • Adobe, Acrobat Reader, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. • SDXC Logo is a trademark of SD-3C, LLC. -
Page 10: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. q Leakage or theft of information through this unit w Use of this unit for illegal operations by persons with malicious intent e Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. • Use this unit in a network secured by a firewall, etc. • If this unit is connected to a network that includes PCs, make sure that the system is not infect- ed by computer viruses or other malicious entities (using a regularly updated anti-virus pro- gram, anti-spyware program, etc.). -
Page 11: Precautions
Precautions Refer installation work to the dealer. Do not use this product in an inflammable atmosphere. Installation work requires technique and experi- ence. Failure to observe this may cause fire, Failure to observe this may cause an explosion electric shock, injury, or damage to the product. resulting in injury. Be sure to consult the dealer. Avoid installing this product in the loca- Stop the operation immediately when tions where salt damage occurs or corro- sive gas is produced. - Page 12 Install this product in a location high Make sure that the product does not enough to avoid people and objects from become wet. bumping the product. Keep this camera away from water and moisture. Failure to observe this may cause injury. This product has no power switch. Do not hang down from this product or When turning off the power, disconnect the use this product as a pedestal.
- Page 13 About the automatic status detection Operating Instructions on the provided function CD-ROM for how to format an SD memory When this product malfunctions due to exoge- card. nous noise, etc. for 30 seconds or more, the • When some SD memory cards are used product will automatically reset and will return with this product, the product may not to normal state. When the product is reset, ini- work properly or performance deterioration tialization will be carried out as when the power may be caused. Use the SD memory of the product is turned on. When the product cards recommended in page 23. repeatedly resets, exogenous noise level • When using an SD memory card supporting Class 10 of the speed class, use a UHS-I around the product may be high and that may (Ultra High Speed-I) compliant card. cause malfunction. Contact your dealer for instructions. About the MOS image sensor Transmission interval • When continuously shooting a bright light Image transmission interval may become slow source such as a spotlight, the color filter depending on the network environment, PC of the MOS image sensor may become performance, shooting subject, access num-...
- Page 14 AVC Patent Portfolio License THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM Code label The code labels (accessory) are required at inquiry for trouble. Use caution not to lose these labels. It is recommended to paste one of the labels onto the CD-ROM case. Equipment classification and power source indication label Refer to the indication label on the bottom side of this unit for the equipment classification, power source, and other information. Product disposal/transfer Data saved on this product or a storage device used with this product may lead to personal information leakage. When it is necessary to dispose or give this product to someone, even...
-
Page 15: Precautions For Installation
Precautions for installation Panasonic assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documentation. For information about the installation tasks, refer to the provided Installation Guide. Power supply Do not place this product in the following This product has no power switch. - Page 16 Before installation Protection from lightning • When mounting the camera to a ceiling or When connecting to a network using the network wall, a ceiling or wall mount bracket must cable of this product, observe the following. be separately procured. The size of the • When wiring for the network, design and bracket mounting hole is 1/4-20UNC cam- engineer not to be affected by lightning. era tripod mounting hole (depth 9 mm Radio disturbance {11/32 inches}). • Anchor bolts and screws used to mount When this product is used near TV/radio the camera on the ceiling or wall are not antenna, strong electric field or magnetic field supplied. Prepare bolts and screws that (near a motor, a transformer or a power line), match the structure and materials of the images may be distorted and noise may be installation location and satisfy the perfor- produced. mance and reliability specifications shown below. PoE (Power over Ethernet) <When mounting on a ceiling> Use a PoE hub/device that is compliant with Recommended screw or anchor bolt M6 IEEE802.3af standard.
-
Page 17: Troubleshooting
Replace the cable with another one. • Isn’t the write protect switch of the inserted SD mem- ory card set to “LOCK”? Unlock the write protect switch of the SD memory SD ERROR/ABF indi- card. cator lights red or • Hasn't the inserted SD memory card been formatted Operating blinks red on a PC? Instructions Use an SD memory card formatted on the camera. SPN311 (included in Or install the software to format the SD memory card SD ERROR/F.A. indi- the on the PC. Refer to our website cator lights red or CD-ROM) (http://security.panasonic.com/pss/security/support/ blinks red info.html) for further information about the supported SPN310 software. • Isn't the inserted SD memory card faulty? Replace the card with a normal one. - Page 18 Reference Symptom Cause/solution pages • Check the following. • G rounding of the camera, a switching hub or peripheral devices are not done. • The camera is used near an electrical power line. • T he camera is used near a device which produces Audio input contains strong magnetic field or radio waves (such as near noise. a TV/radio antenna, a motor of an air conditioning system, a transformer, etc.) When audio input still contains noise even after checking the above possibilities, use a powered microphone or connect audio output with low output impedance.
- Page 19 ERROR/ABF indicator SPN311 SD ERROR/F.A. indicator SPN310 Blinks red (Interval of 1 time/ second) • W hen ABF (Auto Back Focus) operation is being executed SPN311 Blinks red (1 time) • W hen the focus assist function is activated SPN310 • W hen the focus ring is positioned near the best focus Blinks red (1 time) position SPN310 • When the set is being started Lights red • When an SD memory card is recognized normally Lights red → Lights off • W hen an abnormality is detected in SD memory card Lights red after the camera has started <Rear view> <Side slide cover interior> <Example of WV-SPN311>...
-
Page 20: Specifications
Specifications Basic • Power source * DC 12 V, PoE (IEEE802.3af compliant) Power consumption * SPN311 DC 12 V : 350 mA/Approx. 4.2 W PoE DC 48 V : 140 mA/Approx. 6.8 W (Class 2 device) SPN310 DC 12 V : 310 mA/Approx. 3.8 W PoE DC 48 V : 120 mA/Approx. 5.8 W (Class 2 device) Operating environment Ambient operating temperature: –10 °C to +50 °C {14 °F to 122 °F} (Power On range: –10 °C to +50 °C {14 °F to 122 °F}) Ambient operating humidity: 10 % to 90 % (no condensation) Storage environment Storage temperature: –30 °C to +60 °C {–22 °F to 140 °F} Storage humidity: 10 % to 95 % (no condensation) Monitor output (for adjust- VBS: 1 .0 V [p-p]/75 Ω, composite, RCA jack ment): An NTSC or PAL signal can be outputted from camera (use the selector switch or software to select either NTSC or PAL signal). External I/O terminals: ALARM IN 1 (DAY/NIGHT IN) (x1) SPN311 ALARM IN 1 (x1) SPN310 ALARM IN 2 (ALARM OUT) (x1) ALARM IN 3 (AUX OUT) (x1) Microphone/line input: ø3.5 mm monaural mini jack Input impedance: Approx. 2 kΩ (unbalanced) - Page 21 *1 R efer to our website (http://security.panasonic.com/pss/security/support/info.html) for further information about Power source and Power consumption information. Camera • Image sensor: 1/3 type MOS image sensor Built-in primary color filter Effective pixels: 1296 (H) x 1041 (V), Approx. 1.35 mega pixels Scanning area: 5.38 mm (H) x 3.02 mm (V) {7/32 inches (H) x 1/8 inches (V)} Scanning system: Progressive Minimum illumination: SPN311 Color : 0.01 lx {0.00093 footcandle} (F1.4, Maximum shutter: Off (1/30 s), AGC: High) 0.0007 lx {0.00007 footcandle} (F1.4, Maximum shutter: max. 16/30 s, AGC: High)* BW : 0.003 lx {0.00028 footcandle} (F1.4, Maximum shutter: Off (1/30 s), AGC: High) 0.0002 lx {0.00002 footcandle} (F1.4, Maximum shutter: max. 16/30 s, AGC: High)* SPN310 Color : 0.01 lx {0.00093 footcandle} (F1.4, Maximum shutter: Off (1/30 s), AGC: High) 0.0007 lx {0.00007 footcandle} (F1.4, Maximum shutter: max. 16/30 s, AGC: High)* BW : 0.008 lx {0.0007 footcandle} (F1.4, Maximum shutter: Off (1/30 s), AGC: High) 0.0005 lx {0.00005 footcandle} (F1.4, Maximum shutter: max. 16/30 s, AGC: High)*...
- Page 22 Color/BW: SPN311 Off/ On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) SPN310 Off/ Auto White balance: ATW1/ ATW2/ AWC Digital noise reduction: High/ Low Privacy zone: On/ Off (up to 8 zones available) Camera title on screen: On/ Off Up to 20 characters (alphanumeric characters, marks) Video Motion Detection (VMD): On/ Off, 4 areas available Back focus: Auto back focus/ Focus/ Adjusting method SPN311 Lens drive: DC drive Lens mount: CS-mount • Network Network: 10BASE-T/100BASE-TX, RJ45 connector Resolution: 1.3 mega pixel [16:9] (30 fps mode)/1.3 mega pixel [16:9] (60 fps H.264 mode) JPEG (MJPEG) 1280x720, 640x360, 320x180, 160x90 1.3 mega pixel [4:3] (30 fps mode) 1280x960, 800x600, VGA, 400x300, QVGA, 160x120 Image compression method: H.264* Image quality (Constant bit rate/Best effort): Low (Motion priority)/ Normal/ Fine (Image quality priority) (VBR): 0 Super fine/ 1 Fine/ 2/ 3/ 4/ 5 Normal/ 6/ 7/ 8/ 9 Low Transmission type: Unicast/Multicast Max bit rate (per client)*: (Constant bit rate/ VBR/ Frame rate/ Best effort/ Advanced VBR)
- Page 23 Windows Internet Explorer 10 (32-bit) Windows Internet Explorer 9 (32-bit) Windows Internet Explorer 8 (32-bit) Windows Internet Explorer 7 (32-bit) Maximum concurrent 14 (Number of sessions that can connect to cameras at the same access number: time) * Depends on network conditions FTP client: Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SD memory card is available.) Multi-screen: Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself) Compatible SDXC/SDHC/ Manufactured by Panasonic (SD speed class 4 or higher) SD memory card* SDXC memory card : 64 GB SDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB SD memory card : 2 GB (except miniSD memory card and microSD memory card) Cellular phone compatibility: JPEG image, AUX control (by access level) Mobile terminal compatibility: iPad, iPhone, iPod touch (iOS 4.2.1 or later) (As of July, 2014)* Android mobile terminals *1 Transmission for 4 streams can be individually set. *2 AAC-LC (Advanced Audio Coding - Low Complexity) is only used when recording audio on an SD memory card. *3 For further information about PC system requirements and precautions for when using Microsoft Windows 8.1, Microsoft Windows 8, Microsoft Windows 7, Microsoft Windows Vista, or Windows Internet Explorer, click “Manual” - “Open” from the supplied CD-ROM and...
-
Page 24: Standard Accessories
Standard accessories Important Information (this document) ....1 pc. Installation Guide ..........1 set Warranty card ............1 set CD-ROM* ............1 pc. Code label* ............1 pc. The following parts are used during installation procedures. Tripod mount base ..........1 pc. Power cord plug ..........1 pc. Safety wire lug .............1 pc. Wire lug fixing screws (M2.5 x 8 mm {5/16 inches})......2 pcs. (of them, 1 for spare) Safety wire ............1 pc. Washer ..............1 pc. Spring washer .............1 pc. *1 T he CD-ROM contains the operating instructions and different kinds of tool software programs. *2 T his label may be required for network management. The network administrator shall retain the code label. Optional accessories User License Accessory (For H.264): BB-HCA8A BB-HCA8CE... - Page 28 For Europe and other countries: Panasonic Corporation Panasonic System Communications Company of North America, http://panasonic.net Unit of Panasonic Corporation Panasonic System Networks Co., Ltd. of North America Fukuoka, Japan www.panasonic.com/business/ For customer support, call 1.800.528.6747 Authorised Representative in EU: Two Riverfront Plaza, Newark, NJ 07102-5490 Panasonic Testing Centre Panasonic Canada Inc.
