Summary of Contents for Avaya IP Office
- Page 1 IP office discontinued control units Small Office 4T + 4A + 8DS (16 VoIP) Control unit...
-
Page 2: Control Unit

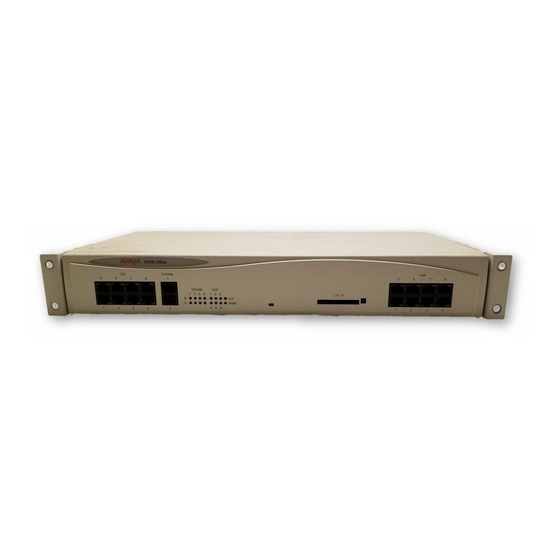

Avaya IP Office - Small Office 4T + 4A + 8DS (3 or16 VoIP) Small Office Edition is a compact platform specifically designed to meet the needs of very small businesses and home offices. In a single unit, it can provide a PABX with Auto Attendant and Voicemail, Broadband Access, Wireless Access Point (WiFi) and VPN tunneling. - Page 3 IP Office IP406 V2 Control Unit The IP406 V2 control unit is a stackable unit with an optional 19” rack mounting kit. The IP406 V2 includes: The IP406 V2 includes 8 digital station (DS) and 2 analog phone (single line telephone) ports. It includes an eight port Ethernet LAN switch (unmanaged Layer 2) and Compact Flash card slot for an optional embedded voicemail memory card.
-
Page 4: External Modules
External modules IP400 Office Phone Expansion Module analog extensions in three variants for 8, 16 or 30 extensions. IP400 Office Digital Station Expansion Module 16 or 30 extensions. IP400 Office So8 Expansion Module IP400 Office WAN 3 Expansion Module IP400 Office Analog Trunk 16 Expansion Module... - Page 5 8 digital extension ports 2 expansion slots for Quad Basic Rate Card (one per system) DTE Port. 25 pin D-Type socket. Used for system maintenance. Suitable for direct connection of IP Office Serial Port Feature Key dongle T1/PRI (one per system) Quad analog Loop Start Trunk (two per system) The capability of up to 20 voice compression channels.
- Page 6 The IP406 V1 Office base unit is 19” rack mountable and supports as standard- Eight 10/100 Mbps LAN Hub ports. DTE Port. 25 pin D-Type socket. Used for system maintenance. Suitable for direct connection of IP Office Serial Port Feature Key dongle.
- Page 7 The following table summarizes the IP Office control units...
