Summary of Contents for Pandigital PAN2701A

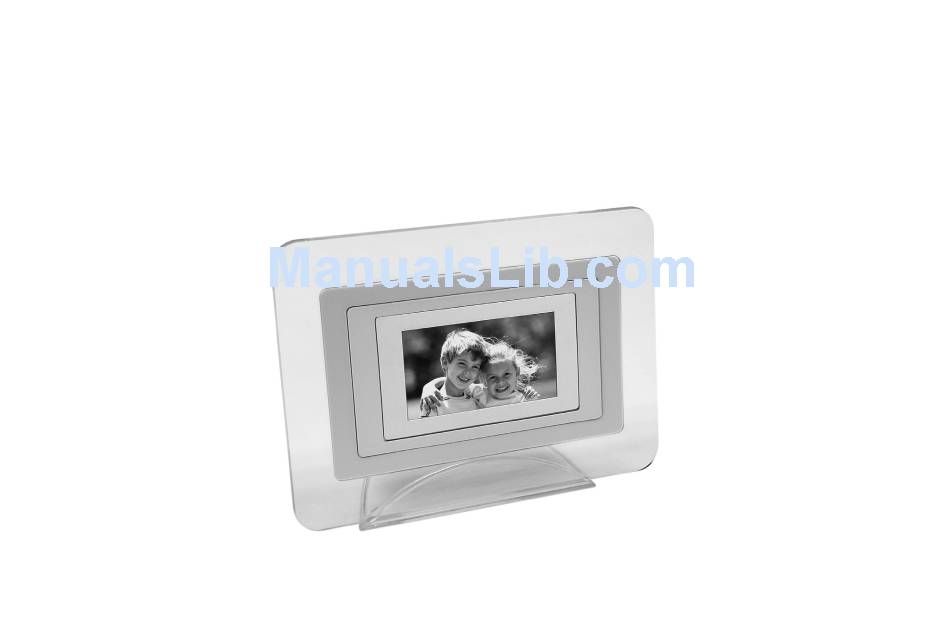

- Page 1 Pandigital ® Digital Photo Frame USER GUIDE...
-
Page 2: Important Safety Precautions
Important Safety Precautions: Please always follow the following basic safety precautions when using your Digital Photo Frame (DPF). This will reduce the risk of fire, electric shock and injury. • Do not drop or subject this product to jarring or strong vibrations. •... -
Page 3: Table Of Contents
• Installing the Software..............................16 • Computer System Requirements ..........................17 • Connecting to Your Computer .............................18 • About Pandigital Photo Manager ..........................19 • How to Use Pandigital Photo Manager ........................20 8. Storage Capacities .................................24 9. Frequently Asked Questions ............................25 10. Limited Warranty ................................26... -
Page 4: Introduction
Introduction Welcome to the Pandigital Multimedia Photo Frame! Simply connect your Digital Photo Frame to your computer to download images and then play. It’s as easy as that. Features The Digital Photo Frame includes following key features: ◊ 2.7 inch TFT LCD screen ◊... -
Page 5: What's In The Box
What’s In the Box • Digital Photo Frame 1 piece • User Guide 1 piece • USB Cable 1 piece • Warranty Card 1 piece Specifications Panel Size 2.7 inches Resolution 80 X 23 Brightness 150 cd/m² Contrast Ratio 150:1 Horizontal / Vertical Viewing Angle 0 / 0 ;... -
Page 6: Product Diagram
Product Diagram Top View Side View 1. Reset Button 2. Power Button 3. Left Button 4. Enter Button 5. Right Button 6. Menu Button 7. USB Port... -
Page 7: Using Your Digital Photo Frame
Using Your Digital Photo Frame (DPF) Use the Control Buttons: RESET Restart the Digital Photo Frame POWER Power on or off Move the selection up or left, display the previous photo, or select the previous file ENTER Select the highlighted option, start a slideshow, pause or play, start clock function Move the selection up or right, display the next photo, or select the next file MENU Enter “Setup”... -
Page 8: Exit Usb Mode
Exit USB Mode: Whenever you connect your Digital Photo Frame to a computer, system will be in charging state automatically. If you want to use the DPF while it is connected to the computer, you will have to exit from the USB Charging Mode. -
Page 9: Viewing Photos Or Clock
Viewing Photos or Clock POWER 1. Press and hold the button until the DPF power on. System will enter PLAYBACK mode automatically. ENTER 2. Press the button to start slide show. 3. Press the button to select previous picture or press the button to select next picture. -
Page 10: Resetting To Default Settings
Resetting to Default Settings: MENU S L I D E S H O W 1. Press the button or the button to select “SLIDE SHOW”. L A N G U A G E B R I G H T N E S S T I M E F U N C T I O N ENTER 2. - Page 11 Setting Transition Interval: SLIDE SHOW T R A N S I T I O N I N T E R V A L 1. Press the button or the button to select “TRANSITION T R A N S I T I O N E F F E C T INTERVAL”.
-
Page 12: Setting Language
Setting Language: MENU 1. Press the button or the button to select “LANGUAGE”. S L I D E S H O W L A N G U A G E B R I G H T N E S S ENTER 2. -
Page 13: Setting Current Time
Setting Current Time: MENU 1. Press the button or the button to select “TIME FUNCTION”. S L I D E S H O W L A N G U A G E ENTER 2. Press the button to enter. B R I G H T N E S S T I M E F U N C T I O N D E F A U L T S E T T I N G... - Page 14 Setting Auto Off: TIME FUNCTION 1. Press the button or the button to select “AUTO OFF”. C U R R E N T T I M E A U T O O F F A U T O O F F A T ENTER 2.
-
Page 15: Deleting Pictures
Deleting pictures: ENTER 1. Press the button to set the Frame to “PLAYBACK” mode. D E L E T E POWER 2. Press the button to delete single picture. Y E S POWER 3. Press the button again to delete all pictures. POWER 4. -
Page 16: Installing The Software Onto A Computer
Before you begin, close all other software applications open on your computer. Insert the CD supplied into the computer CD-ROM Drive. The CD User Interface Screen will automatically launch. With the mouse, click the “Pandigital Photo Manager” button and follow the screen instructions. Open & Close... -
Page 17: Computer System Requirements
Computer System Requirements: For acceptable picture transferring and editing performance, we recommend the following minimum requirements; For Windows® Users: • Compatible with Microsoft® Windows® 98SE, Me, 2000, XP or Vista • Pentium® III 450 MHz or equivalent processor • USB Port •... -
Page 18: Connecting To Your Computer
Windows System detected a new hardware but it can’t be opened. If user double clicks this drive, an error message will show on the computer desktop. Users can only upload or download images on the DPF through the software “Pandigital Photo Manger”. -
Page 19: About Pandigital Photo Manager
About Pandigital Photo Manager: Pandigital Photo Manager allows you to add and delete pictures on your DPF. It also allows you to crop and compress the pictures that you want to add to the DPF. Interface Diagram Introduction: Column A: Browse for images---List out folders in your computer. -
Page 20: How To Use Pandigital Photo Manager
How to Use Pandigital Photo Manager: Open Pandigital Photo Manager in desktop or Start menu. Pandigital Photo Manager will automatically initialize data and download all the images from the DPF. Open your image folder in column A and all images in the selected folder will show in column B. - Page 21 Click the settings button to setup the images in order to fit the Pan2701 screen preview. Or click the crop button to adjust the images. Click the transfer button to transfer those adjusted images in column B to column C.
- Page 22 C. Click the update button to save all the images in column C to Your DPF. Update Picture Frame When update finished, please click the close button at the left-top conner to exit Pandigital Photo Manager.
- Page 23 Photo Manager can only be used while the DPF is in USB Charging Mode. Under the following two conditions, system will pop up an error message of Pandigital Photo Manager: 1. When you open the Pandigital Photo Manager without connecting your DPF to your computer.
-
Page 24: Storage Capacities
Storage Capacities The chart below indicates the approximate number of pictures your Digital Photo Frame can hold at each setting based on the internal memory. Resolution Compression Internal Memory High Approx. 39 10 M Middle Approx. 12 ( 3648 X 2736 ) Approx. -
Page 25: Frequently Asked Questions
Question: Why is the picture display slower with some pictures and faster with others? Answer: Higher resolution pictures load more slowly. Try using lower resolution pictures or use Pandigital Photo Manager to down sampling your photos. Question: How to restart my Digital Photo Frame? Answer: Simply depress the RESET button gently by a paper clip or ballpoint pen for a few seconds. -
Page 26: Limited Warranty
LABOR: For a period of ninety (90) days from the date of purchase, if this product is found to be defective, Pandigital will repair or replace the product, at its option, at no charge. After this ninety (90) day period, labor charges will be charged on a case by case basis. - Page 27 This warranty is invalid if the factory applied serial number has been altered and or removed from the product. Pandigital reserves the right to modify and design of this product without prior notice, written or otherwise.
-
Page 28: Fcc Statement
FCC Statement FCC Part 15 Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communication Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 29 Part No.: OM6083US001 Made in China...
