ORDER NO. VM1302007CE
B27
Dual Camera
Advertisement
Table of Contents
Related Manuals for Panasonic HX-WA03PP
Summary of Contents for Panasonic HX-WA03PP

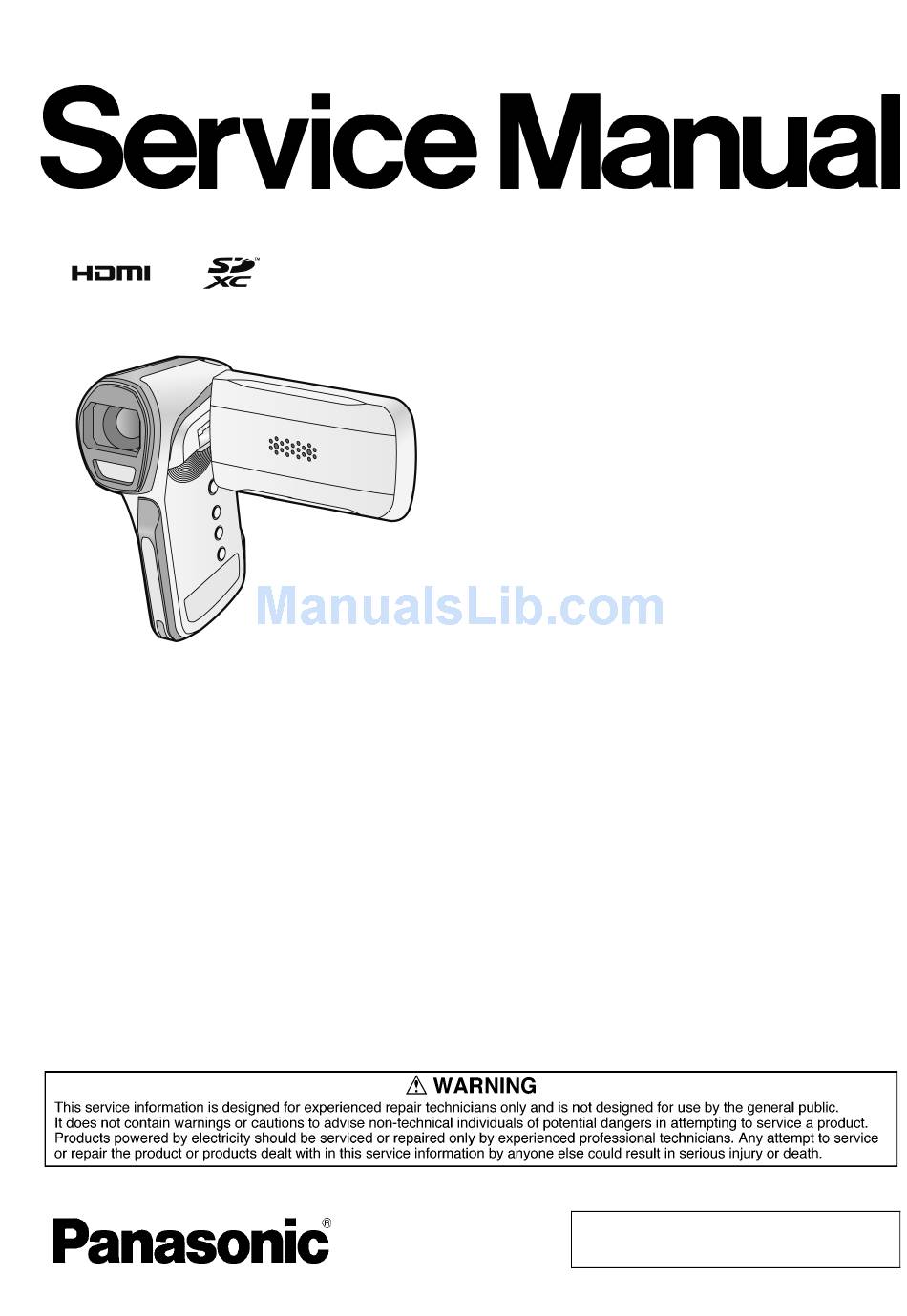

- Page 1 Model No. HX-WA3PU HX-WA3EB HX-WA3EC HX-WA3EE HX-WA3EF HX-WA3EG HX-WA3EP HX-WA3GA HX-WA3GC HX-WA3GD HX-WA3GN HX-WA3GT Colour (H)...Gray Type (A)...Blue Type (except HX-WA03PP/WA3EC/EE/ EP/GC/GT) (W)..White Type (except HX-WA3PU/EE/EF/GN) © Panasonic Corporation 2013 Unauthorized copy- ing and distribution is a violation of law.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure. 1)--------3 1.4. How to Discharge the Capacitor on Main P.C.B.----------------------------------------------------------4 2 Warning --------------------------------------------------------------5 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------5 2.2. -
Page 3: Safety Precautions
1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check (See Figure. 1) 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check. -
Page 4: How To Discharge The Capacitor On Main P.c
1.4. How to Discharge the Capacitor on Main P.C.B. CAUTION: 1. Be sure to discharge the capacitor on MAIN P.C.B.. 2. Be careful of the high voltage circuit on MAIN P.C.B. when servicing. [Discharging Procedure] 1. Refer to the disassemble procedure and Remove the necessary parts/unit. 2. -
Page 5: Warning
2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip”... -
Page 6: How To Replace The Lithium Battery
2.3. How to Replace the Lithium Battery 2.3.1. Replacement Procedure 1. Remove the MONITOR P.C.B.. (Refer to Disassembly Procedures.) 2. Unsolder the each soldering point of electric lead terminal for Lithium battery (Ref. No. “Z3001” at component side of MONI- TOR P.C.B.) and remove the Lithium battery together with electric lead terminal. -
Page 7: Service Navigation
3 Service Navigation 3.1. Introduction This service manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2. -
Page 8: How To Define The Model Suffix (Ntsc Or Pal Model)
3.4. How to Define the Model Suffix (NTSC or PAL model) There are seven kinds of HX-WA03/WA3. • a) HX-WA3 (Japan domestic model) • b) HX-WA03PP • c) HX-WA3EB/EC/EF/EG/EP/GN • d) HX-WA3EE • e) HX-WA3GT • f) HX-WA3GD • g) HX-WA3PU/GA/GC What is the difference is that the “INITIAL SETTING”... -
Page 9: Formatting
3.5. Formatting... -
Page 10: Baking Of Replacement Ic And Defective P.c.b
3.6. Baking of replacement IC and defective P.C.B. When replacing the CSP/BGA/QFN type IC mounted on the P.C.B., the problem of IC crack or foil pattern breaking in the P.C.B. might sometimes occur by rapid heating. In order to improve the success rate of IC replacement for repair, it would be required to work out baking of replacement IC and defective P.C.B. -
Page 11: Specifications
4 Specifications... -
Page 18: Location Of Controls And Components
5 Location of Controls and Components LCD monitor It can open up to 90 , rotate up to 180 towards the lens or 105 towards the opposite direction. Due to limitations in LCD production technology, there may be some tiny bright or dark spots on the LCD monitor screen. However, this is not a malfunction and does not affect the recorded picture. - Page 19 HX-WA30 Slow Motion Mode button [ HX-WA3 HX-WA03 Zoom range button [ Photoshot button [ SET button [SET] Use the SET button to select the recording functions and playback operations, and to operate the menu screen. In this owner’s manual, the operation of the SET button is denoted as shown below.
- Page 20 HX-WA3 HX-WA03 Lens Built-in flash Hand strap fixture HX-WA30 HX-WA3 HX-WA03 Adjust the length after passing your arm through the hand strap. Speaker Internal stereo microphones HX-WA30 Wi-Fi Transmitter Tripod receptacle Selecting a mode Change the mode to recording or playback. Press the REC/ button.
-
Page 21: Troubleshooting Guide
6 Troubleshooting Guide 6.1. Confirmation Flow of Waterproof... -
Page 22: Airtight Inspection With Air Leak Tester
6.2. Airtight Inspection with Air Leak Tester... -
Page 23: Air Leak Tester (Rfkz0528) Operating Instruction
6.3. Air Leak Tester (RFKZ0528) Operating Instruction... -
Page 27: Service Fixture & Tools
7 Service Fixture & Tools... -
Page 28: Disassembly And Assembly Instructions
8 Disassembly and Assembly Instructions 8.1. Disassembly Flow Chart This is a disassembling chart. When assembling, perform this chart conversely. -
Page 29: Pcb Location
8.2. PCB Location Item Removal Main P.C.B. (Fig. D15) 1 Screw (I) Battery Case 1 Screw (J) Solder (2 points) CN103 (Connector) CN301 (Flex) 2 Screws (K) Solder (3 points) (Fig. D16) Battery Case Earth Plate Main P.C.B. Lens Holder (Fig. - Page 30 8.3.2. Removal of the Front Cabinet Unit 8.3.1. Removal of the Top Ornament (Fig. D2) (Fig. D1)
- Page 31 8.3.3. Removal of the Side-L Cabinet Unit (Fig. D4) (Fig. D3)
- Page 32 (Fig. D6) 8.3.4. Removal of the Battery Cover (Fig. D5) (Fig. D7)
- Page 33 (Fig. D8) 8.3.5. Removal of the Waterproof Rubber (Fig. D9) (Fig. D10)
- Page 34 8.3.6. Removal of the Capacitor & Capaci- 8.3.7. Removal of the Lens Unit tor Holder (Fig. D11) (Fig. D12)
- Page 35 8.3.9. Removal of the Main P.C.B. and Battery Case (Fig. D13) 8.3.8. Removal of the Flash Unit (Fig. D15) (Fig. D14)
- Page 36 8.3.11. Removal of the Speaker (Fig. D16) 8.3.10. Removal of the Lens Holder (Fig. D18) (Fig. D17)
- Page 37 8.3.12. Removal of the LCD Unit with Case (Fig. D19) (Fig. D20)
- Page 38 (Fig. D21) (Fig. D22)
- Page 39 (Fig. D23) 8.3.13. Removal of the Hinge Cover & LCD Case (T) Unit (Fig. D25) (Fig. D24)
- Page 40 8.3.14. Removal of the LCD O-Ring (Fig. D28) (Fig. D26) (Fig. D27)
- Page 41 8.3.15. Removal of the LCD Panel (Fig. D29) (Fig. D30)
- Page 42 8.3.16. Removal of the Built-in Micro- phones, Monitor P.C.B. (Fig. D31) (Fig. D32)
- Page 43 (Fig. D33) (Fig. D34)
- Page 44 8.3.17. Removal of the LCD Hinge Unit (Fig. D36) (Fig. D35)
- Page 45 8.3.18. Removal of the Switch Unit (Fig. D38) (Fig. D37)
- Page 46 (Fig. D39) (Fig. D40)
-
Page 47: Measurements And Adjustments
9 Measurements and Adjustments 9.1. Electric Adjustment • Adjustment method is different from a conventional High definition video camera. • An exclusive jig and PC (including software for adjustment “DSCcal”) are necessary for electric adjustment. • A USB driver for service is necessary to communication with PC. •... - Page 48 Note: Remove the Front block of the Lightbox. (Refer to following Fig. for details). Adjustment Items • Adjustment item as follows. The adjustment instruction is available at “Software download” on the “Support Information from NWBG/VDBG-AVC” web-site in “TSN System”. *The firmware together with version up procedure are available at “Software download” on the “Support Information from NWBG/VDBG-AVC”...
-
Page 49: Maintenance
10 Maintenance 10.1. Regular Maintenance Flow... -
Page 50: Component Kits Of Waterproof
10.2. Component Kits of Waterproof... -
Page 51: Block Diagram
11 Block Diagram 11.1. Overall Block Diagram OVERALL BLOCK DIAGRAM MAIN P.C.B. C5410 DMA BLOCK STA BLOCK Main Capacitor Lens Unit TCA Block x5 F3.5 IC541 IC951 Flash Driver IC Flash Unit Controller BtoB PWA BLOCK CMOS IMAGE SENSOR X3001 32.768kHz IC911 LVDS... -
Page 52: Main Block Diagram
11.2. Main Block Diagram MAIN BLOCK DIAGRAM X1102 48.000MHz PWA BLOCK BSRST POWER SUPPLY CLK32K DQ* /DQS* DA* /DQM* /DB A DSCK* ZRAS/ZCAS/ZDSWE IC125/IC126 USB SUSPWR ZDRST DDR3 1Gb PWA BLOCK ZDCS/DSCKEN BATTERY CHARGE CONTROLLER SCAN IN * SCANOUT * OneNAND RESET IC121 ZFRD/ZFWR... -
Page 53: Cmos Block Diagram
11.3. CMOS Block Diagram 11.4. Lens Block Diagram CMOS BLOCK DIAGRAM LENS BLOCK DIAGRAM ZOOM_PI_E CN951 FOCUS_PI_E LENS BLOCK ZOOM_PI_AC VDD3 TO IC101 IC951 ZOOM_PI LENS DRIVER ZOOM_PI_K PIOUT2 FOCUS_PI_AC BOOST5.0V VDD3 MVCC12,MVCC34,MVCC5, (CAA) (DMA) IC101 CMOS1.8 VDDIO VDDPLL VAA2.8 VAAPIX VDD_SLVS_TX VDDAMP... -
Page 54: Power Block Diagram
11.5. Power Block Diagram 11.6. Flash Block Diagram FLASH BLOCK DIAGRAM POWER BLOCK DIAGRAM TO DMA IC521 USB_VBUS USUP USB_SUSPWR CHARGE BAT+ TO BATTERY I2C_SDA BATMONIT CHARGING CIRCUIT TO DMA I2C_SCL TO DMA D5402 C5401 T5401 POWER FILTER OSCILLATION RECTIFIER UNREGST I2C_SDA TRANSFORMER... -
Page 55: Wiring Connection Diagram
12 Wiring Connection Diagram 12.1. Interconnection Diagram INTERCONNECTION DIAGRAM CN173 JW184 MGNDL BLACK HINJI MIC (L) VDD3 MONITOR P.C.B. JW183 MIC(L) GRAY JW181 MIC(R) MIC (R) GRAY JW182 MGNDR LENS BLACK CN912 CN901 VAA2.8 VAA2.8 VAA2.8 VAA2.8 AGND AGND AGND AGND SDIP3 SDIP3...
