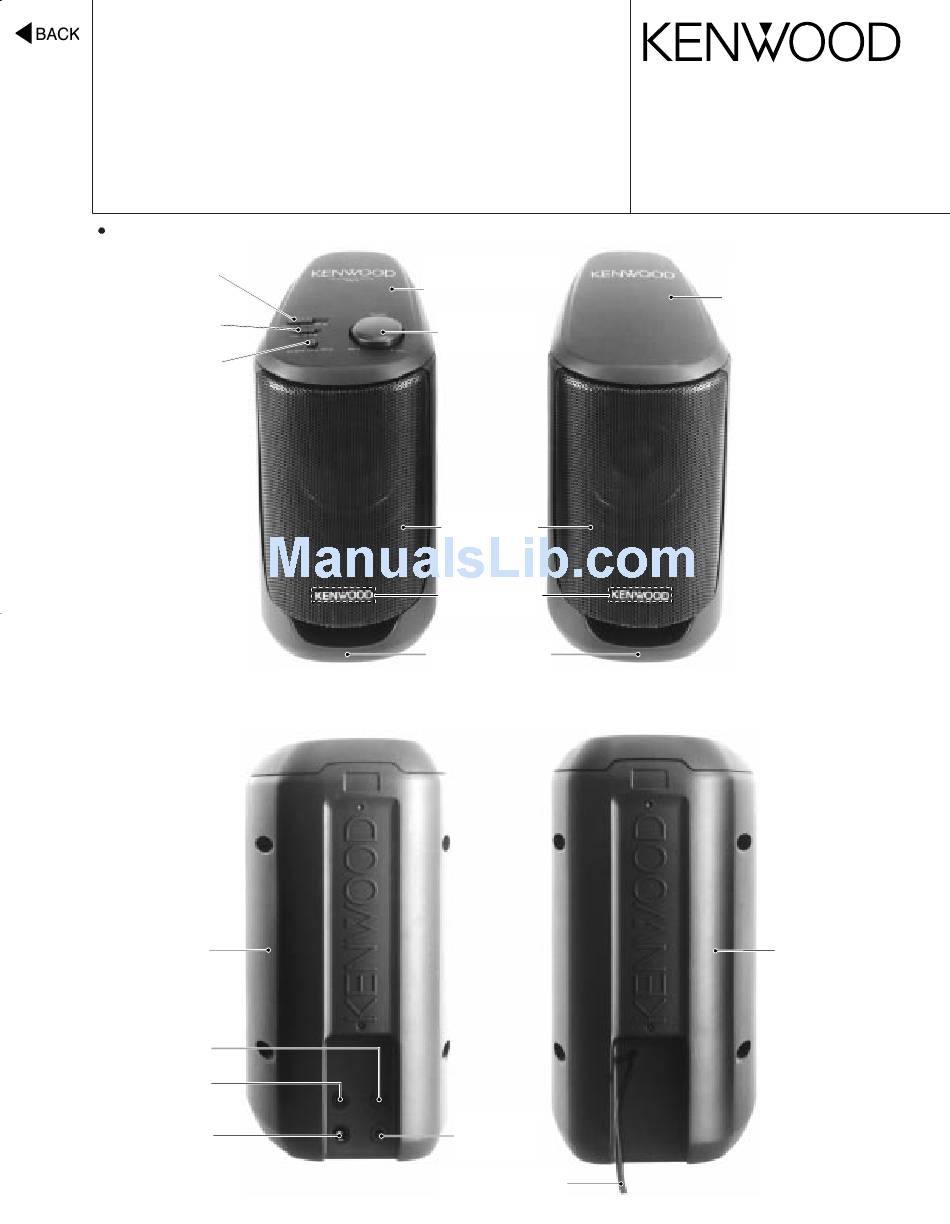

SPEAKER SYSTEM WITH AMPLIFIER
AS-3
SERVICE MANUAL
The color of this model is divided into two types ; White (W) and Black (B).
Knob(POWER)
(K29-6240-08):W
(K29-6244-08):B
Knob(LINE)
(K29-6238-08):W
(K29-6242-08):B
Knob(EX.BASS)
(K29-6239-08):W
(K29-6243-08):B
Rear cabinet(L)
(A02-1276-08):W
(A02-1277-08):B
Phono jack(LINE 2)
(E11-0269-08)
Phono jack(LINE 1)
(E11-0269-08)
DC jack(DC 12V)
(E03-0129-08)
Top cabinet (L)
(A52-0182-08):W
(A52-0185-08):B
Knob(VOLUME)
(K29-6237-08):W
(K29-6241-08):B
Grille
(B04-0096-08):W
(B04-0095-08):B
KENWOOD badge
(B43-0287-04)
Front cabinet
(A29-0807-08):W
(A29-0809-08):B
Phono jack
(OUTPUT)
(E11-0270-08)
Speaker cord
(E30-2818-08):GRY/W
(E30-2817-08):BLK/B
© 1995-7 PRINTED IN KOREA
B51-5073-00 (K) 1781
Top cabinet (R)
(A52-0181-08):W
(A52-0184-08):B
W : White version
B : Black version
Rear cabinet(R)
(A02-1275-08):W
(A02-1278-08):B

Advertisement

loading

Related Manuals for Kenwood AS-3

Summary of Contents for Kenwood AS-3

  • Page 1 SPEAKER SYSTEM WITH AMPLIFIER AS-3 SERVICE MANUAL © 1995-7 PRINTED IN KOREA B51-5073-00 (K) 1781 The color of this model is divided into two types ; White (W) and Black (B). Top cabinet (L) Knob(POWER) (A52-0182-08):W Top cabinet (R) (K29-6240-08):W...

  • Page 2: Table Of Contents

    AS-3 CONTENTS/ACCESSORIES CONTROLS ..............3 EXPLODED VIEW ............6 PC BOARD ..............4 PARTS LIST..............7 SCHEMATIC DIAGRAM ..........5 SPECIFICATIONS ........Back cover Accessories AC adaptor Connection cord (W08-0015-08) : M type (E30-2802-08) (W08-0017-08) : E type (W08-0645-08) : T type...

  • Page 3: Controls

    AS-3 CONTROLS Front panel Left speaker Right speaker Power indicator VOLUME Power button control knob Line select button (LINE 1/2) EX.BASS button Left speaker unit Right speaker unit Rear panel (Left speaker) LINE 1 input jack LINE 2 input jack...

  • Page 4: Pc Board

    *It is "C104" on Schematic diagram , though "C112" is printed on PCB.

  • Page 5: Schematic Diagram

    0.022 R251 4.7K SIGNAL LINE GND LINE +B LINE (NORMAL TYPE) AS-3 (J/K) 2SC1815 BA4558 CAUTION: For continued safety, replace safety critical • DC voltages are as measured with a high components only with manufacturer's recommended parts (refer impedance voltmeter. Values may vary to parts list).

  • Page 6: Exploded View

    AS-3 EXPLODED VIEW(UNIT) Parts with the exploded numbers larger than 700 are not supplied.

  • Page 7: Parts List

    AS-3 PARTS LIST ? @ 6 X f ? W 2 @ h New Parts ? @ 6 X f ? W 2 @ h New Parts ? @ @ 1 f ? 7 @ @ h ? 3 @ @ L ? e J @ @ 5 h...

  • Page 8: Specifications

    Dimensions ....107(W) X 215(H) X 155(D) mm Weight ..........800 g (Left speaker) 730 g (Right speaker) KENWOOD follows a policy of continuous advancements in development. For 14-6,Dogenzaka 1-chome, Shibuya-ku, Tokyo, 150 Japan this reason specifications may be changed without notice.
