Chapter 4. Working with L2230x Wide USB Port Replicator Monitor

Connect the USB Port Replicator for the monitor

1. Be sure to install the USB Port Replicator driver for L2230x Wide USB Port Replicator
monitor on your computer. The driver name is "Usb_PR_Setup.exe".
2. Plug L2230x Wide USB Port Replicator monitor power cord, and power on L2230x Wide
USB Port Replicator Monitor.

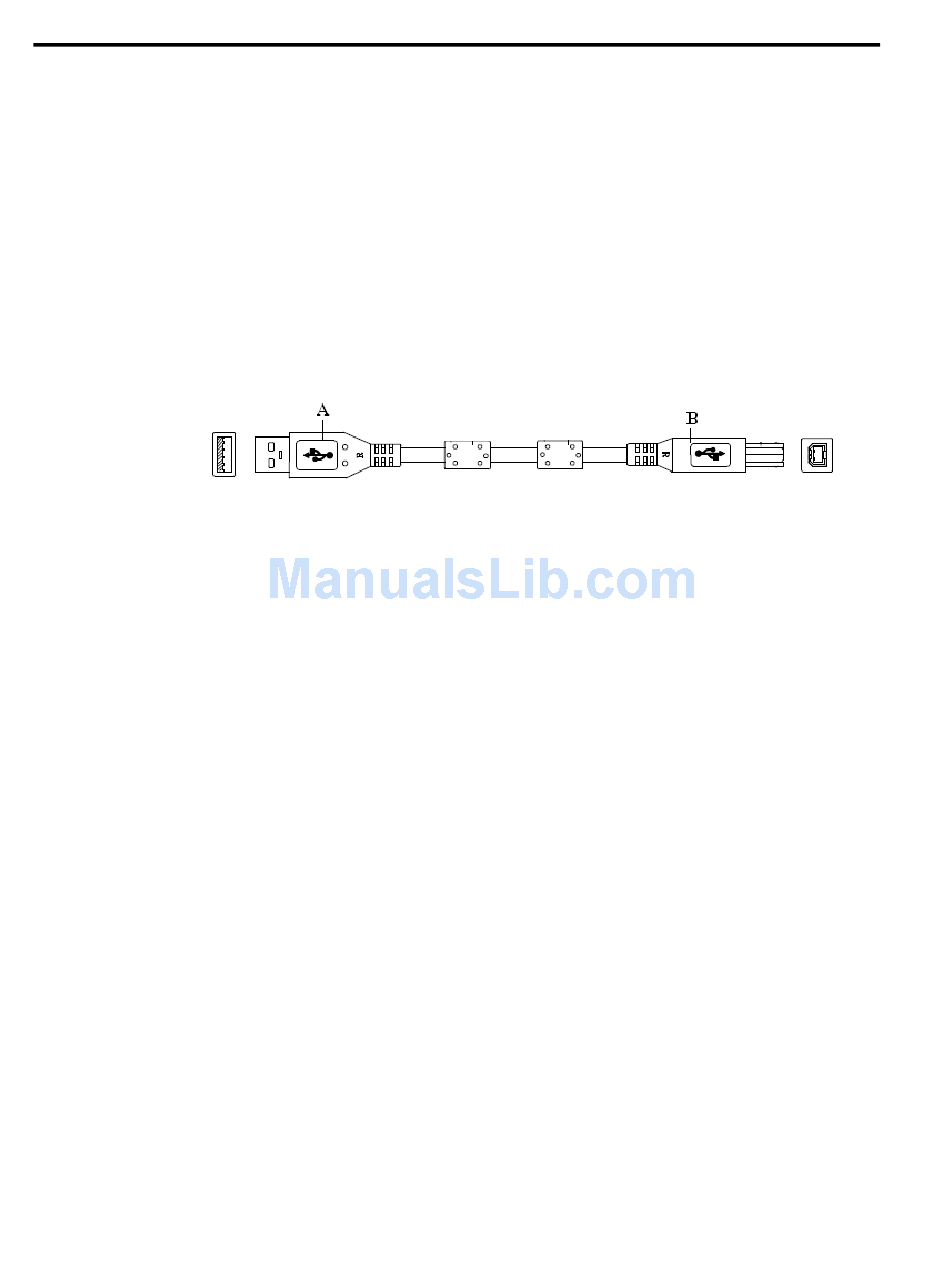

3. Connect the USB B plug of the USB cable to the USB B receptacle connector on
L2230x Wide USB Port Replicator monitor.
4. Connect the USB A plug of the USB cable to an available USB connector on the computer.
The system will automatically identify and configure the port replicator for L2230x Wide
USB Port Replicator monitor.
connectors on the monitor. Normally it will take some time for the computer to recognize
the new device.
Note: The settings you have configured for the port replicator will be retained each
time you connect the computer to the port replicator. This feature is useful when you
use your computer with multiple port replicators. For example, if you use a computer
both at home and at work, you can set up both work areas with port replicators. Then,
you just connect your computer to the port replicator at either location, and you are
ready to work.

Using the audio connectors

The audio connectors on L2230x Wide USB Port Replicator monitor consists of one
microphone connector (red) and one headphone connector (green). The audio connectors
are automatically enabled when you have successfully connected the port replicator of L2230x
Wide USB Port Replicator monitor and installed the device driver. However, if you can not
hear anything from the headphones or speakers connected to the audio connectors, you
can manually enable the audio connectors on the port replicator,do the following:
1. Click L2230x Wide USB Port Replicator Monitor icon in the taskbar notification area.
2. Select Audio. For Windows XP users, the Sound and Audio Devices Properties
window opens. For Windows Vista and Windows 7 users, the Sound window opens.
3. Depending on the operating system you are using, do one of the following:
Copyright Lenovo 2010.
© ©
you can connect devices to the appropriate
Then
4-1
