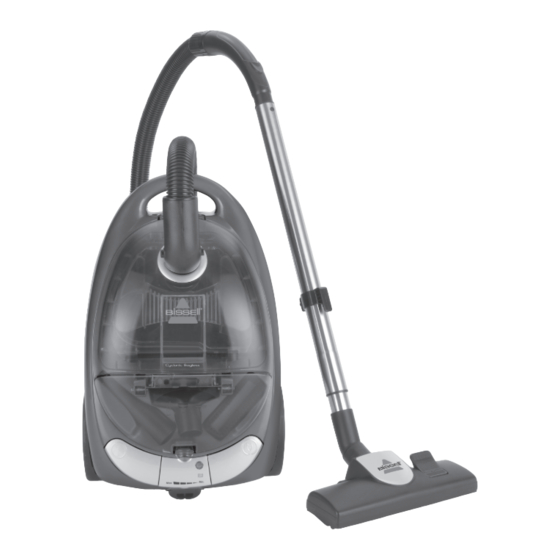

Bissell 66T6 SERIES User Manual

Cyclonic bagless canister vacuum
Hide thumbs Also See for 66T6 SERIES:
Table of Contents

Advertisement

Quick Links

Download this manual
Pet Hair Eraser
TM
Opticlean
/ PowerClean
®
Cyclonic Bagless Canister Vacuum
USER'S GUIDE
66T6 SERIES
Thank You
2
TM
Safety Instructions
3
Product View
4
Assembly
5
Operations
6-8
Maintenance and Care
9-12
Troubleshooting
13
Consumer Care
14
Replacement Parts
15
Warranty
16

Advertisement

Table of Contents
loading

Related Manuals for Bissell 66T6 SERIES

Summary of Contents for Bissell 66T6 SERIES

  • Page 1 Pet Hair Eraser Thank You Opticlean / PowerClean ® Cyclonic Bagless Canister Vacuum Safety Instructions USER'S GUIDE 66T6 SERIES Product View Assembly Operations Maintenance and Care 9-12 Troubleshooting Consumer Care Replacement Parts Warranty...
  • Page 2 My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your BISSELL canister vacuum .

  • Page 3: Important Safety Instructions

    MPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic Do not pick up toxic material (chlorine bleach, ■ precautions should be observed, including ammonia, drain cleaner, etc.). the following: Do not use in an enclosed space filled with vapors ■ READ ALL INSTRUCTIONS given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other...

  • Page 4: Product View

    roduct view Handle Air Flow Regulator Flex Hose Carry Handle Swivel Hose Telescoping Extension Wand Easy Empty Dirt Cup Clean Filter Wand Storage Clip Indicator Tool Storage Power Brush Switch Button Post-Motor HEPA Media Filter* Variable Suction Automatic Multi Surface Power Control Cord Rewind Floor Nozzle...

  • Page 5: A Ssembling Your Vacuum

    ssembling your vacuum Connect swivel hose by squeezing both WARNING: locking buttons and inserting it into the suction opening on the canister. Once the Plastic film can be dangerous. swivel hose is inserted in the suction opening, To avoid danger of suffocation, release the locking buttons.

  • Page 6: Power Button

    perations Power button Power Button Turn the power on or off by pressing lightly downward on the power button ( ). Power cord The power cord is located at the rear of the vacuum. Gently pull out the power cord, watching for the yellow line.

  • Page 7: Special Tools

    Special tools Tip: Your BISSELL Canister Vacuum is not only a powerful carpet and rug vacuum cleaner, it’s also Before cleaning under a versatile bare floor vacuum cleaner and above low furniture, check floor vacuum cleaner when you select one of the area first for objects special tools.

  • Page 8: Floor Nozzle

    perations Floor Nozzle Brush Up Use to vacuum carpets, rugs and bare floors. Swivel head turns to get into tight spaces and fits under cabinets. To vacuum carpets and rugs, push the brush switch to the carpet position . This will pull the brushes up into the floor nozzle.

  • Page 9: Maintenance And Care

    aintenance and care Emptying the dirt cup Turn vacuum OFF ( ) unplug the vacuum from electrical outlet. Open the dirt cup compartment by lifting up the door latch on the front of the vacuum. Lift the dirt cup assembly out from the vacuum. Remove the top cover from the dirt cup assembly by unfastening the latch, raising the front edge and removing the top cover from...
  • Page 10 aintenance and care Replacing the post-motor HEPA media filter* The post-motor filter assists in the filtration process to return clean air to the room. Turn vacuum OFF ( ) unplug the vacuum from electrical outlet. Remove the filter door (located on the back of the vacuum) by pulling down on the filter door and pulling it toward you.
  • Page 11 aintenance and care Replacing the dirt cup HEPA media filter* & cleaning the foam filter continued The dirt cup foam filter is located between the bottom of the dirt cup and the white pleated filter. Once the white pleated filter has been removed, the foam filter can then be removed and cleaned or replaced as needed.
  • Page 12 aintenance and care Maintaining the Wide Pet TurboBrush Tool (select models) The Wide Pet TurboBrush Tool should be checked regularly for clogs or debris wrapping around the brush. Turn vacuum OFF ( ) unplug the vacuum from electrical outlet. If a clog is present or debris is visible, turn the collar on the neck of the Wide Pet TurboBrush Tool counterclockwise to the unlocked position to remove the faceplate...

  • Page 13: Troubleshooting

    6. Check hose and replace if needed Other maintenance or service not included in the manual should be performed by an authorized service representative. Thank you for selecting a BISSELL product. Please do not return this product to the store. For any questions or concerns, please contact BISSELL Consumer Care at 1-800-263-2535.
  • Page 14 Grand Rapids MI 49501 ATTN: Consumer Care Or visit the BISSELL website - www.bissell.ca When contacting BISSELL, have model number of cleaner available. Please record your Model Number: ___________________ Please record your Purchase Date: ___________________ NOTE: Please keep your original sales receipt. It provides proof of purchase date in the event of a warranty claim.

  • Page 15: Replacement Parts

    eplacement parts Item Part No. Part Name 203-7289 Dirt Cup Assembly 203-7413 Dirt Cup HEPA Media Filter* 203-7258 Dirt Cup Foam Filter 203-7260 Pre-Motor Filter 203-7414 Post-Motor HEPA Media Filter* 203-7257 Flexible Hose with Handle 203-7256 Telescoping Extension Wand 203-7265 Upholstery Brush 203-7266 Dusting Brush Attachment...
  • Page 16 If your BISSELL product should require service: Contact BISSELL Consumer Care to locate a BISSELL Authorized Service Center in your area or visit our website - www.bissell.ca If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Care.
