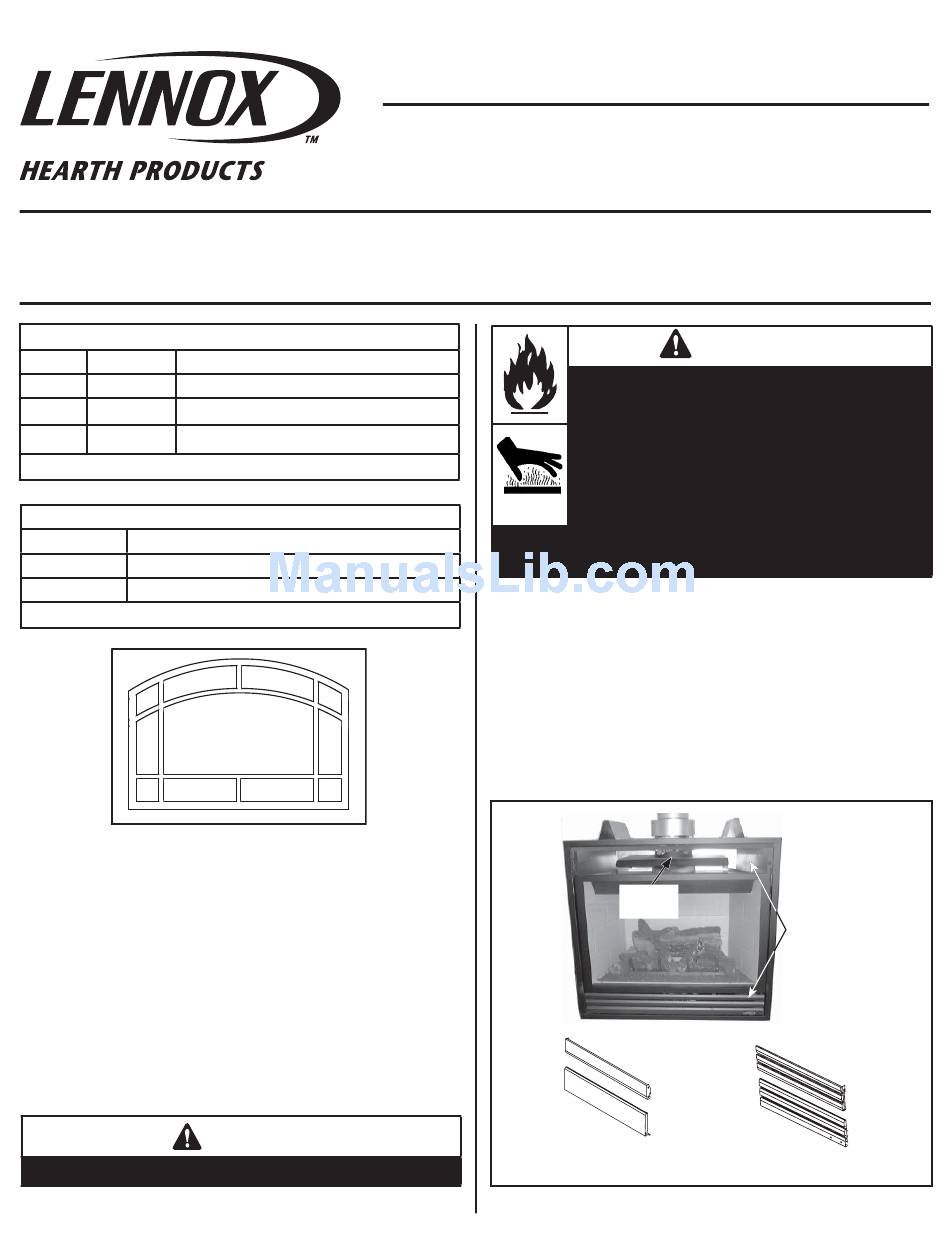

Lennox Hearth Products MPB-35 Installation Instructions

INSTALLATION INSTRUCTIONS FOR DECORATIVE ARCH SCREEN PANEL KIT
FOR USE WITH LMDV-33/35/40, MPD-33/35/40, MPB-35/40, SSDV-35/40, SSBV-35/40,
DECORATIVE ARCH SCREEN PANEL KIT
CAT# MODEL DESCRIPTION
H3592 DASPK33TI 33" Decorative Arch Screen Panel
H3593 DASPK35TI 35" Decorative Arch Screen Panel
H3594 DASPK40TI 40" Decorative Arch Screen Panel
Table 1
QUANTITY DESCRIPTION
1 ea Arched Doorframe Assembly
1 ea. Instruction Sheet
Table 2
Arch Screen Panel
TOOLS REQUIRED
None
GENERAL INFORMATION
This one-piece decorative screen panel assembly fi ts on the face of the
appliance over the glass doorframe. If you encounter any problems, need
clarifi cation of these instructions or are not qualifi ed to properly install this
kit, contact you local distributor or dealer.
Read and understand all instructions and warnings in this docu-
ment before beginning the installation.
INSTALL ONLY WHEN THE FIREPLACE IS OFF AND COLD!
MPD35ST, MPB35ST, EDV-4035, EDVST AND EBVST GAS FIREPLACES
KIT CONTENTS
CAUTION
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
750,199M
REV. A 04/2006
• As with any similar heating appliance, surfaces of the
frame, the door and appliance can become very hot.
INSTALLATION INSTRUCTIONS:
1. Remove Top Panel - Remove the top louvered or radiant panel/hood
assembly by pulling the assembly up and out (see Figure 1). In instances
where the radiant panel is used and it is framed in with tile or other approved
material, the hood must still be removed by fi rmly pulling it forward until
it releases from the receiving brackets. Some models have bustles (as
shown in Figure 2) which must be removed. If applicable, remove the
top and bottom bustle by lifting them up and out.
Radiant
Panels
Figure 1 - Remove Top Panel
LENNOX HEARTH PRODUCTS
KITS AND ACCESSORIES
DECORATIVE ARCH SCREEN PANEL KIT
WARNINGS
Hot! Do not touch! These decorative screen
doors are NOT heat guards. The tempered glass
behind the screens will be hot during operation
and will retain heat for a while after shutting
off the appliance. Severe burns may result.
Carefully supervise children in the same room
as appliance.
Top Panel
Removed
Louvered
Panels
Trim Panels will
be either Louvered
Panels or Radiant
Panels.
1
