TP-Link TL-WDR4300 Quick Installation Manual

Quick Installation Guide

N750 Wireless Dual Band Gigabit Router
TL-WDR4300
MODEL NO.
2
Con guration for Windows with Setup Wizard
If you are using a MAC/Linux or a Windows computer without a CD drive to run the mini CD, please refer to Appendix 2 for configuration.
Insert the TP-LINK Resource CD into the CD-ROM drive.
1
2 Select TL-WDR4300 and click Easy Setup Assistant.
7106503854
Package Contents

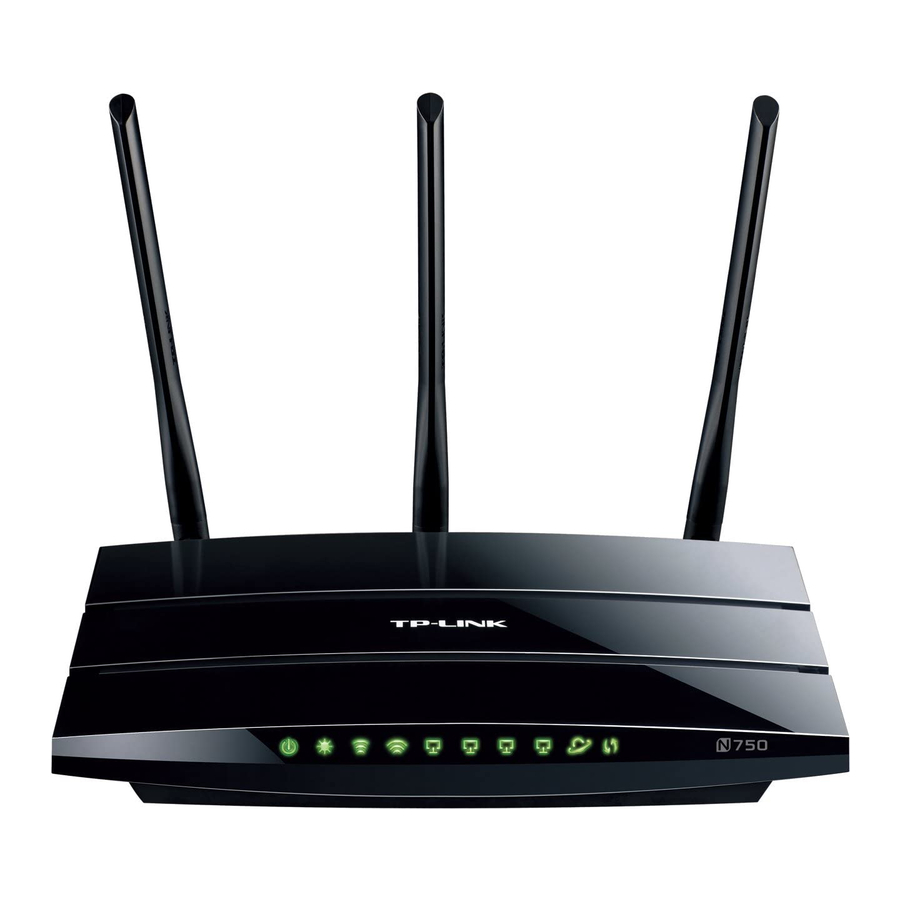

TL-WDR4300
Power Adapter
Ethernet Cable Resource CD
N750 Wireless Dual Band Gigabit Router
MODEL NO. TL-WDR4300
QIG
Select your language from the drop-down menu.
3
Click START and the Easy Setup Assistant will
guide you step by step to set up the Router.
4 Follow the instructions until you see the screen
below. Click FINISH to complete the setup.
1
Hardware Connection
Wall Socket
Wall Socket
Internet
Cable/DSL Modem
4
5
2
1 Power o your modem.
Connect the Internet port on your Router to the Modem's
2
LAN port with an Ethernet cable.
Connect your computer to one of the ports labeled 1~4 on
the Router with an Ethernet cable.
To use the Router to share les or printer, plug an external USB hard
drive/USB ash disk into the USB port, or connect a USB printer to the
USB port. For speci c con guration procedures of the USB Printer,
please refer to Appendix 1.
4 Power on the modem and wait for one minute.
5 Plug the provided Power Adapter into the Power jack and
the other end to a standard electrical wall socket. Press the
On/O button to power on the Router.
Appendix 1: Con guring the USB Printer
The USB Printer Setup Wizard is currently supported in Windows 7 32/64bit, Windows Vista 32/64bit, Windows XP 32/64bit. Please follow
the steps below to finish the printer configuration. For Mac users, please go to our website www.tp-link.com to download the utility.
Insert the TP-LINK Resource CD into the CD-ROM drive.
1
Select TL-WDR4300 and click USB Printer Setup.
Click START and the USB Printer Setup Wizard will
2
guide you step by step to set up the USB Printer.
For more details about the Print server, please refer to Print Server Application Guide downloaded from our website: www.tp-link.com.
For more details about the con guration of USB Storage/FTP Server/Media Server functions for USB ports, please refer to User Guide in the resource CD.
Computer
3
USB ash disk
USB hard drive
* Some USB hard drives that work at a high
power without using any external power
adapter might not be supported.
Printer/MFP/Scanner
Click Next and go on to install TP-LINK USB Printer
3
Controller Then follow the instructions step by step.
Click Finish on nal screen to complete the
4
installation for TP-LINK USB Print Controller.
