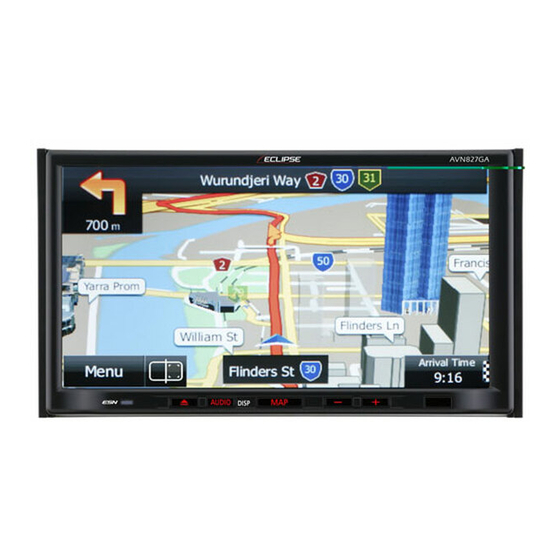

Eclipse AVN827GA Installation Manual

DVD-Video / USB Multi-Source Receiver / 7" Wide Screen Monitor / Navigation /

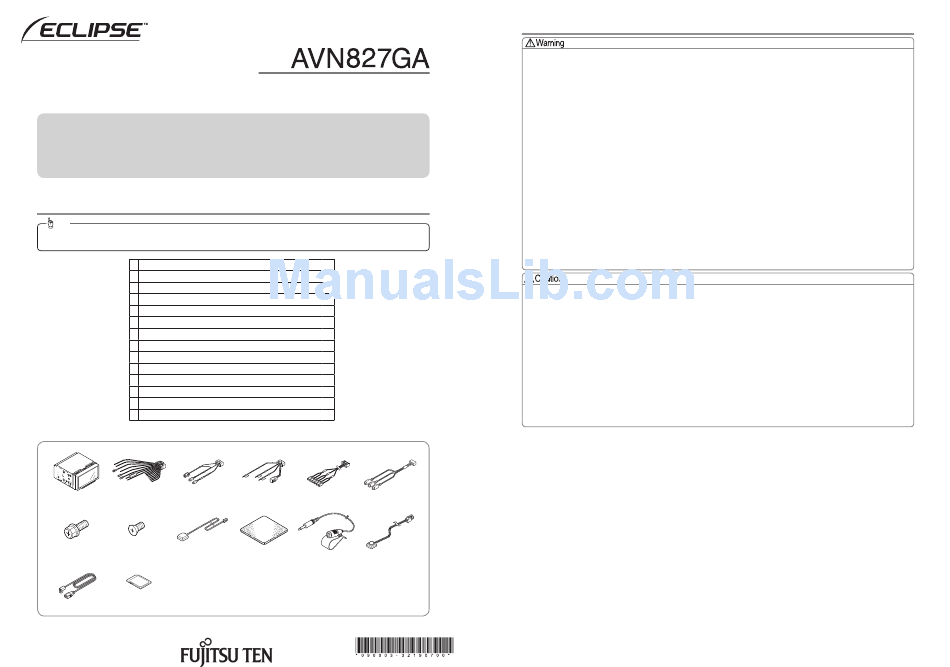

INSTALLATION MANUAL
Be sure to read this installation manual thoroughly prior to installation. If installation methods or nonstandard parts not specified in this installation
manual are used, accidents or injury may result.
Professional installation is required to install this system. ECLIPSE recommends you to have the system installed at your retailer. Be sure to keep this
manual after installation for later reference.
Customer should keep manual for reference.
♦Contents ♦Contents
Tip
When installing the main unit, some vehicle models may require the use of items that need to be obtained separately such as a power supply adaptor
cable, radio antenna adaptor cable or mounting bracket.
① Main unit
② Interconnecting cable (Power, speaker wires, etc.) (16P)
③ Interconnecting cable (Video-out, microphone, switch) (12P)
④ Interconnecting cable (Parking brake, reverse and speed, etc.) (8P)
⑤ Interconnecting cable (Pre-out, non-fader) (20P)
⑥ Interconnecting cable (VTR) (6P)
⑦ Hex-head bolt (Red:M5x8)
⑧ Flat head screw (Red:M5x8)
⑨ GPS antenna
⑩ Ground plate
⑪ Microphone
⑫ Switch cable
⑬ USB cable
⑭ SD Card
◦
Other accessories (Installation manual, user's manual, other documentation)
① ② ③
⑦ ⑧ ⑨
⑬ ⑭
RDS-TMC / Built-in Bluetooth wireless technology
®
MODEL
x 1
x 1
x 1
x 1
x 1
x 1
x 8
x 8
x 1
x 1
x 1
x 1
x 1
x 1
④ ⑤ ⑥
⑩ ⑪ ⑫
♦For your safety in using the system ♦For your safety in using the system
･ Do not install this main unit in locations where it may obstruct the driver's view, or where it may endanger passengers in the vehicle, otherwise an
accident or injury may result.
･ To prevent damage to the vehicle, confirm the locations of hoses, electrical wiring, and the fuel tank prior to drilling holes to install this main unit. Also,
take precautions so that the main unit does not interfere, nor come in contact with them, otherwise a fire may result.
･ When installing this main unit, never use the existing nuts or bolts that secure parts of the fuel tank, or the steering, or braking systems, otherwise
improper steering or braking or a fire may result.
･ To prevent a short circuit from occurring, disconnect the battery's negative terminal before installing this main unit, otherwise, an electric shock or injury
may result.
･ When using an existing nut and/or bolt from the vehicle to ground this main unit, do not use any that secure parts of the steering or braking systems,
otherwise, an accident may result.
･ Bundle wires and harnesses with electrical tape or wire ties to prevent them from interfering with moving parts. If they should entangle with the steering
wheel, shift lever, or brake pedal, an accident may result.
･ Never supply power to another electrical appliance by splicing or tapping into this main unit's power wire, otherwise the current capacity of the wire will
be exceeded, resulting in a fire or electric shock.
･ Never attempt to disassemble or modify the main unit, otherwise an accident, fire, or electric shock may result.
･ When installing the main unit into a vehicle with a passenger side air bag, do not secure it to the air bag's cover or in places where it may impede air
bag deployment, otherwise proper air bag operation may not be ensured in the event of an accident, causing injury or death.
･ When making holes (example: drilling) be sure to wear protective eyewear, otherwise an injury such as loss of eyesight may result.
･ Exposed wires must be insulated with electrical tape, otherwise a short circuit, fire, or electric shock may result.
･ Do not modify this system for use other than that specified herein. Also, do not deviate from the installation procedures described herein; ECLIPSE will
not be held liable for damages including, but not limited to serious injury, death, or property damage resulting from installations that enable unintended
operation.
･ This main unit is intended for operation in 12-volt DC, negative-grounded vehicles only. Never use it in 24-volt vehicles such as heavy trucks or diesel
vehicle with cold-region specifications.
･ Do not place the vinyl storage bag over a person's head. It may cause a serious accident or death by suffocation.
･ Do not disassemble or rebuild this main unit. Doing so may cause an accident, fire, or electrical shock.
･ When it is necessary to replace the fuse, always use a fuse of the correct rating (number of amperes). Use of fuses with higher amperage ratings may
cause a fire.
･ Do not operate the main unit in a malfunctioning condition, for instance, when the audio does not play. Doing so may result in an accident, fire, or
electrical shock.
･ If an abnormal situation occurs, such as foreign matter entering or liquid splashing on the main unit, or smoke or a strange odor emitting from the
main unit, shut off the main unit immediately and consult the dealer from whom you purchased it. Continued operation may cause an accident, fire, or
electrical shock.
･ For best results, this main unit should be installed by a professional installer.
Contact the dealer whom you purchased the main unit for an appointment.
･ When installing this main unit, be sure to use the supplied mounting hardware. If parts other than those supplied are used, the main unit may be
damaged internally, or may not be held in place securely and become dislodged.
･ Avoid installing this main unit in places where it may get wet, such as near windows, or in places that are moist or dusty. Presence of liquid, moisture, or
dust inside this main unit can cause short circuiting resulting in smoke or fire.
･ If this main unit is not connected properly, a short circuit, fire, or accident may occur.
･ When routing wires, use precautions to prevent contact of sharp metal parts such as brackets or screw tips, otherwise a short circuit, electric shock, fire,
or accident may result.
･ Play the audio at a moderate volume level that permits you to hear sounds from outside the vehicle. Driving without being able to hear outside sounds
may result in an accident.
･ This main unit must be operated only as an on-board main unit, or it may cause electrical shock or injury.
･ Do not play distorted sounds for long periods of time; the speakers may overheat and cause a fire.
･ Once installation and wiring have been completed, return the brakes and electrical equipment such as lights, horn, hazard warning lights and turn
signal lights to their original places, and check that they operate correctly. If you use the vehicle while any of this equipment is not working correctly, fire,
electric shocks or accidents may occur.
･ Use supplied wire harness with this main unit. Other manufacturers may use a similar wire harness connector but pin configurations are incorrect for
use with ECLIPSE main units and can damage the main unit. Prior to powering up the main unit, make sure the main unit is properly grounded with the
vehicle chassis. If no ground is available to the chassis, add a ground strap from the main unit to the vehicle chassis to improve the ground.
･ Do not use with speakers having 1 to 3 ohms impedance. This main unit is designed to be used with high-powered speakers rated above 50 W with
impedance rating between 4 and 8 ohms.
