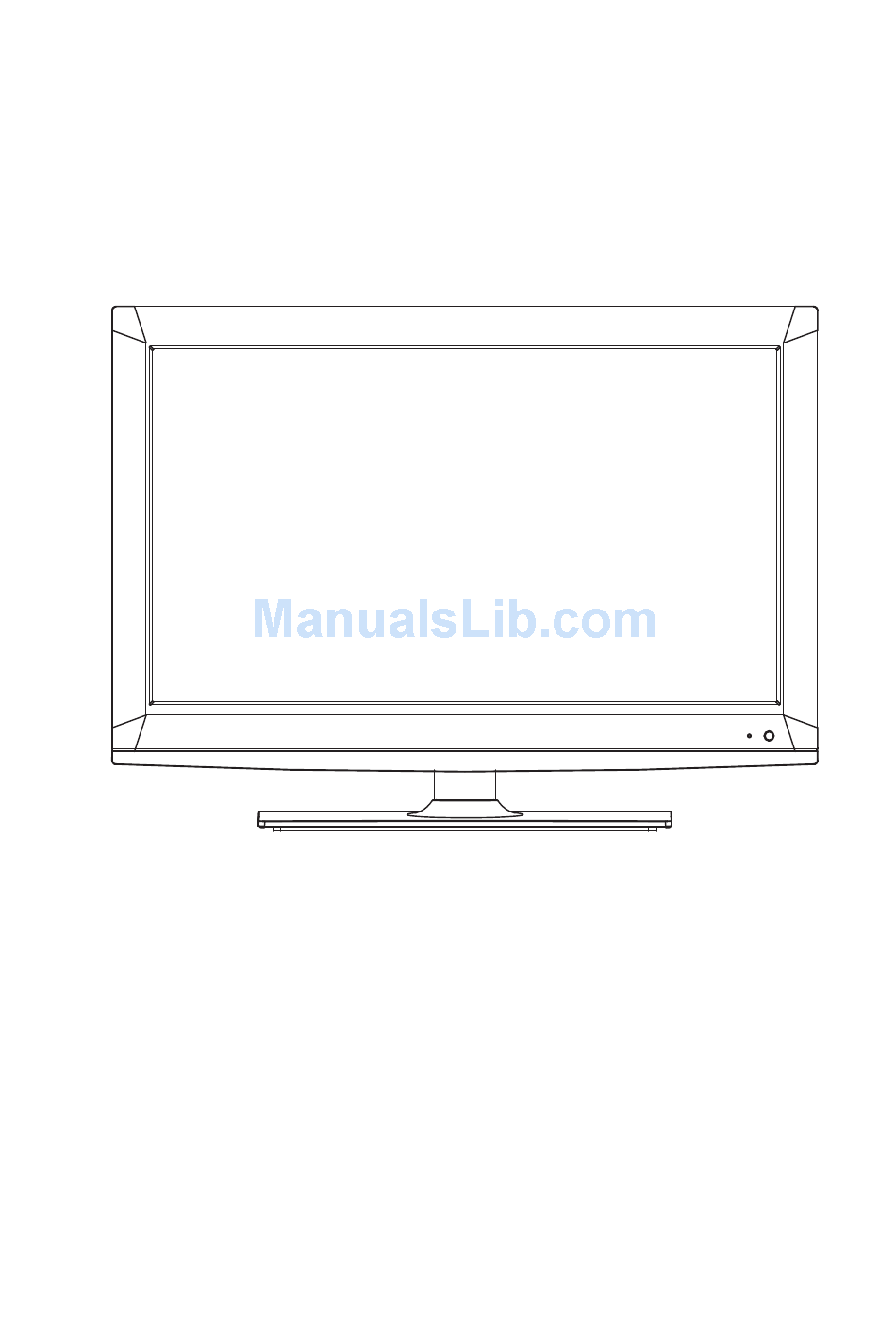

  • Page 1 LED-TV User Guide...

  • Page 2: Table Of Contents

    Contents SAFETY INFORMATION ......................3 Headphone Warning ............................... 4 Where to install ................................4 LED Screen..................................4 Unit and Accessories ........................5 Getting Started.........................5 Front view..................................5 Remote Control ........................6 Remote control instructions in TV mode ........................6 Remote control instructions in DTV/USB mode ......................7 Remote control instructions in TELETEXT mode ......................
  • Page 3 Multimedia Operation......................27 Basic Operation ................................27 1. Photo ..................................28 2. Music ..................................28 3. Movie ..................................28 4. Text ................................... 28 Recording Operation........................PVR settings.................................... DVD Operation..........................DVD Operation..................................TROUBLE SHOOTING GUIDE ......................TECHNICAL SPECIFICATIONS ......................cations ..................................cations ................................

  • Page 4: Safety Information

    Introduction Thank you for purchasing this LED TV which has been designed and manufactured to give you many years of trouble free service. You may already be familiar with using a similar product but please take time to read these instructions which have been written to ensure you get the very best from your purchase.

  • Page 5: Headphone Warning

    This unit has been produced according to all current Do not allow water or moisture to enter the TV. Do safety regulations. The following safety tips should NOT use in wet or moist areas such as Bathrooms, safeguard users against careless use and the dangers steamy kitchens or near swimming pools.

  • Page 6: Unit And Accessories

    Unit and Accessories Instruction for Warranty Card attaching the stand User Guide Quick Start Guide Batteries for Remote Instruction for User Guide Warranty Card Quick Start Guide attaching the stand Control TV set Remote Control Power cable Mains adapter Car adapter Converter cable for Getting Started AV and YPbPr video...

  • Page 7: Remote Control Instructions In Tv Mode

    CABLE STELLITE Power switch TV SETTINGS Turn on or standby. SCART YPBPR EXTRAS OPTIONS HDMI LOCK...

  • Page 10: Installing Batteries In The Remote Control

    Aerial connection Installing Batteries in the Remote Control 1. Remove the battery compartment WARNING! ENSURE THE TV AND ALL ANCILLARY cover at the rear of the remote EQUIPMENT IS UNPLUGGED FROM THE MAINS BEFORE control by pushing the retaining MAKING ANY CONNECTIONS! clip forward and pulling up.

  • Page 12: Connections

    Connecting external devices (continued) VGA, HDMI PC Connection Use a PC-VGA cable (not supplied) to connect the TV to CONNECTIONS your PC. You can also use an HDMI cable to connect to your PC (if your PC Graphic card supports HDMI). When Name Function Description the HDMI cable is used, the PC audio cable is no longer...

  • Page 13: Connecting An Audio System

    Connecting an audio system Connecting Video camera and Video recorder You can supply the TV sound to the stereo system (A) with Video camera the Scart socket. Use a special Scart cable SCART to RCA. Connect the AV cable to the TV and to the video cam- (Please consult y structions for details).

  • Page 15: Av Connection

    AV Connection TV Back Audio and video cable (RCA) Mini audio and video transfer cable DVD or VCR back DVD or VCR Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the TV set using the supplied YPbPr converter cable and an RCA cable (not supplied).

  • Page 16: Common Interface Slot

    Common Interface Slot Auto installation setup USING YOUR COMMON INTERFACE SLOT Power On / Off the LED TV This TV set features a CI+ slot and supports the following To turn on the LED TV digital standards: DVB-T, DVB-S(S2) and DVB-C. Press the power button on the LED TV or the POWER but- Common Interface ton on the remote control, the standby indicator will light...

  • Page 17: Tv Settings Menu

    TV SETTINGS Menu ATV / CABLE SETTINGS All options mentioned on the previous page can also be accessed through the Main Menu system in the TV Set- tings menu. To access the correct service you need the TV to be in the correct mode, ATV, DVB, Cable or Satellite.
  • Page 18 Press to select DVB Select type, Country and Tune CADTV (DVB-C) Manual Tuning Type, press OK to start scanning. If you select ATV+D rst 50% of the processing is for ATV tuning, while the second 50% represent DTV tun- ing. When ATV tuning, you can press MENU to Skip ATV tuning and start DTV tuning or press EXIT to exit tuning.

  • Page 19: Programme Edit

    PROGRAMME EDIT Cl Information channels is not possible. 5V antenna power Press button to turn on or off. Power-Off-No-Signal-Down If no valid input signal is detected, the TV set will toggle to Auto-Power-Down navigate through the menu Delete the last channel switching, the TV set will automatically Press the RED button to delete the highlighted channel, a toggle from On to standby mode.
  • Page 20 To set a different Satellite or LNB Satellite List Select Satellite mode, press MENU key, navigate down to The Satellite list displays the satellite names. the Dish Setup option, press OK. You will see the Satellite Dish Setup menu. Satellite Edit No.
  • Page 21 Delete Satellite menu Edit Transponder menu Press the YELLOW button, the c Press GREEN button to enter Tr r. Press OK to de ete. (khz) Add Satellite Press the RED button t r. Nr. c Frequency: Set the do requency. Symbol (ks/s): Polarity: Delete Transponder...
  • Page 22 Dish Parameter description LNB Power: Polarization switching power supply, Press to select On/Off. LNB Type: LNB Frequency On: Allowed to receive Horizontal / Vertical Polarization program. Highlight the LNB Type , and use the buttons or Ok to enter submenu then you c rameters.
  • Page 23 DiSEqC 1.1: 16 select 1 switch ( Require the user device Move Auto: East or west of Automatic Control continued support DiSEqC1 .0 protocol) Equipment needs support to turn the polar axis to the desired position. DiSEqC 1.1 protocol, Most control 16 LNB. Press Move Continue: Manual control of the east or the west select LNB1~LBN16/None.

  • Page 24: Menu Settings

    Menu Settings Picture menu Move Auto: East or west of Automatic Control continued to turn the polar axis to the desired position. Move Continue: Manual control of the east or the west continued to turn the polar axis to the desired position. Move Step: Control of the east or wes xed polar axis step rotation.

  • Page 25: Sound Menu

    EXTRAS menu SOUND menu Sound Mode: Allows you to select among: Standard, Mu- Sleep Timer: Allows you to setup the sleep timer: 10min, sic, Movie, Sports and User. 20min, 30min, 60min, 90min, 120min,180min, 240min and off. Treble (Can be adjusted when the sound mode is set to User): Controls the relative intensity of higher pitched PC Setup (PC mode only): Press the OK button to enter sounds.

  • Page 26: Lock Menu

    LOCK menu Set Password: If you had already changed the password, enter the current password. Old Password: Enter the current password. New Password: Enter the new password. ew Password: Enter the new password. You can use the Channel Lock to lock selected channels. Press the buttons to select the desired channel and then press the GREEN button on the remote control to...
  • Page 27 Database export and import: Allows Picture, Sound, Op- Hotel mode tions, Lock and Hotel menus to be copied from one set to other sets, to make a group of sets all set up the same. To export the settings t le on a USB memory: Connect a USB memory stick to the USB1 port.

  • Page 28: Multimedia Operation

    Multimedia Operation Basic Operation 1. Press the SOURCE button on the remote control to display the input source menu, select the USB source with the buttons and press the OK button to enter the Multimedia menu below. 2. Insert the USB device, the name of the device will be displayed on the screen. MAIN MENU PHOTO MUSIC MOVIE TEXT USB device list...

  • Page 29: Photo

    1. Photo 3. Movie Photo viewing Press buttons to select the option on the menu, and Press buttons to select the option on the menu, and press OK button to activate. press the OK button to activate. Repeat: Select the repeat mode from Repeat All, Repeat Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None.

  • Page 30: Recording Operation

    Recording Operation Note: Delete any scheduled recordings out of this list with the RED button. PVR Settings Schedule List PVR File System Press the MENU button and select Press the A button on the remote control to display the menu, choose PVR File System and press OK. recorder schedule list Note: Delete any scheduled recordings out of this list with the RED button...

  • Page 31: Time Shift

    Recording EPG Recording Record and Time shift function buttons Display the programme guide by pressing the GUIDE but- When you press the Rec button the navigation menu will display on screen. Select a programme to record by navigating through the EPG with the buttons.

  • Page 32: Dvd Operation

    DVD Operation Basic Operation 4:3 Letter Box This is selected when the player is connected to a normal Press the Power button on the TV or the remote control, TV. Wide-screen images are shown on the and select “DVD” source by the TV/AV(SOURCE). If there screen,with black belt on the top and bottom.
  • Page 33 This menu is only available when in DVD mode and no DVD is playing or the DVD has been stopped. TV Type Speaker Setup Enter the Audio setup page using button, press ok This is selected when the player is connected to a PAL see the options.
  • Page 34 Parental Parental lock gives you the option of selecting an age Default control grade. For example if PG is selected any disc To set the DVD settings back to factory default, choose reset inserted rated higher will not be played. and press the OK button.

  • Page 36: Cations

    Waste Electrical Recycling Remote contr cations Type Infrared Correct disposal of Product Control distance This sign indicates that this product may not Control angle 30 degrees (Horizontal) be disposed of with your regular household Batteries 2 x 1.5V, Size AA waste.
