Summary of Contents for GET sum.mation

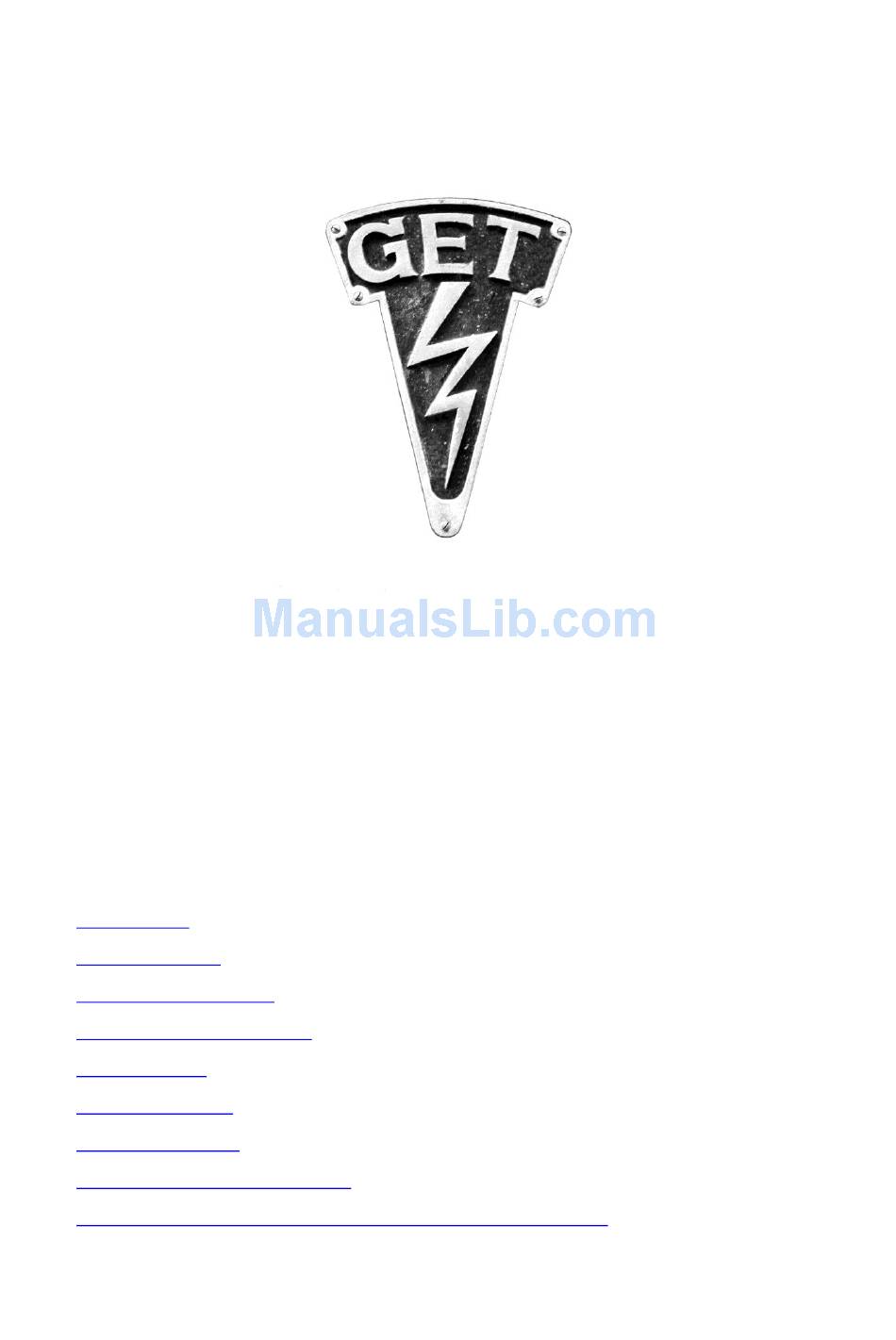

- Page 1 Greiner Engineering Tools sum.mation 1. Warranty 2. Introduction 3. What's in the box 4. System Requirements 5. Installation 6. Specifications 7. First Time Use 8. Example Setups & Wiring 9. Fuse replacement, AC Voltage select, and Upgrades...
-
Page 2: Limited Warranty
Limited Warranty Greiner Engineering Tools warrants this product, when purchased new from an authorized Greiner Engineering Tools dealer in the United States of America, to be free of defects in materials and manufacturing workmanship for a period of one year from the date of original purchase. - Page 3 Do not install or operate this product near water or moisture. This product should be situated away from sources of heat. Sum.mation is supplied with an IEC grounded power cable & plug. This plug must be plugged into an outlet that is properly installed and grounded in accordance with all local rules and ordinances.
- Page 4 Consult the dealer or an experienced radio/TV technician for help. Trademark Notices ©sum.mation is a trademark of Greiner Engineering Tools, LLC. All other trademarks and registered trademarks are the property of their respective holders. Copyright © 2012 Greiner Engineering Tools, LLC. All rights reserved.
- Page 5 Inside the box you will find the sum.mation unit, an IEC AC power cord, and a USB cable - that's it! There are no drivers to install as sum.mation is class-compliant with both Mac OS and Windows. Also, in an effort to save on land fill garbage, we've decided not to package the plug-ins on a disk, but make them available as a download from the website.
-
Page 6: Installation
System Requirements sum.mation requires a computer and a DAW of course, and an available USB port. Beyond that, a Mac running OS 10.6 and above. For Windows, a PC running Windows 7. Installation Once you have downloaded the plug-ins from the downloads section of the website, simply run the installer, which will place each plug-in version in the appropriate folder for each DAW application. - Page 7 There are no drivers to install, as sum.mation is USB class-compliant. If you are installing multiple sum.mation units on the same computer, you should plug them in and power them up one at a time. This way you will have the opportunity to name each one in your audio setup, so as not to get them confused with one another.
- Page 8 Voltage Selection The operating voltage of your sum.mation is set at the factory and marked on the rear of the chassis. It can accept from 100-240 volts AC. If you change locations and need to set it to a new operating voltage, here's...
- Page 9 & right stereo bus jumpers from "active" to "passive" as marked on the circuit board: A sum.mation unit must be in passive mode in order to cascade into another sum.mation unit. A maximum of two units may be cascaded together on the same summing bus.
- Page 10 In these cases it may be necessary to lift the ground of the equipment peripheral to sum.mation; and in some cases isolate the USB connection. As in all cases of ground loops, a bit of investigation and experimentation is necessary, as every studio environment is different.
- Page 11 Be sure to have the sum.mation hardware powered up with the USB cable plugged in before launching your DAW. Sum.mation powers up at unity gain. When you instantiate a sum.mation plug-in in your session, it defaults to unity gain as well.
- Page 12 To control sum.mation using the fader plug-in, simply place a plug-in for each sum.mation channel you wish to automate wherever it’s convenient in your session, and assign it to a sum.mation channel using port 1:...
- Page 13 To control sum.mation from midi tracks, create 16 midi tracks in your session, and assign each one to a corresponding sum.mation channel using port 1:...
- Page 14 Assign the first HUI to send and receive on sum.mation port 2 - this will be for sum.mation channels 1-8. Create a second HUI and assign its send and receive to sum.mation port 3 - this will be for channels 9-16: Be sure to place the 16 empty tracks you'll be using to control sum.mation...
- Page 15 Example Setups & Wiring...
- Page 16 Cascading multiple sum.mation units Passive summing node output to external mic pre input...
