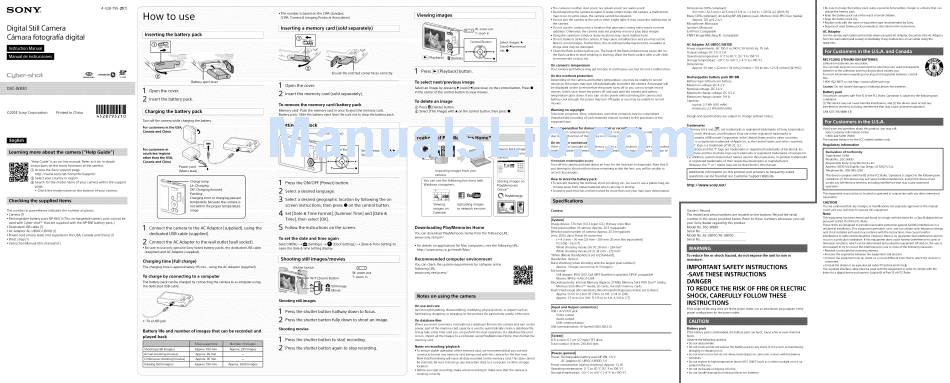

Sony Cyber-shot DSC-W830 Instruction Manual

SON'E
4-528-795-21(1)
Digital Still Camera
C mara fotografia digital
mB_
LITHIUM ION .XC
MEM{_RY 5TIEK T_ _@
©2014 Sony Corporation
Printed in China
IIIIIIIII II
4528795210
"Help Guide" is an on-line manual. Refer to it for in-depth
instructions on the many functions of the camera.
(_) Access the Sony support page.
http://www.sony, net/Sonylnfo/Su pport/
(_) Select your country or region.
(_) Search for the model name of your camera within the support
page.
• Check the model name on the bottom of your camera.
The number in parentheses indicates the number of pieces.
• Camera (1)
• Rechargeable battery pack NP-BN (1)(This rechargeable battery pack cannot be
used with Cyber-shot
TM
that are supplied with the NP-BN1 battery pack.)
• Dedicated USB cable (1)
• AC Adaptor AC-UBIOC/UBIOD (1)
• Power cord (mains lead) (not supplied in the USA, Canada and China) (1)
• Wrist strap (1)
• Instruction Manual (this manual) (1)
How to use
• The number is based on the CIPA standard
(CIPA: Camera & Imaging Products Association)
Inserting the battery pack
LOCK0
Inserting a memory card (sold separately)
Ensure the notched corner faces correctly.
Battery eject lever
1
Open the cover.
2 Insert the battery pack.
Charging the battery pack
Turn offthe camera while charging the battery.
For customers in the USA, [<_i
L
Canada and China
For customers in
countries/regions
other than the USA,
Canada and China
Power cord
(Mains lead)
r
Charge lamp
-.... :1 p. ' _ Lit: Charging
_-_'_8_iII Off: Charging finished
Flashing:
(}} Charging error or charging paused
__ i _ JJ_ temporarily because the camera is
not within the proper temperature
range
1 Connect the camera to the AC Adaptor (supplied), using the
dedicated USB cable (supplied).
2
Connect the AC Adaptor to the wall outlet (wall socket}.
• Be sure to use only genuine Sony brand battery packs, the dedicated USB cable
(supplied) and AC Adaptor (supplied).
Charging time (Full charge}
The charging time is approximately 115 min.. using the AC Adaptor (supplied).
To charge by connecting to a computer
The battery pack can be charged by connecting the camera to a computer using
the dedicated USB cable
1
Open the cover.
2
Insert the memory card (sold separately).
To remove the memory card/battery pack
Memory card: Push the memory card in once to eject _he memory card.
Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.
Setting the clock
[Power)
Contro Button Select items: AITI41/I_
Set: •
1
Press the ON/OFF (Power) button.
2
Select a desired language.
3 Select a desired geographic location by following the on
screen instructions, then Dress • on the control button
4 Set [Date & Time Format], [Summer Time] and [Date &
Time], then select [OK].
5 Followthe instructions on the screen.
To set the date and time again
Select MENU -_ _ (Settings) --* @ (Clock Settings) -_ IDate & Time Setting] to
open the date & time setting display.
Shooting still images/movies
) Button
I_1: Still image
I_: Movie
W: zoom out
T: zoom in
Shooting still images
_--To a USB jack
1 Press the shutter button halfway down to focus.
2
Press the shutter button fully down to shoot an image.
Battery life and number of images that can be recorded and Shooting movies
played back
I
Shooting (still images) " Approx. 100 min. " Approx. 210 images
2
Actual shooting (movies) ' Approx. 40 min. "
Continuous shooting (movies) Approx. 95 min. I
Viewing (still images) ' Approx. 190 min. Approx. 3900 images
Press the shutter button to start recording.
Press the shutter button again to stop recording.
Viewing images
(Playbac'k)
Contro Button
-%:
Select images: •
(next)/< (previous)
Set: Q
1
Press _(Playback) button.
To select next/previous image
Select an image by pressing I_ (next)/< (previous) on the control button, Press •
in the center of the contro button to view movies.
To delete an image
(_ Press _ (Delete) button.
(]_)Select [This Image] with • on the control button then press •.
r" TM Features of PlayMemo ruesHome
mporting images from your
camera
You can use the following functions with
Windows comouters.
Viewing
mages on
Calendar
Youi
Uploading images
to network services
Playing back images
imoorted from vour
camera.
Sharing images on
PlayMemories
Online"
_ PlayMemories
Downloading PlayMemories Home
You can download PlavMemories Home from the followino URL:
www.sonv.net/Din/
• For details on aoolications for Mac comouters visit the following URL:
nEo://www.sony.co.jp/imsoft/Mac/
Recommended computer environment
You can check the system rec uirements for software at the
following URL.
www.sony.net/pcenv/
Notes on using the camera
On use and care
Avoid rough nandllng, dlsassemDiing, modifying on\ slcal snock or imoact sucn as
nammermg, droppmg, or stepping on the product. Be particularl_ carefu of the ens.
On database files
When vou qsert a memon, card without a database file into the camera and turn on me
Dower. Dart of the memory card caDaQtv S used to automaticall create a database file.
ma_taKesomeumeunt voucanDerformmenextcoeration, lf a database file error
occurs -nDortallme_ma)estoacomputerusmgPla_VlemoriesHome men format the
memor, card
Notes on recording/playback
• To ensure staple c 9eration of the memor, card we recommend mal vou use mls
camera to format anv memorv card Delng used wltn this camera for the first time.
Note that formattin j w erase al data recorded on me memor, card. This data cannot
De restored. Be sure to PaCK UD am mDortant data to a comouter or omer storage
ocatlor
• Before ou start recording, make a trial recording to make sure mat me camera is
working correctly.
• The camera is neither dust-proof, nor splash-proof, nor water-proof.
• Avoid exposing the camera to water. If water enters inside the camera, a malfunction
may occur. In some cases, the camera cannot be repaired.
• Do not aim the camera at the sun or other bright light. It may cause the malfunction of
the camera.
• Do not use the camera near a location that generates strong radio waves or emits
radiation. Otherwise, the camera may not properly record or play back images.
• Using the camera in sandy or dusty locations may cause malfunctions.
• Do not shake or strike the camera. It may cause a malfunction and you may not be
able to record images. Furthermore, the recording media may become unusable or
image data may be damaged.
• Clean the flash surface before use. The heat of the flash emission may cause dirt on
the flash surface to start smoking or burning. Wipe the flash surface with a soft cloth
to remove dirt or dust, etc.
On camera's temperature
Your camera and battery may get hot due to continuous use, but it is not a malfunction.
On the overheat protection
Depending on the camera and battery temperature, you may be unable to record
movies or the power may turn off automatically to protect the camera. A message will
be displayed on the screen before the power turns off or you can no longer record
movies. In this case, leave the power off and wait until the camera and battery
temperature goes down. If you turn on the power without letting the camera and
battery cool enough, the power may turn off again or you may be unable to record
movies.
Warning on copyright
Television programs, films, videotapes, and other materials may be copyrighted.
Unauthorized recording of such materials may be contrary to the provisions of the
copyright laws.
No compensation for damaged content or recording failure
Sony cannot compensate for failure to record or loss or damage of recorded content
due to a malfunction of the camera or recording media, etc.
On moisture condensation
If the camera is brought directly from a cold to a warm location, moisture may condense
inside or outside the camera. This moisture condensation may cause a malfunction of
the camera.
If moisture condensation occurs
Turn off the camera and wait about an hour for the moisture to evaporate. Note that if
you attempt to shoot with moisture remaining inside the lens, you will be unable to
record clear images.
How to store the battery pack
• To prevent staining the terminal, short<ircuiting, etc., be sure to use a plastic bag, etc.
to keep away from metal materials when carrying or storing.
• A battery pack that has not been used for more than one year may have deteriorated.
Camera
[System]
Image device: 7.76 mm (1/2.3 type) CCD, Primary color filter
Total pixel number of camera: Approx. 20.5 megapixels
Effective pixel number of camera: Approx. 20.1 megapixels
Lens: ZEISS Vario-Tessar 8x zoom lens
f = 4.5 mm-36 mm (25 mm- 200 mm (35 mm film equivalent))
F3.3 (W)- F6.3 (T)
While shooting movies (16:9): 28 mm - 224 mm*
While shooting movies (4:3): 34 mm - 272 mm*
*When ]Movie SteadyShot] is set to ]Standard].
SteadyShot: Optical
Burst shooting (when shooting with the largest pixel number):
Approx. 1 image/second (up to 3 images)
File format:
Still images: JPEG (DCF, Exif, MPF Baseline) compliant, DPOF compatible
Movies: MPEG-4 AVC/H.264
Recording media: Internal Memory (Approx. 27 MB), Memory Stick PRO Duo TM media,
Memory Stick Micro
TM
media, SD cards, microSD memory cards
Flash: Flash range (ISO sensitivity (Recommended Exposure Index) set to Auto):
Approx. 0.3 m to 2.8 m (11 7/8 in. to 9 ft. 2 1/4 in.) (W)
Approx. 1.5 m to 2 m (4 ft. 111/8 in. to 6 ft. 6 3/4 in.) (T)
[Input and Output connectors]
USB / A/V OUT jack:
Video output
Audio output
USB communication
USB communication: Hi-Speed USB (USB 2.0)
[Screen]
LCD screen: 6.7 cm (2.7 type) TFT drive
Total number of dots: 230 400 dots
[Power, general]
Power: Rechargeable battery pack NP-BN, 3,6 V
AC Adaptor AOUB10C/UB10D, 5 V
Power consumption (during shooting): Approx, 1,2 W
Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage temperature: -20 °C to +60 °C (-4 °F to +140 °F)
Dimensions (ClPA compliant):
93.1 mm x 52.5 mm x 22.5 mm (3 3/4 in. x 2 1/8 in. x 29/32 in.) (W/H/D)
Mass (CIPA compliant) (including NP-BN battery pack, Memory Stick PRO Duo media):
Approx. 120 g (4.2 oz)
Microphone: Monaural
Speaker: Monaural
Exif Print: Compatible
PRINT Image Matching IIh Compatible
AC Adaptor AC-UBIOC/UBIOD
Power requirements: AC 100 V to 240 V, 50 Hz/60 Hz, 70 mA
Output voltage: DC 5 V, 0.5 A
Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage temperature: -20 °C to +60 °C (-4 °F to +140 °F)
Dimensions:
Approx. 50 mm x 22 mm x 54 mm (2 inches x 7/8 inches x 21/4 inches) (W/H/D)
Rechargeable battery pack NP-BN
Battery type: Lithiumqon battery
Maximum voltage: DC4.2 V
Nominal voltage: DC 3.6 V
Maximum charge voltage: DC 4.2 V
Maximum charge current: 0.9 A
Capacity:
typical: 2.3 Wh (630 mAh)
minimum: 2.2 Wh (600 mAh)
Design and specifications are subject to change without notice.
Trademarks
• Memory Stick and ,,_, are trademarks or registered trademarks of Sony Corporation.
• Microsoft, Windows, and Windows Vista are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
• Mac is a registered trademark of Apple Inc. in the United States and other countries.
• SDXC logo is a trademark of SD-3C, LLQ
• Facebook and the "f" logo are trademarks or registered trademarks of Facebook, Inc.
• YouTube and the YouTube logo are trademarks or registered trademarks of Google Inc.
• In addition, system and product names used in this manual are, in general, trademarks
or registered trademarks of their respective developers or manufacturers.
TM
However, the or ':' marks may not be described in this manual.
I Additional information on this product and answers to frequently asked I questions can be found at our Customer Support Website.
I
http ://www.sony.net/
Owner's Record
The model and serial numbers are located on the bottom. Record the serial
number in the space provided below. Refer to these numbers whenever you call
your Sony dealer regarding this product.
Model No. DSC-W830
Serial No.
Model No. AC-UBIOC!AC-UBIOD
Serial No.
To reduce fire or shock hazard, do not expose the unit to rain or
moisture.
IMPORTANT SAFETY INSTRUCTIONS
-SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the
proper configuration for the power outlet.
Battery pack
If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical
burns.
Observe the following cautions.
• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering,
dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery
terminals.
• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car
parked in the sun.
• Do not incinerate or dispose of in fire.
• Do not handle damaged or leaking lithium ion batteries.
• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can
charge the battery pack.
• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.
AC Adaptor
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor
from the wall outlet (wall socket) immediately if any malfunction occurs while using the
apparatus.
RECYCLING LITHIUM-ION BATTERIES
Lithiumdon batteries are recyclable.
You can help preserve our environment by returning your used rechargeable
batteries to the collection and recycling location nearest you.
For more information regarding recycling of rechargeable batteries, call toll
free
1-800-822-8837, or visit http://www.call2recycle.org/
Caution: Do not handle damaged or leaking Lithium-Ion batteries.
Battery pack
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAN ICES-3 B/NMB-3 B
If you have any questions about this product, you may call:
Sony Customer Information Center
1-800-222-SONY (7669)
The number below is for the FCC related matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: DSC-W830
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
This equipment must not be codocated or operated in conjunction with any other antenna or
transmitter.
CAUTION
YOU are cautioned that any changes or modifications not expressly approved in this manual
could void your authority to operate this equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
The supplied interface cable must be used with the equipment in order to comply with the
limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
