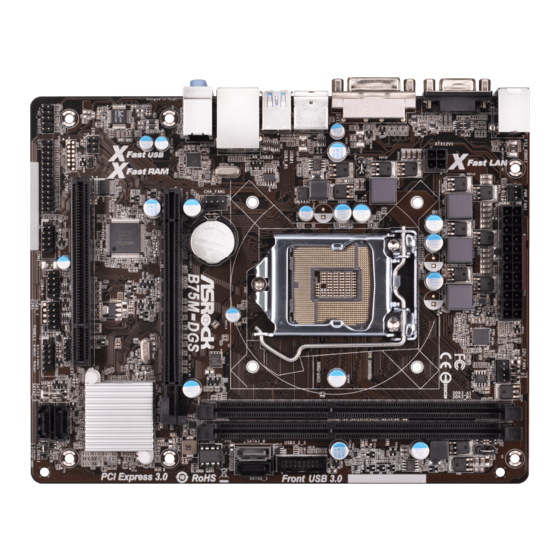

ASROCK B75M-DGS R2.0 User Manual

Hide thumbs Also See for B75M-DGS R2.0:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
B75M-DGS R2.0

User Manual

Version 1.1
Published August 2013
Copyright©2013 ASRock INC. All rights reserved.
1

Advertisement

Table of Contents
loading

Related Manuals for ASROCK B75M-DGS R2.0

Summary of Contents for ASROCK B75M-DGS R2.0

  • Page 1: User Manual

    B75M-DGS R2.0 User Manual Version 1.1 Published August 2013 Copyright©2013 ASRock INC. All rights reserved.

  • Page 2: Copyright Notice

    ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this manual. With respect to the contents of this manual, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warran- ties or conditions of merchantability or itness for a particular purpose.

  • Page 3: Table Of Contents

    Contents 1 Introduction ............5 1.1 Package Contents ............5 1.2 Speciications ..............6 1.3 Unique Features ............10 1.4 Motherboard Layout ............14 1.5 I/O Panel ................ 15 2 Installation ............16 2.1 Screw Holes ..............16 2.2 Pre-installation Precautions ........... 16 2.3 CPU Installation .............
  • Page 4 3 UEFI SETUP UTILITY ......... 36 3.1 Introduction ..............36 3.1.1 UEFI Menu Bar ............ 36 3.1.2 Navigation Keys ........... 37 3.2 Main Screen ..............37 3.3 OC Tweaker Screen ............38 3.4 Advanced Screen ............42 3.4.1 CPU Coniguration ..........43 3.4.2 North Bridge Coniguration........

  • Page 5: Introduction

    In case any modiications of this manual occur, the updated version will be available on ASRock website without further notice. You may ind the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for speciic information about the model you are using.

  • Page 6: Speciications

    1.2 Speciications Platform - Micro ATX Form Factor - All Solid Capacitor design ® - Supports 3 and 2 Generation Intel Core i7 / i5 / i3 in LGA1155 Package ® - Supports Intel Turbo Boost 2.0 Technology - Supports Hyper-Threading Technology ®...
  • Page 7 - Dual VGA Output: support DVI-D and D-Sub ports by independent display controllers - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz - Supports HDCP function with DVI-D port - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • Page 8 Certiications - FCC, CE, WHQL - ErP/EuP Ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.
  • Page 9 Windows 8 / 7 / Vista / XP. For Windows OS with 64- bit CPU, there is no such limitation. You can use ASRock XFast ® RAM to utilize the memory that Windows cannot use. 3. Only PCIE1 slot supports Gen 3 speed. To run the PCI Express in Gen 3 speed, please install an Ivy Bridge CPU.

  • Page 10: Unique Features

    OS 32-bit CPU. ASRock Instant Boot ASRock Instant Boot allows you to turn on your PC in just a few seconds, provides a much more eficient way to save energy, time, money, and improves system running speed for your sys- tem.
  • Page 11 ASRock XFast RAM ASRock XFast RAM is a new function that is included into AS- Rock Extreme Tuning Utility (AXTU). It fully utilizes the memory ® space that cannot be used under Windows OS 32-bit CPU.
  • Page 12 DHCP conigured computer in order to enable this function. ASRock UEFI System Browser ASRock UEFI system browser is a useful tool included in graphical UEFI. It can detect the devices and configurations that users are currently using in their PC. With the UEFI system browser, you can easily examine the current system conigura- tion in UEFI setup.
  • Page 13 UEFI directly in the very beginning. ASRock Good Night LED ASRock Good Night LED technology can offer you a better en- vironment by extinguishing the unessential LED. By enabling Good Night LED in BIOS, the Power / HDD / LAN LED will be switched off when system is on.

  • Page 14: Motherboard Layout

    1.4 Motherboard Layout ATXPWR1 PWR_FAN1 CPU_FAN1 ATX12V1 USB 2.0 T: USB0 B: USB1 USB 3.0 T: USB0 B: USB1 USB3_2_3 USB 2.0 Top: T: USB2 RJ-45 B: USB3 CMOS Battery 64Mb CHA_FAN1 BIOS B75M-DGS PCIE1 Intel AUDIO CODEC PCI1 SATA2_2 TPMS1 SPEAKER1 USB4_5...

  • Page 15: I/O Panel

    1.5 I/O Panel PS/2 Mouse Port (Green) USB 3.0 Ports (USB3_01) LAN RJ-45 Port USB 2.0 Ports (USB01) Line In (Light Blue) DVI-D Port (DVI1) ** 4 Front Speaker (Lime) D-Sub Port (VGA1) Microphone (Pink) PS/2 Keyboard Port (Purple) USB 2.0 Ports (USB23) * There are two LED next to the LAN port.

  • Page 16: Installation

    Chapter 2: Installation This is a Micro ATX form factor motherboard. Before you install the motherboard, study the coniguration of your chassis to ensure that the motherboard its into it. Make sure to unplug the power cord before installing or removing the motherboard.

  • Page 17: Cpu Installation

    2.3 CPU Installation For the installation of Intel 1155-Pin CPU, please follow the steps below. Load Plate Load Lever Socket Body Contact Array 1155-Pin Socket Overview Before you insert the 1155-Pin CPU into the socket, please check if the CPU surface is unclean or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 18 Step 3. Insert the 1155-Pin CPU: Step 3-1. Hold the CPU by the edge which is marked with a black line. Step 3-2. Orient the CPU with the IHS (Inte- grated Heat Sink) up. Locate Pin1 and the two orientation key notches. orientation key notch alignment key Pin1...

  • Page 19: Installation Of Cpu Fan And Heatsink

    2.4 Installation of CPU Fan and Heatsink This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin CPUs. Please adopt the type of heatsink and cooling fan compliant with Intel 1155- Pin CPU to dissipate heat. Before you install the heatsink, you need to spray ther- mal interface material between the CPU and the heatsink to improve heat dissipa- tion.

  • Page 20: Installation Of Memory Modules (Dimm)

    2.5 Installation of Memory Modules (DIMM) This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install two identical (the same brand, speed, size and chip- type) memory modules in the DDR3 DIMM slots to activate Dual Channel Memory Technology.

  • Page 21: Expansion Slots (Pci And Pci Express Slots)

    2.6 Expansion Slots (PCI and PCI Express Slots) There is 1 PCI slot and 1 PCI Express slot on this motherboard. PCI Slot: PCI slot is used to install expansion cards that have the 32-bit PCI interface. PCIE Slot: PCIE1 (PCIE 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

  • Page 22: Dual Monitor And Surround Display Features

    2.7 Dual Monitor and Surround Display Features Dual Monitor Feature This motherboard supports dual monitor feature. With the internal VGA output sup- port (DVI-D and D-Sub), you can easily enjoy the beneits of dual monitor feature without installing any add-on VGA card to this motherboard. This motherboard also provides independent display controllers for DVI-D and D-Sub to support dual VGA output so that DVI-D and D-sub can drive same or different display contents.
  • Page 23 Surround Display Feature This motherboard supports surround display upgrade. With the internal VGA output support (DVI-D and D-Sub) and external add-on PCI Express VGA cards, you can easily enjoy the beneits of surround display feature. Please refer to the following steps to set up a surround display environment: 1.
  • Page 24 ® For Windows 8 / 8 64-bit / 7 / 7 64-bit / Vista / Vista 64-bit OS: Right click the desktop, choose “Personalize”, and select the “Display Settings” tab so that you can adjust the parameters of the multi-monitor according to the steps below.

  • Page 25: Jumpers Setup

    2.8 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...

  • Page 26: Onboard Headers And Connectors

    2.9 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! Serial ATA2 Connectors These three Serial ATA2 (SATA2) connectors support (SATA2_1: see p.14, No.
  • Page 27 USB 2.0 Headers Besides four default USB 2.0 (9-pin USB4_5) ports on the I/O panel, there are (see p.14, No. 19) two USB 2.0 headers on this motherboard. Each USB 2.0 header can support two USB 2.0 (9-pin USB6_7) ports. (see p.14, No.
  • Page 28 C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need to connect them for AC’97 audio panel. E. To activate the front mic. ® For Windows XP / XP 64-bit OS: Select “Mixer”.
  • Page 29 Chassis Speaker Header Please connect the chassis (4-pin SPEAKER 1) speaker to this header. (see p.14, No. 16) Chassis and Power Fan Connectors Please connect the fan cables (4-pin CHA_FAN1) to the fan connectors and match FAN_SPEED_CONTROL CHA_FAN_SPEED (see p.14, No. 27) the black wire to the ground pin.
  • Page 30 Serial port Header This COM1 header supports a (9-pin COM1) serial port module. (see p.14, No. 20) Chassis Intrusion Header This motherboard supports (2-pin CI1) CASE OPEN detection feature (see p.14, No. 26) that detects if the chassis cover Signal has been removed.

  • Page 31: Serial Ata (Sata) / Serial Ata2 (Sata2) / Serial Ata3

    2.10 Serial ATA (SATA) / Serial ATA2 (SATA2) / Serial ATA3 (SATA3) Hard Disks Installation B75 chipset that supports Serial ATA (SATA) / Serial ® This motherboard adopts Intel ATA2 (SATA2) / Serial ATA3 (SATA3) hard disks. You may install SATA / SATA2 / SATA3 hard disks on this motherboard for internal storage devices.

  • Page 32: Sata / Sata2 / Sata3 Hdd Hot Plug Feature And Operation Guide

    SATA / SATA2 / SATA3 Hot Plug support information of our motherboard is indicated in the product spec on our website: www.asrock.com 2. Make sure your SATA / SATA2 / SATA3 HDD can support Hot Plug function from your dealer or HDD user manual.
  • Page 33 How to Hot Plug a SATA / SATA2 / SATA3 HDD: Points of attention, before you process Hot Plug: Please follow the instructions below to process Hot Plug, improper procedure will cause the SATA / SATA2 / SATA3 HDD damage and data loss. Please connect a SATA power cable’s Step 2 Step 1...

  • Page 34: Driver Installation Guide

    2.13 Driver Installation Guide To install the drivers to your system, please insert the support CD to your optical drive irst. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from top to bottom to install those required drivers.

  • Page 35: Installing Windows

    ® 2.14.2 Installing Windows 8 / 8 64-bit / 7 / 7 64-bit / Vista Vista 64-bit Without RAID Functions ® If you want to install Windows 8 / 8 64-bit / 7 / 7 64-bit / Vista / Vista 64-bit OS on your SATA / SATA2 / SATA3 HDDs without RAID functions, please follow the steps below.

  • Page 36: Uefi Setup Utility

    Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to conigure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>...

  • Page 37: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 38: Oc Tweaker Screen

    3.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. CPU Coniguration CPU Ratio Use this item to change the ratio value of this motherboard. Intel SpeedStep Technology Intel SpeedStep technology is Intel’s new power saving technology. Pro- cessors can switch between multiple frequencies and voltage points to en- able power saving.
  • Page 39 value is [Auto]. Primary Plane Current Limit Use this item to conigure the maximum instantaneous current allowed for the primary plane. The default value is [Auto]. Secondary Plane Current Limit Use this item to conigure the maximum instantaneous current allowed for the secondary plane.
  • Page 40 DRAM tRAS Use this item to change RAS# Active Time (tRAS) Auto/Manual setting. The default is [Auto]. Command Rate (CR) Use this item to change Command Rate (CR) Auto/Manual setting. The default is [Auto]. DRAM tWR Use this item to change Write Recovery Time (tWR) Auto/Manual setting. The default is [Auto].
  • Page 41 tRRDR The default is [Auto]. tRRSR The default is [Auto]. tWWDD The default is [Auto]. tWWDR The default is [Auto]. tWWSR The default is [Auto]. RTL (CHA) Use this item to change RTL (CHA) setting. The default is [Auto]. RTL (CHB) Use this item to change RTL (CHB) setting.

  • Page 42: Advanced Screen

    3.4 Advanced Screen In this section, you may set the conigurations for the following items: CPU Conigu- ration, North Bridge Coniguration, South Bridge Coniguration, Storage Conigura- tion, Intel(R) Rapid Start Technology, Intel(R) Smart Connect Technology, Super IO Coniguration, ACPI Coniguration, USB Coniguration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction.

  • Page 43: Cpu Coniguration

    3.4.1 CPU Coniguration Intel Hyper Threading Technology To enable this feature, a computer system with an Intel processor that sup- ports Hyper-Threading technology and an operating system that includes ® ® optimization for this technology, such as Microsoft Windows XP / Vista ®...
  • Page 44 to the IA-32 Intel Architecture. An IA-32 processor with “No Execute (NX) Memory Protection” can prevent data pages from being used by malicious software to execute codes. This option will be hidden if the current CPU does not support No-Excute Memory Protection. Intel Virtualization Technology When this option is set to [Enabled], a VMM (Virtual Machine Architecture) can utilize the additional hardware capabilities provided by Vanderpool...

  • Page 45: North Bridge Coniguration

    3.4.2 North Bridge Coniguration Primary Graphics Adapter This allows you to select [Onboard], [PCI] or [PCI Express] as the boot graphic adapter priority. The default value is [PCI Express]. VT-d Use this item to enable/disable Intel(R) Virtualization Technology for Directed I/O. PCIE1 Link Speed This allows you to select PCIE1 Link Speed.

  • Page 46: South Bridge Coniguration

    3.4.3 South Bridge Coniguration Onboard HD Audio Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If you select [Auto], the onboard HD Audio will be disabled when PCI Sound Card is plugged. Front Panel Select [Auto] or [Disabled] for the onboard HD Audio Front Panel. Onboard HDMI HD Audio This allows you to enable or disable the Onboard HDMI HD Audio feature.

  • Page 47: Storage Coniguration

    3.4.4 Storage Coniguration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. Coniguration options: [IDE Mode], [AHCI Mode] and [Disabled]. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk performance but IDE mode does not have these advantages.

  • Page 48: Intel(R) Rapid Start Technology

    3.4.5 Intel(R) Rapid Start Technology Intel(R) Rapid Start Technology Use this item to enable or disable Intel(R) Rapid Start Technology. Intel(R) Rapid Start Technology is a new zero power hibernation mode which al- lows users to resume in just 5-6 seconds. The default is [Enabled]. Entry After Select a time to enable RTC wake timer at S3 entry.

  • Page 49: Intel(R) Smart Connect Technology

    3.4.6 Intel(R) Smart Connect Technology Intel(R) Smart Connect Technology Use this item to enable or disable Intel(R) Smart Connect Technology. Intel(R) Smart Connect Technology keeps your e-mail and social networks, such as Twitter, Facebook, etc. updated automatically while the computer is in sleep mode.

  • Page 50: Super Io Coniguration

    3.4.7 Super IO Coniguration Serial Port Use this item to enable or disable the onboard serial port. Serial Port Address Use this item to set the address for the onboard serial port. Coniguration options: [3F8h / IRQ4] and [3E8h / IRQ4]. Infrared Port Use this item to enable or disable the onboard infrared port.

  • Page 51: Acpi Coniguration

    3.4.8 ACPI Coniguration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Selecting [Auto] will enable this feature if the OS supports it. Check Ready Bit Use this item to enable or disable the feature Check Ready Bit. ACPI HPET Table Use this item to enable or disable ACPI HPET Table.

  • Page 52: Usb Coniguration

    Please disable CSM when you enable Fast Boot option. The default value is [Enabled]. 3.4.9 USB Coniguration USB 2.0 Controller Use this item to enable or disable the use of USB 2.0 controller. USB 3.0 Controller Use this item to enable or disable the use of USB 3.0 controller. Legacy USB Support Use this option to select legacy support for USB devices.

  • Page 53: Trusted Computing

    4.4.10 Trusted Computing Security Device Support Enable to activate Trusted Platform Module (TPM) security for your hard disk drives.

  • Page 54: Tool

    3.5 Tool System Browser System Browser can let you easily check your current system conigura- tion in UEFI setup. OMG (Online Management Guard) Administrators are able to establish an internet curfew or restrict internet access at speciied times via OMG. You may schedule the starting and ending hours of internet access granted to other users.
  • Page 55 Internet Flash Internet Flash searches for available UEFI firmware updates from our servers. In other words, the system can auto-detect the latest UEFI from our servers and lash them without entering Windows OS. Please note that you must be running on a DHCP conigured computer in order to en- able this function.
  • Page 56 Would you like to save current setting user defaults? In this option, you are allowed to load and save three user defaults according to your own requirements.

  • Page 57: Hardware Health Event Monitoring Screen

    3.6 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU Fan 1 Setting This allows you to set CPU fan 1’s speed.

  • Page 58: Boot Screen

    3.7 Boot Screen In this section, it will display the available devices on your system for you to conig- ure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer’s boot time. There are three con- iguration options: [Disabled], [Fast] and [Ultra Fast].
  • Page 59 Full Screen Logo Use this item to enable or disable OEM Logo. The default value is [En- abled]. AddOn ROM Display Use this option to adjust AddOn ROM Display. If you enable the option “Full Screen Logo” but you want to see the AddOn ROM information when the system boots, please select [Enabled].

  • Page 60: Security Screen

    3.8 Security Screen In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. Secure Boot Use this to enable or disable Secure Boot. The default value is [Disabled].

  • Page 61: Exit Screen

    3.9 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save coniguration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”...

  • Page 62: Software Support

    Click on a speciic item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your...
  • Page 63 Installing OS on a HDD Larger Than 2TB in AHCI Mode ® This motherboard adopts UEFI BIOS that allows Windows OS to be installed on a large size HDD (>2TB). Please follow the procedures below to install the operating system. ®...
