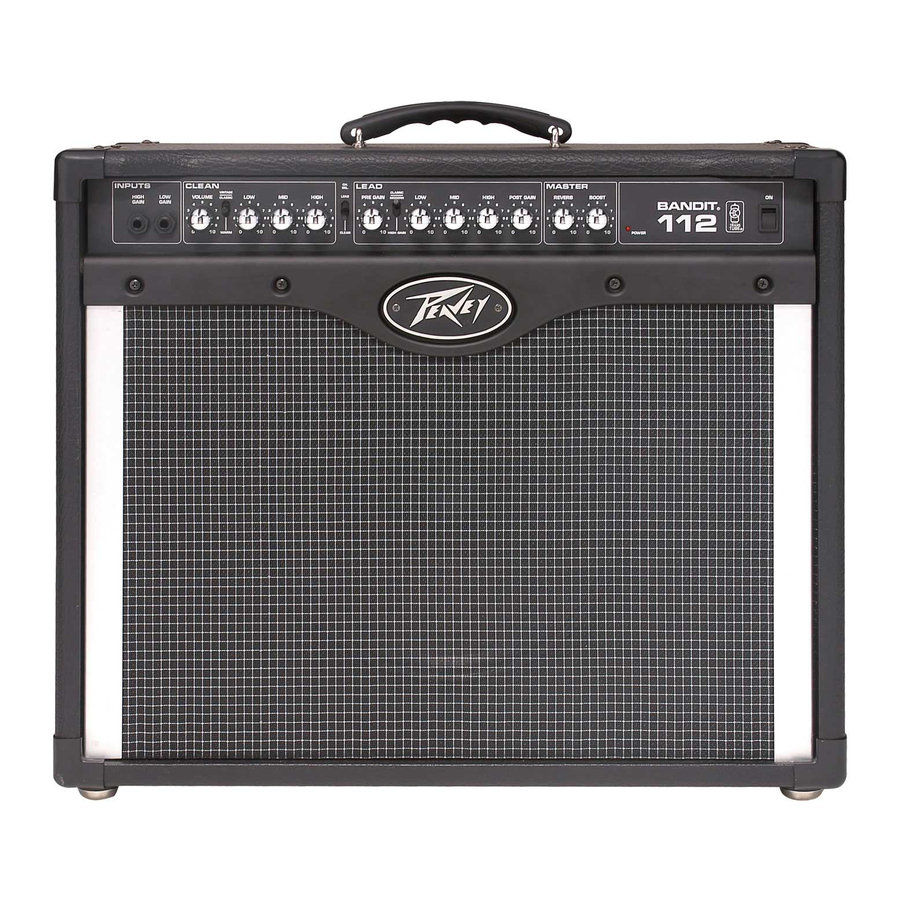

Peavey bandit 112 Service Manual

Peavey bandit 112
Hide thumbs Also See for bandit 112:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual , User Manual

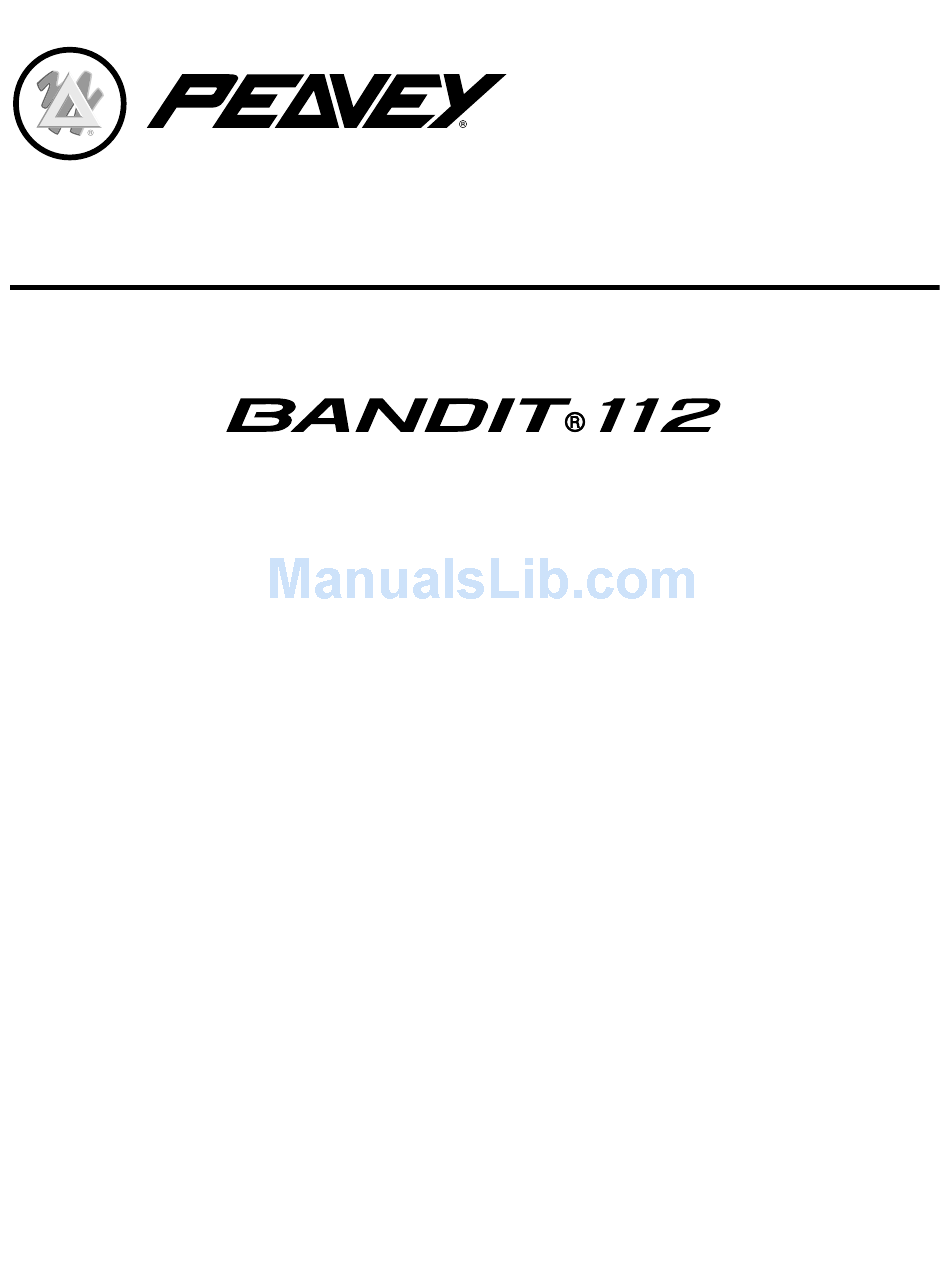

SERVICE MANUAL
CONTENTS
PCB Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-20
Exploded View • Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-22
Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301
(601) 483-5365 • FAX (601) 486-1278 • www.peavey.com

Advertisement

Table of Contents
loading

Related Manuals for Peavey bandit 112

Summary of Contents for Peavey bandit 112

  • Page 1 Exploded View • Parts List ..........21-22 Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301...

  • Page 2: Pcb Layout

    PCB LAYOUT Primary PCB - Top Side Primary PCB - Value Side - 2 -...

  • Page 3: Pre Amp Pcb - Top/Value Side

    PCB LAYOUT Pre AMP PCB - Top Side Pre AMP PCB - Value Side - 3 - - 4 -...
  • Page 4 PCB LAYOUT Power AMP PCB - Top Side Power AMP PCB - Value Side - 5 - - 6 -...

  • Page 5: Schematic Diagrams

    SCHEMATIC DIAGRAM Power AMP - 7 - - 8 -...

  • Page 6: Schematic Diagrams

    SCHEMATIC DIAGRAM Pre AMP - 9 - - 10 -...

  • Page 7: Parts List

    PARTS LIST Ref. NO. Description Mfr’s Part No. POWER AMP ASSEMBLY CAPACITORS C1, C2 CC 50V 0.1µF 10% AT 150F-104K-2-FC C3-C5 CE 50V 2.2µF 20% RL 5x11 157F-225M-5-IU CC 50V 100pF 10% AT 3.5x 150F-101K-2-FC CE 50V 22µF 20% RL 5X11 157F-226M-5-IU CE 50V 2.2µF 20% RL 5x11 157F-225M-5-IU...
  • Page 8 PARTS LIST Ref. No. Description Mfr’s Part No. DIODES DIODE BRIDGE RECT. RS603 4840-0350-0 CR1-CR6 DIODE 1N4148 ATS 4804-1480-C DZ 1W 15V AT TEMIC 4838-15V6-2 DIODE 1-SS-244T-72 AT 4840-7010-1 CR10-CR14, CR16-CR19 DIODE 1N4148 ATS 4804-1480-C CR20 DIODE 1N5393 200V 1.5A 4805-3930-2 CR21-CR25 DIODE 1N4148 ATS...
  • Page 9 PARTS LIST Ref. No. Description Mfr’s Part No. RESISTORS RCF 1/4W 3.3K 5% AT 4705-332J-2 RCF 1/4W 1K 5% AT 4705-102J-2 R4, R5 RCF 1/4W 22K 5% AT 4705-223J-2 R6, R7 RCF 1/4W 1M 5% AT 4705-105J-2 RCF 1/4W 220K 5% AT 4705-224J-2 RCF 1/4W 68K 5% AT 4705-683J-2...
  • Page 10 PARTS LIST Ref. No. Description Mfr’s Part No. RCF 1/4W 10K 5% AT 4705-103J-2 RCF 1/4W 1K 5% AT 4705-102J-2 RCF 1/4W 100K 5% AT 4705-104J-2 RCF 1/4W 15K 5% AT 4705-153J-2 RWR 5W 5.6 OHM 5% AL 474B-5R6J-1 RCF 1/4W 4.7K 5% AT 4705-472J-2 R71, R72 RWR 5W 0.33 OHM 5% AL...
  • Page 11 PARTS LIST Ref. No. Description Mfr’s Part No. CC 50V 270pF 10% AT 3.5x 150F-271K-2-FC CC 50V 0.022µF 10% AT 150F-223K-2-FD CE 50V 22µF 20% RL 5X11 157F-226M-5-IU CC 50V 0.1µF 10% AT 150F-104K-2-FC CC 50V 0.022µF 10% AT 150F-223K-2-FD CM 50V 0.012µF 5% RL 153F-123J-5-KMF CM 100V 0.1µF 10% RB...
  • Page 12 PARTS LIST Ref. No. Description Mfr’s Part No. CR19, CR20 DIODE 1N4148 ATS 4804-1480-C SOCKETS J1, J2 JACK SOCKET (MONO) 2113-1343-0 JM2422-4R WAFER 2101-9920-0 TRANSISTORS Q1-Q10 TR 2SC1740SLN 'R' HFE 4860-5370-5 TR 2SA933ASLN 'R' HFE 4860-5380-5 Q12-Q14 FET J-174 P-CHANNEL IDSS 490J-1740-5 RESISTORS RMF 1/4W 133K 1% AT...
  • Page 13 PARTS LIST Ref. No. Description Mfr’s Part No. RCF 1/4W 1.5K 5% AT 4705-152J-2 R46-R48 RCF 1/4W 100K 5% AT 4705-104J-2 RCF 1/4W 1.5K 5% AT 4705-152J-2 RCF 1/4W 22K 5% AT 4705-223J-2 RCF 1/4W 1.5K 5% AT 4705-152J-2 RCF 1/4W 1K 5% AT 4705-102J-2 RCF 1/4W 2.2K 5% AT 4705-222J-2...
  • Page 14 PARTS LIST Ref. No. Description Mfr’s Part No. 8 PIN CONNECTOR 7010-9850-0 IC TRIAC MAC97A-6 400V 3131-3430-0 IC DG211CJ ANALOG SWITCH 3131-6770-0 U2, U3 IC UPC4560C-DUAL OP. AMP 3130-2010-0 VOLUMES VR XVB12102PHJN15FS-15A 4750-5465-0 VR XVB12102PHJN15FS-05A1 4750-5415-0 VR XVB12102PHJN15FS-1B20 4750-5425-0 VR XVB12102PHJN15FS-25AM 4750-5455-0 VR XVB12102PHJN15FS-05A 4750-5435-0...
  • Page 15 PARTS LIST Ref. No. Description Mfr’s Part No. TRAN M9 WASHER BK ZINC 2600-9005-1403 M9 WASHER BK ZINC 2600-9005-1403 I/T WASHER M3X0.5X6.4 WZ 2606-3005-0642 TRAN SPRING WASHER M4X1X7 BZ 2607-4010-0703 M3 NUT 2640-3022-0540 TRAN NUT HEX M4 2640-4030-0704 M9 NUT (BLK) 2640-9020-1203 M3X8MM BINDING HEAD 2904-3008-0000...
  • Page 16 CORNER,TOP,FRONT,RIGHT 4152-7940-0 CORNER,BOTTOM,FRONT,LEFT 4152-7950-0 CORNER,BOT,FRONT.RIGHT 4152-7960-0 CORNER,LEFT,BACK TOP, 4152-7970-0 CORNER,RIGHT,BACK TOP, 4152-7980-0 CORNER,BACK,BOT,RIBBED 4152-7990-0 WASHER,CORNER,LARGE 4152-8000-0 PEAVEY LOGO LARGE 4154-1591-0 LELTA LOGO LARGE 4154-1601-0 CABINET ASSY PE017C 8900-2164-0 HANDLE,VINYL,BLACK/GRAY 8900-2170-0 FOOT CONTROL ASSEMBLY MISCELLANEOUS 0204 FOOT CONTROL PANEL 1403-5100-0 0200...

  • Page 17: Exploded View • Parts List

    EXPLODED VIEW • PARTS LIST Unit Assy Description Mfr’s Part No. Q’ty ASSEMBLY CABINET 8900-2164-0 CHASSIS 1403-6321-0 PCB BANDIT POWER AMP 1723-771A-0000 PRIMARY1.PCB 1723-773A-0000 PCB TRANS TUBE PRE-AMP 1723-768A-0000 HEAT SINK 5400-4131-0 FLOATING NUT BRACKET 4134-8491-0 PLASTIC BUSHING 4154-0261-0 CABLE CLAMP BLK 4152-1912-0 KNOB,SINGLE UNIT 2000 4152-7820-0...

  • Page 18: Exploded View • Parts List

    EXPLODED VIEW • PARTS LIST Packing Assy Description Mfr’s Part No. Q’ty CARTON BOX BANDIT II 1480-1013-0 CARTON SHEET 1450-4790-0 POLY BAG 1497-7074-0 EPE CORNER 1490-9150-0 BANDIT UNIT POLY BAG 300*250*0.12 1497-1202-0 OWNER'S MANUAL 4301-4117-0 WARRANTY CARD ADDENDUM 3030-1243-0 WARRANTY CARD 3030-1241-0 S/N LABEL(EU) 3000-4830-0...
