Jaycar Electronics QC8021 User Manual

Jaycar electronics wifi sports camera qc8021
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

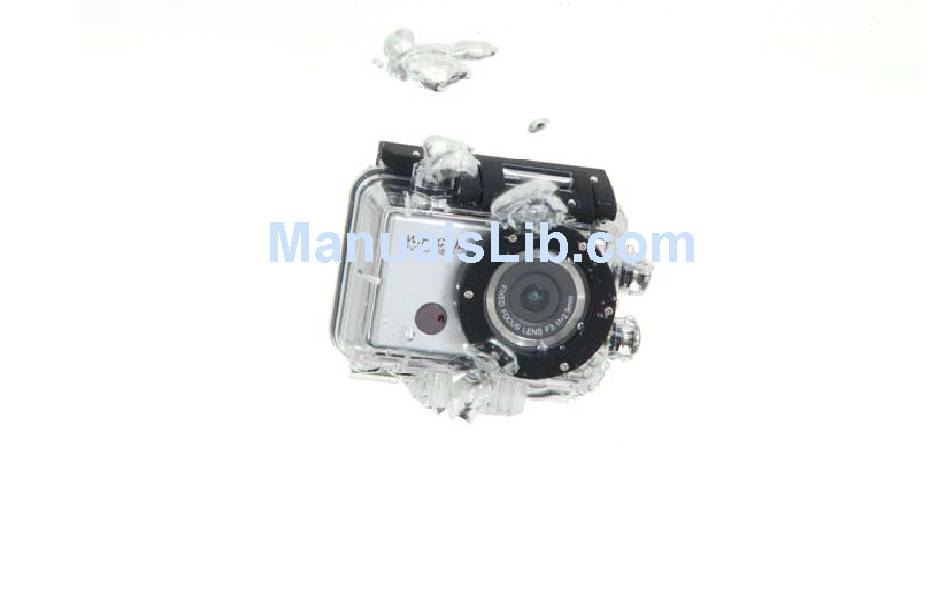

Wifi Sports Camera
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Jaycar Electronics QC8021

Summary of Contents for Jaycar Electronics QC8021

  • Page 1 Wifi Sports Camera User Manual...

  • Page 3: Quick Guide

    Itunes® or Google Play 2. Press the Wi-Fi button on the side of the camera to initialize the signal, the LED will be red 3. Search for the wireless signal “QC8021” on your smartphone or tablet using the password “1234567890”.

  • Page 4: Care And Maintenance

    Care & Maintenance Limit the cameras exposure to direct sunlight; also do not point its lens into direct sunlight. This may damage the image sensor of the video camera. Take precautions to prevent water or sand particles from entering the video camera when it is used on the beach or near water, as this may damage the video camera.

  • Page 5: Camera Diagram

    Please back up the data if the memory card inside this digital camera is used for the first time. After that, format the memory card.. Camera Diagram: Shutter button 8. Micro B USB port Microphone 9. Mini C HDMI port LCD display 10.
  • Page 6 LCD Display Diagram: Turn on the Wi-Fi camera, the LCD will display the following status and settings: 1. Camera mode 2. Video recording mode (default) 3. Wi-Fi icon (display when enabled) 4. Micro SD card icon (display when loaded) 5. Resolution icon: In camera mode, HI stands for 8 Mega Pixels (interpolated) (3264x2448), and in video recording mode, it stands for FHD (1920x1080, 30fps);...

  • Page 7: Operation

    In camera mode, LO stands for 5 Mega Pixels (2592x1920), and in video recording mode, it stands for 720P (1280x720, 30fps); HILO only displays in video recording mode, standing for 720P (1280x720,60fps). 6. Mute mode, displays when enabled, and disabled by default. 7.
  • Page 8 Video mode (720P, 60fps) Video mode (720P, 30fps) Video preview mode (1080P default) Camera mode (8MP) Camera mode (5MP) In video mode, press the Shutter button to start recording, LED will flash，and press it again to stop; In camera mode, press the Shutter button to take photo.

  • Page 9: Using Your Camera

    Using your Camera: When you use the camera for the first time, please: 1. Insert a micro SD or micro SDHC card (not included), as shown in the following picture. A Class 10 Micro SD Card is required for this camera. Turn off the camera before inserting or removing the card.

  • Page 10: Using The Battery

    2. Using the battery 2.1 Install the battery. Please install the lithium battery correctly as shown: Figure 1 Figure 2 Figure 3 Figure 4 Step 1. Push the battery cover switch to the lock position( ), and remove the battery cover. As shown in figure 1.
  • Page 11 symbols of the camera shell( ). As shown in figure 2 and figure 3. Step 3. Install the battery cover back in place, and lock the switch to the lock position( )to fix the battery. As shown in figure 4. 2.2 Charging the battery: The camera uses removable rechargeable lithium battery.
  • Page 12 Turn on/off 1. Turn on: press and hold the button for about 3 seconds, LCD will display “ON” and a beeping sound will be made. 2. Turn off: press and hold the button for about 3 seconds, LCD will display “OFF” and a beeping sound will be made.

  • Page 13: Default Setting

    Note: The camera will turn off automatically if it is idle for 5 minutes. Use: Default setting: After turning on the camera, the default setting is as below:...
  • Page 14 Video recording mode The camera is in video recording mode. icon Video resolution FHD: 1080p@30fps Recording time Stands for 0 hour and 00 minute. Display when a Micro SD card is inserted, otherwise no Micro SD card icon display. Battery level Battery is full The camera is in Mute mode, no Beep will be heard when Mute icon...
  • Page 15 HI stands for FHD (1920x1080,30 fps) video Video Lo stands for 720P (1280x720,30 fps) video HILO stands for 720P (1280x720,60 fps) video HI stands for 8M (interpolated) (3264 x 2448) resolution Photo Lo stands for 5M (2592 x 1920) resolution The camera supports taking 3 photos continuously (only via Continuous shot App)
  • Page 16 Start recording: Press and release the button, the icon and [:] displayed in LCD will flash. At the same time the red indicator will flash too, meaning the recording is in process. Stop recording: Press and release the button, the icon and [:] displayed in LCD will stop flashing.

  • Page 17: Vehicle Mode

    Press and release the button, a beep will be heard and the red indicator will flash, meaning a photo is taken. (If you take photos more than 999 copies, the LCD screen display only 999) 3. Vehicle Mode When you use it in the car, connect the car charger and switch on the ignition, it will power on and record 1080P video automatically.
  • Page 18 connecting to a Wi-Fi network, the indicator will flas h, and when a Wi-Fi network is connected, the indicator will remain on. The Wi-Fi icon will display on LCD screen.( In order to save power, Wi-Fi will be automatically disabled if no terminal is connected after 30 seconds) Wi-Fi is disabled by default When Wi-Fi is enabled, the Wi-Fi icon will display on LCD...
  • Page 19 5. Enable/disable Mute mode The buzzer is enabled by default. Under the Video or Photo mode, press an d hold the Shutter button to disable the buzzer and indicator to enter Mute mode. Under Mute mode, the icon will display on the screen; press and hold the Shutter button again to exit Mute mode.
  • Page 20 6. Connecting to HDTV via HDMI (not included) 6.1 Connect the camera to a HDTV via a Mini HDMI cable (not included) you need to view the image and audio to an HDTV for playback, insert the end of the HDMI cable to the mera, and the other end (output) to the HD input of the HDTV, as shown in the following figure:...
  • Page 21 Note: Before connecting or removing the HDMI cable, please stop video reco rding, ayback and disconn ect the Wi-Fi first. 2 When the HDTV is connected, it enters Playback mode, the LCD displays as below: Icon name Description Under Playback mode currently.
  • Page 22 In Playback mode, press the Power butto to switch between photos and videos.When there are several photos or videos, p ress the Wi-Fi button to select the photo or video. When a video file is selected, press the Shutter button to play it, and press the Shutter button again to stop playing.
  • Page 23 7. Connecting to PC 7.1 Turn on the camera and connect it to the USB port of the PC via the attached USB cable. The camera will enter U-disk mode and the LCD will display as below after connection: Now you can view the photos or videos taken by the camera on the PC.
  • Page 24 Note: After the camera connects to the PC to enter U-disk mode, you will see two removable disks displayed in My computer of Windows, one is the Micro SD card, storing all the photos taken and video recorded by users; the other one stores t he system file information, including a file named SSID_PW.CFG, containing the AP ID of the camera and the password for AP login.
  • Page 25 Note: A dri ver is not required for web cam mode (PCC mode) on Windows XP(SP3 ) version or above. emote Contro ller Ap plication uttons Power off b utton IR Port Video button Photo button...

  • Page 26: Remote Control Instruction

    Remote Control Instruction: You can use the remote controller to record videos, take photos and shut down the camera. When using the remote controller, aim the IR port to the infrared signal reception light of the camera, and press the video button, photo button or power off button.

  • Page 27: App Interface

    APP Interface: 1. Video resolution 6. Photo mode 2. White balance 7. Video mode 3. Setup (enter setup menu) 8. Wi-Fi signal icon 4. Enter Playbac k mode 9. battery icon 5. Shutter button...
  • Page 28 1. DV battery icon 2. Video resolution 3. White balance 4. Setup (enter setup menu) 5. Enter Playback mode 6. Shutter button 7. Photo mode 8. Video mode Note: 1. A Micro SD card must be inserted if you need to take a photo, record a video, or download files on the terminal;...

  • Page 29: App Installation

    Wi-Fi icon on the LCD screen of the camera. 1.4 Enable Wi-Fi on your smartphone or tablet and search for wireless AP signal “QC8021, then it will connect the camera , until the system displays “Connected successfully”.

  • Page 30: Waterproof Case

    Note: Wireless password is “1234567890”. 1.5 Click on the icon in the App list of the smartphone or tablet to open it. Now you can preview the image sent by the camera on the phone or tablet.. Waterproof Case Before sealing the waterproof case, keep the camera housing’s rubber seal clean, a single hair or grain of sand can cause a leak.
  • Page 31 To clean the seal, rinse in fresh water and shake dry (drying with a cloth may cause lint to compromise the seal). Re-install the seal into the grooves in the backdoor of the housing. To ensure waterproof seal with the waterproof case please ensure you use silicon grease to assist with water proofing and protection.
  • Page 32 Distributed by: TechBrands by Electus Distribution Pty Ltd 320 Victoria Rd Rydalmere NSW 2116 Australia Phone: 1300 738 555 Fax: 1300 738 500 www.techbrands.com Made in China...
