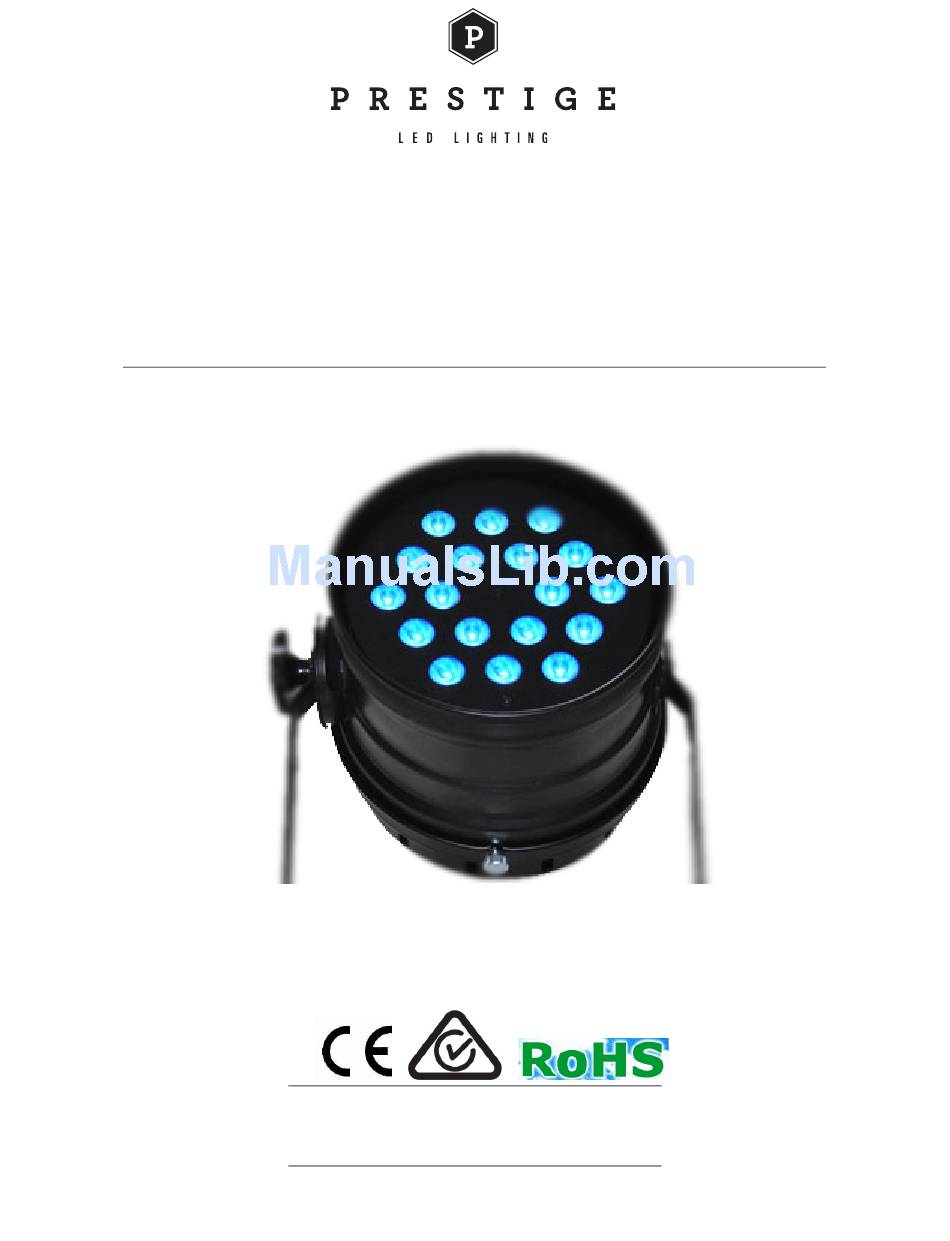

- Page 1 Glow P18i LED Par USER MANUAL 18*8W,RGBW 4-IN-1 QUAD- COLOR...
-
Page 2: Table Of Contents
8. Operating Control Instructions 11 Master/Slave 11 9. XLR cable connecting 12 XRL cable 12 10. Wiring diagram 13 11. Trouble Shooting 14 12. Technical Specifications 15 2 Glow P18i LED Par – User manual... -
Page 3: Product Introduction
PRODUCT INTRODUCTION The Glow P18i LED Par light is encased in an aluminum shell, and displays a long can, short can and colour filter. It’s high power 4-in-1 LEDs (made up of R, G, B, W... -
Page 4: Safety Instructions
Make sure there are no inflammable and explosive items within 0.5 meters of the fixture. The yellow/green cables are for earthling safety. These should not flicker when fixture is in use. 3. PRODUCT DIAGRAM 4 Glow P18i LED Par – User manual... -
Page 5: Features
Color saturation refers to the proportion of color chromaticity possession (100% saturation means the color has reached its purest state). Purity value refers to the brightness, when purity reaches 100% and the color is the brightest. 5 Glow P18i LED Par – User manual... -
Page 6: Dmx Channel（4Ch
G 0-100% 0-255 B 0-100% 0-255 W 0-100% DMX CHANNEL（ 5CH） Channel DMX Value Control Function Remarks 0-255 General dimming 0-255 R 0-100% 0-255 G 0-100% 0-255 B 0-100% 0-255 W 0-100% 6 Glow P18i LED Par – User manual... -
Page 7: Dmx Channel（8Ch
8CH. 128-159 RGB Gradient The speed will start adjusting from the 8CH. 160-191 Dark-bright-dark auto run 192-223 4 colors jumping change 224-255 Multi-colors jumping change 0-255 Speed Adjustment （7CH） 7 Glow P18i LED Par – User manual... -
Page 8: Display Operation
Pr00-‐Pr15 Built-‐in p rogram A S00-‐ ASC Color J umping AS15 MENU 8 Glow P18i LED Par – User manual... - Page 9 Green d imming DL b000-‐b255 White d imming UL u000-‐u255 White d imming 9 Glow P18i LED Par – User manual...
-
Page 10: Operating Instructions
To choose the DMX channel：CHNd mode Press MENU to return to the initial setting Press UP/DOWN until “CHNd” Press ENTER to select. The display will flash Press UP/DOWN to modify DMX receiving channel，3CH, 4CH, 5CH, 10 Glow P18i LED Par – User manual... -
Page 11: Operating Control Instructions
Slave setting: Settings must be in the SLAV mode and the address code should be A001 to assure the master’s signals are received correctly. Only one light can be set as a Master and the remaining are slaves. 11 Glow P18i LED Par – User manual... -
Page 12: Xlr Cable Connecting
120 （1/4W）at the end of the DMX connection as shown below: The conversion between 3 pin and 5 pin XLR. If the output cable of the DMX512 controller is a 5PIN, a 5PIN to 3PIN cable is necessary. 12 Glow P18i LED Par – User manual... -
Page 13: Wiring Diagram
10. WIRING DIAGRAM 13 Glow P18i LED Par – User manual... -
Page 14: Trouble Shooting
Check if the voltage of the input end of corresponding color is are always working. bright/not bright Change the IC control board. Note: Seek advice from a professional prior to authoring any repairs 14 Glow P18i LED Par – User manual... -
Page 15: Technical Specifications
• Cooling m ode: N atural C onvection • Anti-‐electricity i ntension：1.5KV • Insulation R esistance:＞２MΩ • Size:30*22*23cm • Net W eight:2.5KG 15 Glow P18i LED Par – User manual...
